P4V-MCAIIISeeker MCA III Cable Installer Meter with Wi-Fi

Copyright © 2013 Trilithic, Inc. All Rights Reserved. Specifications are subject to change without notice. Please contact your sales representative for further information. Seeker & Seeker MCA III Leakage Detection System Operation Manual This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. See Page 2 for complete details. This equipment has been tested and found to comply with Industry Canada Standards. See Page 3 for complete details. 2 Seeker & Seeker MCA III Operation Manual FCC Part 15 Compliance Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Trilithic, Inc. might cause harmful interference and void the FCC authorization to operate this product. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the device and receiver • Connect the device into an output on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help The Seeker MCA III can only be used with the following Trilithic approved Wi-Fi antennas: • P/N 2071677001 - 2.4 GHz antenna • P/N 2071677004 - 2.4 & 5 Ghz antenna 3 Seeker & Seeker MCA III Operation Manual Industry Canada Compliance This device complies with Industry Canada license-exempt RSS standard(s). Operation of this device is subject to the following two conditions; 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. The Seeker MCA III can only be used with the following Trilithic approved Wi-Fi antennas: • P/N 2071677001 - 2.4 GHz antenna • P/N 2071677004 - 2.4 & 5 Ghz antenna Industrie Canada Conformité Cet appareil est conforme au Cahier des charges sur les normes radioélectriques d’Industrie Canada concernant les appareils radio exempts de licence. Le fonctionnement de cet appareil est soumis aux deux conditions suivantes : 1) cet appareil ne doit pas produire de brouillage et 2) cet appareil doit accepter tout brouillage, y compris celui pouvant causer un mauvais fonctionnement de l’appareil. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Le Seeker MCA III ne peut être utilisé avec le Trilithic approuvé antennes Wi-Fi qui suit: • P/N 2071677001 - 2.4 GHz antenne • P/N 2071677004 - 2.4 et 5 Ghz antenne 4 Seeker & Seeker MCA III Operation Manual Trilithic Company Profile Trilithic is a privately held manufacturer founded in 1986 as an engineering and assembly company that built and designed customer-directed products for telecommunications, military and industrial customers. From its modest beginnings as a two-man engineering team, Trilithic grew over the years and broadened its offerings of RF and microwave components by adding broadband solutions to its product line. This was accomplished with the acquisition of components manufacturer Cir-Q-Tel and instruments manufacturer Texscan. Today, Trilithic is an industry leader providing telecommunications solutions for major broadband, RF and microwave markets around the world. As an ISO 9000:2001 certified company with over 40 years of collective expertise in engineering and custom assembly, Trilithic is dedicated to providing quality products, services, and communications solutions that exceed customer expectations. Trilithic is comprised of five major divisions: • Broadband Instruments and Systems Offers test, analysis, and quality management solutions for the major cable television systems worldwide. • RF Microwave Components Provides components and custom subsystems for companies specializing in cellular, military, and other wireless applications. • Emergency Alert Systems Leading supplier of government-mandated emergency alert systems used by broadcast TV, cable TV, IPTV, DBS, and radio stations. • XFTP Offers a specialty line of field technical products for cable operators and technicians, as well as a line of products for installing electronics in the home of the future. 5 Seeker & Seeker MCA III Operation Manual Table of Contents Chapter 1 General Information ..................................................................................................................9 Helpful Website ......................................................................................................................9 Where to Get Technical Support ............................................................................................9 How this Manual is Organized .............................................................................................10 Optional Software.................................................................................................................11 Conventions Used in this Manual.......................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 1 RP-7560L 12 East Devonwood SOLVING A WAVE OF EMI COMPLIANCE PROBLEMS Romeoville, IL 60446 January , 2014 Tel: (815) 293-0772 Page 1 of 1 Fax: (815) 293-0820 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Industry Canada Certification and Engineering Bureau Ottawa, Ontario K2H 8S2 Canada Reference FCC ID: P4V-MCAIII Reference IC ID: 7020A-MCAIII Organization: Trilithic Long Term Confidentiality Trilithic requests that the following materials be withheld from public inspection permanently under 47 C.F.R. 0.457 & 0.459: (1) Detailed Circuit Schematics of the EUT (2) Block Diagrams (3) EUT Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. They are considered confidential trade secrets Authorized Signature Joseph Strzelecki Senior EMC Engineer Radiometrics Midwest Corporation Authorized Agent for Trilithic.

Page 1 of 1 RP-7XXXL 12 East Devonwood SOLVING A WAVE OF EMI COMPLIANCE PROBLEMS Romeoville, IL 60446 May 27, 2014 Tel: (815) 293-0772 Page 1 of 1 Fax: (815) 293-0820 Federal Communications Commission Authorization and Evaluation Division Industry Canada Certification and Engineering Bureau Reference FCC ID: P4V-MCAIII Reference IC ID: 7020A-MCAIII Organization: Trilithic This product will not be used as a Master or Access Point. It will only use the 15.247 frequencies of 2412-2462 MHz and 5745-5825 MHz. It is used exclusively in vehicles, so AC power line conducted emissions are not required. This product has a Wifi module that was modularly approved by Redpine as FCC ID: XF6- RS9110N1103. The only change to the Wifi Module is the addition of an external antenna. Test Report Summary File Name FCC Section Notes Trilithic 7560D 247 FCC-IC Rpt.doc 15.247 This report covers 15.247 Channels, with all new emissions results. Radiometrics Test Report Authorized Signature Joseph Strzelecki Senior EMC Engineer Radiometrics Midwest Corporation Authorized Agent for Trilithic

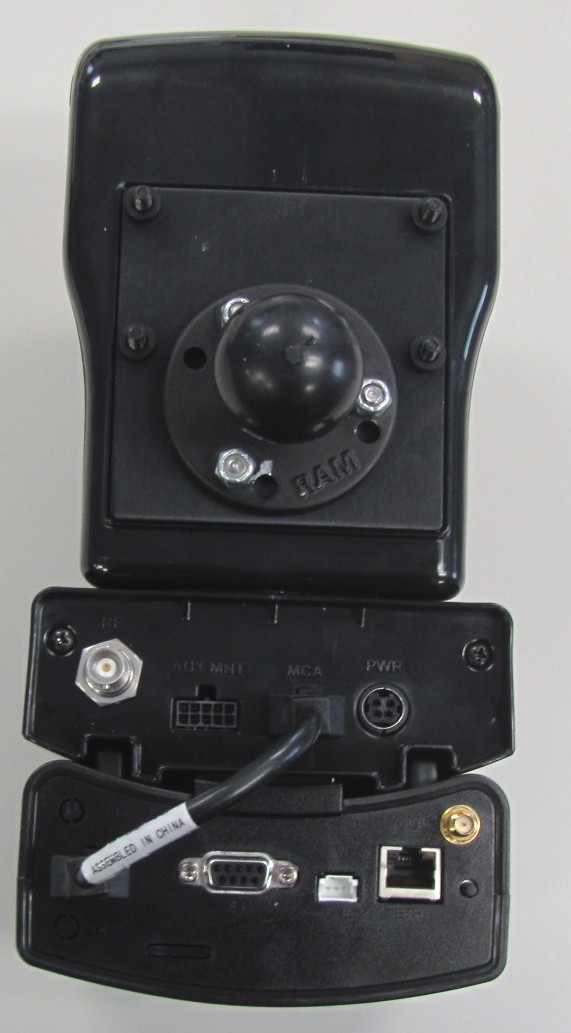

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 External EUT Photographs Top of EUT Front of EUT Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Back of EUT Left Side of EUT Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 2.4GHz 5dBi RP-SMA(F) antenna . Dual Band (2.4GHz & 5Ghz) 3dBi & 4dBi RP-SMA(F) antenna

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 ID Label/Location Drawing of label Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph showing placement of Label. This is not the actual label for the EUT

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Internal EUT Photographs Photograph of Wifi Module Photograph of Wifi Module with shield removed Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of Display module installed on Main PCB Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of Main PCB Foil side

Radiometrics Midwest Corporation - www.Radiomet.com Page 1 of 32 Electromagnetic Compatibility Test Report Tests Performed on a Trilithic Seeker MCA III with Wifi Transciever, Model 2011690000 Radiometrics Document RP-7560D Product Detail: FCC ID: P4V-MCAIII IC: 7020A-MCAIII Equipment type: 2412-2462 MHz and 5745-5825 MHz DTS Transmitter for 15.247 Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2013 Industry Canada RSS-210, Issue 8: 2010 as required for Category I Equipment This report concerns: Original Grant for Certification FCC Part 15.247 Tests Performed For: Test Facility: Trilithic 9710 Park Davis Dr. Indianpolis, IN 46235 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 (815) 293-0772 Test Date(s): (Month-Day-Year) May 8 to July 13, 2013 & May 15, 2014 Document RP-7560D Revisions: Rev. Issue Date Affected Sections Revised By 0 May 2, 2014 1 May 27, 2014 10.5 & 10.7 Joseph Strzelecki Radiometrics Midwest Corporation www.radiomet.com Testing of the Trilithic, Seeker MCA III, Model 2011690000, Cable Installer Meter with Wifi RP-7560D Rev. 1 Page 2 of 32 Table of Contents 1 ADMINISTRATIVE DATA ....................................................................................................................3 2 TEST SUMMARY AND RESULTS ......................................................................................................3 2.1 RF Exposure Compliance Requirements ......................................................................................4 3 EQUIPMENT UNDER TEST (EUT) DETAILS .....................................................................................4 3.1 EUT Description ............................................................................................................................4 3.1.1 FCC Section 15.203 & RSS-GEN Antenna Requirements.....................................................4 3.2 Related Submittals ........................................................................................................................4 4 TESTED SYSTEM DETAILS ...............................................................................................................4 4.1 Tested System Configuration........................................................................................................4 4.2 Special Accessories ......................................................................................................................5 4.3 Equipment Modifications ...............................................................................................................5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS ..................................................................5 6 RADIOMETRICS’ TEST FACILITIES ..................................................................................................5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS .........................................6 8 CERTIFICATION .................................................................................................................................6 9 TEST EQUIPMENT TABLE .................................................................................................................6 10 TEST SECTIONS ..............................................................................................................................7 10.1 Occupied Bandwidth ...................................................................................................................7 10.2 Peak Output Power ...................................................................................................................13 10.3 Power Spectral Density.............................................................................................................14 10.4 Band-edge Compliance of RF Conducted Emissions ...............................................................14 10.5 Spurious RF Conducted Emissions from the Antenna Port ......................................................15 10.6 Spurious Radiated Emissions (Restricted Band) ......................................................................22 10.6.1 Radiated Emissions Field Strength Sample Calculation ....................................................23 10.6.2 Restricted Band Radiated Emissions Test Results ............................................................25 10.6.3 Radiated emissions (Fundamental, Band edge and Harmonics) .......................................27 10.7 Unintentional Emissions (Receive Mode) .................................................................................32 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Radiometrics Midwest Corporation www.radiomet.com Testing of the Trilithic, Seeker MCA III, Model 2011690000, Cable Installer Meter with Wifi RP-7560D Rev. 1 Page 3 of 32 1 ADMINISTRATIVE DATA Equipment Under Test: A Trilithic, Seeker MCA III with Wifi Model: 2011690000 Serial Number: 281195 This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) May 8, 2013 May 8 to July 13, 2013 & May 15, 2014 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer The tests were not witnessed by Trilithic Trilithic Radiometrics’ Personnel Responsible for Test: Test Report Approved By 5/27/2014 Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE 5/27/2014 Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a Seeker MCA III Cable Installer Meter with Wifi, Model 2011690000, manufactured by Trilithic. The detailed test results are presented in a separate section. The following is a summary of the test results. Spread Spectrum Transmitter Requirements Environmental Phenomena Frequency Range FCC Section RSS- Section Test Result RF AC…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Test Setup Photographs Photographs of Radiated Emissions Test Setup Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of Bandwidth Test
