P5A-AA-SM0P25BRWireless USB dongle

(AA-SM0P20W / AA-SM0P25B) Wireless Mouse Manual IMPORTANT SAFEGUARDS This safeguard section lists many helpful tips that will be enable you to maintain the safety of the system. 1. Refrain from modifying or disassembling the product. We do not guarantee repair or exchange of the modified product. 2. To clean speaker, use dry cloth. Do not use liquid or aerosol cleaner, benzene etc. 3. Do not spill liquids or dust on product. 4. Do not touch the cable with wet hands. 5. Do not use in moist conditions. 6. Keep away from candles, lighters, sunlight etc. 7. Keep away from magnets or products with magnets. 8. Connect with PC firmly. 9. Keep out of reach of children or a pet not to bite it 10. Do not throw. Use only for intended purpose. 11. Connect to computer USB port directly. Does not work properly using USB hub or keyboard port due to lack of power. - Feature 1. 18.9mm mini size receiver suits for Notebook PC. 2. Easy switch DPI to 800 and 1600 under users’ own usage. 3. Save the power consumer by Power ON/OFF switch. 4. Plug & Play 5. Stylish design - Specification 1. Sensor type : Laser 2. Connectivity type : 2.4GHz Wireless 3. Available range : Max 8 M (The distance may reduced due to under circumstance of its installation and battery capacity) 4. Channel Number : 16 5. Dimension : 120 (L) x 59 (W) x 30.6 (H) mm 6. OS : Window 2000 / XP (32Bits) / Vista (32,64Bits) / 7 (32.64Bits) - Parts Included Please check the accessories inside the box Mouse : 1 ea USB receiver : 1 ea (it installed underneath of mouse bottom side ) AAA battery : 2 ea User manual : 1 ea - Part Names & Function Switch DPI Push mouse wheel button and right button simultaneously for 5 sec, then DPI switch 800 to 1600 * 800dpi : basic setting value Power On/Off switch ID reset button ID reset button USB receiver Battery cover button Slide the button upward then open the cover Battery cover - Trouble Shooting When you have problems with your mouse, you may have one of these common problems. Symptom Solution 1. No Power - Check the battery installed properly - Check the battery polar (+),(-) installed - Changed new battery 2. Mouse not detected - Check USB receiver connecting to USB port of PC - Check Power On / Off switch - Connect to computer USB port directly. Does not work properly using USB hub or keyboard port due to lack of power. - USE other USB port of PC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Do not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Wireless mouse FCC ID P5A-AA-SM0P25BM USB Receiver FCC ID P5A-AA-SM0P25BR CE conformity marking Manufacturer ARESON TECHNOLOGY CORPORATION 11F, NO. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C. USB Receiver FCC Label ARESON TECHNOLOGY CORPORATION Model: AA-SM0P25B FCC ID: P5A-AA-SM0P25BR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C Date: July 27, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Geoffrey Do of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Geoffrey Do of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kevin / Manager ARESON TECHNOLOGY CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: P5A-AA-SM0P25BR To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kevin / Manager ARESON TECHNOLOGY CORPORATION

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label 1. FCC ID label drawing The label will be permanently affixed at a conspicuous location on the device 2. FCC ID label location FCC ID: P5A-AA-SM0P25BR

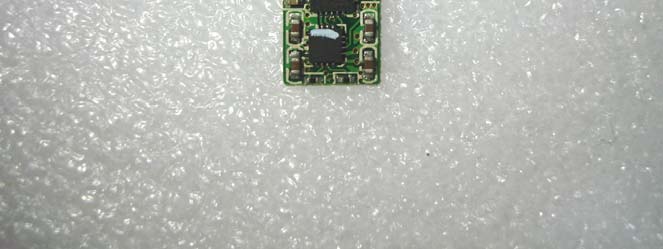

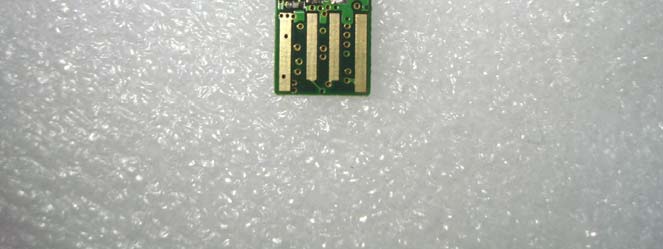

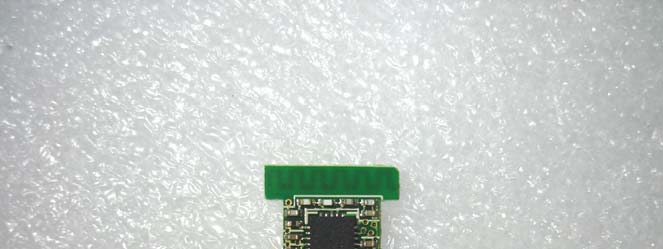

Internal photos of EUT Internal view of EUT Top view of PCB Bottom view of PCB

MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (1) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.249 Test Report Equipment Under Test Receiver Model Name AA-SM0P25B(Basic model) AA-SM0P20W(Variant model) Serial Number Z4E0001 FCC ID P5A-AA-SM0P25BR Applicant ARESON TECHNOLOGY CORP. Manufacturer ARESON TECHNOLOGY CORP. Date of Test(s) 2010.06.24 ~ 2010.07.14 Date of Issue 2010.07.30 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by ARESON TECHNOLOGY CORP. 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C Tel.: 886-911-018833 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82 +31 338 8837 Fax: +82 +31 338 8847 MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (2) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- July 22, 2010 Initial -- 1 July 30, 2010 FCC ID was correct Ted Lee MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (3) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. MEASUREMENT EQUIPMENT ...................................................................................... 6 4. FUNDAMENTAL, SPURIOUS EMISSION AND EDGE BAND RADIATED EMISSION . 7 5. CONDUCTED POWER LINE TEST .............................................................................. 13 r/ "rrrng MOVON CORPORATION I'rr t ,r LtlE rr\-' J"";;; Report Number: 0008(1)-01-06i10 1, Attestation of test results 1.1. Details of applicant Applicant : ARESON TECHNOLOGY CORP. Address : 11F, No.646, Sec.5, Chongsin RD., San Chong 241,Taipei County, Taiwan, R.O.C Contact person : Amy Chang Telephone :886-911-018833 1.2. Summary of test results The EUT has been tested according to the following specifications; X Abbreviation C Complied N/A Not applicable F Fail Approval signatories Page : (4) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPOMTION. =RcF;iff..t !:11:::=::i:tt.lutlit:t! :, 15.209(a) 15.249(a) 15.24e(d) 15.205 Fundamental, Spurious emission and edge band radiated emission c 15.107(a)Conducted power line testc Report approvalby; Ted Lee Test Engineer MOVON CORPORATION Geoffrey Do Technical Manager MOVON CORPORATION MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (5) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Receiver Model AA-SM0P25B(Basic model), AA-SM0P20W(Variant model) Serial number N/A Power supply DC 5.0 V Frequency range 2 402 ㎒ ~ 2 479 ㎒ Modulation technique GFSK Number of channels 16 Operating conditions - 20 °C ~ + 55 °C Antenna gain - 0.31 ㏈i ( M a x . ) MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (6) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 3. Measurement equipment Equipment Manufacturer Model Calibration due. EMI Test Receiver R&S ESIB26 2010-12-28 Signal Generator R&S SMR27 2011-01-07 Spectrum Analyzer R&S FSV-40 2010-10-23 Power Meter Agilent E4416A 2010-11-26 Power Sensor Agilent 9327A 2010-11-26 Horn Antenna R&S 100236 2010-12-18 Bi-log Antenna A.H. SYSTEM SAS-521-7 2011-10-08 Power Amplifier MITEQ AM-1431 2011-01-07 Power Amplifier MITEQ AFS43-01002600 2011-01-07 High Pass Filter Wainwright WHK3.0/18G-10SS 2010-11-26 Bluetooth Tester TESCOM TC-3000B 2010-11-26 Directional Coupler Narda 26733 2010-11-26 Controller INNCO CO2000 N/A Antenna Master INNCO MA4000 N/A LISN R&S ESH3-Z5 2010-11-01 Shielded Room 8m(W)X6m(L)X3.3m(H)N/A N/A ※ Remark Support equipment Description Manufacturer Model Serial number Notebook Computer Ienovo S10-2 CBK0434403 Notebook Computer Samsung Electronics Co., Ltd NT-R70 BD2993AQ2021R MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (7) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4. Fundamental, spurious emission and edge band radiated emission 4.1. Test setup The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 24 ㎓ emissions. MOVON CORPORATION Report Number: 0008(1)-01-06/10 Page : (8) of (18) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4.2. Test procedures Radiated emissions from the EUT were measured according to the dictates of ANSI C63.4:2003 4.2.1. Test procedures for radiated spurious emissions 1. The EUT was placed on the top of a rotatin…

Text truncated - open the document above for the full version.

A. Setup photo of EUT(AA-SM0P25B, AA-SM0P20W) B. Setup photo of AC power line (AA-SM0P25B, AA-SM0P20W)
