P5A-AA-SM1PWLB2.4GHz Wireless Mouse

Wireless LASER MOUSE User's Guide(AA-SM1PWLB/AA-SR1PWUB) Pull out the receiver Wheel button ID reset button Mouse Introduction Congratulations on your purchase of the most innovative mini wireless mouse. With an incredible sensitivity to surface details and high tracking speed than other mice, the mouse can track reliably even on tricky polished or wood-grain surfaces. It offers even more advance that will make you more productive and more comfortable. A. Hardware Installation 2.4GHz, 20 Channels/2 16 ID Using state-of-art technology. High tracking speed and sensitivity. Nano receiver. Longer battery life. Auto-Link, Plug and Play! No need to set the channel ID. Power on/off switch. Ergonomic design. 1600 dpi resolution. 2*AAA Alkaline batteries included. Power on/off switch This product complies with IEC 60825-1, Class I laser product. The product complies with FCC and CE rules. Safety Notice Please DO NOT direct the laser beam at anyone's eyes. Features + - A wrong battery placement may cause batteries overheat. Battery compartment cover 2 * AAA batteries Battery cover 2. Connect the receiver a. Turn on your PC. b. Connect the receivere to USB port on PC. PC USB port Power on/off: There is a Power on/off switch designed to save the batteries power while non-usage of a longer period. Receiver 1. Insert the batteries a. Remove the battery compartment cover on the bottom case of the mouse. b. Fit in the batteries accordingly to the diagram indicated in the battery cabinet. c. Close the battery compartment cover properly. d. Make sure the Power on-off switch on the bottom of the mouse is ON. e. The Low Power LED on the wheel bar will be on for 2 seconds if the mouse power is on. Low power indicator Receiver ◎ Battery use reminders 1. Remove worn-out batteries from equipment immediately and dispose of promptly. 2. Keep all batteries (used or new) out of the reach of children. 3. To have the batteries with a regular check and replace new batteries if not used for a long time. 4. Never dispose of batteries in fire, as they could explode. 5. Always replace all the batteries at the same time. Mixing old and new batteries or mining types (such as alkaline with zinc carbon) will reduce overall performance and could cause leakage or rupture. 6. Do not mix different types of batteries (e.g. Ni MH, NiCd, alkaline, and etc) in the mouse. 7. Remove batteries from the electrical device if the device is not going to be used for a long time. 8. If the performance of the batteries decreases substantially, it is time to replace the batteries. ◎ Trouble Shooting a. Make sure you have connected the receiver correctly to the computer's USB port. b. For the best performance, we suggest you to locate the receiver with a distance from other electrical devices, such as the computer, the computer monitor or external storage drives. c. Make sure you have set the communication between the receiver and the mouse. Refer to the Communication :The mouse and the receiver d. If you find the communication channel does not connect well. You can use the software connection tool to re-connect the mouse & receiver to reset a new channel ID. You are able to get the software from the included diskette of the package or download from your local brand vendor's website. Press ID reset buttonRe-plug receiver 1 23 ID links OK! 4. Replace the new batteries Please replace a pair of new batteries and follow the previous instructions. (2, 3) The red LED on the scroll wheel is the low batteries power indicator. It indicates that batteries inside the mouse are needed to be replaced. Note While the mouse is working, if encountering any interference, the mouse and the receiver will automatically source out and transfer to another free channel. During the transferring, the cursor movement may have a second delay. Note 3. Communication : The mouse & the receiver The 2.4Ghz RF mouse features a dual-way transmission technology which enables the mouse and the receiver auto-communication. A. Auto-link mode 1. Make sure the Power On-Off Switch on the bottom of the mouse is ON. 2. Operate the mouse, and cursor's movement is mapping mouse movement. Now the mouse and the receiver is auto-linked successfully. B. Manual mode Re-plug receiver and the ID will be set up automatically. If channel / signal is conflict, press mouse ID button to set up ID by manual. e. Some system devices might conflict with the mouse. Confirm the IRQ/address settings of these devices for conflicts, and change the settings as required. f. Make sure that you are not working the mouse on glossy or reflective surfaces. FCC statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example-use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (…

Text truncated - open the document above for the full version.

ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C Date: Jan. 25, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Technical Manager KT Kang of THRU-KES CO., LTD. and hereafter referred to as THRU-KES CO., LTD , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of THRU-KES CO., LTD. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing THRU-KES CO., LTD. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Boda Zheng / RD Electronic Director ARESON TECHNOLOGY CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

ARESON TECHNOLOGY CORPORATION 11F, No. 646, Sec. 5, Chongsin RD., San Chong 241, Taipei County, Taiwan, R.O.C Date: Jan. 25, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P5A-AA-SM1PWLB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX – AA-SM1PWLB - Part List.PDF Schematics Diagram(s) CONF APPENDIX - AA-SM1PWLB – Schemetics.PDF Block diagram CONF APPENDIX - AA-SM1PWLB – Block diagram.PDF PCB Layout CONF APPENDIX - AA-SM1PWLB – PCB Layout.PDF Operation description CONF APPENDIX - AA-SM1PWLB – Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Boda Zheng / RD Electronic Director ARESON TECHNOLOGY CORPORATION

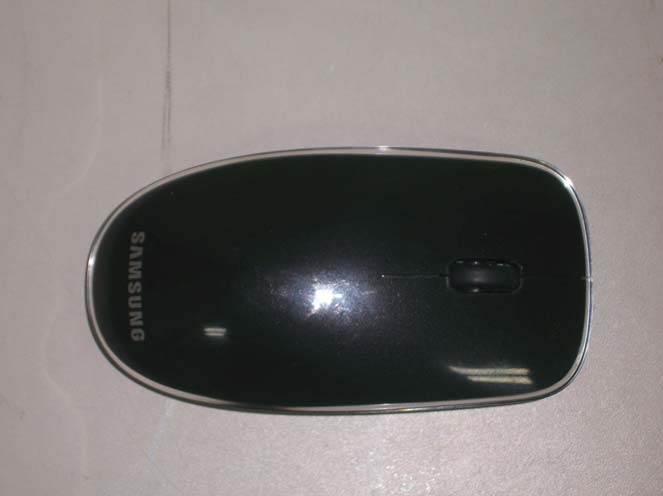

www.kes.co.kr Model No.: AA-SM1PWLB Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: AA-SM1PWLB Page 2 of 2

www.kes.co.kr Model No: AA-SM1PWLB Page 1 of 1 FCC ID label and Location Label Areson Technology Corp. FCC ID: P5A-AA-SM1PWLB Model: AA-SM1PWLB

www.kes.co.kr Model No: AA-SM1PWLB Page 1 of 1 EUT Internal photographs PCB Antenna

www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 1 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. TEST REPORT For FCC Test Report No. : TK-FR11002 Date of Issue : 01/27/2011 FCC ID : P5A-AA-SM1PWLB Description of Product : 2.4GHz Mouse Model No. : AA-SR1PWLB Applicant : Areson Technology Corp. Manufacturer : Axonic International Corp. Standards : FCC Part 15.249 Test Date : 01/13/2011 – 01/25/2011 Test Results : PASS FAIL The test results relate only to the items tested. Tested by: Reviewed by: Jeff Do KT Kang Test Engineer Technical Manager Date: 01/27/2011 Date: 01/27/2011 THRU-KES CO.,LTD. 477-6, Hager-ri, Yoju-up, Yoju-gun Kyunggi-do,469-803, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 2 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. TABLE OF CONTENTS 1.0 General product description .................................................................................... 3 1.1 Test frequency .................................................................................................... 3 1.2 Test mode ......................................................................................................... 3 1.3 Model differences ................................................................................................ 3 1.4 Device modifications ............................................................................................ 3 1.5 Peripheral devices ............................................................................................... 3 1.6 Calibration details of equipment used for measurement ................................................... 4 1.7 Test facility ........................................................................................................ 4 1.8 Laboratory accreditations and listings ........................................................................ 4 2.0 Summary of tests ................................................................................................ 5 2.1 Technical characteristic test .................................................................................... 6 2.1.1 Fundamental, spurious emission and band edge radiated emission ............................... 6 Appendix A – Test equipment used For test ........................................................................... 12 www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 3 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.0 General product description Equipment model name : AA-SM1PWLB Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type & gain : PCB antenna / Gain -9.2dBi Frequency Range : 2403 ~ 2478 MHz Number of channels : 20 Type of Modulation : GFSK Power Source : DC 3V 1.1 Test frequency Low channel Middle channel High channel Frequency (MHz) 2403 2453 2478 1.2 Test mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). 1.3 Model differences Not applicable 1.4 Device modifications The following modifications were necessary for compliance: Not applicable manufacturer 1.5 Peripheral devices Device Manufacturer Model No. Serial No. N/A www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 4 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.6 Calibration details of equipment used for measurement Test equipment and test accessories are calibrated on regular basis. The maximum time between calibrations is one year or what is recommended by the manufacturer, whichever is less. All test equipment calibrations are traceable to the Korea Research Institute of Standards and Science (KRISS), therefore, all test data recorded in this report is traceable to KRISS. 1.7 Test facility The measurement facility is located at 477-6, Hager-ri, Yoju-up, Yoju-gun Kyunggi-do,469-803, Korea. Tel: +82-31-883-5092/Fax: +82-31-883-5169. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 1.8 Laboratory accreditations and listings Country Agency Scope of accreditation Logo USA FCC 3 & 10 meter Open Area Test Sites and one conducted site to perform FCC Part 15/18 measurements. 343818 KOREA KCC EMI (10 meter Open Area Test Site and two conducted sites) Radio (3 & 10 meter Open Area Test Sites and one conducted site) KR100 Canada IC 3 & 10 meter Open Area Test Sites and one conducted site 4769B-1 www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 5 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 2.0 Summary of tests Section in FCC Part 15 Parameter Status 15.209(a) 15.249(a) 15.249(d) 15.205 Fundamental, spurious emission and band edge radiated emission C Note 1: C=Complies NC=Not complies NT=Not tested NA=Not applicable Note 2: The data in this test report are traceable to the national or international standards. Note 3: The sample was tested according to the following specification: FCC Part 15.249, ANSI C63.4-2003 www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 6 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 2.1 Technical characteristic test 2.1.1 Fundamental, spurious emission and band edge radiated emission Test location Testing was performed at a test distance of 3 meter Open Area Test Site Test procedures The height of the measuring antenna was varied between 1 to 4 m and the table was rotated a full revolution in order to obtain maximum values of the electric field intensity. The measurement was made in both …

Text truncated - open the document above for the full version.

www.kes.co.kr Test Report No.: TK-FR11002 Model No: AA-SM1PWLB Page 13 of 13 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. Test setup photos and configuration Radiated electric field emissions
