P5A-B108WIRELESS MOUSE

A. When the Low Battery Indicator LED flashing, please replace new batteries. top Optical 0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help.

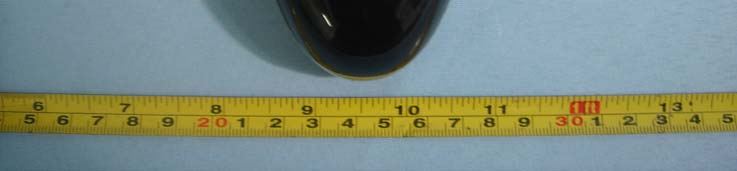

EUT - Front View EUT - Back View

FCC ID Label Sample for Model: B108 FCC ID: P5A-B108 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID: P5A-B108

PCB- Front View PCB- Back View

1. Two batteries supply the power of the circuit ‘s working . 2. DC-DC regulator rised the voltage to 3V. 3. The oscillator ,give clock frequency of the IC.. 4. When press any key, the MCU can catch the action by the voltage level’s change. 5. The optical sensor scan the interface, estimate brightness changes, and transform the information to the digital signal, then send to MCU. 6. When the MCU received the signals, it will code them and then transmit them to the antenna network 7. Channel and address information store in the EEPROM. 8. The center frequency of the RF transmission is 27.045MHz. PDF created with pdfFactory trial version www.pdffactory.com

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:2-Nov-2006 Sheet of File:C:\Documents and Settings\Administrator\\b108.Ddb桌面Drawn By: L1 200uH G N D 1 OUT 2 IN 3 U1AM30 D3 HBA54 B1 2.3V~3V C13 104 C8 100uF POWER VDD CS 1 SK 2 DI 3 DO 4 GND 5 ORG 6 NC 7 VCC 8 U2 93C46 VDD C19 104 R11470K C3 0.1uF VDD R1422K Y2 4M C2 20p C120p S1 LB S2 RB S3 MB SW1ID R18 470K R17 470K R19 470K R20 470K R12 470K R15 470K D5 Low Voltage R4 330 ZAZB SW5 ENSW SCLK 4 SDIO 3 OSCI 1 OSCO 2 GND 6 REFA 8 LED_CNTL 5 VDD 7 U4 A5030 R13 100 D1 RED C12 104 VDD VDD SENSOR C15 ? C18 50p C17 68P C5 50P RF-DATA Y1 13.5225M C11102P RF-PWR C14 220P C10 150p C6 15P ANT C9 82p R54.7K VDD 27M-RF RF-PWR R9 20K Q2 3904 R2 4.7K R7 10 Q4 2SC5226 R22 27K R8 10K R1 1.5K R3 82K R6 10 Q6 2SC5226 L2 0.33uH C21 104 R10 470K Q13906 R23 2K VDD VDD VDD VDD VBAT VBAT EZ SC ID SC LB ID RB MB NRST CLK CLK MOSI MOSI C16 104 B108 27M A5030 MISO CLK MOSI NCS NRST MISO NCS MISO LB RBMB R21470K R16470K BATL BATL VDD RF-DATA ID E Z 2V5 2V5 RTCC 1 VDD 2 PB5 3 VSS 4 PB4 5 PB0 6 PB1 7 PB2 8 PB3 9 PA0 10 PA1 11 PA2 12 PA3 13 PA4 14 PA5 15 PA6 16 PA7 17 PC0 18 PC1 19 PC2 20 PC3 21 PC4 22 PC5 23 PC6 24 PC7 25 OSC2 26 OSC1 27 REST 28 CR81P200 U3 CR81P200 KEY VBAT BAT+ C7 104 C4 4.7uF PDF created with pdfFactory trial version www.pdffactory.com

FCC TEST REPORT Page 1 of 21 FCC ID : P5A-B108 Applicant : Areson Technology Corporation 12F, No.111-6, Hsing-De Rd. SanChung, Taipei Hsien, Taiwan Equipment Under Test (EUT) : Product description : Wireless Mouse Model No. : B108 Standards : FCC 15 Subpart C Paragraph 15.227 Date of Test : November 29, 2006 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Areson Technology Corporation FCC ID: P5A-B108 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................6 4.1 CLIENT INFORMATION............................................................................................................................................6 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................6 4.3 DETAILS OF E.U.T. .................................................................................................................................................6 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................6 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................6 4.6 TEST FACILITY........................................................................................................................................................7 4.7 TEST LOCATION......................................................................................................................................................7 5 EQUIPMENT USED DURING TEST ...................................................................................................................8 6 CONDUCTED EMISSION TEST ..........................................................................................................................9 6.1 TEST EQUIPMENT....................................................................................................................................................9 6.2 TEST PROCEDURE...................................................................................................................................................9 6.3 CONDUCTED TEST SETUP.....................................................................................................................................10 6.4 EUT OPERATING CONDITION...............................................................................................................................10 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................11 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................11 7 RADIATION EMISSION TEST...........................................................................................................................12 7.1 TEST EQUIPMENT..................................................................................................................................................12 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................12 7.3 TEST PROCEDURE.................................................................................................................................................12 7.4 RADIATED TEST SETUP.........................................................................................................................................13 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................13 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................14 7.7 SUMMARY OF TEST RESULTS................................................................................................................................14 7.8 EUT OPERATING CONDITION...............................................................................................................................15 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................15 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................16 7.11 RADIATED EMISSION TEST DATA.....................................................................................................................16 8 OCCUPIED BANDWIDTH ..................................................................................................................................17 8.1 TEST PROCEDURE.................................................................................................................................................17 9 PHOTOGRAPHS OF TESTING..........................................................................................................................18 9…

Text truncated - open the document above for the full version.

Radiation Emission Test View
