P5A-CB0007Wireless Optical Mouse

User's Guide Mini Wireless Optical Mouse B-180 FCC statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example-use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits sent forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operation in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) IF using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. 1. Insert the batteries a. Take out the receiver on the bottom case first, press the battery cover release button on the bottom of the mouse which is under the receiver. b. Remove the battery compartment cover on the top case of the mouse. c. Fit in the batteries accordingly to the diagram indicated in the battery cabinet. d. Close the battery compartments cover properly. e. Make sure the Power on-off swich on the bottom of the mouse is ON. f. The Low Power LED in the wheel bar will blink 3 seconds if the mouse power is on. Wheel button Dpi button Battery cover ID reset button LED indicator Receiver Mouse Receiver Introduction Congratulations on your purchase of the most innovative wireless mini mouse. With an incredible sensitivity to surface details and high tracking speed than other mice, the mouse can track reliably even on tricky polished or wood-grain surfaces. It offers even more advance that will make you more productive and more comfortable. A. Hardware Installation 2.4GHz (distance 6~8m), 16 Channels/4096 ID Using state-of-art technology. High tracking speed and sensitivity. 4-way scrolling. Storable mini receiver Longer battery life - 6~8 months. Auto-Link, Plug and Play! No need to set the channel ID. Power on/off switch Data report rate : 125 Report/Sec. 800/1600 dpi switchable button. 2*AA Alkaline batteries included. Power on/off switch Features + - A wrong battery placement may cause batteries overheat. Battery compartment cover 2 * AA batteries Battery cover release button Low power Led/ Power on indicator/ Dpi switching indicator 2. Connect the receiver a. Turn on your PC. b. Connect the receiver to USB port on PC. PC USB port The unit offers a strong power saving management. Once the mouse accesses the sleeping mode, " to click any button of the mouse" is compulsory to wake it up. Power on/off: There is a Power on/off switch designed to save the batteries power while non-usage of a longer period. Users can push DPI button to change the resolution. The low power LED will be flashed when dpi has been successfully swithced. 3. Communication : The mouse & the receiver The 2.4Ghz RF mouse features a dual-way transmission technology which enables the mouse and the receiver auto-communication. A. Auto-link mode 1. Make sure the Power On-Off Switch on the bottom of the mouse is ON. 2. Operate the mouse, and the LED in the receiver will blink fast. Now the mouse and the receiver is auto-linked successfully. Press ID reset button Execute ID connection software Led indicator blinks faster 1 23 4 ID links OK! 4. Replace the new batteries Please replace a pair of new batteries and follow the previous instructions. (2, 3) The red LED on the scroll wheel is the low batteries power indicator. It indicates that batteries inside the mouse are needed to be replaced. Note While the mouse is working, if encountering any interference, the mouse and the receiver will automatically source out and transfer to another free channel. During the transferring, the cursor movement may have a second delay. Note …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1003C233 Page 2 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 2 of 6 1003C233 1003C233

B180 B180 OPTICAL Wireless Mouse B180 OPTICAL 35mm 16.3mm 24mm 10mm FCC ID:P5A-CB0007 Rating:3V 100mA

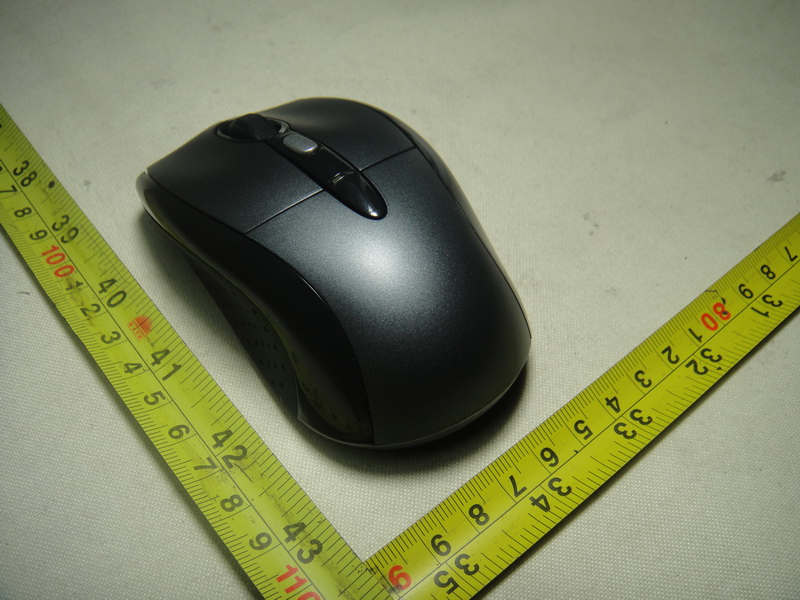

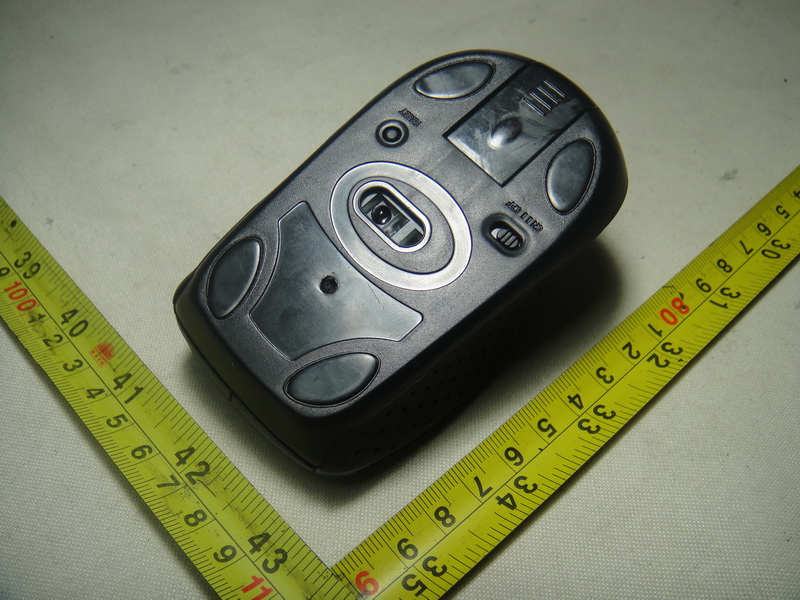

Neutron Engineering Inc. Project No.: 1003C233 Page 3 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 3 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 4 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 4 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 5 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 5 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 6 of 6 1003C233 1003C233 Neutron Engineering Inc. Project No.: 1003C233 Page 6 of 6 1003C233 1003C233

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 2 of 50 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 3 of 50 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST 17 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHz) 23 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 35 4.2.10 TEST RESULTS (Restricted Bands Requirements) 36 5 . BANDWIDTH TEST 40 5.1 MEASUREMENT INSTRUMENTS LIST 40 5.2 TEST PROCEDURE 40 5.3 DEVIATION FROM STANDARD 40 5.4 TEST SETUP 40 5.5 EUT OPERATION CONDITIONS 40 5.6 TEST RESULTS 41 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 4 of 50 Table of Contents Page 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 43 6.1 APPLIED PROCEDURES / LIMIT 43 6.1.1 MEASUREMENT INSTRUMENTS LIST 43 6.1.2 TEST PROCEDURE 43 6.1.3 DEVIATION FROM STANDARD 43 6.1.4 TEST SETUP 43 6.1.5 EUT OPERATION CONDITIONS 44 6.1.6 TEST RESULTS 45 7 . EUT TEST PHOTO 50 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 5 of 50 1. CERTIFICATION Equipment : Wireless Optical Mouse Brand Name : N/A Model Name : B180;B253;B252;B212;B213;B219;B216;B168;B122;B158;B185;B110; B187;B190;B290;B313;B319;B170;B316;B280;B281;B282;B236;B278; B258;B116,B215 A p p l i c a n t : Areson Technology Corporation Date of Test : Mar. 31, 2010 ~ May. 04, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1003C233) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 6 of 50 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) The EUT used new battery. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 7 of 50 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-CO3/CB03at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C03 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE CB03 CISPR 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1003C233 Page 8 of 50 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Optical Mouse Brand Name N/A Model Name. B180;B253;B252;B212;B213;B219;B216;B168;B122; B158;B185;B110;B187;B190;B290;B313;B319;B170; B316;B280;B281;B282;B236;B278; B258;B116,B215 OEM Brand/Model Name N/A Model Difference Due to the market requirements, so the model names are different. Product Description The EU…
