P5A-CL0018Wireless Laser Mouse

L279 Wireless Laser Mouse L279 Wireless Laser Mouse & Remote Hall Senser & Wireless Presenter & Laser Pointer To use at the desktop: (1) Please follow the instructions of the "ID Setting". (2) Use the mouse likes a standard wireless laser desktop mouse. (3) Using the Hall Sensor on the top of the mouse as a 3D (directions) scroller. (4) The Backward / Forward Buttons on the top of the mouse are designed for browsing internet at the desktop. (5) To switch dpi, press left and right buttons simultaneously for 3 seconds, the red led will blink and dpi switch complete. 12 Introduction Consolidating 2.4GHz wireless, laser and remote presenter technology. 4-in-1 design for use as a wireless laser mouse at the desktop, a Hall Sensor in the air, a laser pointer, and a remote presenter while making presentation toward audience. Ergonomic design for comfort use at the desktop and in the air. 16 channels with 2 16 ID/per channel. No interference! 800/1600 dpi switchable. Wide range and long transmission distance for max. 10m. Auto-mode switch between mouse mode at desktop use and remote Hall Sensor in air use. Laser pointer available for presentation. Page up/down between presentation slides. Power On/Off switch to save battery life. Auto-Link Channel ID. 2* AAA Alkaline batteries included. ! Hall Sensor / Middle button Desk Sensor ID button Laser point Play/Esc button Black screen button Features: RECEIVER Congratulations on your purchase of the most innovative 2.4GHz multi-functional wireless remote presenter mouse. A. Power on your PC. B. Connect the receiver to USB port on PC. A. Auto-link mode: The Presenter Mouse has auto-link function itself. B. Manual mode: If you find the communication channel does not connect well, you can use the software connection tool to re-connect the mouse & receiver to reset a new channel ID. You are able to get the software from the included diskette of the package or download from your local brand vendor's website. 4. Using Remote Presenter Mouse at the Desktop The mouse provides great flexibility in how you control your computer and its laser sensor allows for precise tracking on any surface. (For optimal performance, avoid highly reflective glass or mirrored surfaces). For optimal battery life, avoid using the mouse on dark-colored surfaces. Tip The presenter may not perform properly while working on the some "dark color surfaces". A wrong battery placement may cause batteries overheat. For use of page up and down between presentation slides with Power Point. Auto-switching button function between page up / down and backward / forward , page up / down on desk top , backward / forward in the air. * 2. Connect the Receiver 3. Establish Communication Between the Mouse and the Receiver 1. Insert the Batteries Note Execute ID connection software 1 23 ID links OK! Press ID reset button On/Off switch Receiver PRESENTER The Presenter Mouse offers a strong power saving management function. Once the mouse accesses the sleeping mode, “to click any button of the mouse” is compulsory to wake it up + - + - Battery compartmrnt 2* AAA Batteries a. Remove the battery compartment cover on the bottom case of the mouse b. Fit in the batteries accordingly to the diagram indicated in the battery cabinet. c. Close the battery compartments cover properly. d. Make sure the Power on-off swich on the bottom of the mouse is ON. e. The Low Power LED on the wheel bar will blink 3 seconds if the mouse power is on. * Air : Page up button Desktop : Backward button Air : Page down button Desktop : Forward button 34 6. Power On/Off There is a Power On/Off switch designed to save the batteries power during non-use for a long period of time. (4) Press and hold the pointer button for pointing the subject, while making the presentation. (1) Hold the mouse in a comfortable, relaxed position with your index finger on the bottom of the mouse and your thumb at the top of the mouse. (2) You can control the cursor movement by Hall Sensor using your thumb. (3) The Page up/ down Buttons on the top of the mouse are designed for use of page up and down between slides with Power Point. While using laser pointer, please avoid laser light to direct contact with anyone's eyes. It may occur serious hurt to anyone's eyes ! Please avoid put your finger on the top of the desk sensor, and avoid using it under the strong light, it may cause function fault. Power On/Off switch (1) Remove worn-out batteries from equipment immediately and dispose of promptly. (2) Keep all batteries (used or new) out of the reach of children. (3) To have the batteries with a regular check and replace new batteries if not used for a long time. (4) Never dispose of batteries in fire, as they could explode. (5) Always replace all the batteries at the same time. Mixing old and new batteries or mining types (such as alkaline with zinc carbon) will reduce overall performance and could cause leakage or rupture. (6) Do not mix different types of batteries (e.g. Ni-MH, NiCd, alkaline, and etc) in the mouse. (7) Remove batteries from the electrical device if the device is not going to be used for a long time. (8) If the performance of the batteries decreases substantially, it is time to replace the batteries. Battery use reminders This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the i…

Text truncated - open the document above for the full version.

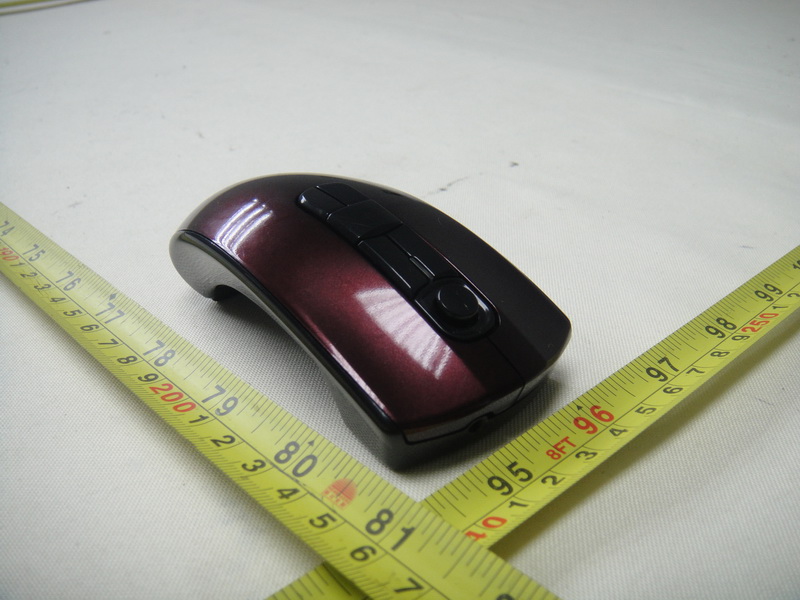

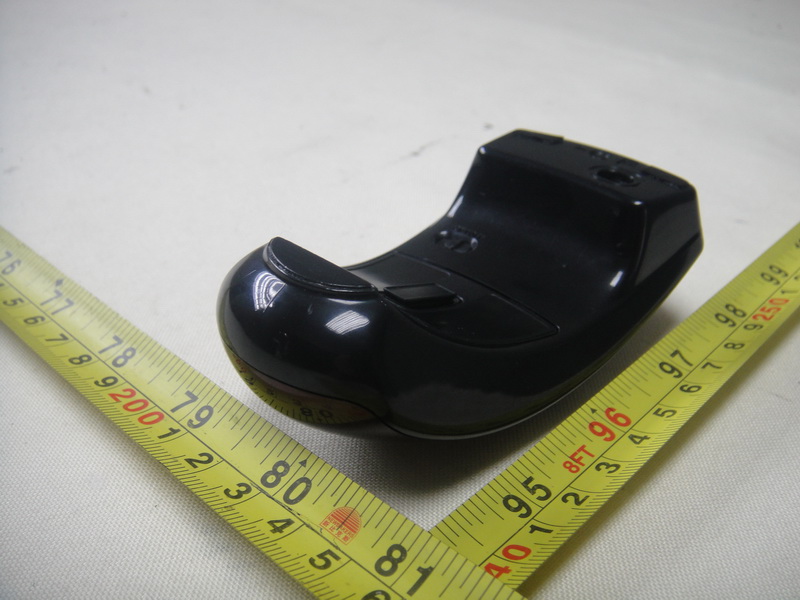

Neutron Engineering Inc. Project No.: 1010C145 Page 2 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 2 of 7 1010C145 1010C145

Neutron Engineering Inc. Project No.: 1010C145 Page 3 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 3 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 4 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 4 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 5 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 5 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 6 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 6 of 7 1010C145 1010C145 Neutron Engineering Inc. Project No.: 1010C145 Page 7 of 7 1010C145

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 2 of 46 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 3 of 46 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST 17 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHz) 23 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 35 5 . BANDWIDTH TEST 36 5.1 MEASUREMENT INSTRUMENTS LIST 36 5.2 TEST PROCEDURE 36 5.3 DEVIATION FROM STANDARD 36 5.4 TEST SETUP 36 5.5 EUT OPERATION CONDITIONS 36 5.6 TEST RESULTS 37 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 39 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 4 of 46 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 39 6.1.1 MEASUREMENT INSTRUMENTS LIST 39 6.1.2 TEST PROCEDURE 39 6.1.3 DEVIATION FROM STANDARD 39 6.1.4 TEST SETUP 39 6.1.5 EUT OPERATION CONDITIONS 39 6.1.6 TEST RESULTS 40 7 . EUT TEST PHOTO 46 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 5 of 46 1. CERTIFICATION Equipment : Wireless Laser Mouse Brand Name : ARESON Model Name. : L279 Applicant : Areson Technology Corporation Factory : Areson Technology Corporation Address : 11F,NO.646, SEC.5,CHONGSIN RD., SAN CHONG 241, TAIPEI COUNTY, TAIWAN (R.O.C.) Date of Test : Oct. 20, 2010 ~ Oct. 26, 2010 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1010C145) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 6 of 46 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) The EUT used new battery. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 7 of 46 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-C03/DG-CB03at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C03 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 DG-CB03 CISPR 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 8 of 46 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Laser Mouse Brand Name ARESON Model Name. L279 OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a Wireless Laser Mouse. Product Type Low Power Communication Device Operation Frequency: 2402~2472 MHz Modulation Type: GFSK Date rate: 1Mbps Number of Channel 16CH .Please see note 2. Antenna Designation: Printed antenna Antenna Gain(Peak) 2.07 dBi Outpu…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 46 of 46 7. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1010C145 Page 46 of 46 7. EUT TEST PHOTO Radiated Measurement Photos
