P5AB50Wireless Mouse

Information to User Notice 1 You are cautioned that changes or modifica tions not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if not installed and used in accordan ce with the instructi ons, may cause harmful interference to radio communications.

X Y Z Axis Input RB LB Input MCU D+ , CLK D- , DATA RF MOUSE BLOCK DIAGRAM X’TAL 4MHz RF TX Module X’TAL 27.045MHz RF RX Module MCU X’TAL 26.590MHz

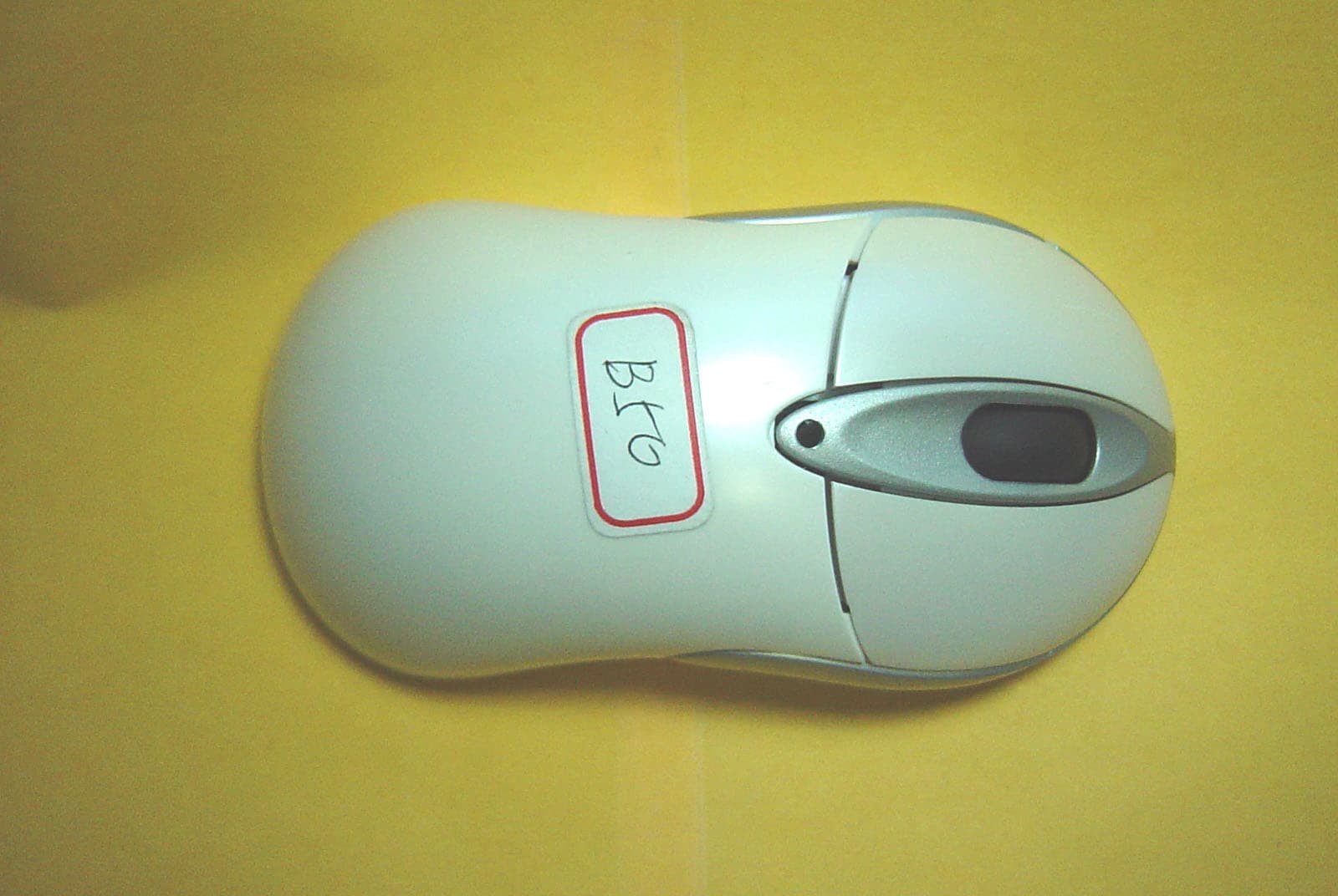

C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: ARESON Technology Corp. FCC ID: P5AB50 FCC ID: P5AB50 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

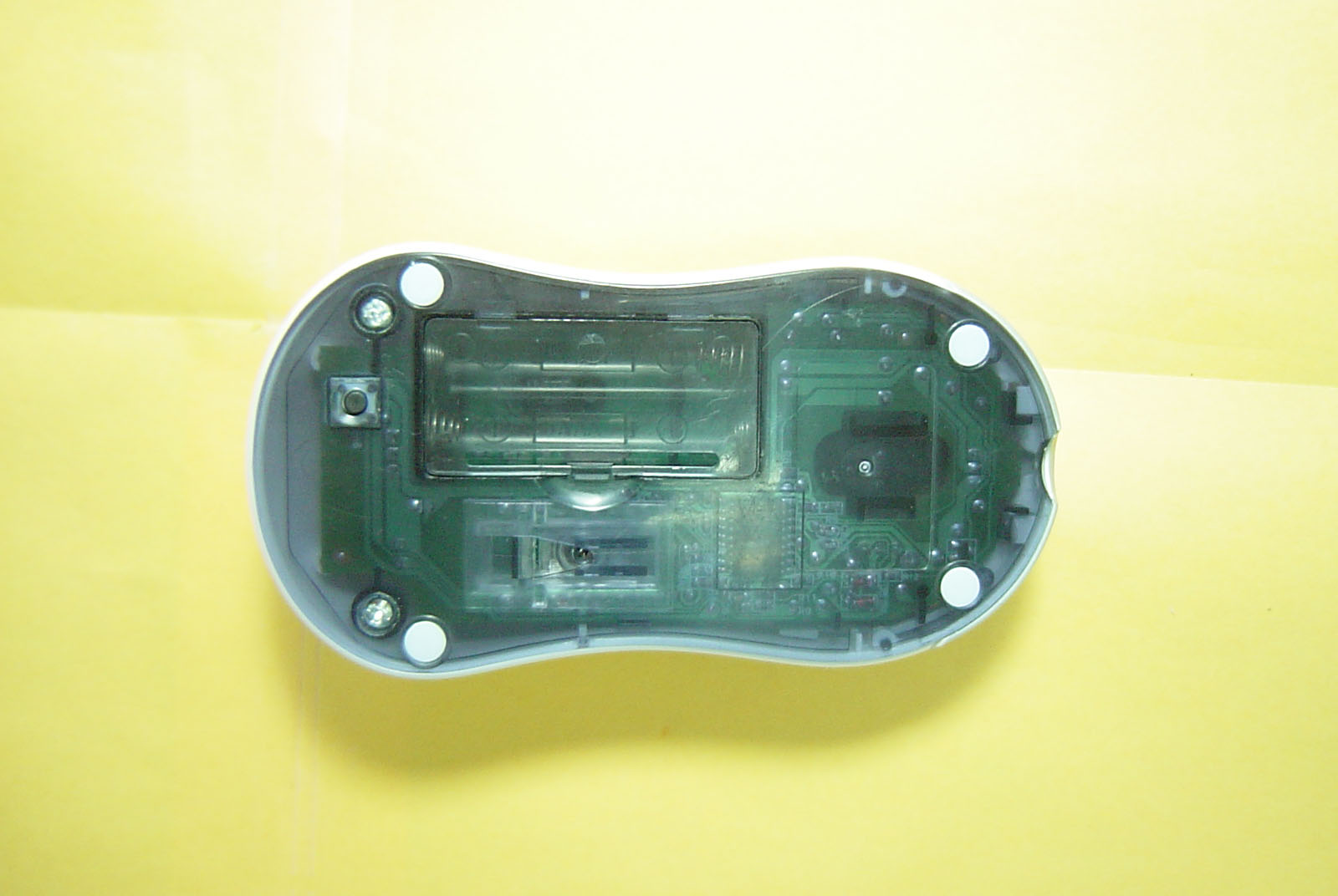

C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 Internal of EUT – Open Internal of EUT – 1 C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 Internal of EUT – 2 Internal of EUT – 3 C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 Internal of EUT – 4

B50/C05 system description.doc Mouse B50 transmitter 1. Optical sensor will compare the image data , and send it with X-axis, Y-axis, Z-axis format to MCU. 2. MCU will scan x, y, z axis, encoder and ID/reset key. If any signal change come from above mention. It will turn convert the data package with checking the low battery status data, and prepare for modulate to the reference x’tal directly. 3. When MCU received the signal from x, y axis, encoder and ID/reset key. Firstly, MCU will turn on the RF power,( e.g.27.045MHz) 4. The reference x’tal will support the exact 3 rd tone of the exact frequency( e.g.27.045MHz) 5. Buffer amplifier is to change the impedance between oscillating circuit(high impedance) to low impedance. 6. (PA)Power amplifier is to support enough current to drive the antenna. 7. Matching circuit is to match the impedance between PA and antenna. C05 receiver 1. When the PC power on, the receiver will start the PnP process of USB. 2. MCU will turn on the RF power of RF. 3. When the RF signal comes(e.g. 27.045MHz for mouse),the signal will direct to the mixer. 4. The RF signal is pass through mixer. It means that the original signal (27.045MHz from mouse) will down convert to 455KHz from mouse. 5. U2 filter are perform a filtering function of 455KHz. 6. 455KHz resonator will perform the local oscillator (LO)function. 7. When the U2(455KHz) pass through discriminator, the demodulating signal will come out. We called it base band signal of mouse or keyboard. 8. AF AMP will work as a data slicer, it amplify the signal to square wave digital signal. 9. This digital signal will send to MCUs. MCUs will sample the signal to check it is valid or not. 10. If the signal it valid, MCUs will convert the signal to the USB interface to PC. No-matter is exact activity of mouse. 11. MCUs also scan the reset lock key to check user has to press this key or not.

C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020070-RF-ID FCC ID: P5AB50 DATE: 10/18/2002 Radiated Emission Setup Photos
