P5AB52Wireless Mouse

ARESON Technology Corp.
Wireless Mouse - FCC ID P5AB52 - ARESON Technology Corp.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Nov 20, 2002
Application Purpose
Original Equipment
Date of Application
Nov 20, 2002
Equipment Note
Wireless Mouse
Frequency Range
27.04500000 - 27.04500000
Company
ARESON Technology Corp.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

โ†—

Block Diagram

โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

Schematics

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Information to User Notice 1 You are cautioned that changes or modifica tions not expressly approved by the part responsible for compliance could void the userโ€™s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if not installed and used in accordan ce with the instructi ons, may cause harmful interference to radio communications.

Block Diagram

X Y Z Axis Input RB LB Input MCU D+ , CLK D- , DATA RF MOUSE BLOCK DIAGRAM Xโ€™TAL 4MHz RF TX Module Xโ€™TAL 27.045MHz RF RX Module MCU Xโ€™TAL 26.590MHz

External Photos

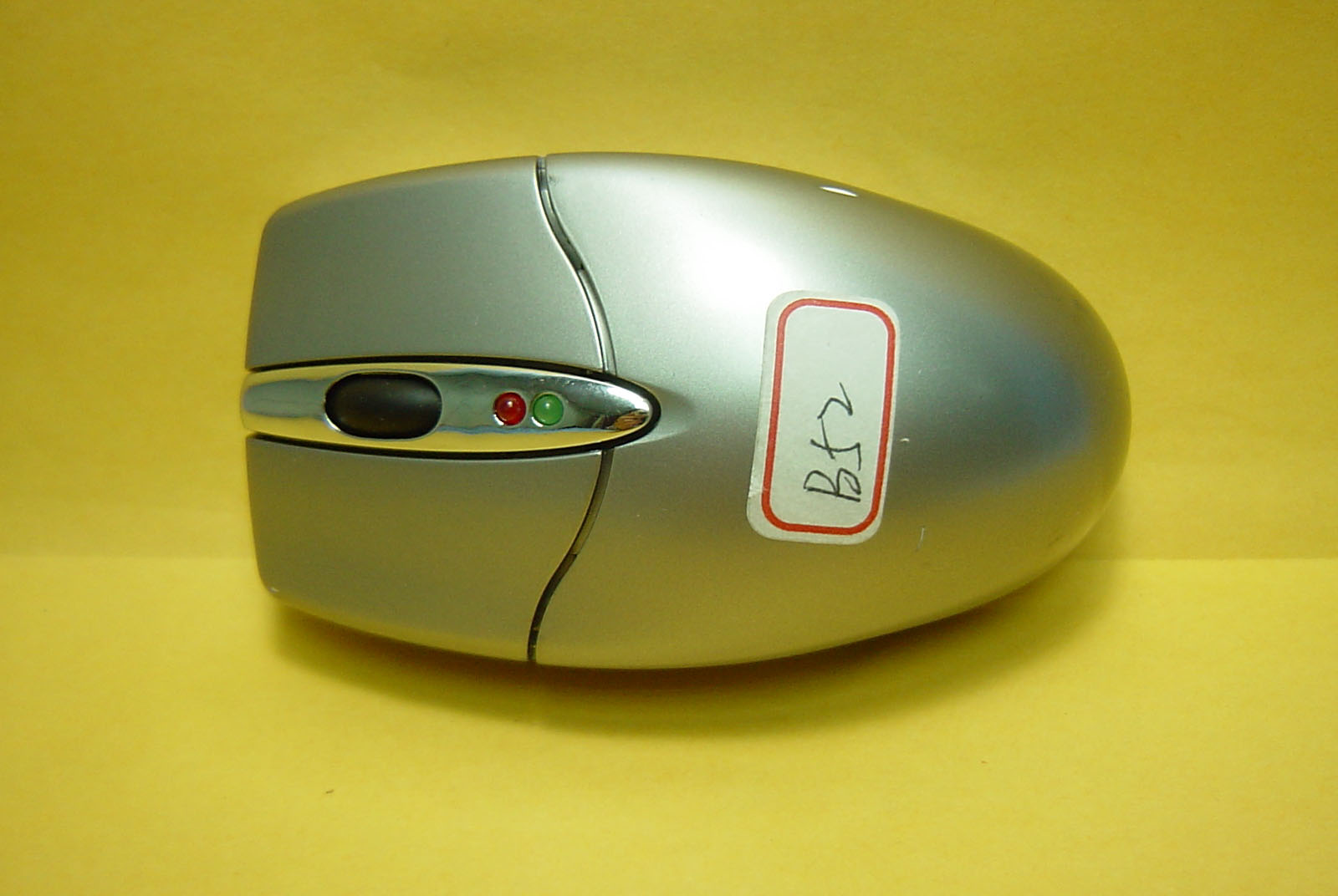

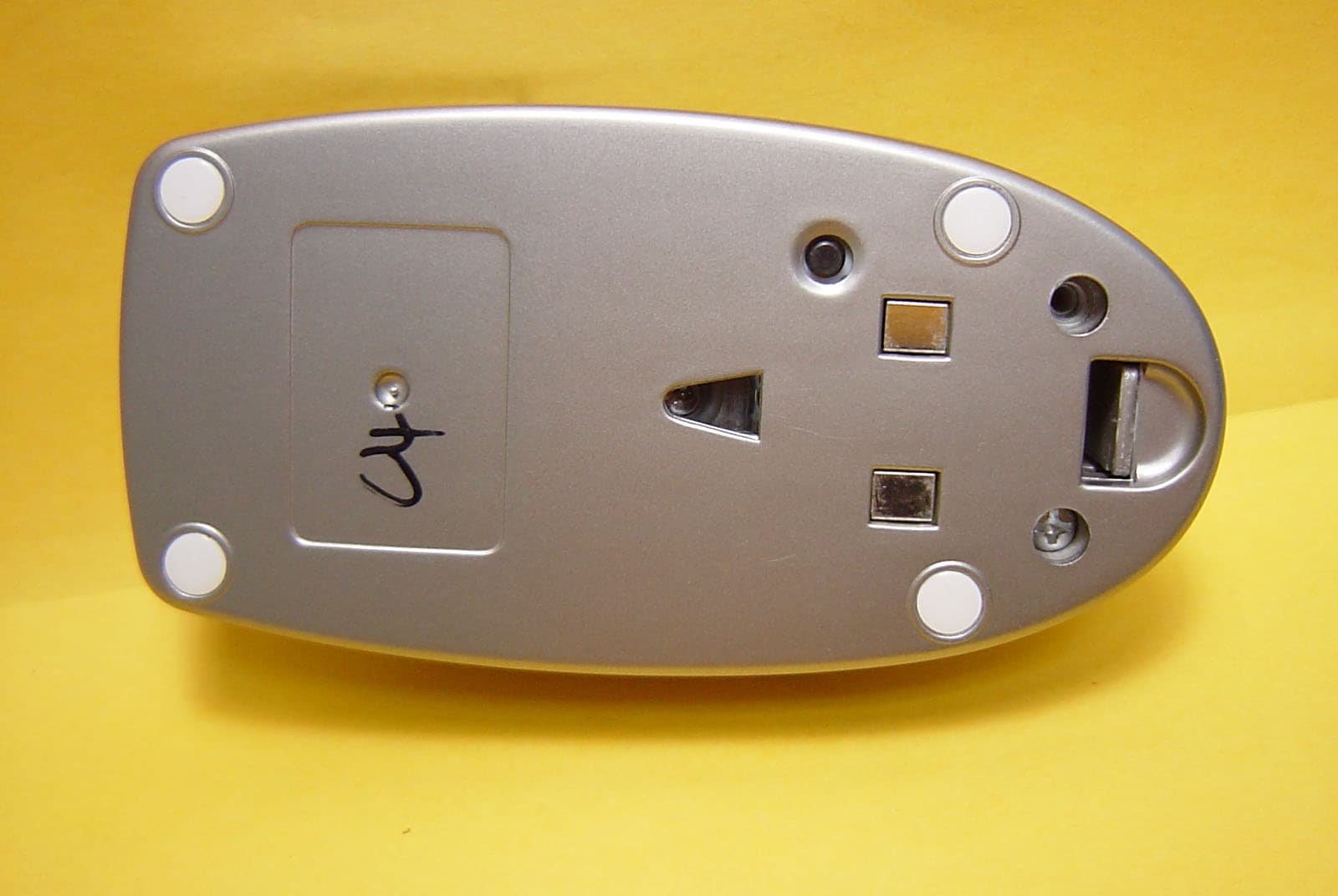

C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 25 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 26 Rev. 00 Front View of EUT Front View of EUT

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: ARESON Technology Corp. FCC ID: P5AB52 FCC ID: P5AB52 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Internal Photos

C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 27 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 28 Rev. 00 Internal of EUT โ€“ Open Internal of EUT โ€“ 1 C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 29 Rev. 00 Internal of EUT โ€“ 2 Internal of EUT โ€“ 3 C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 30 Rev. 00 Internal of EUT โ€“ 5

Operational Description

B56/C03 system description.doc Mouse B56 transmitter 1. Optical sensor will compare the image data , and send it with X-axis, Y-axis, Z-axis format to MCU. 2. MCU will scan x, y, z axis, encoder and ID/reset key. If any signal change come from above mention. It will turn convert the data package with checking the low battery status data, and prepare for modulate to the reference xโ€™tal directly. 3. When MCU received the signal from x, y axis, encoder and ID/reset key. Firstly, MCU will turn on the RF power,( e.g.27.045MHz) 4. The reference xโ€™tal will support the exact 3 rd tone of the exact frequency( e.g.27.045MHz) 5. Buffer amplifier is to change the impedance between oscillating circuit(high impedance) to low impedance. 6. (PA)Power amplifier is to support enough current to drive the antenna. 7. Matching circuit is to match the impedance between PA and antenna. C03 receiver 1. When the PC power on, the receiver will start the PnP process of USB. 2. MCU will turn on the RF power of RF. 3. When the RF signal comes(e.g. 27.045MHz for mouse),the signal will direct to the mixer. 4. The RF signal is pass through mixer. It means that the original signal (27.045MHz from mouse) will down convert to 455KHz from mouse. 5. U2 filter are perform a filtering function of 455KHz. 6. 455KHz resonator will perform the local oscillator (LO)function. 7. When the U2(455KHz) pass through discriminator, the demodulating signal will come out. We called it base band signal of mouse or keyboard. 8. AF AMP will work as a data slicer, it amplify the signal to square wave digital signal. 9. This digital signal will send to MCUs. MCUs will sample the signal to check it is valid or not. 10. If the signal it valid, MCUs will convert the signal to the USB interface to PC. No-matter is exact activity of mouse. 11. MCUs also scan the reset lock key to check user has to press this key or not.

Test Report

C&C Laboratory Co. Ltd. REPORT NO: 020067-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 1 of 21 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless Mouse MODEL No.: B52 BRAND NAME: ARESON FCC ID: P5AB52 REPORT NO: 020067-RF-ID ISSUE DATE: Oct. 24, 2002 Prepared for ARESON Technology Corp. 12F, No. 111-6, Hsing-De Rd., San Chung, Taipei Hsien, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020067-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 2 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 4 1.2 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................... 4 1.3 T EST M ETHODOLOGY ............................................................................................................................ 4 1.4 T EST F ACILITY ...................................................................................................................................... 4 1.5 SPECIAL ACCESSORIES.......................................................................................................................... 4 1.6 E QUIPMENT M ODIFICATIONS ................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION .................................................................................. 5 2.1 EUT C ONFIGURATION ........................................................................................................................... 5 2.2 EUT EXERCISE...................................................................................................................................... 5 2.3 T EST P ROCEDURE .................................................................................................................................. 5 2.4 L IMITATION ........................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................... 7 3. SUMMARY OF TEST RESULTS ....................................................................................... 9 4. DESCRIPTION OF TEST MODES .................................................................................... 9 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........ 10 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................. 10 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 10 5.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 10 5.4 C ONDUCTED M EASUREMENT D ATA ................................................................................................... 11 6. RADIATED EMISSION TEST .......................................................................................... 13 6.1 M EASUREMENT P ROCEDURE ............................................................................................................... 13 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 14 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 15 6.4 F IELD S TRENGTH C ALCULATION ........................................................................................................ 15 6.5 M EASUREMENT R ESULT ..................................................................................................................... 16 C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 3 Rev. 00 7. OCCUPIED BANDWIDTH................................................................................................ 20 7.1 MEASUREMENT PROCEDURE............................................................................................................... 20 7.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 20 7.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 20 7.4 M EASUREMENT R ESULTS :................................................................................................................... 20 C&C Laboratory Co. Ltd. REPORT NO: 020069-RF-ID FCC ID: P5AB52 DATE: 10/24/2002 Page 4 Rev. 00 1. GENERAL INFORMATION 1.1 Product Description The ARESON Technology Corp. . Model: B52 (referred to as the EUT in this report) The EUT is an short range, lower power, wireless mouse designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 27.045 MHz, one channel. B). Modulation : Frequency Shifting Key (FSK) Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery. 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID : P5AB52 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. The composite system(receiver) is compliance with Subpart B is authorized under a DoC procedure. 1.3 Test Methodology Bโ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos
