Microprocess or 10 MHz RF radio modem LC filter Frequency Synthesizer and PLL 900 – 907 MHz 3-bit Dipswitch for channel control 21 button Joypad 3-cell AAA batteries Powe r to motor s Powe r to circuit s 910.7-917.7 MHz

B B B i i i t t t s s s W W W a a a v v v e e e , Inc. 10700 Corporate Dr. Stafford, TX 77477, USA Tel (281) 277-8689 Fax (281) 277-8677 www.bitswavepower.com Suite 1503, 15 th Floor Tung Ning Building No. 2 Hillier Street, Sheung Wan Hong Kong SAR Tel 852 2668 9801 Fax 852 2670 8429 REQUEST FOR CONFIDENTIALITY Bitswave, Inc. would like to request confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. P5G-368-397-YY (1) Schematic diagrams contained in electronic file identified as schematics.doc. It is the opinion of Bitswave, Inc. disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 5 years. Richard Liu Bitswave, Inc. 10701 Corporate Dr. Stafford, Texas 77477

B B B i i i t t t s s s W W W a a a v v v e e e , Inc. 10700 Corporate Dr. Stafford, TX 77477, USA Tel (281) 277-8689 Fax (281) 277-8677 www.bitswavepower.com Suite 1503, 15 th Floor Tung Ning Building No. 2 Hillier Street, Sheung Wan Hong Kong SAR Tel 852 2668 9801 Fax 852 2670 8429 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint Nemko Dallas, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 3rd Day of January 2002 Agency agreement expiration date: By: Richard Liu, Ph.D., PE Title: Vice President Telephone: 281-277-8689 Applicant:

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 8, 2002 RE: Bitswave Inc. FCC ID: P5G-368-397-YY After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a block diagram for the hand controller that shows the frequencies of all the oscillators in the TX portion of the device (CFR 2.1033(a)(5)). The recent block diagram uploaded was for the Plug-in portion of the system and not the hand controller. 2) From the internal photographs it appears that modifications (i.e. shortening of the antenna and possible modifications to the impedance matching components) were made to the transmitter. Please provide a signed statement from the manufacturer that lists the modifications and that they will be incorporated into all production models. 3) The plot showing the timing on page 12 of 16 is confusing. The explanation shows that the joypad transmits 6 times, while one of the pulses is labeled as the plug-in. Is it possible that the lower power shown at the beginning of each pulse is for the plug-in instead? Please explain. 4) The users manual appears to show the FCC Logo at the bottom of the last page. Please note that use of the logo is intended to show compliance of a device using a DoC authorization (i.e. PC peripheral, stand alone RX, etc.) Since this device was not subjected to a DoC, this logo should not be used. 5) The information specified by 15.105(b) should be included in the users manual. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

December 8, 2002 RE: Bitswave Inc. FCC ID: P5G-368-397-YY After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a block diagram for the hand controller that shows the frequencies of all the oscillators in the TX portion of the device (CFR 2.1033(a)(5)). The recent block diagram uploaded was for the Plug-in portion of the system and not the hand controller. I have uploaded a block diagram for the joypad. 2) From the internal photographs it appears that modifications (i.e. shortening of the antenna and possible modifications to the impedance matching components) were made to the transmitter. Please provide a signed statement from the manufacturer that lists the modifications and that they will be incorporated into all production models. See explanation Letter 3) The plot showing the timing on page 12 of 16 is confusing. The explanation shows that the joypad transmits 6 times, while one of the pulses is labeled as the plug-in. Is it possible that the lower power shown at the beginning of each pulse is for the plug-in instead? Please explain. You are correct. The lower amplitude pulse is the plug-in and the higher amplitude pulse is the joypad. The graphic moved when it was converted to PDF. 4) The users manual appears to show the FCC Logo at the bottom of the last page. Please note that use of the logo is intended to show compliance of a device using a DoC authorization (i.e. PC peripheral, stand alone RX, etc.) Since this device was not subjected to a DoC, this logo should not be used. Provided by manufacturer 5) The information specified by 15.105(b) should be included in the users manual. Provided by manufacturer

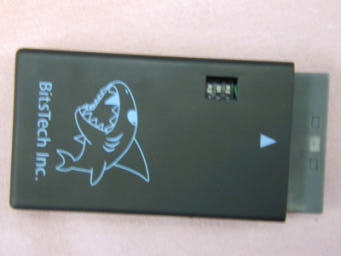

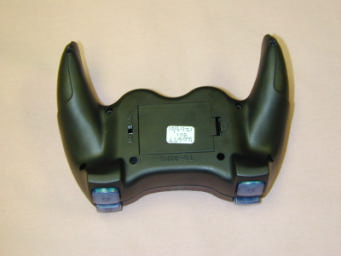

Wireless Joypad for Sony PlayStation Theory of Operation 1/4/02 Bitswave, Inc. 1. Station Side Radio The radio system is mainly composed of three parts: radio modem, frequency synthesizer and baseband microprocessor. The radio is interfaced with Sony PlayStation via a 9-pin connector. Sony PayStation sends a command to the radio every 16 milliseconds. The radio takes the data from PlayStation, packetize the data by adding preambles, frame information, and error checking bytes. The packetized frame is transmitted to the wireless joystick. When joystick replies, this radio receives the data, un-packetize it, and sends to Sony PlayStation. The radio modem is a FSK modem running at 78 kbps with Manchester encoding to avoid frequency drifting. Frequency is controlled by a frequency synthesizer which adjusts a voltage-controlled RF oscillator dynamically for accurate frequency management. Channel is set by selecting a 3-position dipswitch. A total of 8 channels can be selected conversing the frequency range of 910.7 – 917.7 MHz. The antenna is an embedded PCB antenna antenna matching is done by using lumped inductors and capacitors. The radio is a half-duplex system and is powered by a 3.3V power source provided by Sony PlayStation. The total average power consumption of the radio system is about 20 mA at 3.3V. 2. Joypad Side Radio Joypad side radio operates in similar way to Station Side Radio as described in previous section. However, this radio works as a slave compared to the Station Side Radio. When powered on, this radio is in receiving mode and waits until a command from Station Side Radio is received. It scans keystrokes on the joypad and replies the command with the keystroke data to the Station Side Radio. Similarly, the data is packetized in the same way as Station Side Radio. The joypad radio is powered by 3-AAA side batteries and down regulated to 3.3V. Another power regulator (3.0V) provides power for two vibration motors in the joypad.

Nemko Test Report: 1L0697RUS1 Applicant: Bitswave, Inc. 10700 Corporate Dr. Stafford, TX 77477 Equipment Under Test: Gamepad (E.U.T.) FCC ID: P5G-368-397-YY In Accordance With: FCC Part 15, Subpart C, 15.249 For 900 MHz Transmitters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, EMC/Wireless Manager Date: 10/31/02 Total Number of Pages: 15 Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 2 of 16 Table Of Contents Section 1. Summary Of Test Results.....................................................................3 Section 2. General Equipment Specification..........................................................5 Wireless Joypad Block Diagram...................................................................................7 Section 3. Radiated Emissions..............................................................................7 Section 3. Radiated Emissions..............................................................................8 Section 4. Test Equipment List..............................................................................13 ANNEX A TEST DIAGRAMS...................................................................................14 Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 3 of 16 Section 1. Summary Of Test Results Manufacturer: BitsTechInc Model No.: HH-01A(Gamepad) Serial No.: BWHH01A1201(Gamepad) General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 NEMKO Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. NEMKO Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 4 of 16 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions 15.207 N/A* Radiated Emissions 15.249 Complies Footnotes For N/A’s: The Gamepad is battery powered. Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 5 of 16 Section 2. General Equipment Specification Frequency Range: Single Operating Frequency(ies) of Sample: 910.7-917.7 MHz Tunable Bands: N/A Number of Channels: Eight Channel Spacing: 1 MHz Crystal Frequencies: 12 MHz User Frequency Adjustment: Dip Switches Integral Antenna Yes No Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 6 of 16 Theory of Operation Joypad Side Radio Joypad side radio operates in similar way to Station Side Radio as described in previous section. However, this radio works as a slave compared to the Station Side Radio. When powered on, this radio is in receiving mode and waits until a command from Station Side Radio is received. It scans keystrokes on the joypad and replies the command with the keystroke data to the Station Side Radio. Similarly, the data is packetized in the same way as Station Side Radio. The joypad radio is powered by 3-AAA side batteries and down regulated to 3.3V. Another power regulator (3.0V) provides power for two vibration motors in the joypad. Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 7 of 16 Wireless Joypad Block Diagram Joypad Side Microprocessor RF radio modem LC filter Frequency Synthesizer and PLL 3-bit Dipswitch for channel control 21 button Joypad 3-cell AAA batteries Power to motors Power to circuits Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepad FCC ID: P5G-368-397-YY Page 8 of 16 Section 3. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: 15.249 TESTED BY: Lance Walker DATE: 12/19/2001 Minimum Standard: Para no. 15.249 (a) The field strengths shall not exceed the following: Fundamental (MHz) Field Strength (mV/m) Field Strength (dBμV) Harmonic (μV/m) Harmonic (dBμV) 902-928 50 94 500 54 (b) Field strength limits are specified at a distance of 3 metres. (c) Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limits of 15.209 whichever is the less attenuation. (d) ...for frequencies above 1000 MHz, the above field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Test Results: Complies Measurement Data: See attached table. Maximizing Emission Levels: The EUT was measured in three orthogonal axis in order to determine worst-case orientation. The turntable and antenna height were manipulated to maximize the emission levels. Nemko Dallas FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 1L0697RUS1 EQUIPMENT: Gamepa…
