P5T-BTHPBluetooth Headset

Quick Installation Guide Wireless Bluetooth Stereo Headphone 2 Always check with our support website for latest tips, troubleshooting and updates Before you get started for the next steps, charge your headphone for at least 2 hours. When the device is fully charged, the red charging light will turn off. [Step A. Installing The Bundled Bluetooth Software] Do NOT Insert The USB Bluetooth Adapter Yet 1. Place the Setup CD into your CD-ROM drive. Setup should start automatically. If the setup does not start please go to Windows Explorer, locate the CD-ROM and double-click “Setup.exe”. 2. Click “Install Bluetooth Driver”, and then click “Next”. 3. Click “OK” if the “Driver Signature Notice” appears. 4. When the “Bluetooth device not found” window appears. Insert the USB Bluetooth adapter and click “OK”. Click “Finish” to complete the installation. If asked to restart the computer, click “Yes”. 5. Congratulation! Bluetooth USB Adapter is ready to use. 6. Continue on next page to setup the Wireless Bluetooth Stereo Headphone. 3 [Step B. How To Setup The Wireless Bluetooth Stereo Headphone On A Computer] Make sure your Bluetooth USB Adapter is insert into an available USB port. Do NOT insert the Bluetooth USB Adapter into an USB hub station. 1. Press and hold the On/Off button until the blue LED flashes. 2. Double-click “My Bluetooth Places” icon from the Desktop. 3. Click “View devices in range” in Category View or double-click “Find Bluetooth Devices” in Classic View. 4. Wait until the search is completed. The device name for the headphone should now appear on the screen. 5. Double-click the headphone name. A Bluetooth Security Code Request bubble windows will appear at the bottom right corner of your screen. 6. Click on the bubble windows and enter 0000 in the Bluetooth security code field. 7. Then click OK and you will see a Bluetooth Audio Notice windows pop up on your screen. 8. Click OK to close the windows and the blue LED on your headphone should stay on constantly. 9. Your headphone is now ready to use. 10. See next step if you want to setup the headphone with your cell phone. Note: If your instant messenger software (IM) has setup properly on your computer, you can use this headphone to receive calls from people using the same services while listening to your music in Microsoft Media Player. It is highly recommended to run the instant messenger voice/mic setup wizard again to obtain optimal voice/mic quality. [Step C. How To Setup The Wireless Bluetooth Stereo Headphone With Cell Phone] 1. Turn on your Bluetooth function and search for the headphone. 2. Make sure your headphone Bluetooth is connected. 3. Select and accept the headphone when its name appeared on the screen. 4. Enter 0000 in the Passcode/Security Key field. 5. Your headphone is now added to the cell phone and ready to use. 6. To receive a call or hang up, press the on/off button once. Note: Due to isolation of the sound from the environment, do not use this type of headphone to dial/receipt calls while driving, operating machinery or outdoors activities. Always obey the law and use common scene. 4 Appendix B. Technical Support Always check with our support website for latest tips, troubleshooting and updates. Weekdays: 9:00a.m - 6:00p.m. (Monday – Friday. Except holidays) Phone: (408) 321 - 0822 Email: [email protected] Website: www.ambicom.com 5 Disclaimer This product is design for indoor use only. AmbiCom, Inc. is not liable for the unfortunate events causing by using this product. By using this product, users agree to obey their regulations, public safety laws, and maintaining safety environment to other user. Warranty 1 Year Limited Warranty AmbiCom, Inc. warrants its product to be free from defects in materials and workmanship, under normal use and service, for 1 year from the date of purchase from its Authorized Reseller with proof of purchase. This warranty gives you specific legal rights. You may also have other rights that vary from state to state. RMA number and Proof of Purchase are required for all warranty service. USA/Canada During the warranty period, AmbiCom, Inc. will, at its option, either repair or replace defective products with similar parts and products. Should the product be identified as defective, the end user is responsible for returning the product to the place of purchase 1 / manufacturer 2 and the cost of shipping and handling. Any replaced or repaired product has a ninety-day (90-day) warranty or the remainder of the initial warranty period, whichever is longer. Outside USA/Canada During the warranty period, AmbiCom, Inc. will, at its option, either repair or replace defective products with similar parts and products. Should the product be identified as defective, the end user is responsible for returning the product to the place of purchase 1 / manufacturer 2 and the cost of shipping and handling for sending and returning the product. Any replaced or repaired product has a ninety-day (90-day) warranty or the remainder of the initial warranty period, whichever is longer. AmbiCom, Inc. shall not be responsible for any software, firmware, information or memory data of customer contained in, stored on, or integrated with any products returned to AmbiCom, Inc. pursuant to any warranty. 1 if within store return policy period. Check with the store policy. 2i if store return policy has expired or requesting for a warranty service. Exclusion: The warranty on your products shall not apply to defect or damages resulting from: • Improper or inadequate handling or installation of the product operation outside the environmental specification for the products. • Incidental, contingent, or consequential charges. • Power spikes or other power related damage. • Compatibility problems with any other software of hardware products. • Installation of any other software of hardware products. • Physical damage causes by misuse, misapplication or negligence. Warranty Limitations The warranty set forth above is …

Text truncated - open the document above for the full version.

AmbiCom, Inc. 405 River Oaks Parkway. San Jose CA 95134 USA Phone: 408.321.0822 Fax 408.321.0826 Website: www.ambicom.com Date: Jun. 06, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: P5T-BTHP Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________________ Vincent Kiong / Product Manager AmbiCom Inc,.

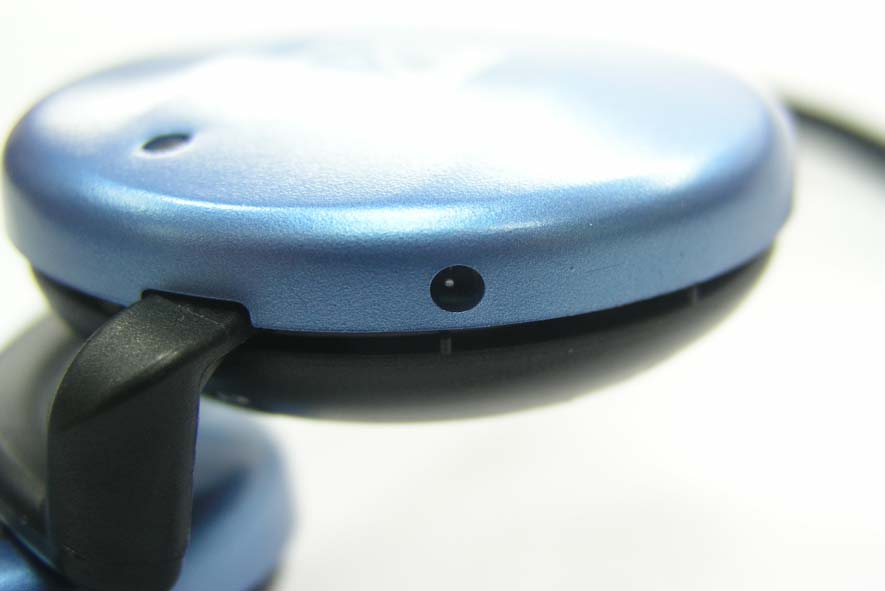

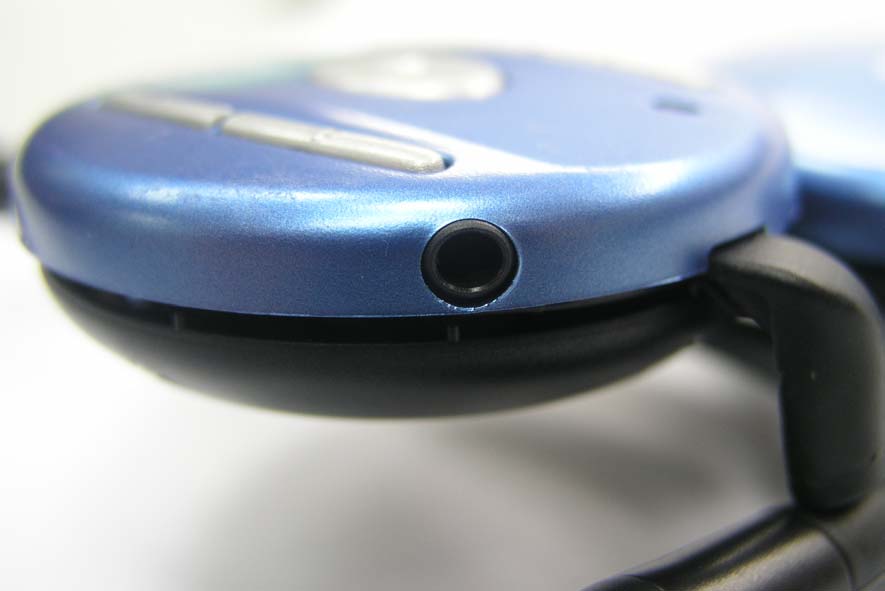

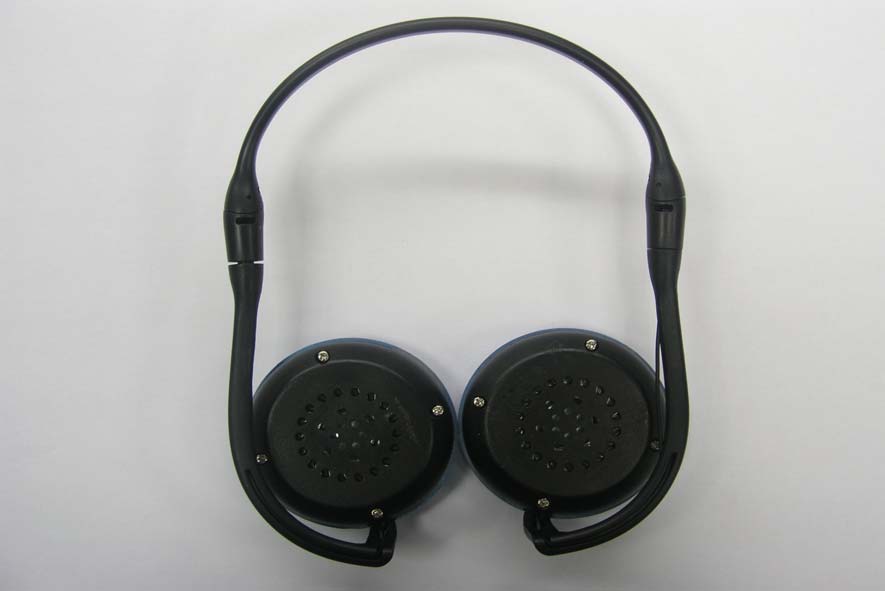

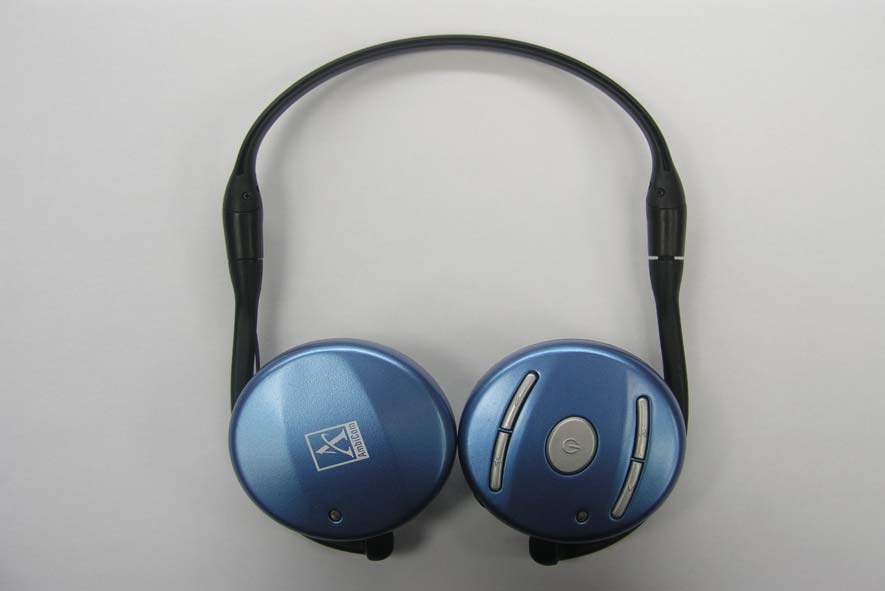

Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL OF EUT Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Side View of EUT - 1 Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Side View of EUT - 2

FCC ID LABEL FORMAT AND LOCATION Applicant: AmbiCom, Inc. FCC ID: P5T-BTHP

Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL OF EUT Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal View of EUT – 1 Antenna Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal View of EUT – 2 Internal View of EUT – 3 Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal View of EUT – 4

Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw „ RF EXPOSURE „ Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be oper- ated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. „ Measurement Result: This is a portable device and the Max peak output power is 2.39dBm (0.00173W) lower than low threshold 60/fGHz mW (24.43mW), d<2.5cm in general population category； The SAR measurement is not necessary.

Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 Page: 1 of 54 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be repro- duced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務， 免責，管轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product name: Wireless Skype Brand Name: AmbiCom Model Name: SKY-KIT I, BT-HP Model Differences: SKY-KIT I: Headphone + accessories BT-HP: Headphone only FCC ID: P5T-BTHP REPORT NO: ER/2006/50014 ISSUE DATE: May 31, 2006 FCC Rule Part: §15.247 Prepared for AmbiCom, Inc. 405 River Oaks Parkway, San Jose. CA 95134, USA Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 Page: 2 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: AmbiCom, Inc. 405 River Oaks Parkway, San Jose. CA 95134 Equipment Under Test: Wireless Skype Brand Name: AmbiCom FCC ID Number: P5T-BTHP Model No.: SKY-KIT I, BT-HP Model Difference: SKY-KIT I: Headphone + accessories; BT-HP: Headphone only File Number: ER/2006/50014 Date of test: Mar. 14, 2005 ~ Apr. 04, 2005 Date of EUT Received: Mar. 10, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date May 31, 2006 Sky Wang Prepared By: Date May 31, 2006 Elisa Chen Approved By Date May 31, 2006 Vincent Su Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 Page: 3 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 May 31, 2006 Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 Page: 4 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................7 1.5. Special Accessories .............................................................................................................................7 1.6. Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ...................................................…

Text truncated - open the document above for the full version.

Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos Report No: ER/2006/50014 ID: P5T-BTHP Issue Date: May 31, 2006 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Setup Photos
