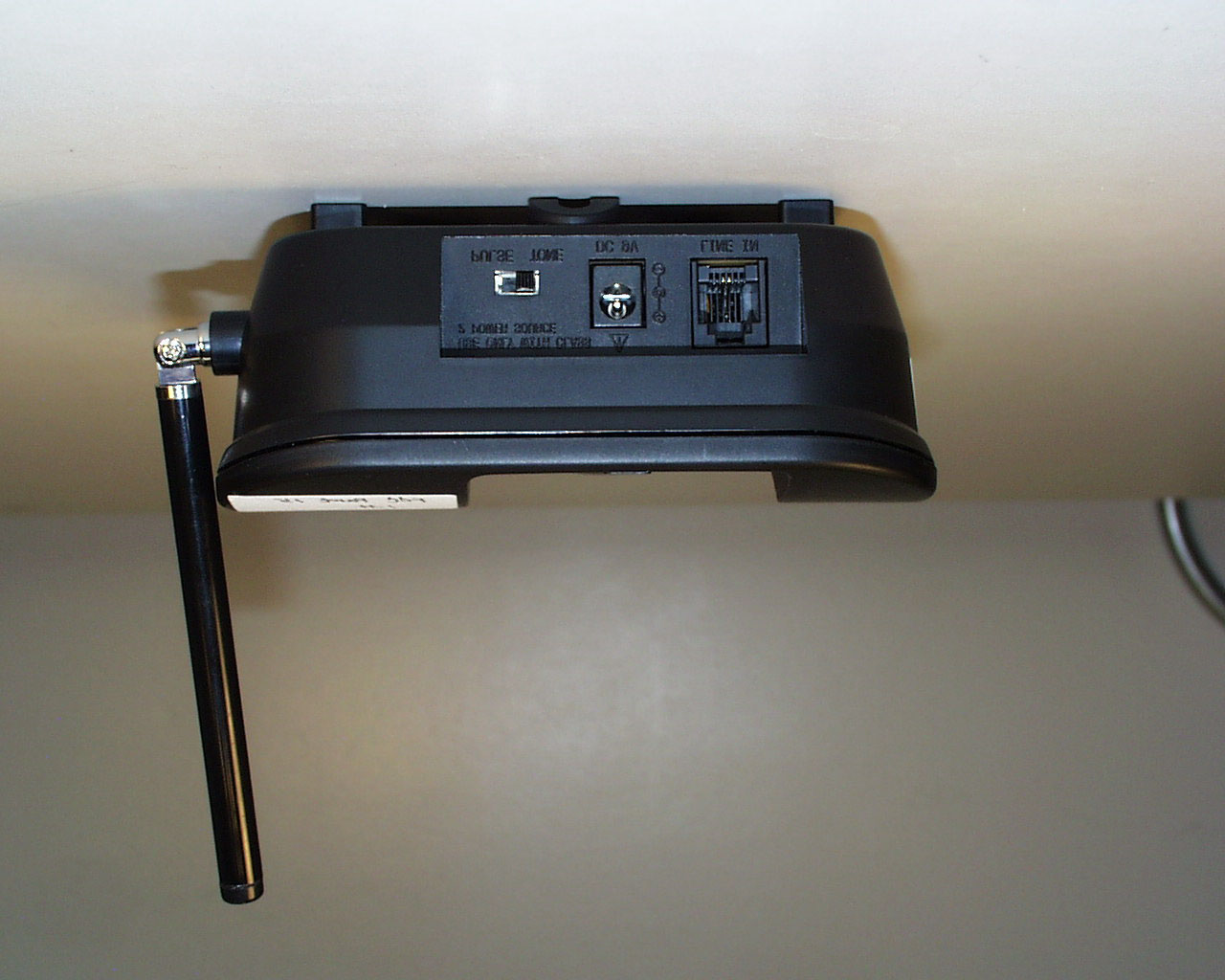

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 30 of 40 Front View of the Hanset COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 31 of 40 Back View of the Handset COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 32 of 40 Front View of the Base COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 33 of 40 Back View of the Base

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 34 of 40 Inside View of the Base COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 35 of 40 Side A of the Base RF PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 36 of 40 Side B of the Base RF PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 38 of 40 Inside View of the Handset COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 39 of 40 Side A of the Handset RF PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 40 of 40 Side B of the Handset RF PCB

Bottom View of the Handset PCB Bottom View of the Base PCB

TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: CT-P7000 FCC ID: P5UCHN-43078-WT To FCC PART 15, Subpart C Sections 15.214 and 15.249 Test Report Serial No: 73-7748 Applicant: Coby Electronics Co., Ltd. Unit C-E, 8/F, Po Shau Centre, 115 How Ming Street Kwun Tong, Kowloon, Hong Kong Date of Test: May 13, 2002 Issue Date: June 3, 2002 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 2 of 40 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C Sections 15.214 and 15.249. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Coby Electronics Co., Ltd. - Manufacturer: Coby Electronics Co., Ltd. - Trade Name: Coby - Model Number: CT-P7000 - FCC ID: P5UCHN-43078-WT On this 3 rd day of June 2002, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Tested by: Jeffrey L. Draney EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 3 of 40 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)...............................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES............................6 SECTION 4.0 OPERATION OF EUT DURING TESTING...................................................9 SECTION 5.0 SUMMARY OF TEST RESULTS..................................................................10 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESUTLS........11 APPENDIX A TEST PROCEDURES AND TEST EQUIPMENT.......................................22 APPENDIX B PHOTOGRAPHS:............................................................................................27 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 4 of 40 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: Coby Electronics Co., Ltd. Unit C-E, 8/F, Po Shau Centre, 115 How Ming Street Kwun Tong, Kowloon, Hong Kong Contact Name: Mike Khadivar Contact Company: Encore Communication Laboratories Inc. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 5 of 40 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Coby Model Name or Number: CT-P7000 Serial Number: None Options Fitted: N/A Country of Manufacture: China 2.2 Description of EUT: The CT-P7000 is a 50 channel cordless telephone operating in the 2400 – 2483.5 MHz band. The Handset operates between 2473.99 and 2476.45 MHz, and the Base operates between 2402.55 and 2405.00 MHz. The CT-P7000 telephone uses digital security that randomly selects a code from 0 to 65536 each time the handset is placed in the base charger. 2.3 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Mike Khadivar Title: COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 6 of 40 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15). Section 15.249 Operation within the bands 902-928 MHz, 2400- 2483.5 MHz, 5725-5875 MHz and 24.0-24.25 GHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 § 15.249 (a) The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: Fundamental frequency Field strength of fundamental (millivolts/meter) Field strength of harmonics (microvolts/meter) 902 – 902 MHz 50 500 2400 – 2483.5 MHz 50 500 5725 – 5875 MHz 50 500 24.0 – 24.25 GHz 250 2500 (b) Field strength limits are specified at a distance of 3 meters. (c) Emissions radiated outside of the specified frequency bands, except for harmonics; shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated emission limits in § 15.209, whichever is the lesser attenuation. (d) As shown in § 15.35(b), for frequencies above 1000 MHz, the above field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. (e) Parties considering the manufacture, importation, marketing or operation of equipment under this section should also not the requirements in § 15.37(d). COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7748 FCC ID: P5UCHN-43078-WT Page 7 of 40 3.2.2 § 15.207 Conducted Limits (a) For an intentional radiator which is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 450 kHz to 30 MHz shall not exceed 250 microvolts. Compliance with the provision shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminals. .2.3 § 15.214 Cordless Tlelphones 3 (d) Cordless telephones shall incorporate circuitry which makes use of a digital security code to provide protection agai…
