ALIEN TECHNOLOGY ® ALR-F800 HARDWARE SETUP GUIDE June 2015 ALR-F800 Legal Notices Copyright ©2015 Alien Technology Corporation. All rights reserved. Alien Technology Corporation has intellectual property rights relating to technology embodied in the products described in this document, including without limitation certain patents or patent pending applications in the U.S. or other countries. This document and the products to which it pertains are distributed under licenses restricting their use, copying, distribution and de-compilation. No part of this product documentation may be reproduced in any form or by any means without the prior written consent of Alien Technology Corporation and its licensors, if any. Third party software is copyrighted and licensed from Licensors. Alien, Alien Technology, the Alien logo, Higgs, Squiggle, the Squiggle logo, and other graphics, logos, and service names used in this document are trademarks of Alien Technology Corporation in the U.S. and other countries. All other trademarks are the property of their respective owners. U.S. Government approval required when exporting the product described in this documentation. Federal Acquisitions: Commercial Software -- Government Users Subject to Standard License Terms and Conditions. U.S. Government: If this Software is being acquired by or on behalf of the U.S. Government or by a U.S. Government prime contractor or subcontractor (at any tier), then the Government's rights in the Software and accompanying documentation shall be only as set forth in this license; this is in accordance with 48 C.F.R. 227.7201 through 227.7202-4 (for Department of Defense (DoD) acquisitions) and with 48 C.F.R. 2.101 and 12.212 (for non-DoD acquisitions). DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARANTEES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGMENT ARE HEREBY DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID. FCC Compliance This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his expense. Any change or modification to this product voids the user’s authority to operate per FCC Part 15 Subpart A. Section 15.21 regulations. Industry Canada Compliance Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with an antenna having a maximum gain of 6dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Caution Reader antennas should be positioned so that personnel in the area for prolonged periods may safely remain at least 23 cm (9 in) in an uncontrolled environment from the antenna’s surface. See FCC OET Bulletin 56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency electromagnetic fields.” TABLE OF CONTENTS ALR-F800 HARDWARE SETUP GUIDE DOC. CONTROL #8102141-000 REV A i Alien Technology ® Hardware Setup Guide ALR-F800 June 2015 Table of Contents CHAPTER 1 INTRODUCTION ..................................................................................................................... 1 RFID Reader Overview ................................................................................................................................. 1 EPC Class 1 GEN 2 UHF RFID Tags ........................................................................................................... 2 Requirements ................................................................................................................................................ 2 Specifications ................................................................................................................................................ 3 RFID Reader ........................................................................................................................................... 3 RFID Reader High Performance Circular Antenna ................................................................................ 4 Mechanical: Reader Physical Size ........................................................................................................ 4 I/O Port Terminal Interface ..................................................................................................................... 4 RS-232 Port Pin-outs .............................................................................................................................. 6 RS-232 Connector (Female) – Looking at Reader .......................................................................... 6 Power Supplies ....................................................................................................................................... 7 System Architecture ............................................................................................................................... 8 CHAPTER 2 READER HARDWARE INSTALLATION AND OP…

Text truncated - open the document above for the full version.

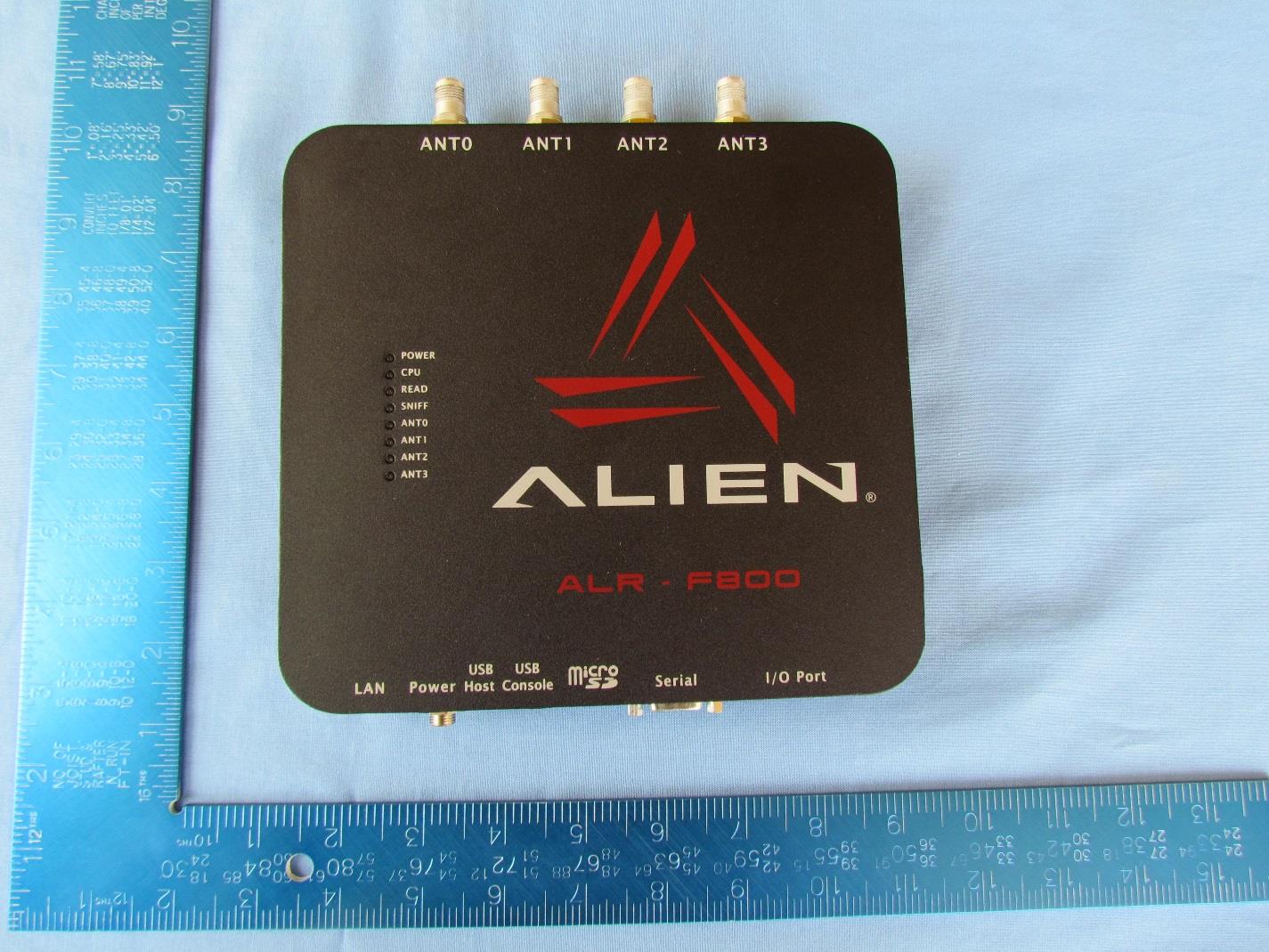

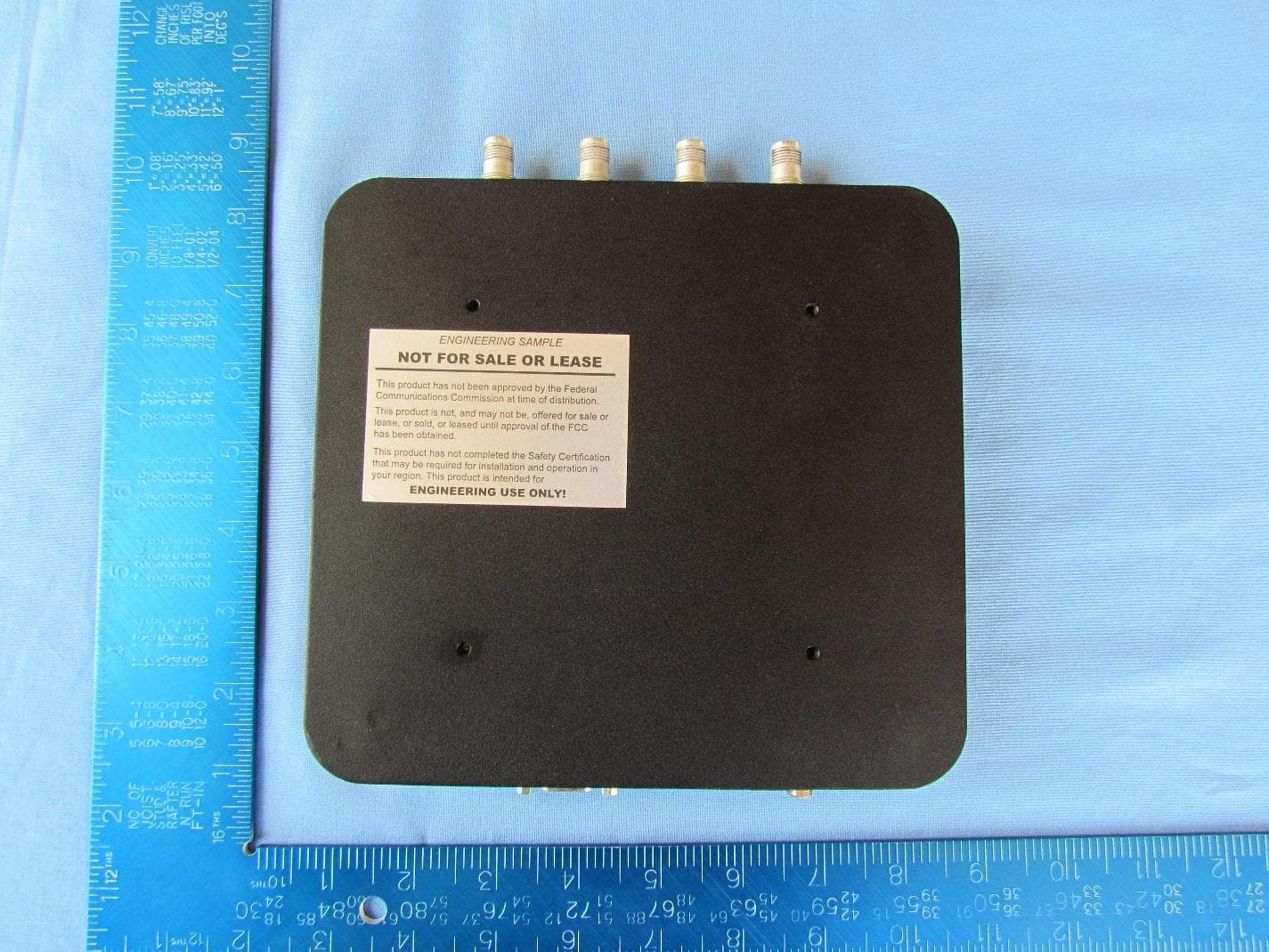

External Photographs Top View Antenna Ports Bottom View Port View Side 2 View

PROPRIETARY AND CONFIDENTIAL Alien Technology, LLC All Rights reserved by Alien Technology, LLC. Any reproduction or distribution in part or as a whole without written permission of Alien Technology,LLC is prohibited. ALR-F800 FCC, ICC Label 03/18/15 WEIGHT: A1 SHEET 1 OF 1 SCALE:1:2 Unless specified DWG NO. TITLE: Rivision 01DO NOT SCALE DRAWING MATERIAL: Aluminum 6061 or similar. DATE SIGNATURENAME DEBUR AND BREAK SHARP EDGES FINISH: Powder coat UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS SURFACE FINISH: Ra 0.03 mm TOLERANCES: LINEAR: +/- 0.025 mm ANGULAR: +/- 0.05 degree Q.A MFG APPV'D CHK'D DRAWN Piyush S . Mark M. 03/18/15 Alien Technology, LLC.

Internal Photographs Front No Flash Internal Back

Maximum Permissible Exposure ALNT60; Alien Technology ALR-F800 FCC, Part 15 §1.1310 Industry Canada RSS-Gen §3.2 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Per FCC 1.1310 Power density Limit for device operating in frequency range 300 to 1500MHz = f/1500 (mW/cm 2 ) Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 0.6mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 900 - 928 +6.0 3.98 28.74 748.2 19.87 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §3.2 The requirements in Radio Standards Specification RSS-102 shall be met. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33 dB

Company: Alien Technology Test of: ALR-F800 To: FCC Part 15 Subpart C 15.247 (DTS) & IC RSS-247 Report No.: ALNT60-U2 Rev A CONDUCTED TEST REPORT FROM Test of: Alien Technology ALR-F800 to To: FCC CFR 47 Part 15 Subpart C 15.247 (DTS) Test Report Serial No.: ALNT60-U2 Rev A This report supersedes: NONE Applicant: Alien Technology, LLC 845 Embedded Way San Jose, California 95138 USA Product Function: RFID Reader Issue Date: 17 th August 2015 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Alien Technology ALR-F800 To: FCC CFR 47 Part 15 Subpart C 15.247 (DTS) Serial #: ALNT60-U2 Rev A Issue Date: 17 th August 2015 Page: 3 of 74 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION................................................................................. 4 1.1. TESTING ACCREDITATION ......................................................................................................... 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE .............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References ................................................................................................................... 9 4.2. Test and Uncertainty Procedure .................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ...................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program ............................................................................................................... 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 13 5.6. Test Configurations...................................................................................................................... 13 5.7. Equipment Modifications ............................................................................................................. 14 5.8. Deviations from the Test Standard .............................................................................................. 14 6. TEST SUMMARY ................................................................................................................................ 15 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 16 7.1. Conducted ................................................................................................................................... 16 7.2. Radiated Emissions................................................................................................................... 18 7.3. ac Wireline Emission ................................................................................................................. 20 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 21 9. TEST RESULTS .................................................................................................................................. 22 9.1. 20 dB & 99% Bandwidth .............................................................................................................. 22 9.2. Number Of Channels ................................................................................................................... 24 9.3. Channel Spacing ......................................................................................................................... 26 9.4. Dwell Time & Channel Occupancy .............................................................................................. 28 9.5. Conducted Output Power ............................................................................................................ 30 9.6. Conducted Spurious Emissions ................................................................................................... 33 9.6.1. Conducted Emissions ........................................................................................................... 33 9.6.1.1. Spurious Emissions ........................................................................................................ 33 9.6.1.2. Band-Edge Emissions .................................................................................................... 35 9.7. Radiated Testing ......................................................................................................................…

Text truncated - open the document above for the full version.

Company: Alien Technology Test of: ALR-F800 To: FCC Part 15 Subpart C 15.247 (DTS) & IC RSS-247 Report No.: ALNT60-U2 Rev B CONDUCTED TEST REPORT FROM Test of: Alien Technology ALR-F800 to To: FCC CFR 47 Part 15 Subpart C 15.247 (DTS) Test Report Serial No.: ALNT60-U2 Rev B This report supersedes: NONE Applicant: Alien Technology, LLC 845 Embedded Way San Jose, California 95138 USA Product Function: RFID Reader Issue Date: 18 th August 2015 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Alien Technology ALR-F800 To: FCC CFR 47 Part 15 Subpart C 15.247 (DTS) Serial #: ALNT60-U2 Rev B Issue Date: 18 th August 2015 Page: 3 of 74 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION................................................................................. 4 1.1. TESTING ACCREDITATION ......................................................................................................... 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE .............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References ................................................................................................................... 9 4.2. Test and Uncertainty Procedure .................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ...................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program ............................................................................................................... 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 13 5.6. Test Configurations...................................................................................................................... 13 5.7. Equipment Modifications ............................................................................................................. 14 5.8. Deviations from the Test Standard .............................................................................................. 14 6. TEST SUMMARY ................................................................................................................................ 15 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 16 7.1. Conducted ................................................................................................................................... 16 7.2. Radiated Emissions................................................................................................................... 18 7.3. ac Wireline Emission ................................................................................................................. 20 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 21 9. TEST RESULTS .................................................................................................................................. 22 9.1. 20 dB & 99% Bandwidth .............................................................................................................. 22 9.2. Number Of Channels ................................................................................................................... 24 9.3. Channel Spacing ......................................................................................................................... 26 9.4. Dwell Time & Channel Occupancy .............................................................................................. 28 9.5. Conducted Output Power ............................................................................................................ 30 9.6. Conducted Spurious Emissions ................................................................................................... 33 9.6.1. Conducted Emissions ........................................................................................................... 33 9.6.1.1. Spurious Emissions ........................................................................................................ 33 9.6.1.2. Band-Edge Emissions .................................................................................................... 35 9.7. Radiated Testing ......................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photograph CE - Conducted Emissions ACDC Adapter POE RE#1 - Radiated Emissions - 3m Chamber A6590C 1-18G A6590C 30M-1G A6590C Close Up ALR-8696 1-18G ALR-8696 30M-1G ALR-8696 Close Up Digital Emissions ACDC Digital Emissions Close Up ACDC 1.1.1. Test Setup - RF#2 - Conducted RF Conducted
