P65ATRM900F01RFID READER

Alien Technology Corporation User’s Guide User’s Guide 2 Disclaimer Alien Technology Corporation is registered trade mark of Alien Technology Corporation is registered trade mark of Alien Technology Corporation All other trademarks and trade names referred to herein are property of their respective owners. Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® NT, and Windows® XP are registered trademarks of Microsoft Corporation. FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. User’s Guide 3 Using 900MHz RFID Tag Reader Enable to equip a UHF 900Mhz Tag Reader. Enable to read and write RFID Tag which supported protocol of EPC GEN2. The Frequency range is 850MHz ~ 960MHz, and could adjustable. 3.1Executing RF900Demo Program [Start button] -> [Program] -> [DEMO Apps] -> [RF900Demo] UHF Reader Run RF900Demo Program INVENTORY Mode: Single Read: Read one Tag each time. Multi Read: Read multi Tag each time (Anti Collision). INVENTORY: Press <Inventory> button to read tags. User’s Guide 4 Chapter5. Appendix Configuration UHF 900MHz Tag Reader Frequency 865.7MHz ~ 867.5MHz for Europe 902.75 ~ 927.25MHz for USA Reading Range 0m ~ 7m (Differs from each tag) Writing Range 0m ~ 3m Antenna Gain 2 dbi (Standard) Speed 62.5 kbps RF Output 1W EIRP Protocol EPC Gen2 ISO 18000 6C ISO 18000 6B Multi-Reading Anti collision

18220 Butterfield Blvd Morgan Hill, CA 95037, USA TEL No : 408-201-7475 FAX No : 408-201-7475 June 13, 2011 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry,m Florida 32669 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: P65ATRM900F01 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Alien Technology Corporation LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Greg Katterhagen Engineer

18220 Butterfield Blvd Morgan Hill, CA 95037, USA TEL No : 408-201-7475 FAX No : 408-201-7475 June 13, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Alien Technology Corporation FCC ID: P65ATRM900F01 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Alien Technology Corporation hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Alien Technology Corporation temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX P65ATRM900F01 SCH DIA.pdf Parts list CONF APPENDIX P65ATRM900F01 PL.pdf Block diagram CONF APPENDIX P65ATRM900F01 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX P65ATRM900F01 OpDes.pdf External Photos SHORT-TERM CONF P65ATRM900F01 EXT Photo.pdf Internal Photos SHORT-TERM CONF P65ATRM900F01 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF P65ATRM900F01 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF P65ATRM900F01 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Greg Katterhagen Engineer

18220 Butterfield Blvd Morgan Hill, CA 95037, USA TEL No : 408-201-7475 FAX No : 408-201-7475 ATTESTATION STATEMENT In re : Alien Technology Corporation FCC ID: P65ATRM900F01 Date : June 13, 2011 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit ba ndwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with oth er frequency hopping systems for the express purpose of avoiding the simultane ous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, Greg Katterhagen Engineer

FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 3 FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 3 FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 3

FCC ID: P65ATRM900F01 Copyright Ⓒ 2011, LTA Co., Ltd. SAMPLE LABEL & LOCATION

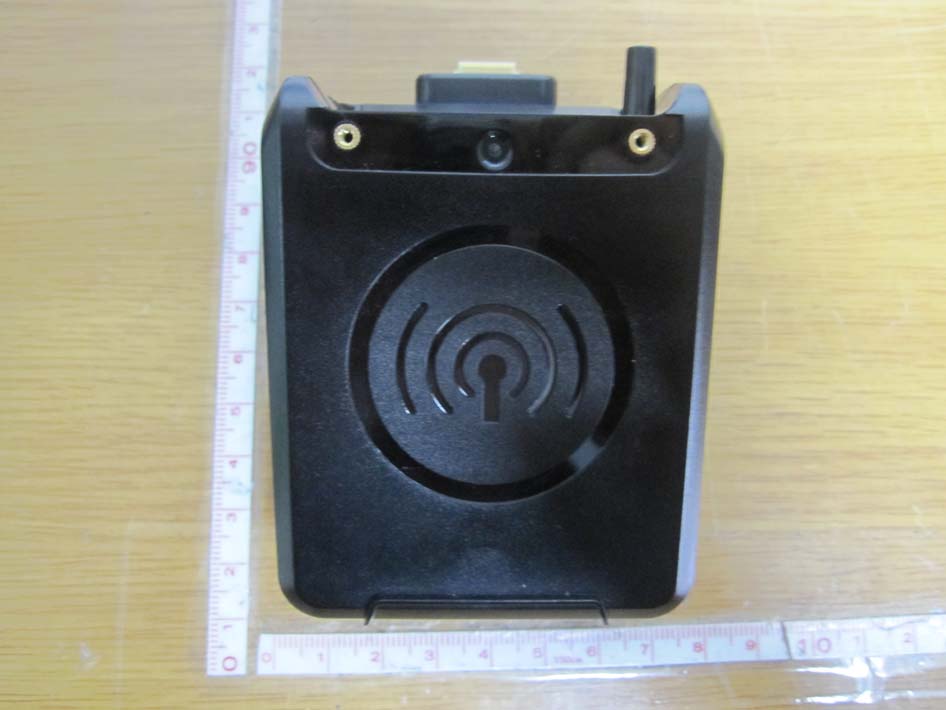

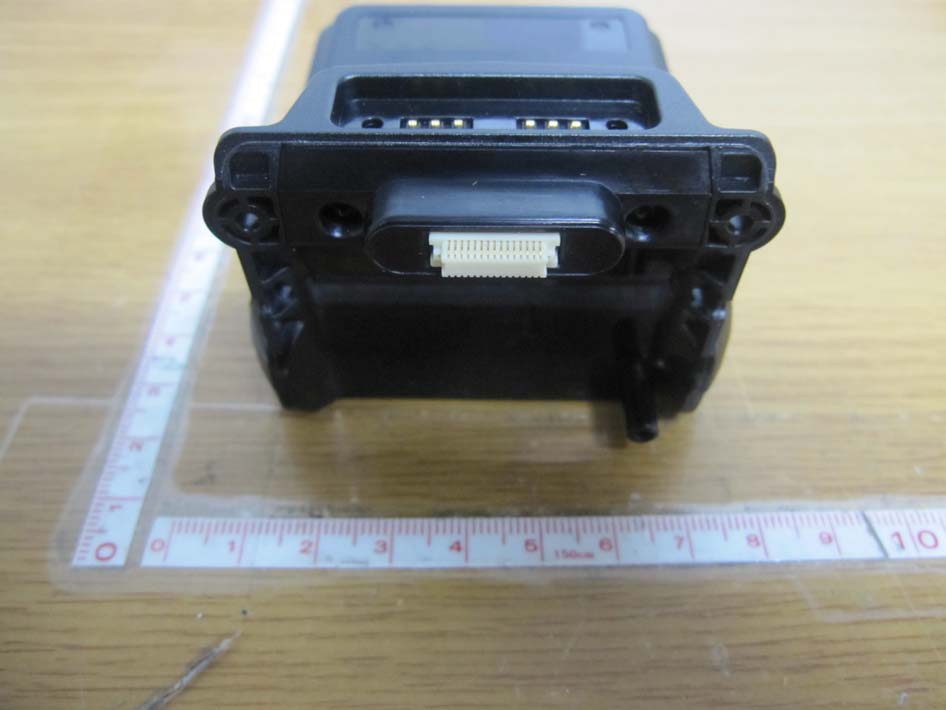

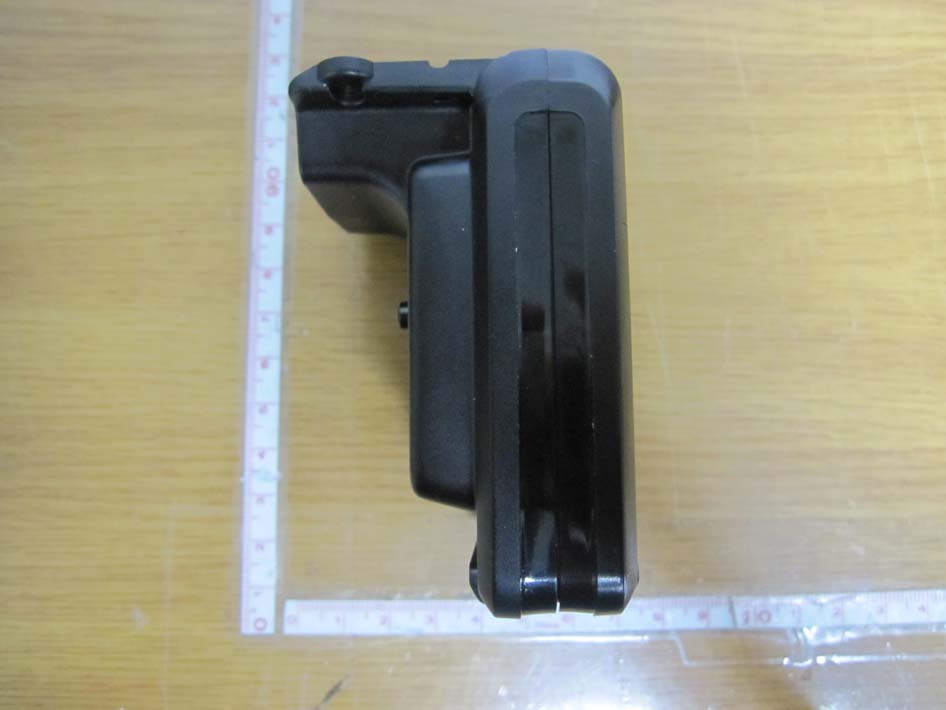

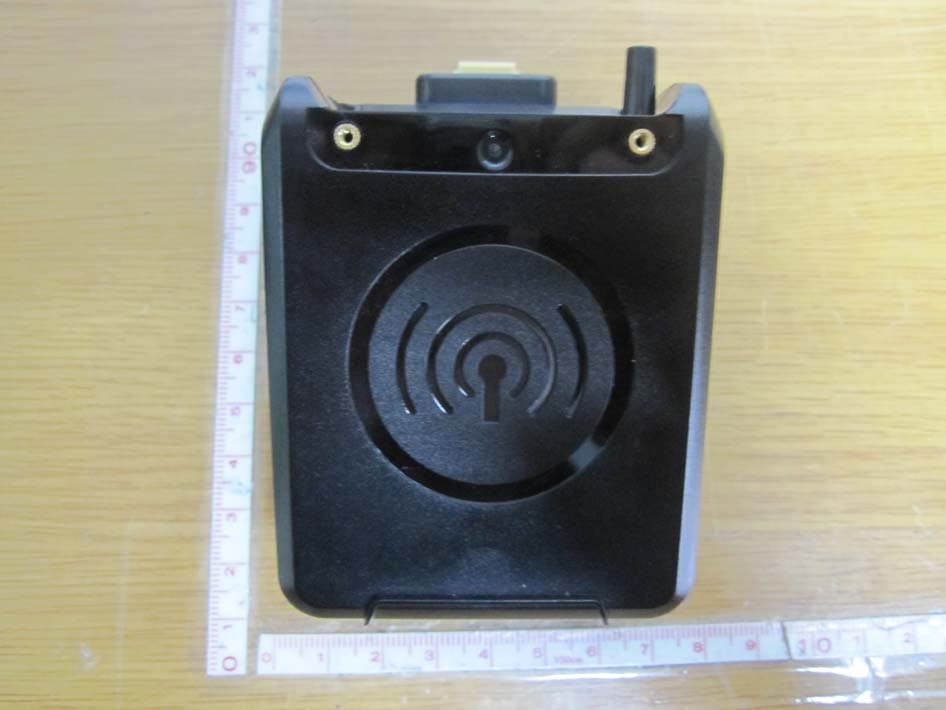

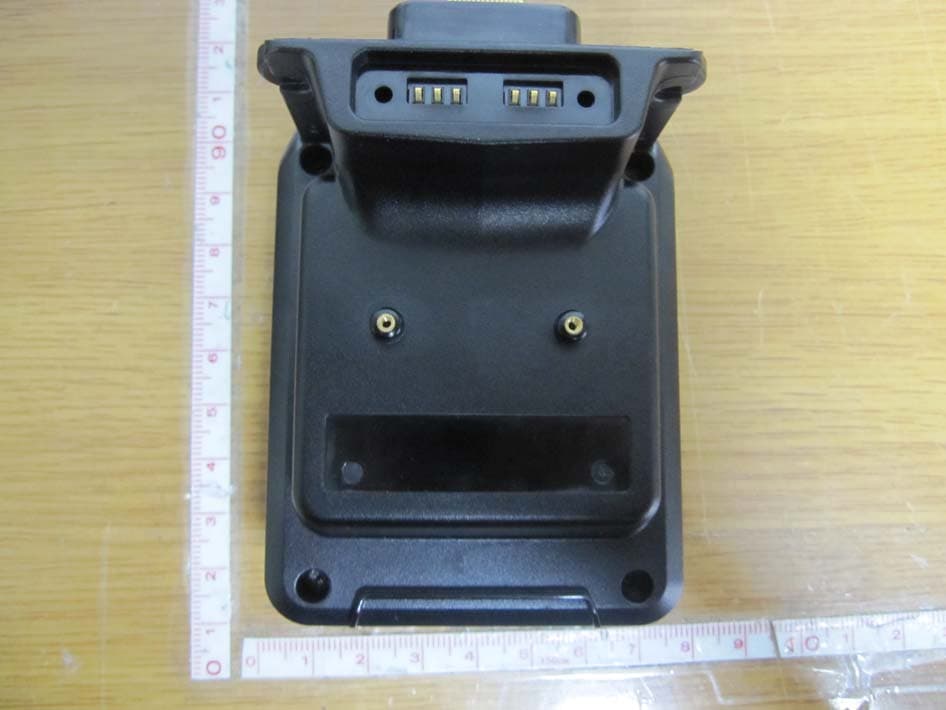

FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 4 FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 4 FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 4 FCC ID: P65ATRM900F01 Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 4

ATTACHMENT FCC ID: P65ATRM900F01 KDB 447498 D01 Mobile RF Exposure SAR test positions and requirements for specific host platforms and exposure conditions - Extremity and body SAR evaluation considerations Hand SAR is required for hand-held and hand-operated devices with output power 1000>[f(GHz)] - 0.5 mW that are designed with the hand operating closer than 5 cm from the antenna during normal use. Measurement data : hand-operated devices output power limit : 1000>[f(GHz)] -0.5 mW : 1045mW (f=0.915) Output power of this product’s output power : 818.46mW This product is used more than 5Cm away from the antenna Please see the photo below as Photo :

Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : UHF RFID Reader Manufacturer : ATID CO., Ltd Model name : ATUHF-F11 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 902.75 ~ 927.25MHz RF power : 0.82W - Conducted Data of issue : June 13, 2011 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: June 07~13, 2011 Test Report S/N: LR500111106G Test Site : LTA CO., LTD. P65ATRM900F01 Alien Technology Corporation Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE (Conducted) ------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 8 10 13 15 18 23 26 27 Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2011-09-30 ECT accredited Lab. KCC KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R-2133, C-2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA 5799A 2012-05-14 IC filing Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Client Company name : Alien Technology Corporation Address : 18220 Butterfield Blvd Morgan Hill, CA 95037, USA Tel / Fax : Tel : 408-201-7475 / Fax : 408-201-7475 2-2 Manufacturer Company name : ATID CO., Ltd Address : 205 Migun Technoworld 1, 533, Yongsan-dong, Yuseong-gu, Daejeon, Korea, 305-500 Tel / Fax : Tel : 82-2-544-1436 / Fax :82-2-544-1438 2-2 Equipment Under Test (EUT) Trade name : UHF RFID Reader hybrid module FCC ID : P65ATRM900F01 Model name : ATUHF-F11 Serial number : Identification Date of receipt : June 7, 2011 EUT condition : Pre-production, not damaged Antenna type : Patch Antenna Max Gain 2.00dBi Frequency Range : 902.75 ~ 927.25MHz RF output power : 0.82 W- Conducted Number of channels : 50 Channel spacing : 500KHz Channel Access Protocol : Frequency Hopping Power Source : 3.7VDC by mainsystem 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 902.75 914.75 927.25 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Industrial PDA ALH-9001 N/A ATID Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies ≥ 50 hops C 15.247(a) 20 dB Bandwidth - C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics Emission Radiated C 15.207 AC Conducted Emissions Emissions Conducted NA note3 Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 3: This device is only operated by DC The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003  Antenna Requirement The Alien Technology Corporation ATUHF-F11 unit complies with the requirement of §15.203. The antenna is connected to inside of EUT. And type is Patch antenna. Ref. No.: LR500111106G Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 28 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT ha…
