P66GDK02Keyless Entry Control Pad

Operator ’s Manual GARAGE DOOR OPENER CAUTION: Before using this Garage Door Opener, Read this manual and follow All its Safety Rules and Operating Instructions ▓Safety Instructions▓Installation▓Operation Maintenance▓Parts List Powe r Tool Spe cialists Inc. Visit our Home Master website: www.homemaster-gdo.com Customer Help Line 1-800-243-5114 MODEL: GDK02 ii 1/2 HP Chain Drive Garage Door Opener Table of Contents Before You Begin........................................................................................................................................ 1 Tools Required for Ass embly.................................................................................................................... 3 Materials Not Included In The Carton...................................................................................................... 3 Preparing The Installation Site.................................................................................................................. 4 As s embling the Garage Door Opener Rail and Chain.......................................................................... 5 A) Assemble the Rail and Attach the Cable........................................................................................ 5 B) Attaching the Rail to Motor As sem bly............................................................................................. 7 C) Attach the Chain to the Motor and Trolley..................................................................................... 9 Mounting the Assembled Garage Door Opener................................................................................... 12 At tach the Motor As sem bly to Ceiling.................................................................................................... 16 Ins tall Safety Sens ors and Rem ote Switches ......................................................................................17 A) Install the Safety Revers ing Sens ors ........................................................................................... 17 B) Install The Premium Control Cons ole........................................................................................... 20 C) Install the Keyless Entry Control Pad........................................................................................... 22 Attach The Door Brackets To The Garage Door And Garage Door Bracket................................... 23 Testing and Adjusting the Garage Door Opener.................................................................................. 29 A) Adjus ting the Chain Tens ion........................................................................................................... 29 B) Testing and Adjus ting the Door Range of Motion ....................................................................... 29 C) Testing and Adjus ting the Safety Revers ing Sensors ................................................................ 31 D) Testing and Adjus ting Door Force................................................................................................. 31 E) Testing and Adjus ting The Safety Revers e Feature................................................................... 32 Programm ing the Remote Controls ....................................................................................................... 33 Using your Garage Door Opener........................................................................................................... 35 Caring for your Garage Door Opener.................................................................................................... 36 Hom elink Programm ing ........................................................................................................................... 37 Troubleshooting........................................................................................................................................ 39 Parts List and Schematic Diagrams....................................................................................................... 41 Parts List: Schematic A - Rail Assembly and Other Parts.............................................................. 41 Parts Lis t: Schem atic B - Motor As s embly........................................................................................ 43 Table of Contents iii 1/2 HP Chain Drive Garage Door Opener Before You Begin........................................................................................................................................ 1 Tools Required for Ass embly.................................................................................................................... 3 Materials Not Included In The Carton...................................................................................................... 3 Preparing The Installation Site.................................................................................................................. 4 As s embling Rail Components................................................................................................................... 5 A) Attaching the Trolley & Header Bracket to the Rail...................................................................... 5 B) Attaching the Rail to the Motor As sembly...................................................................................... 7 C) Attaching the Chain to the Motor & Rail As sem bly....................................................................... 9 Mounting the Assembled Garage Door Opener................................................................................... 12 At tach the Motor As sem bly to Ceiling.................................................................................................... 16 Ins tall Safety Sens ors and Rem ote Switches ......................................................................................17 A) Install the Safety Revers ing Sens ors ..........…

Text truncated - open the document above for the full version.

Dear Timothy, Thank you for your kindly advise. We have modified the document as per your review comments and have the file attached for your review. Please see the explanation below: 1) Our client provided the modified Block diagram. Please find the "Block diagram-revise" as file upload to ATCB website for you review. 2) We modified the label per your requirement. Please find the "label-revise" as file upload ATCB website for you review. 3) The control signal is a pulse modulation. Our client explain the operator procedure as follows: Shall be input keynumber + the"ENTRY" to open/close the door. When operator press key number it can not emission frequency. Only press the "ENTRY" it can emission frequency. 4) Because of there's no spurious emission was found above the spectrum analyzer's noise floor, thus we did not show any dat above 1GHz. 5) We modified the page 41 of user manual. Please find the "User's manual-revise" as file upload ATCB website for you review. If your have further question, please feel free to let me know. Thank your & Gook luck for your~~ Best Regards Sunny Liu/ Intertek From: "Sunny Liu Labtest-EMC" <[email protected]> To: <[email protected]> Subject: Rexon Industrial Corp. Ltd. FCC ID: P66GDK02 Page 1 of 1In 4/15/2004Printed for "Timothy R. Johnson" <[email protected]>

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 11, 2004 RE: Rexon Industrial Corp., Ltd. FCC ID: P66GDK02 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The block diagram appears to be for an entire system and does not appear to be for the device being approved. Additionally it appears to include a RX but not include a TX. Additionally, the block diagram should show the frequencies of all oscillators in the TX device (CFR 2.1033(a)(5)). Please provide the correct block diagram for the TX. 2) Please justify the use of the DoC labeling information (FCC logo). This labeling is reserved for particular approvals that do not appear to apply to this application (PC Peripheral, Stand alone RX, etc.). If proper justification can not be provided, please remove the FCC logo from the labeling. 3) It appears that the device may only be sending data. Please explain what types of control signals are being sent to meet the requirements of 15.231(a). Note that it appears that maybe a control signal is not necessary to be sent with each button press. Please explain. 4) The test report does not appear to contain any data > 1 GHz. Please explain. 5) The FCC shown on page 41 of the users manual does not appear correct. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

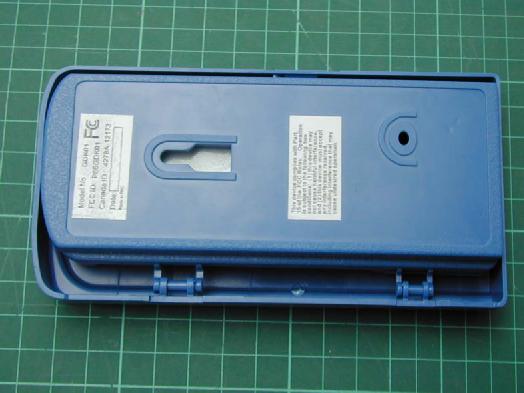

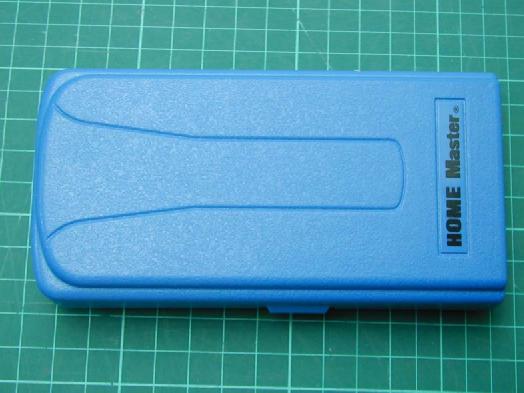

Photo 1: External photo of EUT GDK02 Photo 2: External photo of EUT GDK02 Photo 3: External photo of EUT GDK02

Photo 1: External photo of EUT GDK02 Photo 2: External photo of EUT GDK02 Photo 3: External photo of EUT GDK02

Photo 1: Internal photo of EUT GDK02 Photo 2: Internal photo of EUT GDK02

FCC ID. : P66GDK02 Report No.:EME-040229 Page 1 of 12 EMC TEST REPORT Report No. : EME-040229 Model No. : GDK02 Issued Date : Mar. 29, 2004 Applicant : Rexon Industrial Corp., Ltd. No. 261, Jen Hwa Road, Tali, Taichung, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan This test report consists of 12 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Elton Chen FCC ID. : P66GDK02 Report No.:EME-040229 Page 2 of 12 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description.............................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode...................................................................................................6 2.3 Test equipment....................................................................................................7 3. Radiated emission test FCC 15.231 (b).....................................................................8 3.1 Operating environment........................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Radiated emission limit.......................................................................................9 3.3.1 Fundamental and harmonics emission limits.....................................................9 3.3.2 General radiated emission limit........................................................................9 3.4 Radiated emission test data FCC 15.231............................................................11 3.4.1 Fundamental & Harmonics Radiated Emission Data......................................11 3.5 Measured bandwidth FCC 15.231(C)................................................................12 FCC ID. : P66GDK02 Report No.:EME-040229 Page 3 of 12 Summary of Tests Keyless Entry Console for Garage Door Opener -Model: GDK02 FCC ID: P66GDK02 Test Reference Results Radiated Emission test 15.231(b), 15.209 Complies Measured bandwidth 15.231(c) Complies FCC ID. : P66GDK02 Report No.:EME-040229 Page 4 of 12 1. General information 1.1 Identification of the EUT Manufacturer : Rexon Industrial Corp., Ltd. Product : Keyless Entry Console for Garage Door Opener Model No. : GDK02 FCC ID. : P66GDK02 Frequency Range : 310.00MHz Channel Number : Single Type of Modulation : ASK Power Supply : 9Vdc Battery Power Cord : N/A Sample Received : Feb. 27, 2004 Test Date(s) : Feb. 27, 2004 ~ Mar. 25, 2004 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is garage door opener. It has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in instruction manual. The model 5660 and 56330 are identical to model GDK02 (EUT), the different model number for different brand serves as marketing strategy listed below Model Number Trade Name GDK02 REXON 5660 HOMEMASTER 56330 HOMEMASTER For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : P66GDK02 Report No.:EME-040229 Page 5 of 12 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : -3.0dBi max Antenna Type : Loop antenna Connector Type : N/A FCC ID. : P66GDK02 Report No.:EME-040229 Page 6 of 12 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.231. 2.2 Operation mode EUT was used a new 9Vdc battery. Key in four random number and then press key “Enter”. Once the button releasing, the transmission will be stopped within 1 second. The EUT transmitted continuously during all the tests. FCC ID. : P66GDK02 Report No.:EME-040229 Page 7 of 12 2.3 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 June 6, 2003 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI 825428/005 June 24, 2003 Spectrum Analyzer Rohde & Schwarz 9kHz~30GHz FSP 30 100137 July 19, 2003 Horn Antenna EMCO 1GHz~18GHz 3115 9906-5890 Sep. 19, 2003 Horn Antenna SCHWARZBECK 14GHz~40GHz BBHA 9170 159 June 20, 2003 Bilog Antenna SCHWARZBECK 25MHz~1.7GHz VULB 9160 3133 Feb. 21, 2004 Turn Table HDGmbH N/A DS 420S 420/669/01 N/A Antenna Tower HDGmbH N/A MA 240 240/573 N/A Microwave Amplifier Agilent 2GHz~26.5GHz 8348A 3111A00567 Dec. 20, 2003 LISN Rohde & Schwarz 9KHz~30MHz ESH3-Z5 EC344 Jan. 20, 2004 Note: The above equipments are within the valid calibration period. FCC ID. : P66GDK02 Report No.:EME-040229 Page 8 of 12 3. Radiated emission test FCC 15.231 (b) 3.1 Operating environment Temperature: 21 °C (10-40°C) Relative Humidity: 54 % (10-90%) Atmospheric Pressure 1023 hPa (860-1060hPa) 3.2 Test setup & procedure The Diagram below shows the test setup, which is utilized to make these measurements. Radiated emission measurements were performed fr…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up Photo 3: Radiated Emission Test Set-up
