P66GDR02Garage Door Opener

Operator ’s Manual GARAGE DOOR OPENER CAUTION: Before using this Garage Door Opener, Read this manual and follow All its Safety Rules and Operating Instructions ▓Safety Instructions▓Installation▓Operation Maintenance▓Parts List Powe r Tool Spe cialists Inc. Visit our Home Master website: www.homemaster-gdo.com Customer Help Line 1-800-243-5114 MODEL: GDR02 ii 1/2 HP Chain Drive Garage Door Opener Table of Contents Before You Begin........................................................................................................................................ 1 Tools Required for Ass embly.................................................................................................................... 3 Materials Not Included In The Carton...................................................................................................... 3 Preparing The Installation Site.................................................................................................................. 4 As s embling the Garage Door Opener Rail and Chain.......................................................................... 5 A) Assemble the Rail and Attach the Cable........................................................................................ 5 B) Attaching the Rail to Motor As sem bly............................................................................................. 7 C) Attach the Chain to the Motor and Trolley..................................................................................... 9 Mounting the Assembled Garage Door Opener................................................................................... 12 At tach the Motor As sem bly to Ceiling.................................................................................................... 16 Ins tall Safety Sens ors and Rem ote Switches ......................................................................................17 A) Install the Safety Revers ing Sens ors ........................................................................................... 17 B) Install The Premium Control Cons ole........................................................................................... 20 C) Install the Keyless Entry Control Pad........................................................................................... 22 Attach The Door Brackets To The Garage Door And Garage Door Bracket................................... 23 Testing and Adjusting the Garage Door Opener.................................................................................. 29 A) Adjus ting the Chain Tens ion........................................................................................................... 29 B) Testing and Adjus ting the Door Range of Motion ....................................................................... 29 C) Testing and Adjus ting the Safety Revers ing Sensors ................................................................ 31 D) Testing and Adjus ting Door Force................................................................................................. 31 E) Testing and Adjus ting The Safety Revers e Feature................................................................... 32 Programm ing the Remote Controls ....................................................................................................... 33 Using your Garage Door Opener........................................................................................................... 35 Caring for your Garage Door Opener.................................................................................................... 36 Hom elink Programm ing ........................................................................................................................... 37 Troubleshooting........................................................................................................................................ 39 Parts List and Schematic Diagrams....................................................................................................... 41 Parts List: Schematic A - Rail Assembly and Other Parts.............................................................. 41 Parts Lis t: Schem atic B - Motor As s embly........................................................................................ 43 Table of Contents iii 1/2 HP Chain Drive Garage Door Opener Before You Begin........................................................................................................................................ 1 Tools Required for Ass embly.................................................................................................................... 3 Materials Not Included In The Carton...................................................................................................... 3 Preparing The Installation Site.................................................................................................................. 4 As s embling Rail Components................................................................................................................... 5 A) Attaching the Trolley & Header Bracket to the Rail...................................................................... 5 B) Attaching the Rail to the Motor As sembly...................................................................................... 7 C) Attaching the Chain to the Motor & Rail As sem bly....................................................................... 9 Mounting the Assembled Garage Door Opener................................................................................... 12 At tach the Motor As sem bly to Ceiling.................................................................................................... 16 Ins tall Safety Sens ors and Rem ote Switches ......................................................................................17 A) Install the Safety Revers ing Sens ors ..........…

Text truncated - open the document above for the full version.

1 NUMBER OF PAGES (INCLUDING THIS COVER LETTER): To: Attn.: Subject: REXON INDUSTRIAL CORP., LTD. 261, JEN HWA ROAD, TALI, TAICHUNG , TAIWAN TEL:+886-4-24914141 FAX:+886-4-24910600 From: Sosa. Chou Date : APPENDIX B Company REXON INDUSTRIAL CORP., LTD. Address 261, JEN HWA ROAD, TALI, TAICHUNG , TAIWAN Country TAIWAN Telephone number +886-4-24914141 Fax number +886-4-4910600 Internet www.rexon.com.tw Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: P66GDR02 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics.pdf Block Diagram.pdf Operational Descriptions.pdf The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, 3/31 Sosa. Chou Engineer REXON INDUSTRIAL CORP., LTD.

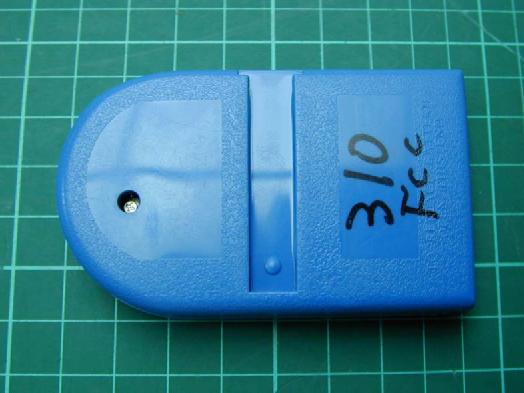

Photo 1: External photo of EUT GDR02 Photo 2: External photo of EUT GDR02

Photo 1: Internal photo of EUT GDR02 Photo 2: Internal photo of EUT GDR02

FCC ID. : P66GDR02 Report No.: EME-040219 Page 1 of 12 EMC TEST REPORT Report No. : EME-040219 Model No. : GDR02 Issued Date : Mar. 29, 2004 Applicant : Rexon Industrial Corp., Ltd. No. 261, Jen Hwa Road, Tali, Taichung, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan This test report consists of 12 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Elton Chen FCC ID. : P66GDR02 Report No.: EME-040219 Page 2 of 12 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.3 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.231 (b).....................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Radiated emission limit......................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limit.......................................................................9 3.4 Radiated emission test data FCC 15.231...........................................................11 3.4.1 Fundamental & Harmonics Radiated Emission Data......................................11 3.5 Measured bandwidth FCC 15.231(C)...............................................................12 FCC ID. : P66GDR02 Report No.: EME-040219 Page 3 of 12 Summary of Tests Remote Controller for Garage Door Opener -Model: GDR02 FCC ID: P66GDR02 Test Reference Results Radiated Emission test 15.231(b), 15.209 Complies Measured bandwidth 15.231(c) Complies FCC ID. : P66GDR02 Report No.: EME-040219 Page 4 of 12 1. General information 1.1 Identification of the EUT Manufacturer : Rexon Industrial Corp., Ltd. Product : Remote Controller for Garage Door Opener Model No. : GDR02 FCC ID. : P66GDR02 Frequency Range : 310.00MHz Channel Number : Single Type of Modulation : ASK Power Supply : 12Vdc Battery Power Cord : N/A Sample Received : Feb. 27, 2004 Test Date(s) : Feb. 27, 2004 ~ Mar. 25, 2004 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is garage door opener. It has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in instruction manual. The model 5620 and 56440 are identical to model GDR02 (EUT), the different model number for different brand serves as marketing strategy listed below Model Number Trade Name GDR02 REXON 5620 HOMEMASTER 56440 HOMEMASTER For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : P66GDR02 Report No.: EME-040219 Page 5 of 12 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : -3.0dBi max Antenna Type : Loop antenna Connector Type : N/A FCC ID. : P66GDR02 Report No.: EME-040219 Page 6 of 12 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.231. 2.2 Operation mode EUT was used a new 12Vdc battery. The EUT transmitted continuously during all the tests. Once the button releasing, the transmission will be stopped within 1 second. The EUT transmitted continuously during all the tests. FCC ID. : P66GDR02 Report No.: EME-040219 Page 7 of 12 2.3 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 June 6, 2003 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI 825428/005 June 24, 2003 Spectrum Analyzer Rohde & Schwarz 9kHz~30GHz FSP 30 100137 July 19, 2003 Horn Antenna EMCO 1GHz~18GHz 3115 9906-5890 Sep. 19, 2003 Horn Antenna SCHWARZBECK 14GHz~40GHz BBHA 9170 159 June 20, 2003 Bilog Antenna SCHWARZBECK 25MHz~1.7GHz VULB 9160 3133 Feb. 21, 2004 Turn Table HDGmbH N/A DS 420S 420/669/01 N/A Antenna Tower HDGmbH N/A MA 240 240/573 N/A Microwave Amplifier Agilent 2GHz~26.5GHz 8348A 3111A00567 Dec. 20, 2003 LISN Rohde & Schwarz 9KHz~30MHz ESH3-Z5 EC344 Jan. 20, 2004 Note: The above equipments are within the valid calibration period. FCC ID. : P66GDR02 Report No.: EME-040219 Page 8 of 12 3. Radiated emission test FCC 15.231 (b) 3.1 Operating environment Temperature: 20 °C (10-40°C) Relative Humidity: 54 % (10-90%) Atmospheric Pressure 1023 hPa (860-1060hPa) 3.2 Test setup & procedure The Diagram below shows the test setup, which is utilized to make these measurements. Radiated emission measurements were performed from 30MHz…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up Photo 3: Radiated Emission Test Set-up
