P6T803Bidirectional SMR Repeater

P.G. TM0051 electronic s OPERATOR'S MANUAL BIDIRECTIONAL REPEATER MODEL R307B P/N 001-0307-002 NOVEMBER 2002 RESTRICTION ON DISCLOSURE OF DATA This document contains information proprietary to P.G. Electronics and any disclosure or use of this information or any reproduction of this document for other than the specific purpose for which it is intended is expressly prohibited except as P.G. Electronics may otherwise agree in writing. Toronto, Ontario electronic s P.G. TM0051 i GUARANTEE This unit is guaranteed for a period of one year from the date of shipment against failure due to defective parts or improper assembly. This guarantee is limited to replacement of defective material and does not cover damages or other costs resulting from the use of this material whether used correctly or otherwise. P.G. TM0051 ii TABLE OF CONTENTS Paragraph Page SECTION 1. GENERAL INFORMATION 1.1 INTRODUCTION 1-1 1.1.1 Scope of Manual 1-1 1.1.2 Purpose of Equipment 1-1 1.1.3 Physical Description 1-1 1.1.4 Electrical Description 1-1 1.2 TECHNICAL SUMMARY 1-1 SECTION 2. THEORY OF OPERATION 2.0 GENERAL 2-1 SECTION 3. INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS 3.1 UNPACKING AND INSPECTION 3-1 3.2 INSTALLATION 3-1 3.3 OPERATING AND MAINTENANCE INSTRUCTIONS 3-2 P.G. TM0051 iii LIST OF FIGURES Figure Title Page 2-1 R307B Repeater Block Diagram 2-2 3-1 Installation Data 3-3 LIST OF TABLES Table Title Page 1-1 Performance Characteristics and Salient Features of the 1-2 R307B Repeater 1-2 Rated Power Output for Linear Operation 1-3 P.G. TM0051 1-1 SECTION 1. GENERAL INFORMATION 1.1 INTRODUCTION 1.1.1 Scope of Manual. - This manual is provided to familiarize personnel installing the R307B Repeater with all pertinent aspects of the repeater. Included in this manual are a brief physical description, a technical summary, and installation and operating data. 1.1.2 Purpose of Equipment. - The R307B Repeater is used as a drop-in booster for the SMR band (800 MHz trunking). It will simultaneously amplify signals in the uplink band in one direction and the downlink band in the opposite direction. A typical use of the R307B is to provide signal coverage in enclosed areas. 1.1.3 Physical Description. - The unit, shown in Figure 3-1, is designed to be mounted on a flat vertical surface. The unit has two SMA connectors for antenna connections and a DC power jack for connection to the external AC-DC power source supplied with the unit. 1.1.4 Electrical Description. - The unit provides a maximum or approximately 60 dB of gain for signals in the uplink band in one direction and the same amount of gain for signals in the downlink band in the opposite direction. The external AC-DC power source supplied with the unit is used to provide power via a power jack (center positive) on the unit. Two LED indicators show the operating status of the unit. 1.2 TECHNICAL SUMMARY The power requirements, performance characteristics and dimensions and weight of the R307B Repeater are summarized in Table 1-1. P.G. TM0051 1-2 TABLE 1-1 Performance Characteristics and Salient Features of the R307B Repeater Parameter Specification 1. Input Power: 9 to 12 VDC @ 1 A Max. (12 VDC Adapter is supplied with the unit) 2. Frequency Range: - Base Receive (Uplink) 806 - 821 MHz - Base Transmit (Downlink) 851 - 866 MHz Note: The following specifications apply in both directions 3. Maximum Gain: 60 dB Typical 4. Attenuator Range: 31 dB in 1 dB Steps 5. Impedance (Input and Output): 50 Ohms 6. VSWR: 2:1 Typical 7. Intermodulation (IMD)* : -48 dBc Typ. @ +13 dBm 2-Tones (At Max. Gain) 8. Output 1 dB Compression Point +22 dBm Typical 9. 3 rd Order Output IP: +40 dBm Typical 10. Environmental Limits (a) Ambient Temperature Range: 0°C to 50°C Operating (b) Ambient Relative Humidity: Up to 85% 11. Dimensions: (a) Enclosure Dimensions: 6.7” L x 5.3” W x 1.0” H (170mm L x 135mm W x 25mm H) (b) Mounting Hole Spacing: 5.9" (150mm) (c) Weight: 2.2 Lbs (1 Kg) 12. Connectors: RF Input/Output: Type SMA Female DC Supply: DC Power Jack (Center Positive) (Use 12 VDC Adapter supplied with unit) * Note: The total composite output power rating is +16 dBm. Refer to Table 1-2 for definition of composite output power rating. P.G. TM0051 1-3 NOTE IMPORTANT RATING INFORMATION Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced as per Table 1-2, especially where the output signal is re-radiated and can cause interference to adjacent band users. This output power reduction is to be achieved by reduction of input power or by gain reduction and not by an attenuator at the output of the device. TABLE 1-2 Rated Power Output for Linear Operation The total composite output power in multiple tone or wideband signals shall NOT exceed the following level or else it may result in improper operation of the device and cause interference. The composite output power rating is defined as the total average RMS output power of all inband signals. The unit should be operated at or below this level to ensure linear operation with low distortion. This holds true for any number of carriers with total average power adding up to the composite output power rating listed in the table below. Parameter Specification Base Transmit (Downlink) Power: +16 dBm Portable Transmit (Uplink) Power: +16 dBm NOTE: See NOTE in Section 3.3. P.G. TM0051 2-1 SECTION 2. THEORY OF OPERATION 2.0 GENERAL The R307B is a bidirectional repeater, providing a maximum of approximately 60 dB gain in the SMR uplink and downlink bands. The block diagram of the R307B is shown in Figure 2-1. 2.1 - The unit is composed of amplifiers and diplexers as well as voltage regulation circuits. The downlink signal enters the unit via Base Antenna connector (the common port of diplexer U2). The signal passes through the high band port of diplexer U2 to drive amplifier 2. The output of amplifier 2 is fed into the high band p…

Text truncated - open the document above for the full version.

P. G. Electronics FCC ID: P6T803 P6T803CL1 P. G. Electronics 800 Arrow Road, Unit 8 Toronto, Ontario M9M 2Z8 Canada January 24, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Ref.: P6T803CL1 Dear Sir/Madame: RE: FCC ID: P6T803 Attached is an application for Equipment Approval for our model R307B bidirectional repeater. The unit is a low power bidirectional repeater for the SMR (800 MHz trunking) communications band. The unit makes use of Class A amplifier stages and fixed-tuned diplexers. The unit contains no oscillator or frequency translation circuitry and does not require tuning. The unit is designed to be used for in-building signal enhancement. The unit allows operators to reduce interference problems by utilizing low power signals directed to the exact required coverage areas instead of using increased power at a distant antenna. The attached exhibits contain technical information to assist you in reviewing our application and test data which has been taken under my supervision. If you require any further information to supplement this data, please contact me and we will provide it immediately. Yours Sincerely, P. G. Electronics Ltd. Gerry Graham, P. Eng President ([email protected])

P. G. Electronics FCC ID: P6T803 P6T803CL2 P. G. Electronics 800 Arrow Road, Unit 8 Toronto, Ontario M9M 2Z8 Canada January 24, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Ref.: P6T803CL2 Dear Sir/Madame: RE: FCC ID: P6T803 Request For Confidentiality P. G. Electronics requests confidentiality in accordance with FCC Regulations Section 0.459 for items submitted with the application for Type Approval of the R307B (FCC ID: P6T803). We request that the following exhibits be kept confidential: schematic, parts lists, and operational description. These items are considered as proprietary material and Trade Secrets. They are essential to the continuing successful business of P. G. Electronics. The references for these files are as follows: EXHIBIT FILENAME Schematic P6T803SC.DOC Parts Lists P6T803PL.DOC Operational Description P6T803OD.DOC We appreciate your assistance in this matter. Yours Sincerely, P. G. Electronics Ltd. Gerry Graham, P. Eng President ([email protected])

P. G. Electronics FCC ID: P6T803 P6T803CL3 P. G. Electronics 800 Arrow Road, Unit 8 Toronto, Ontario M9M 2Z8 Canada March 4, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Ref.: P6T803CL3 Re: FCC ID P6T803, 731 Confirmation Number EA999437 Re: Correspondence Reference number: 24875 Re: Rule Part for Application Response: Thank you for your observation. P. G. Electronics had intended to obtain a grant for this device under Part 90. Unfortunately, Part 22 was listed on the Form 731 Application in error. P. G. Electronics apologizes for this. Please consider the application to be made under Part 90. If any further detailed information is required, P. G. Electronics will provide this information as soon as possible. Sincerely. Gerry Graham P. G. Electronics

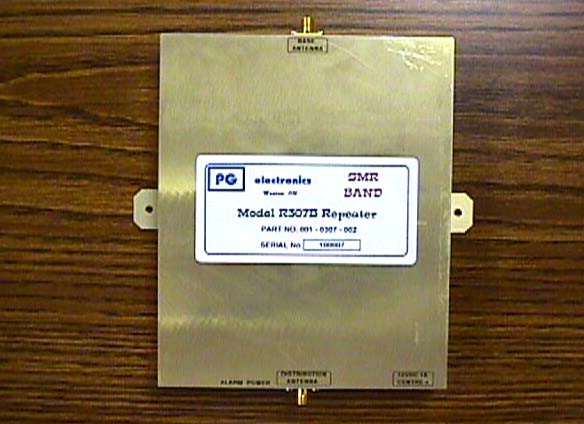

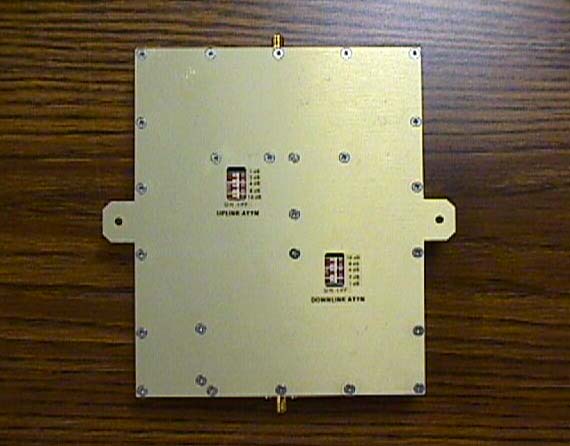

P. G. Electronics FCC ID: P6T803 P6T803EP Page 1 of 2 R307B EXTERNAL PHOTOS R307B FRONT VIEW R307B BOTTOM VIEW P. G. Electronics FCC ID: P6T803 P6T803EP Page 2 of 2 R307B EXTERNAL PHOTOS (CONT.) R307B REAR VIEW (MOUNTING SURFACE)

P. G. Electronics FCC ID: P6T803 P6T803ID R307B FCC ID DRAWING FSCM 38243 SERIAL No. Model R307B Repeater iDEN BAND PART NO. 001-0307-002 FCC ID: P6T803IC: 2805A-R307B

P. G. Electronics FCC ID: P6T803 P6T803IP Page 1 of 1 R307B INTERNAL PHOTO

P. G. Electronics FCC ID: P6T803 P6T803TR Page 1 of 26 TEST REPORT FOR FCC TYPE ACCEPTANCE MODEL R307B BIDIRECTIONAL SMR REPEATER FCC ID: P6T803 P. G. Electronics FCC ID: P6T803 P6T803TR Page 2 of 26 TEST REPORT P. G. Electronics, Ltd. is pleased to submit this technical report on tests performed on the Model R307B bidirectional repeater (FCC ID: P6T803) to demonstrate compliance with the requirements for Type Acceptance by the FCC. The undersigned personnel verify that the tests were performed as described herein and the results given were measured on the production unit. Model Number R307B Serial Number 100014 __________________________ Date ______________ Paul Liber – Test Engineer ___________________________ Date ______________ Gerry Graham – P. Eng. President P. G. Electronics FCC ID: P6T803 P6T803TR Page 3 of 26 1.0 NAMES AND ADDRESSES 1.1 Manufacturer The Model R307B bidirectional repeater (FCC ID: P6T803) is manufactured by: P. G. Electronics, Ltd. 800 Arrow Rd., Unit 8, Weston, Ontario M9M 2Z8 1.2 Applicant The applicant for the acceptance of the repeater is: P. G. Electronics, Ltd. 800 Arrow Rd., Unit 8, Weston, Ontario M9M 2Z8 P. G. Electronics FCC ID: P6T803 P6T803TR Page 4 of 26 2.0 COMPLIANCE The equipment has been tested in accordance with the following performance tests and the results provided below demonstrate compliance with FCC regulations. Please refer to section 3.0 for the list of test equipment used. 2.1 Gain The gain was measured using the test arrangement as shown in Figure 2.1-1 below. Measurements were made at three frequencies in the band. Network Analyzer Test Set D.U.T. 10 dB Attn. Power Supply (12V) Figure 2.1-1 The unit gain was measured for both directions (uplink and downlink). These results are shown in Plot 1 and Plot 2 that follow. P. G. Electronics FCC ID: P6T803 P6T803TR Page 5 of 26 Plot 1: Uplink Gain Plot 2: Downlink Gain P. G. Electronics FCC ID: P6T803 P6T803TR Page 6 of 26 2.2 Intermodulation and Spurious Intermodulation and spurious products were measured with the repeater operating at the maximum total rated inband power level specified in the Operator's Manual (Refer to TM0051 exhibit provided.). A three tone test was conducted using the equipment test arrangement in Figure 2.2-1 below with the input power levels adjusted to give the rated output power of +11.2 dBm for each tone (+16 dBm total inband power). The Network Analyzers were used as signal sources. The 10.5 dB loss to the spectrum analyzer results in tone levels of +0.7 dBm into the instrument. Network Analyzer 1 Network Analyzer 2 Test Set Point A Combiner D.U.T. 10 dB Attn. Point B Terminator Signal Generator Power Supply (12V) Spectrum Analyzer *Note: Loss from Point A (D.U.T. output) to Point B (Spectrum Analyzer input) was 10.5 dB. This includes the loss of the 10 dB attenuator and cables. Figure 2.2-1 P. G. Electronics FCC ID: P6T803 P6T803TR Page 7 of 26 The results of these tests are shown in Plots 3 and 4 that follow for two spectrum analyzer sweep settings with the reference level set at +0.7 dBm. For the uplink direction, in Plot 3, the narrower band setting shows in-band intermodulation products, while in Plot 4 the spectrum outside the SMR band is displayed to show harmonics and spurious. Plots 5 and 6 show the equivalent results for the downlink direction. Plot 3: Uplink 3-tone Intermodulation (Narrow Sweep) Plot 4: Uplink 3-tone Intermodulation (Broad Sweep) P. G. Electronics FCC ID: P6T803 P6T803TR Page 8 of 26 Examination of the above results shows that all products are at least 50 dB below the fundamentals. Plot 6: Downlink 3-tone Intermodulation (Broad Sweep) Plot 5: Downlink 3-tone Intermodulation (Narrow Sweep) P. G. Electronics FCC ID: P6T803 P6T803TR Page 9 of 26 2.3 Modulated Channel Tests These tests show a comparison of the input and output signals for operation with a single modulated signal at the maximum rated RF input drive level of the repeater. Figure 2.3-1 below shows the test arrangement used for the tests. All the test results display the input level and the output level with sufficient attenuation to display it as an overlay on the same screen. The input signal is displayed on the spectrum analyzer using the reference bypass. The output signal is displayed on the spectrum analyzer with the equipment connected as shown. Tests are performed for both the uplink and downlink directions for FM and two types of digital modulations. Figure 2.3-1 The following notes apply: a. Loss 1, loss 2 and loss 3 are measured at the test frequency. Loss 1 = 0.6 dB (Cable 1) Loss 2 = 60.5 dB (Attn. 1 + Attn. 2 + Cable 2 + Attn. 3) Loss 3 = 0.6 dB (Cable 3) b. Signal generator set to test frequency and desired modulation. Amplitude set to DUT maximum rated output level minus 60 dB (DUT gain) plus Loss 1. Therefore, to obtain +16 dBm at the output of the DUT requires a Generator level of: +16 dBm (test level) – 60 dB (DUT gain) + 0.6 dB (Loss 1) = -43.4 dBm. c. The DUT output level is equal to the spectrum analyzer level + Loss 2 + Loss 3; which is the spectrum analyzer level + 61.1 dB. The results of these tests are shown in Plots 7 through 12 that follow. Plots 7 and 8 show results for FM modulation (AMPS), Plots 9 and 10 show results for for Digital Modulation 1 (NADC), and Plots 11 and 12 show results for Digital Modulation 2 (GSM). Signal Generator DUT Spectrum Analyzer Attn. 1 30 dB Attn. 2 30 dB Reference Bypass Cable 1 Cable 3 Loss 1 Loss 3 Loss 2 12 VDC Power Supply Attn. 3 3 dB Cable 2 P. G. Electronics FCC ID: P6T803 P6T803TR Page 10 of 26 Plot 7: Uplink FM Modulated Channel Test Input Level = -43.4 dBm Modulation = 1KHz Deviation = 12KHz Span = 200 KHz Video Averaging = ON Plot 8: Downlink FM Modulated Channel Test Input Level = -43.4 dBm Modulation = 1KHz Deviation = 12KHz Span = 200 KHz Video Averaging = ON P. G. Electronics FCC ID: P6T803 P6T803TR Page 11 of 26 Plot 9: Uplink NADC Modulated Channel Test Input Level = -43.4 dBm Modulation = NADC Span = …
