P6W002Magnetic Window Sensor

Model: WY-TXC01 FCC ID.: P6W002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade Name: Weiyang Electric Wire & Cable Co., Ltd. Made in Taiwan

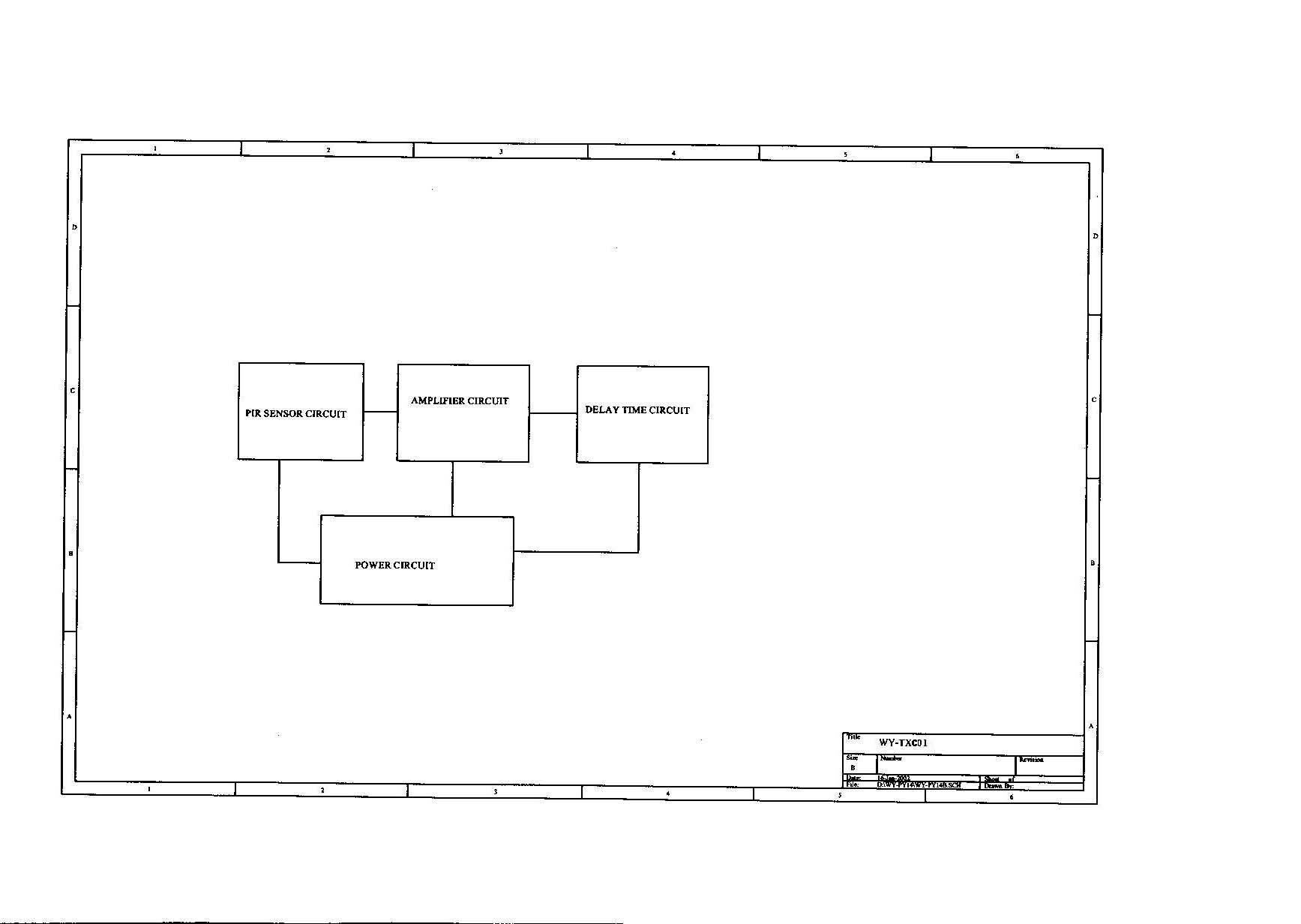

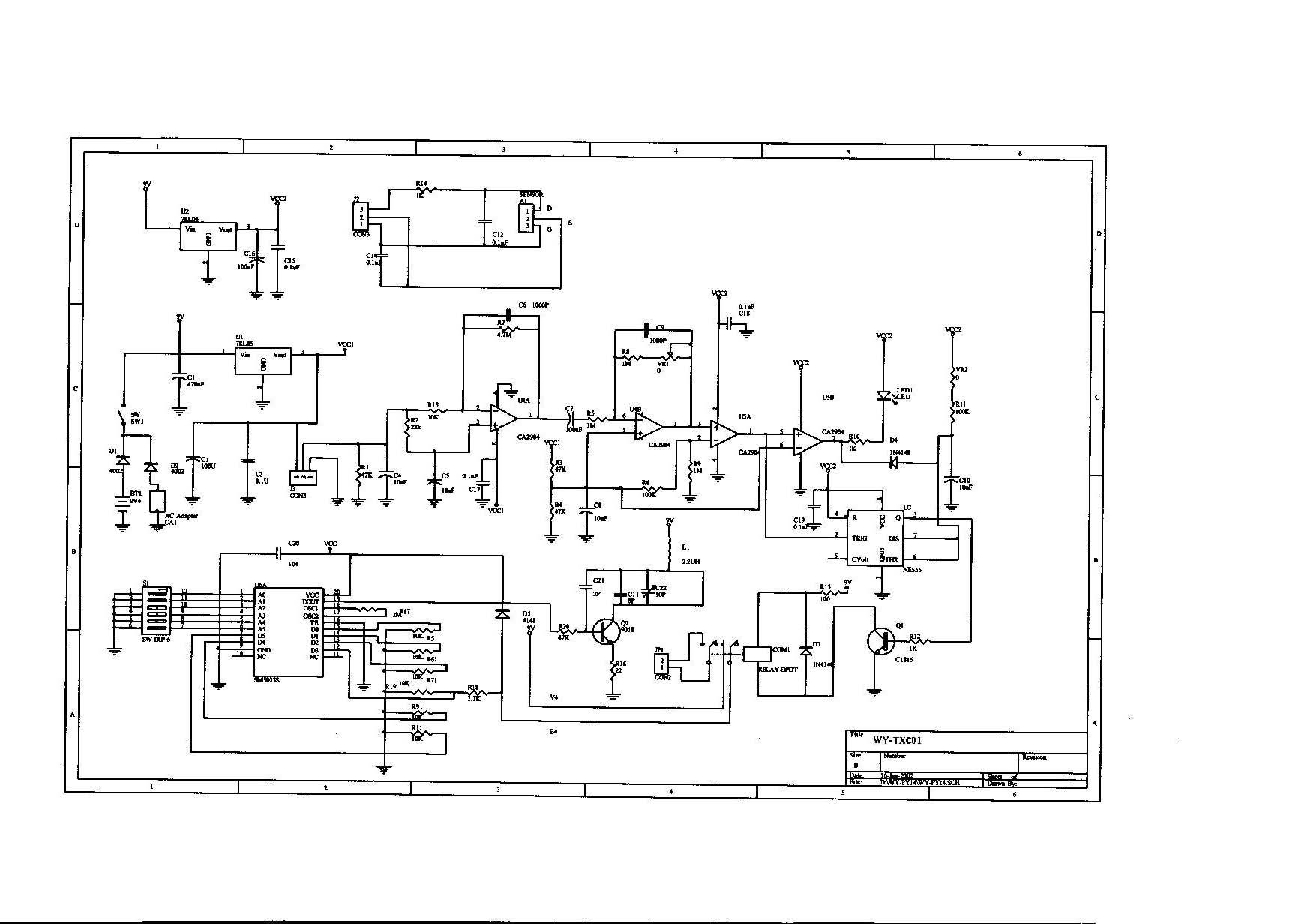

The principle description of PIR Motion Detector When the sensor of the ‘PIR Motion Detector’ detects someone passing in the range of 4~5 meters, the sensor’s signal will be delivered from the amplifier to IC555 and start the Relay later. While the Relay is on and the 9V power passes through Relay to the encoder (sm5023s), the USB receiver will receive the signal and also screen will show ‘capture motion’.

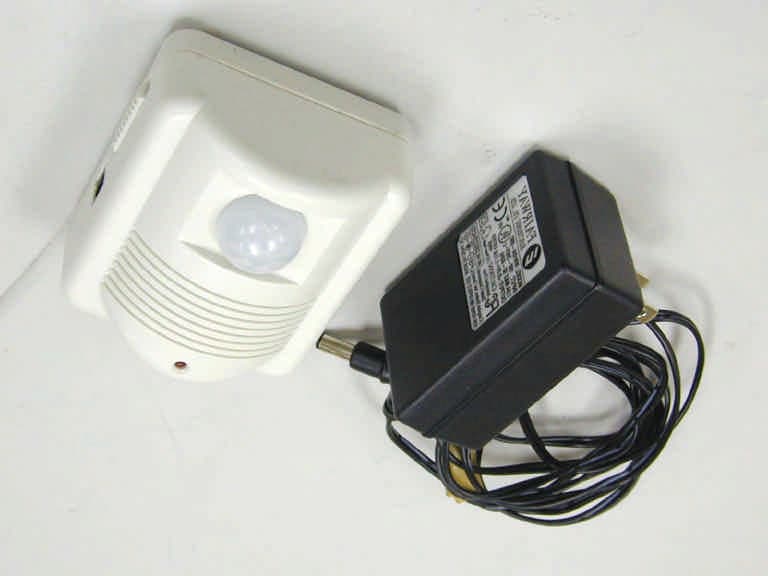

FCC ID.:P6W002 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : PIR Motion Detector FCC ID. : P6W002 MODEL : WY-TXC01 Working Frequency : 315 MHz for APPLICANT: Weiyang Electric Wire & Cable Co., Ltd. ADDRESS: No. 13, Datung Street, Tucheng Industrial District, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3276170-3276174 Fax:(03)3276188 Report Number : ET90S-12-159-01 ETC Report No.:ET90S-12-159-01FCC ID.: P6W002 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Weiyang Electric Wire & Cable Co., Ltd. No. 13, Datung Street, Tucheng Industrial District, Taipei Hsien, Taiwan, R.O.C. Manufacturer: Weiyang Electric Wire & Cable Co., Ltd. No. 13, Datung Street, Tucheng Industrial District, Taipei Hsien, Taiwan, R.O.C. Description of EUT: a) Type of EUT: PIR Motion Detector b) Trade Name: -- c) Model No.: WY-TXC01 d) FCC ID: P6W002 e) Working Frequency: 315 MHz f) Power Supply: DC 12V Battery or Adaptor:I/P:100~240VAC , O/P:9VDC, 1.11A (Fairway, WN10A-090) Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date : Jan. 10, 2002 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Supervisor, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90S-12-159-01FCC ID.: P6W002 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................2 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD.................................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..........................................................................................................................................................5 3.3 TEST DATA.........................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION..................................................................................................................................................9 3.5 RADIATED TEST EQUIPMENT.........................................................................................................................................................9 3.6 MEASURING INSTRUMENT SETUP.................................................................................................................................................9 3.7 RADIATED MEASUREMENT PHOTOS...........................................................................................................................................10 4. BANDWIDTH OF EMISSION......................................................................................................................................................11 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH....................................................................................................11 4.2 BANDWIDTH TEST EQUIPMENT...................................................................................................................................................11 4.3 PLOT GRAPHIC OF BANDWIDTH..............................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:E90S-12-159-01Page 10 of 20 FCC ID.: P6W002 Rev. No 1.0 3.7 Radiated Measurement Photos ETC Report No.:E90S-12-159-01Page 19 of 20 FCC ID.: P6W002 Rev. No 1.0 5.6 Photos of Conduction Measuring Setup
