P73-604397Remote Control Toy Transmitter

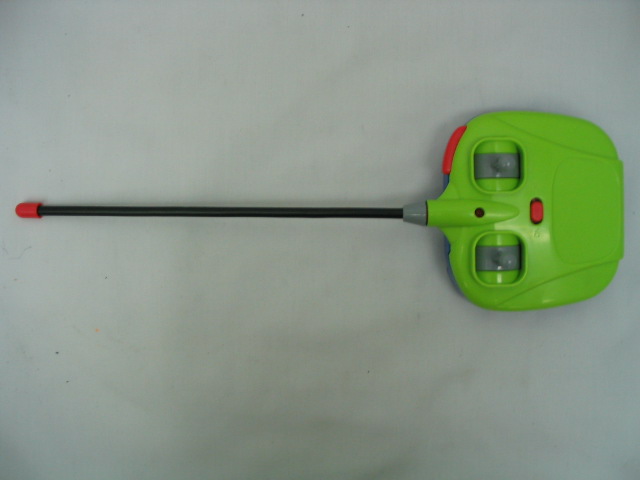

27.145MHZ Transmitter Operational Description The Catapult Stunt R/C radio control transmitter is a low powered, hand held unit for controlling the movement of a toy car the transmitter is powered by a 9V battery ,it is designed to operate on a single fixed frequency in the 27.145MHZ band .please see the attached block diagram and schematic. Transmitter is using a five-function Remote Control Encorder-SPRC205A integrated circuit, the SPRC205A is able to encode five sequences of binary information into a serial bit-stream data. When push any one of the button keys, it will have digital control signals, via built-in crystal oscillator and power amplifier, circuit comprised of a crystalX1the RF carrier signal is modulated by digital control signal form U1s pinRFO the modulated output of pinRFO is capacitively coupled via C7 to the antenna through a pi matching network comprised of C8 C9 and L5 the antenna is permanently, All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the User. No external ground is required or used with this transmitter

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE010543-1 Date : 2004 July 14 Applicant : Lung Cheong Toys Limited Lung Cheong Building, 1 Lok Yip Road, On Lok Tsuen, Fanling, N. T., Hong Kong. Sample Description : One(1) submitted sample stated to be Catapult Stunt RC of Model No. E047. Rating : 1 x 9 V battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 June 25. Test Period : 2004 June 25 – 2004 July 12. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. FOR AND ON BEHALF OF CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : P73-604397 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE010543-1 Date : 2004 July 14 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : P73-604397 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE010543-1 Date : 2004 July 14 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Catapult Stunt operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are two control stick in the front of EUT. When the forward or backward control stick pushed once, it will transmit a radio frequency for receiver going forward or backward. When the left or right control stick pushed once, it will transmit a radio frequency for receiver going left or right. The brief circuit description is listed as follows : - X1 and associated circuit act as oscillator - U1 and associated circuit act as encoder - L3, L4 and associated circuit act as filter modulator - Q1 and associated circuit act as voltage readjust - R9 and associated circuit act as oscillator for U1 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101 (b). Page 3 of 11 FCC ID : P73-604397 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE010543-1 Date : 2004 July 14 1.3 Location of t…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE010543-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AE010543-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE010543-1 Duty Cycle 2 Duty Cycle 3
