P73KGRACER27TARemote Control Toy Transmitter

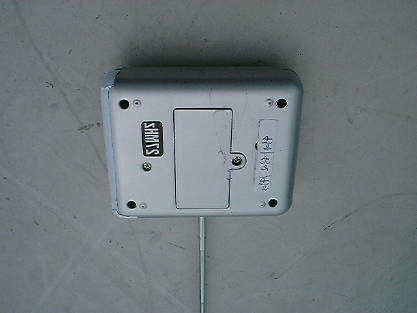

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Model: 4201 Circuit Description The 27.145MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by U1 TX2. The output of Q2 has the matching network consisting of L3 and C8 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 23cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2002-11-01 TEST REPORT Page 1 of 20 No.: HM109144 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM109144 Equipment Under Test [EUT]:KG Racer 27MHz Model Number:4201 Applicant:Lung Cheong Toys Limited. FCC ID :P73KGRACER27TA Date: 2002-11-01 TEST REPORT Page 2 of 20 No.: HM109144 CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 Conclusion Page 4 of 20 1.0 General Details 1.1Test Laboratory Page 5 of 20 1.2Applicant Details Page 5 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 20 Description of EUT operation 1.4Date of Order Page 6 of 20 1.5Submitted Sample Page 6 of 20 1.6Test Duration Page 6 of 20 1.7Country of Origin Page 6 of 20 1.8 Additional Information of EUT Page 7 of 20 2.0Technical Details 2.1Investigations Requested Page 8 of 20 2.2Test Standards and Results Summary Page 8 of 20 3.0Test Results 3.1Emission Page 9-13 of 20 3.2Bandwidth Measurement Page 14-15 of 20 Date: 2002-11-01 TEST REPORT Page 3 of 20 No.: HM109144 Appendix A List of Measurement Equipment Page 16 of 20 Appendix B Duty Cycle Correction During 100 msec Page 17-18 of 20 Appendix C Photographs Page 19-20 of 20 Date: 2002-11-01 TEST REPORT Page 4 of 20 No.: HM109144 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-11-01 TEST REPORT Page 5 of 20 No.: HM109144 1.0 General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant LUNG CHEONG TOYS LIMITED. Lung Cheong Building, 1 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong. Telephone:852 2676 8069 Fax:852 2682 2161 HKSTC Code Number for ApplicantLUC001 Manufacturer LUNG CHEONG TOYS LIMITED. Lung Cheong Building, 1 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong. Fax:852 2676 8069 Fax:852 2682 2161 Date: 2002-11-01 TEST REPORT Page 6 of 20 No.: HM109144 1.3Equipment Under Test [EUT] Description of Sample Product:KG Racer 27MHz Manufacturer:Lung Cheong Toys Limited. Brand Name:KG Racer Model Number:4201 Input Voltage:9Vd.c (“6F22” size battery x 1) Additional Model Number:4202, 4203, 4204, 4301, 4302, 4303, 4401, 4402, 4403 1.3.1Description of EUT Operation The Equipment Under Test(EUT) is an Lung Cheong Toys Limited., KG Racer 27MHz. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and tape is pulse modulation. 1.4Date of Order 2002-10-28 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2002-10-30 1.7Country of Origin China Date: 2002-11-01 TEST REPORT Page 7 of 20 No.: HM109144 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-11-01 TEST REPORT Page 8 of 20 No.: HM109144 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result Severit y PassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227ANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-11-01 TEST REPORT Page 9 of 20 No.: HM109144 3.0 Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.227 Test Method:ANSI C63.4:2000 Test Date:2002-10-30 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-11-01 TEST REPORT Page 10 of 20 No.: HM109144 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m][μV/m] 26.96-27.28100,00010,000 Results: FrequencyCorrectionLimit @3mAntenna FactorPolarity MHz dB μ V/m μ V/m 27.1558.522.380.810,964.8100,000Vertical dB μ V/m Field Strength Field Strength of Fundamental Emissions Peak Value Measured Level @3m dB μ V/m Field Strength μ V/m FrequencyCorrectionLimit @3mAntenna FactorPolarity MHz dB μ V/m μ V/m 27.1552.222.374.55,308.8100,00Vertical μ V/mdB μ V/m Field Strength Field Strength of Fundamental Emissions Average Measured Level @3m dB μ V/m Field Strength According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: *: Adjusted by Duty Cycle = -6.3dB *:Lin…

Text truncated - open the document above for the full version.

FCC ID: P73KGRACER27TA For the peak measurement RBW and VBW would be set to 1MHz. However VBW must not less than RBW. Normal detection mode lis follow HP8572A EMI receiver user guide. less than RBW. Normal detection mode lis follow HP8572A EMI receiver user guide.

1 Marianne Bosley From: Marianne Bosley Sent: Monday, November 18, 2002 6:29 PM To: '[email protected]' Cc: Marianne Bosley Subject: Metrak #13040 P73KGRACER27TA Hi Alice, Technical review complete and questions are below: RT Question: 1. The spectral plot shows spurious emissons at the upper bandedge (27.28 MHz) that appear to be at, or over the 15.209 limit. Please remeasure these emissions, using the marker-delta function from the peak of the emissions, and subtract the the measured deifference from the measured peak field strength, in order to demonstrate compliance. 2. Please specify the RBW and VBW used to make peak radiated field strength measurements. Let me know if you have any questions. Marianne

1 Marianne Bosley From: alice_wong [[email protected]] Sent: Monday, November 18, 2002 9:23 PM To: [email protected] Cc: EED - Choy, Kitty Subject: Metrak #13040 P73KGRACER27TA Anser Q1&2.PDF Hi Marianne, For the peak measurement RBW and VBW would be set to 1MHz. However VBW must not less than RBW. Normal detection mode is follow HP8572A EMI receiver user guide. (Please see attached file for details) Have a nice day Alice ----- Original Message ----- From: <[email protected]> To: <[email protected]> Cc: <[email protected]> Sent: Tuesday, November 19, 2002 7:29 AM Subject: Metrak #13040 P73KGRACER27TA > Hi Alice, > > Technical review complete and questions are below: > > RT Question: > > 1. The spectral plot shows spurious emissons at the upper bandedge (27.28 > MHz) that appear to be at, or over the 15.209 limit. Please remeasure these > emissions, using the marker-delta function from the peak of the emissions, > and subtract the the measured deifference from the measured peak field > strength, in order to demonstrate compliance. > > 2. Please specify the RBW and VBW used to make peak radiated field strength > measurements. > > Let me know if you have any questions. > > Marianne > >

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
