P7U-LT43044.3 inch Tablet PC

1 T T A A B B L L E E T T P P C C U U s s e e r r M M a a n n u u a a l l M M o o d d e e l l : : 2 User Manual Attention:........................................................................................................................................................................3 1. Appearance and Button:......................................................................................................................................4 1.1 Touch Panel .........................................................................................................................4 1.2 Power ..................................................................................................................................4 1.3 ESC .....................................................................................................................................4 1.4 Menu ...................................................................................................................................4 1.5 Volume +, Volume- .............................................................................................................4 1.6 Earphone Jack .....................................................................................................................5 1.7 TF Card ...............................................................................................................................5 1.8 Mini USB ............................................................................................................................5 1.9 Reset....................................................................................................................................5 2. First Use......................................................................................................................................................................5 2.1 Battery Management and Charge..................................................................................................................5 2.2 Connect to PC .....................................................................................................................6 3. Equipment Operation Interface........................................................................................................................6 3.1 Main Interface Describe ......................................................................................................6 3.2 Status Bar Describe .............................................................................................................8 3.3 Use Touch Panel..................................................................................................................8 4. Equipment Basic Set..............................................................................................................................................9 4.1 Sounds, Notification Display and Brightness Setting .......................................................10 4.2 Application ........................................................................................................................ 11 4.3 Privacy ..............................................................................................................................12 4.4 Storage ..............................................................................................................................12 4.5 Language & Keyboard ......................................................................................................13 4.6 Date & Time Setting .........................................................................................................13 4.7 Touch Calibration..............................................................................................................14 4.8 USB Mode Select..............................................................................................................14 4.9 About Device.....................................................................................................................14 5. Apps Install and Manage...................................................................................................................................15 5.1 App Installer ......................................................................................................................15 6. Problem Solution..................................................................................................................................................15 7. Basic Function.......................................................................................................................................................16 8.Important Safety Precautions....................................................................................................................16 3 Attention: This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Please make sure to reading the manual carefully before use the device.  Please don’t be in high temperature, moisture or very dust place  Please don’t be in high temperature, especially in summer don't put the device in the car when Windows closed.  Avoid fall or Violent collision of the device, don’t make the TFT display screen were violent tremor, this could cause TFT display screen abnormal or damage.  Please choose the appropriate volume, Use headphones should not be too big volume, If feel tinnitus, Lower the volume or stop using it  Please charge In the following condition, A、 The battery power ICONS shows have no power B、 The system automatically shut off, startup after power off soon C、 Operation buttons no response D、 The machine that the top right corner show red icons  When the device in the format or ongoing upload and download file, please don't suddenly disconnect, this could cause application error.  For those who because of damage to t…

Text truncated - open the document above for the full version.

GLOBAL CIRCUIT (SHENZHEN) CO.,LTD Floor#2-3, Baoyunda Building#2, Qianjin Road#2, Bao’an, Shenzhen, China Date: Sep.21, 2012 FCC ID: P7U-LT4304 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band.Ad Hoc function is supported but not able to operate on non-US frequencies.Please contact the one signed below or the authorized agent for this filing. Regards, Yours sincerely, Signatory Signature Name: Jack Xiang Title: Research Director Tel: 008675588367229

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name GLOBAL CIRCUIT (SHENZHEN) CO.,LTD Addresss Floor#2-3,Baoyunda Building#2,Qianjin Road#2,Bao’an City ShenZhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: P7U -LT4304 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) shenzhen 2012/9/21 Jack Xiang Research Director

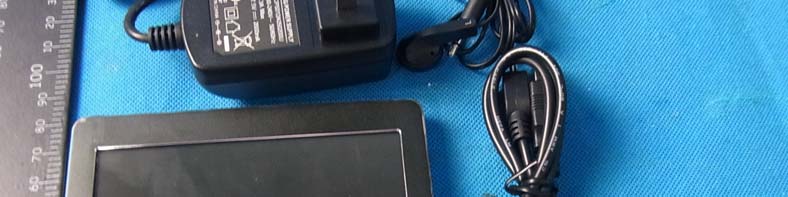

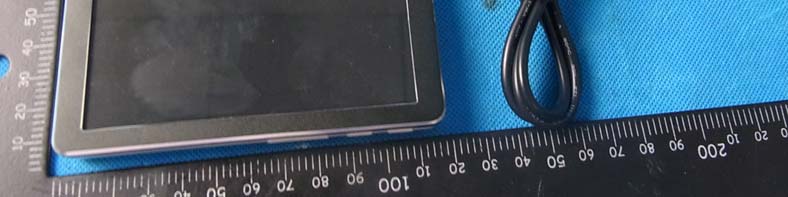

APPENDIX-Photographs of EUT Constructional Details

2.3*3.3cm

GLOBAL CIRCUIT (SHENZHEN) CO.,LTD Floor#2-3, Baoyunda Building#2, Qianjin Road#2, Bao’an, Shenzhen, China Date: Sep.28, 2012 FCC ID: P7U-LT4304 Letter of Certification This is to formally certify that: The tune up procedures of Tablet PC LT4304, HM-405Q, HM-406Q, HM-4XY, R43C-XY (X,Y= A-Z/0-9) is not open to end user. The end user is not allowed to perform finaltune. All the power and frequency set up were finished at the manufacturer stage. 802.11b ： max possible output power ：10±1dbm 802.11g: max possible output power ：7±1dbm Yours sincerely, Signature: Name: Jack Xiang Title: Research Director Tel: 08675588367229

Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) For portable device,the power limit is 60/f(in GHz) mW For limit 60/f is equal: 60/2.412=24.87mW 60/2.437=24.62 mW 60/2.462=24.37mW Maximum measured transmitter power Model MAX Conducted Power (dBm) Max Antenna Gain (dBi)EIRP (mW) Limit EIRP (mW) 802.11b 10.84 2 19.95 24.87 802.11g 7.85 2 10 24.37 The max.output power E.I.R.P is 19.95mW<24.87mW For the Tune Up information from the applicant, the maximum output power is 11 dBm and 8 dBm for 11b and 11g mode, so th e worst case of Conducted Power and EIRP will be still less than FCC SAR exemption threshold. Conclusion: No SAR is required.

Page 1 of 56 Report No.: PT1201191090E FCC RADIO TEST REPORT Report Reference No. ............... : PT1201191090E Compiled by (+ signature) ........... Jones song Approved by (+ signature) ........... Jacky Ou Applicant’s name........................... : GLOBAL CIRCUIT (SHENZHEN) CO.,LTD Address....................................... : Floor#2-3, Baoyunda Building#2, Qianjin Road#2, Bao’an, Shenzhen, China Manufacture's Name...................... : GLOBAL CIRCUIT (SHENZHEN) CO.,LTD Address....................................... : Floor#2-3, Baoyunda Building#2, Qianjin Road#2, Bao’an, Shenzhen, China Test specification: Standard ..................................... : FCC Part15.247 Test procedure............................... : ANSI C63.4-2003, KDB 558074(DTS) Test item description Product name ........................ : 4.3inch Tablet PC FCC ID P7U-LT4304 Trademark ............................ : N/A Model and/or type reference : LT4304, HM-405Q, HM-406Q, HM-4XY, R43C-XY (X,Y= A-Z/0-9) Rating(s) ................................ : DC 3.7V by battery Testing Laboratory information: Testing Laboratory Name ..... : DongGuan Precise Testing Service Co.,Ltd. Address ................................ : F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China This device described above has been tested by DongGuan Precise Testing Service Co.,Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of DongGuan Precise Testing Service Co.,Ltd., this document may be altered or revised by DongGuan Precise Testing Service Co.,Ltd., personal only, and shall be noted in the revision of the documen Testing....................................................: Date of receipt of test item ......................: 10 Sep. 2012 Date (s) of performance of tests .............: 10 Sep. 2012 ~18 Sep. 2012 Date of Issue ...........................................: 18 Sep. 2012 Test Result...............................................: Pass Page 2 of 56 Report No.: PT1201191090E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 13 3.1.3 DEVIATION FROM TEST STANDARD 13 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 .BAND EDGE EMISSION 35 5 . POWER SPECTRAL DENSITY TEST 43 5.1 APPLIED PROCEDURES / LIMIT 43 5.1.1 TEST PROCEDURE 43 5.1.2 DEVIATION FROM STANDARD 43 5.1.3 TEST SETUP 43 5.1.4 EUT OPERATION CONDITIONS 43 5.1.5 TEST RESULTS 44 6 . BANDWIDTH TEST 48 6.1 APPLIED PROCEDURES / LIMIT 48 Page 3 of 56 Report No.: PT1201191090E Table of Contents Page 6.1.1 TEST PROCEDURE 48 6.1.2 DEVIATION FROM STANDARD 48 6.1.3 TEST SETUP 48 6.1.4 EUT OPERATION CONDITIONS 48 6.1.5 TEST RESULTS 49 7 . PEAK OUTPUT POWER TEST 53 7.1 APPLIED PROCEDURES / LIMIT 53 7.1.1 TEST PROCEDURE 53 7.1.2 DEVIATION FROM STANDARD 53 7.1.3 TEST SETUP 53 7.1.4 EUT OPERATION CONDITIONS 53 7.1.5 TEST RESULTS 54 8 . EUT TEST PHOTO 55 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 56 Report No.: PT1201191090E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS Page 5 of 56 Report No.: PT1201191090E 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 6 of 56 Report No.: PT1201191090E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 4.3inch Tablet PC Trade Name N/A Model Name LT4304, HM-405Q, HM-406Q, HM-4XY, R43C-XY (X,Y= A-Z/0-9) OEM Brand/Model Name N/A Model Difference The motherboards are the same, only models ,color, software are different. Product Description The EUT is a 4.3inch Tablet PC Operation Frequency: 802.11b/g: 2412~2462 MHz Modulation Type: OFDM/CCK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps Number Of Channel 11 CH, Please see Note 2. Antenna Designation: internal antenna Antenna Gain(Peak) 2dBi Output Power(EIRP): 802.11b: 10.84 dBm (Max.) 802.11g: 7.85 dBm (Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Power Source DC 3.7V by battery Adapter Input:100-240ac, 50/60Hz Output:5Vdc, 2A Connecting I/O Port(s) Please refer to the User's Manual Products Covered N/A Note : 1. For a more detailed features desc…

Text truncated - open the document above for the full version.
