P8G-50306Wireless Numeric Control & Receiver

Cover Pools Wireless Control System Setup The Wireless Control System requires a setup process to link a keypad to the receiver module. The following is a description of the sequence for setting up this link and managing various features of the system. Quick instructions for keypad use: ‘Factory default’ master PIN is 1583. The master PIN is #1, and can be changed. Installer PIN is 2838. This PIN is also a master PIN, but is not changeable. 1. Normal use: a. Enter 4 digit PIN # i. Red LED on for button push ack. ii. Red LED on for .5sec on PIN failure iii. Green LED flash for good PIN recpt b. Push Cover or Uncover buttons. i. Green LED indicates ack from rcvr. 2. PIN change a. Unlock keypad with valid master PIN entry (1a process) b. Enter 1 to indicate change process i. Both LED’s light indicating readiness 1. You can abort at this point by entering 0 c. Enter 1 for PIN change i. Green LED flashes d. Enter 1-4 for which PIN # desired i. Red LED flashes e. Enter the new PIN# i. Both LED’s flash f. Enter the new PIN# again (for confirmation) i. Red LED flashes briefly ii. After a moment the Green LED will turn on indicating success. 1. You can abort at this point by entering 0 3. Delete a specific PIN # (except master). a. Unlock keypad with valid master PIN entry (1a process) b. Enter 1 to indicate change process i. Both LED’s light indicating readiness 1. You can abort at this point by entering 0 c. Enter 2 for PIN delete i. Green LED flashes d. Enter 2,3,4 for PIN to delete i. Green LED flashes e. Enter 2,3,4 for PIN to delete as a confirmation i. After a brief delay, the Green LED will light showing success 1. You can abort at this point by entering 0 4. Delete all PIN#’s (except master) a. Unlock keypad with valid master PIN entry (1a process) b. Enter 1 to indicate change process i. Both LED’s light indicating readiness 1. You can abort at this point by entering 0 c. Enter 3 for all PINs delete i. Both LED’s flash d. The master PIN must be entered again to verify the action i. After a brief delay, the Green LED will light showing success 1. You can abort at this point by entering 0 Quick Installation instructions for the receiver module: Quick functional description. NOTE: The installation functions described must all be done at the same time for each keypad in order for the receiver to store the setup properly. (ie radio linkage then set channel then set net ID, then exit). S3 on the PC board is the setup button. Establish Setup mode 1. The Uncover and #3 button are pushed simultaneously and held for 5 secs. a. Both LED’s light and stay on solid. 2. Enter the 6 digit master security code: 396207 a. The Red LED turns off. Only the Green is lit. i. You can abort at this point by entering 4 Establish radio linkage 3. The ‘setup’ button on the receiver is pushed and held. a. The receiver red LED lights 4. The #1 key is pressed on the keypad. a. The LED’s turn off. b. The Green LED turns on when link is established. i. The Red LED will turn on if the link is not established ii. Repeat step 3&4, or enter 4 to abort Note: The receiver will timeout in about 20 seconds if no link is established. Set Channel # (00 to 31) (Still in setup) 5. Press #2 on the keypad a. No LED’s lit 6. Enter channel (00 to 31). NOTE: ch 0-9 will need to be entered as 0x, etc. a. Green LED is lit if successful. Red if not accepted. Set Network ID #(01 – 99) (Still in setup) 7. Press #3 on the keypad a. No LED’s lit 8. Enter channel (00 to 99). NOTE: ch 0-9 will need to be entered as 0x, etc. a. Green LED is lit if successful. Red if not accepted. End setup 1. Press #0 on the keypad a. No LED’s lit b. Green LED is lit briefly if successful. Red if not accepted. Initializing the Receiver The receiver (which stores all the PINs and the base channel and network settings) can be erased to a factory setup condition by holding the setup button down while the power to the receiver is turned on. The Green LED will flash briefly indicating the erasure is complete.

66 East 3335 South • Salt Lake City, UT 84115 • Phone (801) 484-2724 • Fax (801) 484-2763 CONFIDENTIALITY REQUEST LETTER August 11, 2005 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: P8G-50306 To Whom It May Concern: In accordance with Code of Federal Regulations Title 47 Sections 0.459 (3), (4), and (5), it is hereby requested that confidentiality treatment for the following items: 1. Block Diagram 2. Schematic Diagram 3. Theory Of Operation These items contain detailed system and equipment description and related information about the product which the Grantee considers to be proprietary, confidential, and a custom design which otherwise would not be releases to the general public. The public disclosure of these matters might be harmful to the Grantee and provide unjustified benefit to its competitors in the market. Sincerely

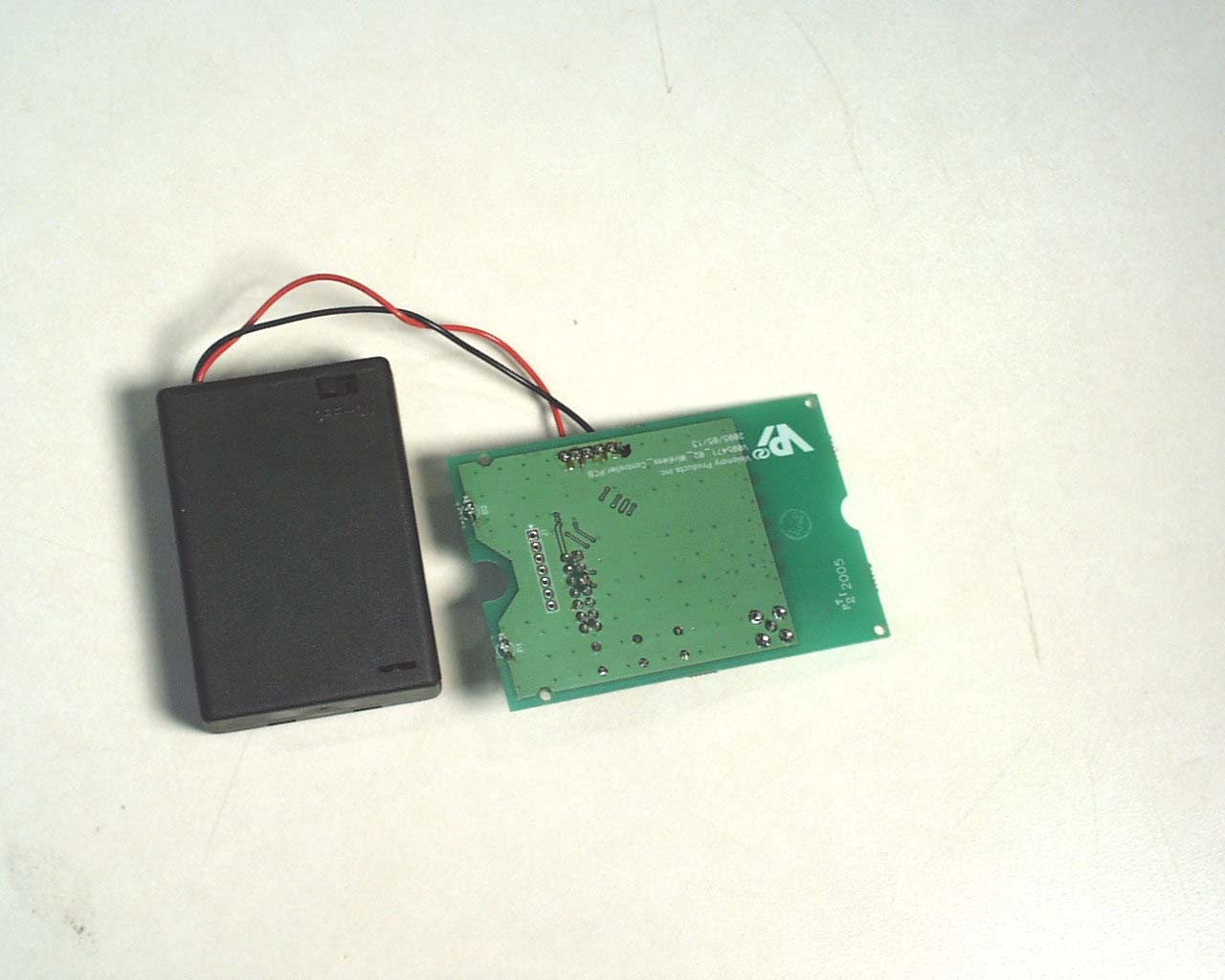

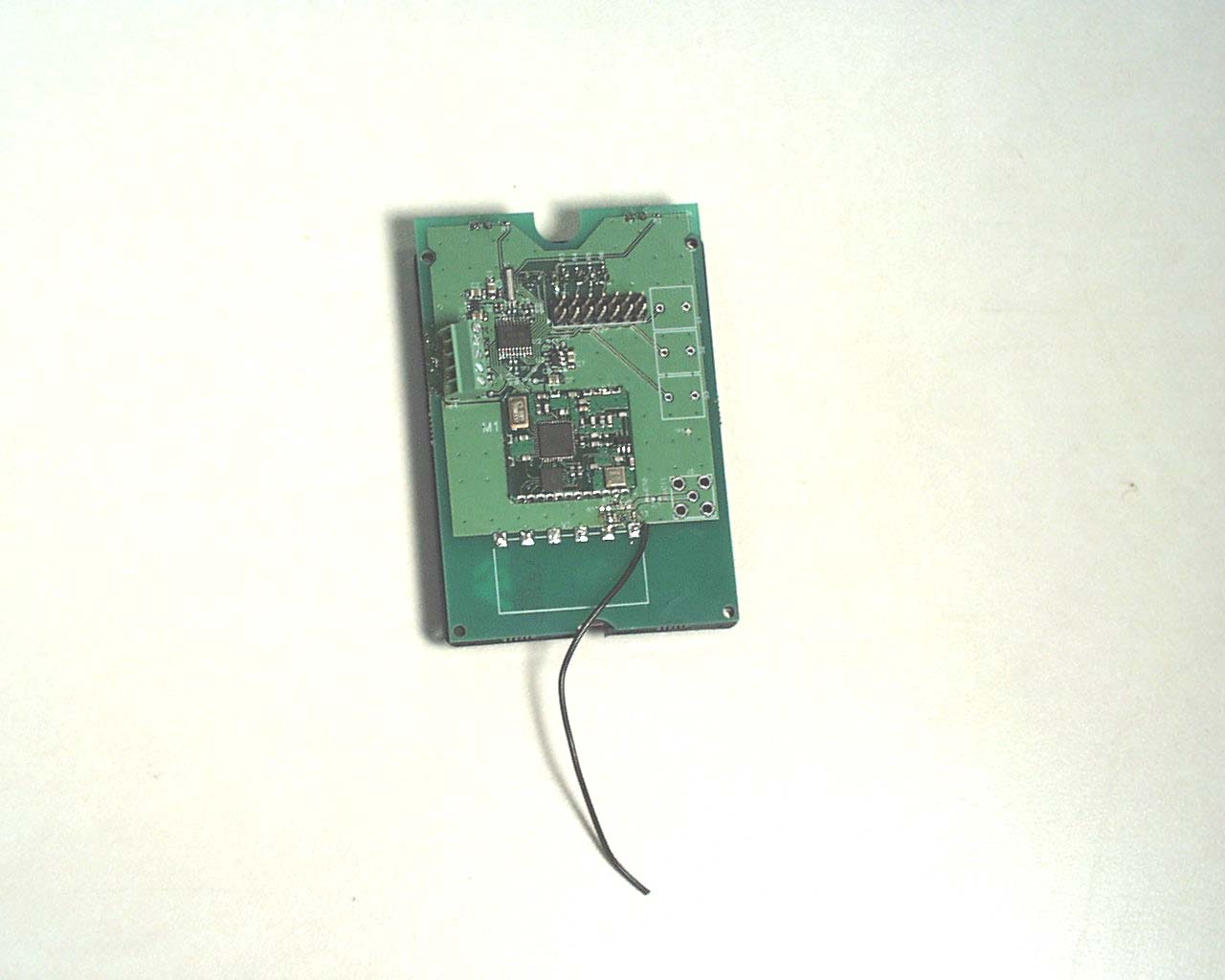

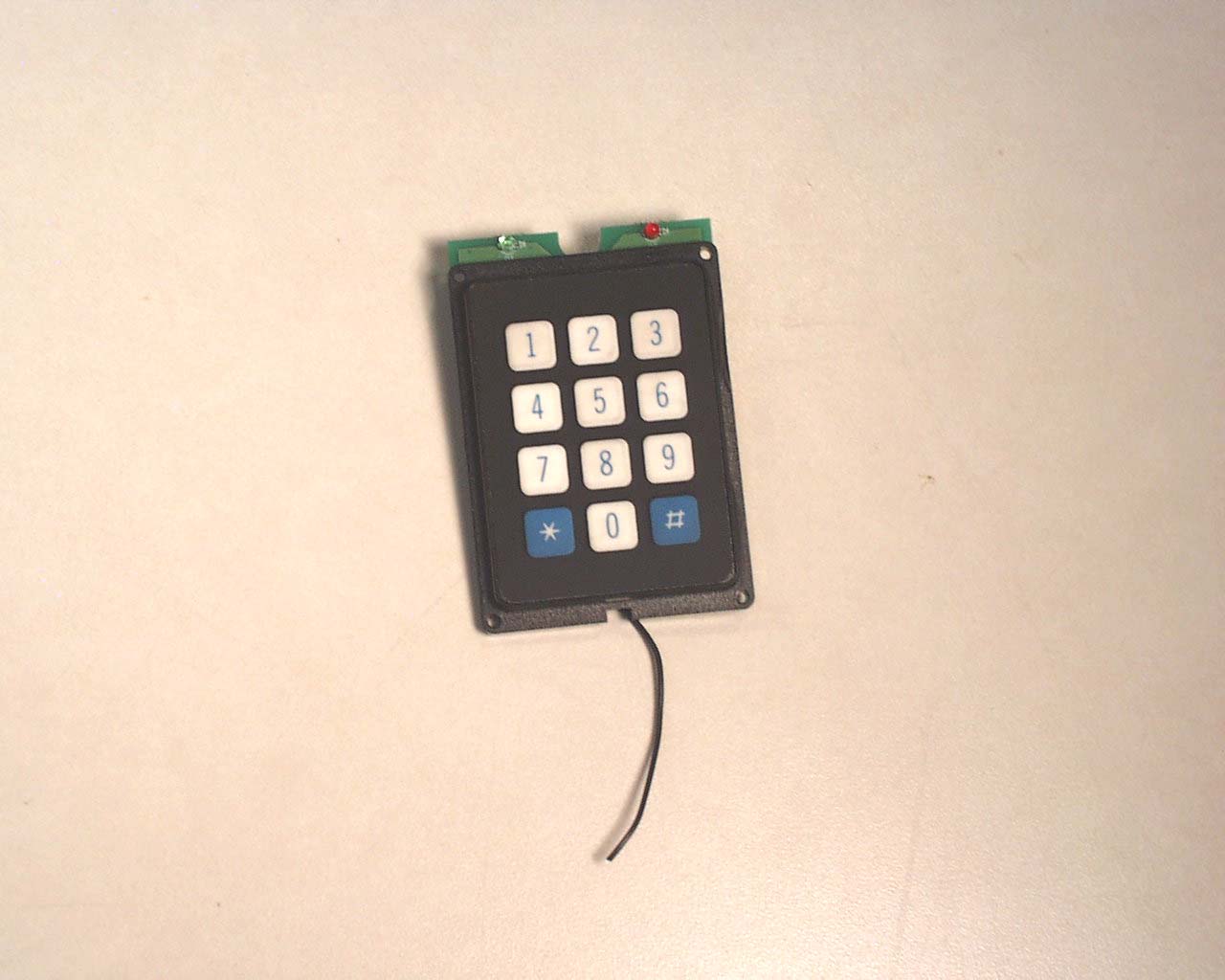

Front View of the 050305 Wireless Numeric Keypad Back View of the 050305 Wireless Numeric Keypad Top View of the 050306 Wireless Numeric Receiver Back View of the 050306 Wireless Numeric Receiver

Cover Pools Inc. Save-T Cover ® Wireless 50305 FCC ID Number: P8G-50306 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Cover Pools Inc. Save-T Cover ® Wireless 50306 FCC ID Number: P8G-50306 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

66 East 3335 South • Salt Lake City, UT 84115 • Phone (801) 484-2724 • Fax (801) 484-2763 Maximum Permissible Exposure (MPE) Calculations This exhibit demonstrates evaluation and compliance for Human Exposure to Radiofrequency Electromagnetic Fields as outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65 The reference documents are 1) Limits for Maximum Permissible Exposure (MOE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310 2) Evaluation Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01 Model Number : 050305 FCC ID Number: P8G-50306 The Cover Pools Model 050305. FCC ID Number P8G-50306 utilizes a 910 MHz transmitter. The following worst-case emissions are based on a PPT (Peak Power Total) measurement of 12.2 dBm. The worst-case antenna gain is found to be 0.0 dBi. Total radiated power at the transmitter is: Pt = 12.2 dBm + 0.0 dBi = 12.2 dBm EIRP 12.2 dBm EIRP = .0166 Watts (16.6 mW) Power density at a distance of 3 cm from the antenna is: S = EIRP / 4 B d² Where S is power density in units of mW/cm² and EIRP is equivalent Isotropic Radiated Power in unit of mW and r is distance to the center of radiated on the antenna in units of cm S = .0166 W / (4 B(3 cm)² ) = 0.15 mW/cm² MPE Limit in accordance with 1.1310(b): Limits for general population/uncontrolled exposure MPR Limit = 0.2 (mW/cm²) Based on the FCC Limits for Maximum Permissible Exposure (MPE) given this device falls under the required limits.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Type of Report: Certification TEST OF: 050305 Wireless Numeric Control & 050306 Wireless Numeric Receiver FCC ID: P8G-50306 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8147 Applicant: Cover Pools, Inc. 66 East 3335 South Salt Lake City, UT 84115 Dates of Test: July 18 & 19, 2005 Issue Date: August 3, 2005 Equipment Receipt Date: July 18, 2005 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 2 of 48 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Cover Pools, Inc. - Manufacturer: Cover Pools, Inc. - Brand Name: Cover Pools - Model Number: 050305 Wireless Numeric Control 050306 Wireless Numeric Receiver - FCC ID Number: P8G-50306 On this 3 rd day of August 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 3 of 48 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........8 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................16 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....17 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................31 APPENDIX 2 PHOTOGRAPHS .........................................38 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 4 of 48 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Cover Pools, Inc. 66 East 3335 South Salt Lake City, UT 84115 Contact Name: LaMont Drechsel Title: Director of Advanced Development 1.2 Manufacturer: Company Name: Cover Pools, Inc. 66 East 3335 South Salt Lake City, UT 84115 Contact Name: LaMont Drechsel Title: Director of Advanced Development COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 5 of 48 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Cover Pools, Inc. Model Numbers: 050305 Wireless Numeric Control 050306 Wireless Numeric Receiver Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The 050305 Wireless Numeric Control is a keypad transceiver operating in the 902 to 928 MHz band and is used to send commands to the 050306 Wireless Numeric Receiver. The 050306 Wireless Numeric Receiver is a transceiver that is located near the mechanical equipment that moves a cover to either uncover or cover a pool. Both units use the same transceiver board. The differences are that the 050305 fits an electrical outlet box and uses an antenna soldered directly to the PCB. The antenna is a 3.0” stranded 26 gauge wire. The 050306 does not have the keypad and uses an external antenna. Three antennas were tested with the 050306; a dipole antenna, Cover Pools Part Number 110140 was the first, the second was an Antenna Factor Part Number ANT-916- CW-QW, and the third was an Antenna Factor Splatch Part Number ANT-916-SP. All antennas had a gain of less than 3 dBi. The EUT operates from 3 AA batteries and has no provision for connection to the AC mains or a device connected to the AC mains. The table below shows the channels the EUT operates on: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 903.00 9 909.00 17 915.00 25 921.00 2 903.75 10 909.75 18 915.75 26 921.75 3 904.50 11 910.50 19 916.50 27 922.50 4 905.25 12 911.25 20 917.25 28 923.25 5 906.00 13 912.00 21 918.00 29 924.00 6 906.75 14 912.75 22 918.75 30 924.75 7 907.50 15 913.50 23 919.50 31 925.50 8 908.25 16 914.25 24 920.25 32 926.25 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 6 of 48 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Cover Pools MN: 050305 Wireless Numeric Control (Note 1) P8G-50306 Keypad Transceiver Control Assembly See Section 2.4 BN: Cover Pools MN: 050306 Wireless Numeric Receiver (Note 1) P8G-50306 Transceiver Assembly See Section 2.4 BN: Cover Pools MN: 110140 N/A Dipole Antenna Antenna/SMA connector on coax cable BN: Antenna Factor MN: ANT-916-CW-QW N/A Monopole Antenna Antenna/SMA connector on coax cable BN: Antenna Factor MN: ANT-916-SP N/A Splatch Antenna Antenna/SMA connector on coax cable Note 1: EUT 2.4 Interface Ports on EUT: The EUT has only the antenna interface port on the 050306 Wireless Numeric Receiver. The 050305 Wireless Numeric Keypad has no interface ports. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8147 FCC ID#: P8G-50135 Page 7 of 48 2.5 Modification Incorporated/Special Accessories on…
