P9I-WGMG5858kHz Electronic Article Surveillance System

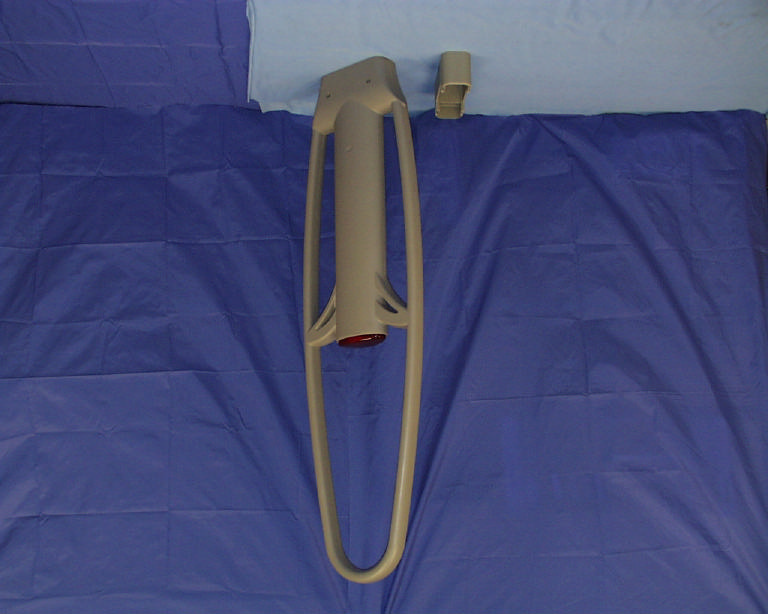

58KHz Mono-Guard Transceiver System Quick Start 58kHz MONO-GUARD TM INSTALLATION MANUAL WG SECURITY PRODUCT INC. 161 San Lazaro Ave. Sunnyvale, CA 94086 USA Tel: 1-877-494-2288 (Toll Free) 1-408-530-8070 Fax: 1-408-530-8074 Website: www.wgspi.com E-mail:[email protected] 58KHz Mono-Guard Transceiver System Quick Start Overview 1. System Description Mono-Guard is a single pedestal transceiver Electronic Article Surveillance system that detects 58KHz tags four feet either side of the pedestal. This system is plug and play, which eliminates the need for expensive technicians during installation. The Mono-Guard is software driven EAS system that works in combination with any 58KHz tag and label. The system’s transceiver listens for the unique signal that any 58KHz tag produces, and the sequence produced is then verified and multiplied in a fraction of a second. Technical DataEuropeUnited States Height1470mm58" Width440mm15.5" Depth100mm3.5" Weight10Kg22lbs Power200-220vac110vac Operating Frequency58kHz58kHz Maximum Tag Detection2.2 meters8 feet IMPORTANT NOTICE: To turn off the unit please unplug it from the main power source. When installing this unit it is important that you follow the National Electrical Code that governs your country. 58KHz Mono-Guard Transceiver System Quick Start Digital Signal Processing The Mono-Guard TM system applies the latest and most technically advanced DSP technologies to address antitheft problems. It minimizes false alarms while maintaining considerable detection range. Self-Tuning Electronics Other manufacturers need professional technicians to tune the system to ensure proper functioning. But once the environment condition changes, the systems best working position changes and requires tuning again. The Mono-Guard TM system, benefiting from its fully digital electronics, constantly detects the environment & automatically adapts to any changes. It will always operate at its optimum performance from the beginning. Software Driven The Mono-Guard TM is fully digital software driven system, which allows unprecedented flexibility especially in later versions. Applications This type of installation also consists of a single Mono-Guard post while with coverage of a 6 foot wide opening. The post is mounted in the middle of the door with a 4 feet maximum detection on either side. The Mono-Guard can be installed close to a metal door or frame with out decreasing the detection range, how-ever we do recommend that the when using a neon light, the system should be installed 12 ft away, if this is not possible you can install our noise shield over the transformer to eliminate this problem. 58KHz Mono-Guard Transceiver System Quick Start This type of installation also consists of a single Mono-Guard post while with coverage of a 6 foot wide opening. The post is mounted in the middle of the door with a 4 feet maximum detection on either side. The Mono-Guard can be installed close to a metal door or frame with out decreasing the detection range, how-ever we do recommend that the when using a neon light, the system should be installed 12 ft away, if this is not possible you can install our noise shield over the transformer to eliminate this problem. This type of installation consists of one master and one slave Mono-Guard system with one interconnection from slave to the master. The gates are mounted on both sides of the opening and can cover a maximum range of 8 feet between the pedestals. The Mono-Guard can be installed close to a metal door or frame with out decreasing the detection range, how-ever we do recommend that the when using a neon light, the system should be installed 12 ft away. If this is not possible you can install our noise shield over the transformer to eliminate this problem. 58KHz Mono-Guard Transceiver System Quick Start Installation Procedures Parts List This type of installation consists of one master Mono- Guard system and two slaves with the master in middle and the slaves at the ends. Every gate-to-gate distance is both 8 feet maximum; the three gates will cover a maximum distance of 16 feet. Each slave post will be connected to master post. The Mono- Guard can be installed close to a metal door or frame with out decreasing the detection range, how-ever we do recommend that the when using a neon light, the system should be installed 12 ft away, if this is not possible you can install our noise shield over the transformer to eliminate this problem. Base (1) Inflationary Spiral (6) Tools (2 sets) 58KHz Mono-Guard Transceiver System Quick Start Power Cord Notices North American Power Supply Cords This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground). Operation of this equipment at voltages exceeding 130 Vac will require power supply cords which comply with NEMA configurations. Interconnection line (1) Only for slave post Bolt (2) Gate body part (1 set) Master or Slave Post 58KHz Mono-Guard Transceiver System Quick Start International Power Supply Cord This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are CEE color coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed. We recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the Electrical code which governs your country for installation of an Anti-Theft Unit to the Main power Supply) Attach the power cord to the field connector by following the wiring instructions below We recommend using a power cord with a maximum length of 3 meters L GND N RED or BROWN = LIVE BLACK or BLUE = NEATRAL GREEN & YELLOW = GROUND 58KHz Mono-Guard Transceiver System Quick Start Drill six holes (10mm diamet…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION WG SECURITY PRODUCTS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: P9I-WGMG58 FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT FOR 58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM MODEL NAME: MONO-GUARD AND MULTI-GUARD FCC ID: P9I-WGMG58 Prepared For WG SECURITY PRODUCTS, INC 161 SAN LAZARO AVE SUNNYVALE, CA 94086 USA Prepared By Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 USA Report No :01U1051-1 Revision No:A Date:1/22/02 Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 2 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. TABLE OF CONTENTS SECTION 1: LABORATORY INFORMATION......................................................................4 1.1 GENERAL CONDITION:...........................................................................................................4 1.2 MEASUREMENT FACILITIES....................................................................................................4 1.3 LABORATORY ACCREDITATIONS AND LISTINGS....................................................................5 1.4 MEASUREMENT UNCERTAINTY..............................................................................................6 1.5 DEVIATION FROM MEASUREMENT SPECIFICATION.................................................................6 1.6 MEASUREMENT INSTRUMENT CALIBRATION.........................................................................6 SECTION 2: PRODUCT INFORMATION...............................................................................7 2.1 PRODUCT DESCRIPTION:........................................................................................................7 2.2 POWER REQUIREMENTS.........................................................................................................7 2.3 LOCAL OSC. OR CRYSTAL:....................................................................................................7 2.4 SERIAL NUMBER....................................................................................................................7 SECTION 3: TEST SUMMARY.................................................................................................8 3.1 APPLICABLE ELECTROMAGNETIC INTERFERENCE REQUIREMENTS:......................................8 3.2 SAMPLE RECEIVED DATE AND TEST PERIOD:.........................................................................8 3.3 ENGINEERING JUSTIFICATION:...............................................................................................9 SECTION 4 ELECTROMAGNETIC INTERFERENCE TEST.......................................10 4.1 RADIATED EMISSION TEST PROCEDURES............................................................................14 4.1.1 Instrument Setting...........................................................................................................14 4.1.2 Measurement Instrument Configuration........................................................................15 4.1.3 Measurement Equipment Used.......................................................................................16 4.1.4 Radiated Emission Test Setup Photos............................................................................17 4.1.5 Radiated Emission Test Result.......................................................................................19 4.2 CONDUCTED EMISSION TEST PROCEDURES.........................................................................21 4.2.1 Instrument Settings.........................................................................................................21 4.2.2 Measurement Instrument Configuration........................................................................21 4.2.3 Measurement Equipment Used.......................................................................................22 4.2.4 Conducted Emission Test Setup Photos.........................................................................23 4.2.5 Conducted Emission Test Result....................................................................................25 4.3.1 Instrument Settings.........................................................................................................29 4.3.2 Measurement Instrument Configuration........................................................................29 4.3.3 Measurement Equipment Used.......................................................................................30 4.3.4 Below 30MHz Emission Test Setup photos....................................................................30 4.3.5 Below 30MHz Emission Test Results.............................................................................31 Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 3 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. Verification Of Compliance COMPANY NAME : WG SECURITY PRODUCTS, INC. 161 SAN LAZARO AVENUE SUNNYVALE, CA 94086, USA CONTACT PERSON : GRAHAM HANDYSIDE / VICE PRESIDENT TELPHONE NO : (408) 530-8070 MODEM NAME : MONO GUARD AND MULTI-GUARD DATE TESTED : DECEMBER 12, 2001 AND APRIL 19, 2002 LIMIT APPLY TO : FCC PART 15 SECTION 15.209 TECHNICAL LIMITS TEST RESULT Restricted Band of Operation Passed LIMIT APPLY TO : FCC PART 15 SECTION 15.207 AC Line Conducted Emission Passed The above equipment was tested by Compliance Engineering Services Inc. for compliance with the requirement set forth in the requirements of CFR 47 PART 15 SUBPART C. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within …

Text truncated - open the document above for the full version.

Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 17 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. 4.1.4 Radiated Emission Test Setup Photos Mono-Guard Radiated Emission Test Setup Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 18 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. Multi-Guard Radiated Emission Test Setup Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 23 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. 4.2.4 Conducted Emission Test Setup Photos Mono-Guard Conducted Emission Setup Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 24 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. Multi-Guard Conducted Emission Setup Report No:01U1051-1 FCC ID: P9I-WGMG58 Date:4/24/02 EUT:58KHZ ELECTRONIC ARTICLE SURVEILLANCE SYSTEM Page 30 of 32 Compliance Certification Services CCS Document No: EMC01.A 561F Monterey Road , Morgan Hill CA 95037 Tel: ( 408 )463-0885, Fax: ( 408 )463-0888 This report shall not be reproduced except in full without the written approval of CCS. 4.3.3 Measurement Equipment Used 4.3.4 Below 30MHz Emission Test Setup photos Mono-Guard TEST EQUIPMENTS LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Spectrum AnalyzerHP100Hz - 22GHz8566B3014A066856/28/02 Spectrum DisplayHP85662A3026A191466/28/02 Quasi-Peak DetectorHP9K - 1GHz85650A3145A016546/28/02 Pre-Amplifier,25 dBHP0.1 - 1300MHz8447D (P5) 2944A06550 8/10/02 Antenna, BiconEaton30 - 200MHz94455-112148/2/02 Antenna, LPEMCO200 - 2000MHz31469107-31638/2/02 Line Filter Lindgren 10k - 10GHzLMF-3489497N.C.R. LISNFisher Cus. Comm.LISN-50/250-25-220238/2/02 EMI Test ReceiverRohde & SchwarzESHS 20827129/0064/2/02 Active Loop Antenna, (10K - 30MHz)EMCO65029202-27222/18/02
