P9J-142401802.11 b/g/n Radio Module

Integration Guide Tropos 1410-B V1.7 12-03-09.docx Tropos 1410-B Integration Guide M arch 9, 2011 Revision 1.7 Page 2 of 15 24-Feb-12 Contents Notices .......................................................................................................................................................... 3 Copyright Notice ....................................................................................................................................... 3 FCC Notice to Users and Operators .......................................................................................................... 3 Industry Canada Notice to users and operators: ...................................................................................... 4 Required labeling ...................................................................................................................................... 4 Introduction .................................................................................................................................................. 5 Connectivity to wired and wireless clients ................................................................................................... 5 Security ......................................................................................................................................................... 6 Tropos Control network management ......................................................................................................... 6 Integrating the 1410-B .................................................................................................................................. 7 Handling the 1410-B circuit board ............................................................................................................ 8 Physical installation ................................................................................................................................... 8 Power ........................................................................................................................................................ 8 Communications interfaces ...................................................................................................................... 9 Ethernet .................................................................................................................................................... 9 Serial.......................................................................................................................................................... 9 14-Pin Interface ....................................................................................................................................... 10 USB port .................................................................................................................................................. 10 Pushbutton Switches .............................................................................................................................. 10 LEDs ......................................................................................................................................................... 10 Antennas ................................................................................................................................................. 11 Configuration .............................................................................................................................................. 12 Recommended Testing ............................................................................................................................... 12 Physical Installation and Packaging ........................................................................................................ 12 Communications and Connectivity Testing ............................................................................................ 13 Environmental Tests ............................................................................................................................... 13 Safety and Servicing Information ................................................................................................................ 14 Safety Guidelines .................................................................................................................................... 14 Servicing the 1410-B ............................................................................................................................... 14 Specifications .............................................................................................................................................. 15 Page 3 of 15 24-Feb-12 Notices Copyright Notice ©2003-2012 Tropos Networks, Inc. All rights reserved. Tropos and PWRP are registered trademarks of Tropos Networks, Inc. Tropos Networks, AMCE, TMCX, SABRE, CMDP, MESM and Metro-Scale Mesh Networking are trademarks of Tropos Networks, Inc. Information contained herein is subject to change without notice. The only warranties for Tropos products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Tropos shall not be liable for technical or editorial errors or omissions contained herein. This product includes technology protected by U.S. Patents 6,704,301; 6,965,575; 7,016,328; 7,031,293; 7,058,021; 7,362,737; 7,376,087; 7,382,778; 7,397,789; 7,450,552; 7,460,489; 7,489,932; 7,499,409; 7,505,426; 7,542,421; 7,551,562; 7,564,781; 7,564,862; 7,580,393, 7,580,705; 7,586,879. FCC Notice to Users and Operators This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera…

Text truncated - open the document above for the full version.

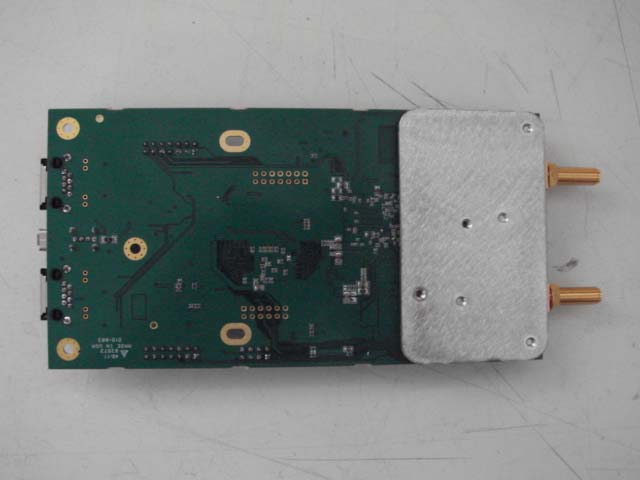

Tropos Networks FCC ID: P9J-141001 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is for modular applications and is equipped with antenna connector for professional installation. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested in stand-alone configuration for full modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Refer to MPE calculation in the Test report.

PROPOSED FCC/IC ID LOCATION FCC ID: P9J-142401, IC: 4751A-142401 FCC /IC Label Location Board

NOTES: (UNLESS OTHERWISE SPECIFIED) MATERIALS: 1. BASE: 3M P/N 7871, THERMAL TRANSFER WHITE POLYESTER LABEL MATERIAL • INK: THERMAL TRANSFER INK, UL APPROVED, BLACK • ADHESIVE: AS PART OF 3M 7871 BASE MATERIAL, (350 ACRYLIC, 1.8MIL) • LAMINATE: 3M P/N FM071, MATTE •MUST USE UL APPROVED MATERIALS IN LABEL. 2. CARRIER FOR LABEL, OR BA CKING MATERIAL MUST BE LARGER THAN LABEL TO 3. MAKE IT EASIER TO SEPARATE LABEL FROM CARRIER MATERIAL. THIS DRAWING IS TO DEFINE THE GENERAL LOOK AND FEEL OF THE LABEL, 4. ARTWORK TO BE CREATED BY MANUFACTURING VENDOR AND SUPPLIED TO TROPOS FOR APPROVALS PRIOR TO FABRICATION.MUST BE PB FREE AND FULLY ROHS COMPLIANT TO DIRECTIVE 2002/95/EC. 5. VENDOR MUST BE ABLE TO SUPPLY SIGNED DECLARATION OF CONFORMANCE. ISO VIEW 9.53 34.93 1.375 .375 4X R.125 3.18 SCALE: 4:1 D C B AB C D 1 2 3 4 5 6 7 8 8 765 4 3 2 1 E F E A F SHEET 1 OF 2 TROPOS NETWORKS INC IS PROHIBITED. RJ-45 CONN ID 12/28/2011 REA B0 151888-00 UNLESS OTHERWISE SPECIFIED: WEIGHT: REV DWG. NO. C SIZE TITLE: TROPOS NETWORKS NAME DATE PROJECTION: 3RD ANGLE Q.A. MFG APPR. ENG APPR. CHECKED DRAWN FINISH MATERIAL LABEL, 1310 SERIAL BRD TOLERANCING PER:INTERPRET GEOMETRIC TWO PLACE DECIMAL USED ON APPLICATION 0.02 0.010 THREE PLACE DECIMAL NEXT ASSY PROPRIETARY AND CONFIDENTIAL DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONALANGULAR: MACH BEND THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFTROPOS NETWORKS INC. ANY REPRODUCTION IN PART OR AS A WHOLEWITHOUT THE WRITTEN PERMISSION OF DO NOT SCALE DRAWING 1.375 34.93 SCALED, REDUCE TO ACTUAL SIZE .375 9.53 TO GENERATE ARTWORK, 151888-00, REV B0 FILL CHARACTERS, BLACK

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 802.11b/g/n WLAN RADIO MODULE MODEL NUMBER: 1410-B FCC ID: P9J-142401 IC: 4751A-142401 REPORT NUMBER: 12U14226-1, Revision C ISSUE DATE: MARCH 15, 2012 Prepared for TROPOS NETWORKS 555 DEL REY AVENUE SUNNYVALE, CA 94085, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 2 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 02/15/12 Initial Issue F. Ibrahim A 02/16/12 Revised section 5.2 F. Ibrahim B 02/28/12 Revised test equipment list F. Ibrahim C 03/15/12 Revised section 7.4.3 F. Ibrahim REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 3 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................ 8 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11b LEGACY 2TX MODE IN THE 2.4 GHz BAND ................................................ 12 7.1.1. 6 dB BANDWIDTH ................................................................................................ 12 7.1.2. 99% BANDWIDTH ................................................................................................ 17 7.1.3. OUTPUT POWER ................................................................................................. 22 7.1.4. AVERAGE POWER .............................................................................................. 28 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 29 7.1.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 36 7.2. 802.11g LEGACY 2TX MODE IN THE 2.4 GHz BAND ................................................ 43 7.2.1. 6 dB BANDWIDTH ................................................................................................ 43 7.2.2. 99% BANDWIDTH ................................................................................................ 48 7.2.3. OUTPUT POWER ................................................................................................. 53 7.2.4. AVERAGE POWER .............................................................................................. 59 7.2.5. POWER SPECTRAL DENSITY ............................................................................ 60 7.2.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 65 7.3. 802.11n HT20 2TX MODE IN THE 2.4 GHz BAND...................................................... 72 7.3.1. 6 dB BANDWIDTH ................................................................................................ 72 7.3.2. 99% BANDWIDTH ................................................................................................ 77 7.3.3. OUTPUT POWER ................................................................................................. 82 7.3.4. AVERAGE POWER .............................................................................................. 87 7.3.5. POWER SPECTRAL DENSITY ............................................................................ 88 7.3.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 93 7.4. 802.11n HT40 2TX MODE IN THE 2.4 GHz BAND.................................................... 100 REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 4 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced e…

Text truncated - open the document above for the full version.

REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 163 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 164 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 165 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED BACK PHOTO REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 166 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 12U14226-1C DATE: MARCH 15, 2012 FCC ID: P9J-142401 IC: 4751A-142401 Page 167 of 167 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
