P9J-142402802.11 b/g/n Radio Module

Hitachi Energy USA, Inc.
802.11 b/g/n Radio Module - FCC ID P9J-142402 - Hitachi Energy USA, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 14, 2013
Application Purpose
Original Equipment
Date of Application
Nov 14, 2013
Equipment Note
802.11 b/g/n Radio Module
Frequency Range
2422.00000000 - 2452.00000000
Company
Hitachi Energy USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Tropos 1410 Integration Guide Augus t 27, 20 13 Part N umber: 2 00 4 53 -0 0 Rev. E 0 Page 2 of 16 08-July-13 Contents Notices .......................................................................................................................................................... 3 Copyright Notice ....................................................................................................................................... 3 FCC Notice to Users and Operators .......................................................................................................... 3 Industry Canada Notice to users and operators: ...................................................................................... 4 Required labeling ...................................................................................................................................... 4 Introduction .................................................................................................................................................. 5 Connectivity to wired and wireless clients ............................................................................................... 5 Security ..................................................................................................................................................... 6 Tropos Control network management ..................................................................................................... 6 Integrating the Tropos 1410 ...................................................................................................................... 7 Handling the Tropos 1410 circuit board ................................................................................................ 8 Physical installation ................................................................................................................................... 8 Power ........................................................................................................................................................ 8 Communications interfaces ...................................................................................................................... 8 Ethernet .................................................................................................................................................... 8 Serial ......................................................................................................................................................... 9 USB port .................................................................................................................................................. 10 Pushbutton Switches .............................................................................................................................. 10 LEDs ......................................................................................................................................................... 10 Antennas ................................................................................................................................................. 11 Configuration .............................................................................................................................................. 11 Recommended Testing ............................................................................................................................... 12 Physical Installation and Packaging ........................................................................................................ 12 Communications and Connectivity Testing ............................................................................................ 13 Environmental Tests ............................................................................................................................... 13 Safety and Servicing Information ................................................................................................................ 15 Safety Guidelines .................................................................................................................................... 15 Servicing the Tropos 1410 ................................................................................................................... 15 Specifications .............................................................................................................................................. 16 Page 3 of 16 08-July-13 Notices Copyright Notice Β©2003-2013 Tropos Networks, Inc. All rights reserved. Tropos, Tropos Networks, PWRP, GridCom and MetroMesh are registered trademarks of Tropos Networks, Inc. Information contained herein is subject to change without notice. The only warranties for Tropos products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Tropos shall not be liable for technical or editorial errors or omissions contained herein. This product includes technology protected by U.S. Patents 6,704,301; 6,965,575; 7,016,328; 7,031,293; 7,058,021; 7,362,737; 7,376,087; 7,382,778; 7,397,789; 7,450,552; 7,460,489; 7,489,932; 7,499,409; 7,505,426; 7,542,421; 7,551,562; 7,564,781; 7,564,862; 7,580,393; 7,580,705; 7,586,879; 7,649,866; 7,668,137; 7,688,808; 7,689,224; 7,697,504; 7,706,285; 7,720,499; 7,729,278; 7,769,040; 7,843,891; 7,924,749; 7,929,975; 7,957,337; 7,970,394; 7,983,225; 8,031,615; 8,036,130; 8,036,186, 8,054,784; 8,055,759; 8,064,404. FCC Notice to Users and Operators This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with t…

Text truncated - open the document above for the full version.

External Photos

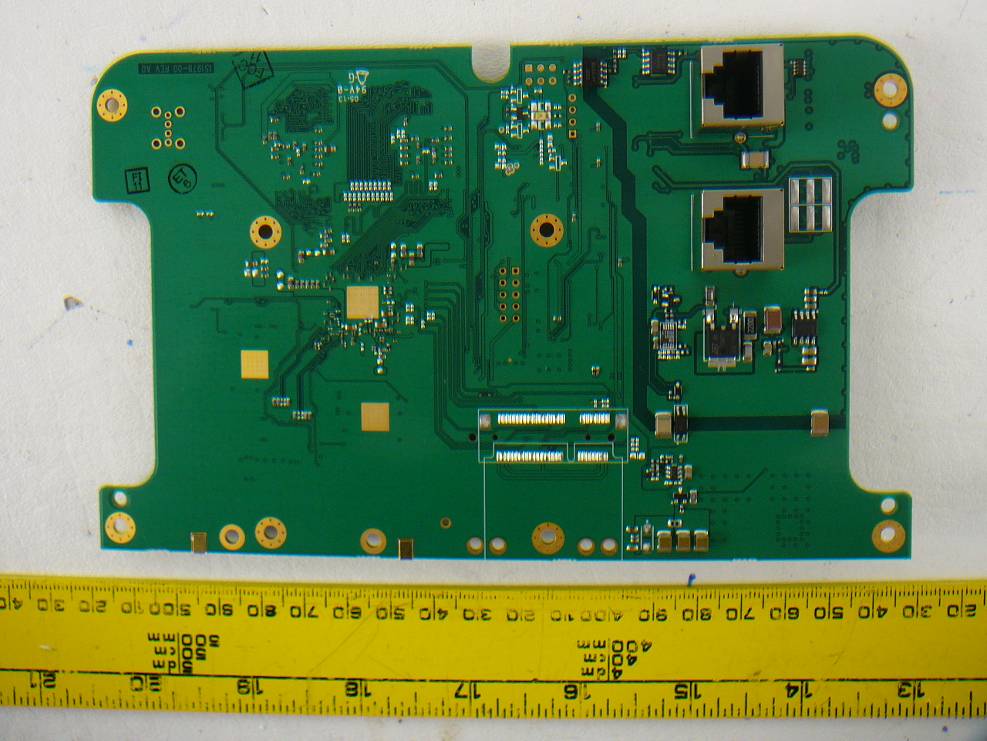

Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 105 of 108 FCC Part 15C/IC RSS-210 Test Report 16 Exhibit C - EUT Photographs 16.1 EUT – PCB Board Front Side View 16.2 EUT - PCB Board Rear Side View

ID Label/Location Info

FCC/IC ID Label FCC/IC ID Label Location PCB Board Tropos Networks Model: Tropos 1410 FCC ID: P9J‐142402 IC: 4751A‐14202 FCC/IC ID Label Location

Internal Photos

Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 106 of 108 FCC Part 15C/IC RSS-210 Test Report 16.3 EUT – PCB Board Front Side View (Shielding off) 16.4 Antenna View Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 107 of 108 FCC Part 15C/IC RSS-210 Test Report 16.5 Host Front View 16.6 Host Side View Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 108 of 108 FCC Part 15C/IC RSS-210 Test Report 16.7 Host Open Case View 16.8 Host Adaptor --- END OF REPORT ---

RF Exposure Info

Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 9 of 108 FCC Part 15C/IC RSS-210 Test Report 4 FCC Β§15.247 (i), Β§2.1091 & IC RSS-102 – RF Exposure 4.1 Applicable Standard According to FCC Β§15.247(i) and Β§1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: Ζ’ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 10 of 108 FCC Part 15C/IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4RΒ² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm): 25.03 Maximum peak output power at antenna input terminal (mW): 318.42 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): 7.4 Maximum Antenna Gain (numeric): 5.495409 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.3481 Power density of prediction frequency at 20.0 cm (W/m 2 ): 3.481 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 10 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.3481mW/cm 2 (3.481W/m 2 ). Limit is 1.0 mW/cm 2 (10 W/m 2 ).

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk β€œ*” (Rev.2) FCC PART 15, SUBPART C IC RSS-210, ISSUE 8, DECEMBER 2010 TEST AND MEASUREMENT REPORT For Tropos Networks, Inc. 555 Del Rey Avenue, Sunnyvale, CA 94085, USA FCC ID: P9J-142402 IC: 4751A-142402 Report Type: Original Report Product Type: 802.11b/g/n Wireless Mesh Router Module Prepared By: Bo Li Wei Sun Report Number: R1304093-247 Report Date: 2013-11-08 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 2 of 108 FCC Part 15C/IC RSS-210 Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility ........................................................................................................................................................ 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification ......................................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................................... 7 2.3 Special Equipment .............................................................................................................................................. 7 2.4 Equipment Modifications.................................................................................................................................... 7 2.5 Local Support Equipment ................................................................................................................................... 7 2.6 EUT Internal Configuration Details .................................................................................................................... 7 2.7 Interface Ports and Cables .................................................................................................................................. 7 2.8 Power Supply List and Details ............................................................................................................................ 7 3 Summary of Test Results ............................................................................................................................................ 8 4 FCC Β§15.247 (i), Β§2.1091 & IC RSS-102 – RF Exposure .......................................................................................... 9 4.1 Applicable Standard ............................................................................................................................................ 9 4.2 MPE Prediction ................................................................................................................................................. 10 4.3 MPE Results ..................................................................................................................................................... 10 5 FCC Β§15.203 & IC RSS-Gen Β§7.1.2 – Antenna Requirements ................................................................................ 11 5.1 Applicable Standard .......................................................................................................................................... 11 5.2 Antenna List ...................................................................................................................................................... 11 6 FCC Β§15.207 & IC RSS-Gen Β§7.2.4 – AC Line Conducted Emissions .................................................................... 12 6.1 Applicable Standards ........................................................................................................................................ 12 6.2 Test Setup ......................................................................................................................................................... 12 6.3 Test Procedure .................................................................................................................................................. 12 6.4 Test Setup Block Diagram ..................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 103 of 108 FCC Part 15C/IC RSS-210 Test Report 15 Exhibit B – Test Setup Photographs 15.1 Radiated Emissions – Front View 15.2 Radiated Emissions (Below 1 GHz) – Rear View Tropos Networks, Inc. FCC ID: P9J-142402, IC: 4751A-142402 Report Number: R1304093-247 Page 104 of 108 FCC Part 15C/IC RSS-210 Test Report 15.3 Radiated Emissions (Above 1 GHz) – Rear View

Contact Information

Applicant

Tore Gillbrand(VP, Product Management)
[email protected]6504213832Fax: 0000000000

Test Firm

Bay Area Compliance Laboratories Corp.Lisa Tang
[email protected]408-732-9162Fax: 408 732 9164

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz317.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Limited Modular approval. This module may only be installed by the grantee or an OEM integrator under the grantees supervision to ensure host systems are professionally installed. Only antenna(s) documented in this filing may be used with this transmitter. The antenna(s) used for this transmitter must be professionally installed, must provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
