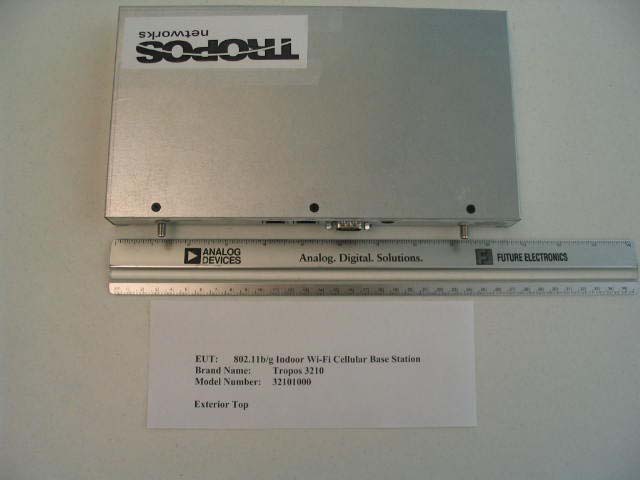

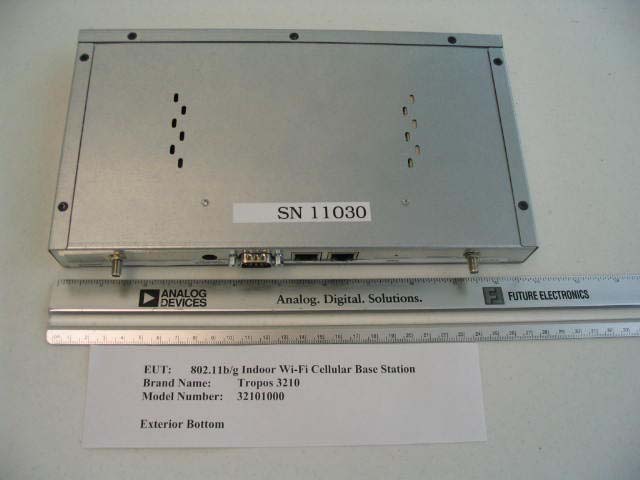

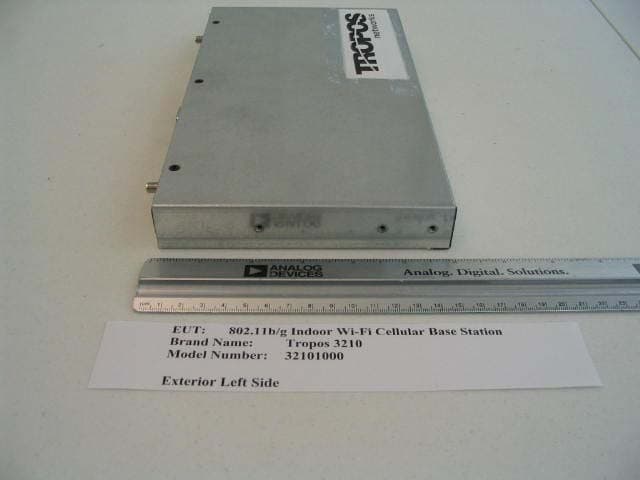

P9J-32101000802.11 b/g Indoor Wi-Fi Cell Station

555 Del Rey Avenue Sunnyvale, CA 94085 408.331.6800 Phone 408.331.6801 Fax www.troposnetworks.com Tropos 3210 Professional Hardware Installation Guide Part No - 200069-00 Rev A0 September 30, 2004 Tropos 3210 Wi-Fi Cell Hardware Installation Guideii Copyright 2004 by Tropos Networks All rights reserved. Rights reserved under the copyright laws of the United States. RESTRICTED RIGHTS LEGEND Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph (c)(1)(II) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013. Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the Commercial Computer Software-Restricted Rights clause at FAR52.227-19. IMPORTANT NOTE TO USERS This software is provided by Tropos Networks, Inc. as is and any express or implied warranties, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall Tropos Networks, or its affiliates, subsidiaries or suppliers be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage. Tropos reserves the right to make changes without further notice to any products herein. Tropos 3210 Wi-Fi Cell Hardware Installation Guideiii Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Notice to Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 FCC Notice to Users and Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Taiwan DGT Telecommunications Act Notice to Users and Operators . . . 2 Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 FCC Approved Antennas for US and Canada. . . . . . . . . . . . . . . . . . . . . . . 3 DGT Approved Antennas for Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Tropos Wireless Networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Pre-Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Selecting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Basic Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installation in Air-Handling Environments. . . . . . . . . . . . . . . . . . . . . . . . . 7 Antenna Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Site Surveys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Wireless Coverage and Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 RF Planning Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Items Included with Tropos 3210 Wi-Fi Cell . . . . . . . . . . . . . . . . . . . . . . . 9 Required Tools and Supplies for Installation . . . . . . . . . . . . . . . . . . . . . . 9 3 Installing the Tropos 3210 Wi-Fi Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Wall Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting Power and LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4 Operating the Tropos 3210 Wi-Fi Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Operational Lights on the Tropos 3210 Wi-Fi Cell . . . . . . . . . . . . . . . . . 18 Operating the Wi-Fi Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Preparing the Configuration Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Tropos 3210 Wi-Fi Cell Hardware Installation Guideiv Accessing the Configuration Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Safety Information for the Tropos 3210 Wi-Fi Cell . . . . . . . . . . . . . . . . . 22 Guidelines to insure safe operation of the Tropos 3210 Wi-Fi cell . . . . . 22 Use in specific environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Antenna use guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Tropos 3210 Wi-Fi Cell Hardware Installation Guide1 1Introduction The instructions contained in this guide are intended for a trained technical professional audience. Operational and network configuration information for the Tropos 3210 Wi-Fi cell can be found in the Tropos Networks Configuration Guide. This chapter contains important information about using Tropos equipment, antenna options, and background regarding Tropos wireless networking. Notice to Users FCC Notice to Users and Operators The Tropos 3210 Wi-Fi cell complies with Part 15 of the FCC rules. Operation of the Tropos 3210 Wi-Fi cell is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been…

Text truncated - open the document above for the full version.

September 28, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the Permissive Change under FCC ID: P9J-32101000, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Document titled "Block Diagram", total 1 page. Document titled "Theory of Operation", total 1 page. Document titled "Schematic Diagram – Tropos 3210 Radio", total 5 pages. Document titled "Schematic Diagram – Tropos 3210 Mother Board", total 11 pages. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Blais Director of Hardware Engineering Tropos Networks, Inc. (650) 655-4979 tel (650) 286-4259 fax [email protected]

1 Helen Zhao Subject:FW: Tropos Networks, Inc., FCC ID: P9J-32101000, Assessment NO.: AN04T4250, Notice#1 -----Original Message----- From: Claire Hoque Sent:Friday, October 29, 2004 12:09 PM To:Mike Kuo; Helen Zhao Subject:RE: Tropos Networks, Inc., FCC ID: P9J-32101000, Assessment NO.: AN04T4250, Notice#1 Hi Mike and Helen, Here are the answers. Question #1: The output power indicated on the Theory of Operation does not agree with the output power on the test report. Please explain. <answer>Theory of Operation is revised as attached, 20dBm is revised to average power. Theory of Operation(revised).p... Question #2: All harmonic and spurious emission test data (page 68, 77. 86. 95 of test reprot) show the wrong high channel harmonic frequency. Please correct. <answer>report is revised as attached. 04U2998-1 FCC DTS Report(revis... Question #3: Page 49 of the test report shows a high channel bandedge plot with a marker at 2.477MHz, please explain. <answer>That marker is generated by Lab view. The Plot is correct. The limit line is 20dB down form the peak. Question #4: There is a typo on the Block Diagram: 802.11b/b, please correct. <answer>Block Diagram is revised as attached. Tropos_3210_Block _Diagram(revi... Thanks, Claire

Indoor Use Only FCC ID: P9J-32101000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B Tropos 3210 Patents Pending Model: 32101000 DC Input: 12V 800mA IC: 4751A-32101000 Radio-Wave XXXXXXXXX LISTED

www.maxrad.com Order (800) 323-9122 Fax (630) 372-8077 11 An ISO-9001 Registered Company Electrical Specifications Model #Frequency RangeGain VSWR across the Band Maximum Power Input Connector MC2400PT2300-2500 MHz2.5 dBi< 1.35:150 WattsVarious options Ceiling Mount Omni 2.4 GHz ISM Ceiling Mount Omnidirectional Antenna The MAXRAD MC2400PT is designed to cover frequencies from 2300 to 2500 MHz with a VSWR of less than 1.35:1 across the band. This antenna provides a low profile ceiling mount solution for indoor applications requiring minimum visibility. It includes a 12" pigtail with a wide variety of connector options. It can be easily mounted to drop ceiling tiles or to a solid ceiling surface where cable routing access is available. General Specifications: Polarization: Vertical, linear Nominal Impedance: 50 Ohms Radome Housing: UL listed plastic Mounting Method: Stud mount, single hole. Above ceiling tile mounting bracket is available for applications requiring no visibility of the antenna. Includes side cable exit adapter for solid ceiling mounting. Connector Options: (add connector part number after the PT prefix): Example: MC2400PTNF (model MC2400PT with N, female connector). BNC, Male (part #BN) N, Female (part #NF) N, Male (part #NM) Female SMA (part #FSMA) Male SMA (part #MSMA) Female SMA, reverse threaded (part #FSMART) Male SMA, reverse threaded (part #MSMART) Reverse Polarity TNC Plug (part #MRPC) TNC, Male (part #C) Mini-UHF, Male (part #PL) Female FME (part #FFME) Features and Benefits: • Attractive, low profile housing. Blends well in office environments and other locations where aesthetic considerations are important. • UL listed materials and cable. Meets the strictest safety specifications. • Single hole stud mount or optional side cable exit option. Easy to install on standard ceiling tiles or solid ceiling surfaces. • Includes side cable exit adapter for solid ceiling mounting. • Excellent value: superior performance at a competitive price. MC2400PT Mechanical Specifications Model #Temperature RangeDimensionsWeightCable MC2400PT-40°C to +80°C 4.25” W x 0.5” D 10.8 x 1.27 cm 8 oz. (0.23 kg)12” (30.5 cm) Plenum RG58/U Michelangelo™ SERIES

Michelangelo™ SERIES www.maxrad.com An ISO-9001 Registered Company Electrical Specifications Model #Frequency RangeGain 3 dB Horizontal Beamwidth 3 dB Vertical BeamwidthVSWR Maximum Power Input MHA2400PT2300-2500 MHz4 dBi100°75°< 2:110 Watts 2.4 GHz ISM Ceiling Mount Bi-directional Antenna The MHA2400PT is a vertically polarized, bi-directional indoor antenna designed to provide extended WLAN coverage with minimum visibility. This small antenna measures less than 0.45 inch thick by 3 inches wide by 2.5 inches tall and weighs 2.6 ounces. It provides effective coverage of frequencies from 2300-2500 MHz with 4 dBi gain performance. Its discrete, bi-directional design makes it ideal for use in long corridors. General Specifications: Radome Material: UL94-V0 plastic Polarization: Vertical Mounting Method: Mounting bracket clips to standard one inch wide suspended ceiling tile rails. Holes are provided for mounting to flat ceiling with screws (not included). Nominal Impedance: 50 Ohms Connector Options: (add connector part number after the PT prefix): Example: MHA2400PTBN (MHA2400PT with BNC, male connector). BNC, Male (part #BN) Female SMA (part #FSMA) Male SMA (part #MSMA) Female SMA, reverse threaded (part #FSMART) Male SMA, reverse threaded (part #MSMART) TNC, Male (part #C) Female FME (part #FFME) Features and Benefits: • Point-to-point, bi-directional design. Provides extended wireless coverage in two directions. Ideal for use in long corridors where more focused radiated energy is necessary to achieve adequate signal coverage. • Attractive, low profile housing. Blends well in office environments and other locations where aesthetic considerations are important. • UL listed materials and cable. Meets the strictest safety specifications. • Single hole stud mount or optional side cable exit option. Easy to install on standard ceiling tiles or solid ceiling surfaces. • Excellent value: superior performance at very competitive prices. 29 MHA2400PT Mechanical Specifications Model #Temperature RangeDimensionsWeightCable MHA2400PT-40°C to +71°C 3” W x 2.5” H x 0.45” D (7.6 x 6.35 x 1.14 cm) 2.6 oz (0.07 kg)6" (15.2 cm) Plenum RG-58 Ceiling Mount Bi-directional Order (800) 323-9122 Fax (630) 372-8077

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR: TROPOS NETWORKS 802.11 b/g INDOOR WI-FI CELLULAR BASE STATION MODEL NUMBER: 32101000 FCC ID: P9J-32101000 REPORT NUMBER: 04U2998 ISSUE DATE: OCTOBER 4, 2004 Prepared for TROPOS NETWORKS 555 DEL REY AVENUE SUNNYVALE CA 94085 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 2 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Revision History Rev. Revisions Revised By REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 3 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 4 2. EUT DESCRIPTION.......................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................. 6 4. FACILITIES AND ACCREDITATION .......................................................................................... 6 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 7 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 7 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 9 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 11 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 11 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 11 7.1.2. 99% BANDWIDTH............................................................................................................ 18 7.1.3. PEAK OUTPUT POWER .................................................................................................. 25 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 33 7.1.5. AVERAGE POWER........................................................................................................... 36 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 37 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 44 7.2. RADIATED EMISSIONS.............................................................................................................57 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 57 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH OMNI ANTENNA ......................................................................................................................................... 60 7.2.3. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH BIDIRECTIONAL ANTENNA ......................................................................................................... 78 7.2.4. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH OMNI ANTENNA.. 96 7.2.5. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH BI-DIRECTIONAL ANTENNA ....................................................................................................................................... 100 7.3. POWERLINE CONDUCTED EMISSIONS .............................................................................. 104 8. SETUP PHOTOS ............................................................................................................................ 108 REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 4 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT DECLARATION COMPANY NAME: TROPOS NETWORKS 555 DEL REY AVENU SUNNYVALE, CALIFORNIA 94085, USA EUT DESCRIPTION: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION MODEL: 32101000 DATE TESTED: SEPTEMBER 25 – SEPTEMBER 29, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance w…

Text truncated - open the document above for the full version.

REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 108 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 109 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP WITH OMNI ANTENNA RADIATED FRONT PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 110 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 111 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP WITH BI-DIRECTIONAL ANTENNA RADIATED FRONT PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 112 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 113 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2998-1 DATE: OCTOBER 4, 2004 EUT: 802.11b/g INDOOR WI-FI CELLULAR BASE STATION FCC ID:P9J-32101000 Page 114 of 114 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
