P9J-51102100Outdoor Wi-Fi Cell

Hitachi Energy USA, Inc.

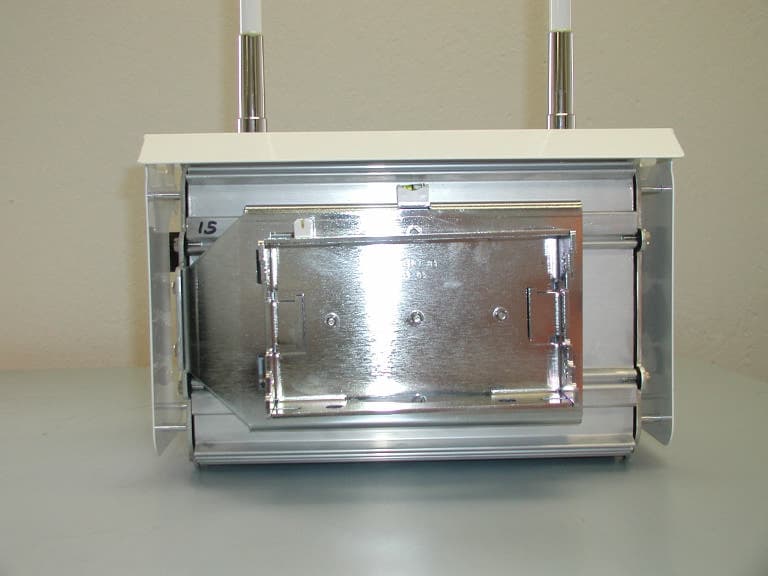

Outdoor Wi-Fi Cell - FCC ID P9J-51102100 - Hitachi Energy USA, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 27, 2003
Application Purpose
Original Equipment
Date of Application
Aug 27, 2003
Equipment Note
Outdoor Wi-Fi Cell
Frequency Range
2412.00000000 - 2462.00000000
Company
Hitachi Energy USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

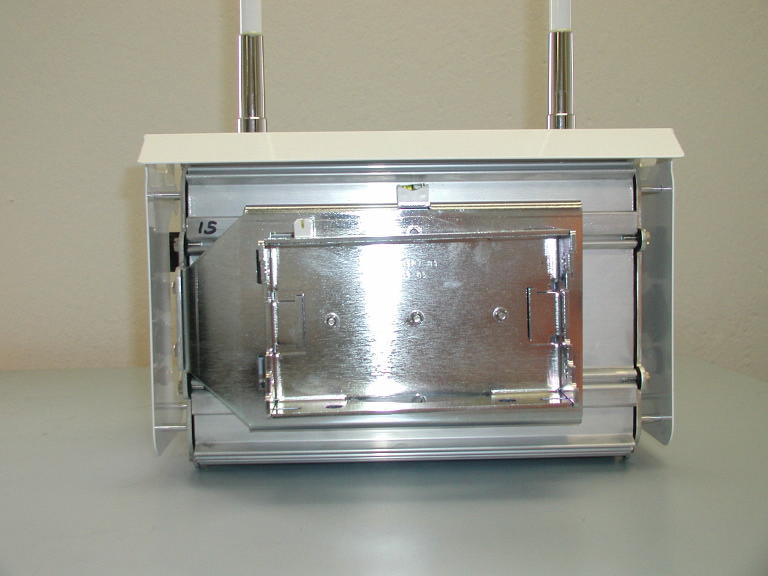

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Tropos Networks, Inc. All rights reserved. Suite 304 San Mateo, CA 94402 USA 1710 South Amphlett Boulevard Tropos Networks, Inc. Copyright © 2003 Part No. 100226 Rev A Published August 2003 Tropos Networks Outdoor Installation Guide iiOutdoor Unit Hardware Installation Guide Copyright Notice ©2003 Tropos Networks, Inc. All rights reserved. Tropos Networks is a registered trademark of Tropos Networks, Inc. in the United States and certain other jurisdictions. Specifications are subject to change without notice. Loctite is a registered trademark of Loctite Corporation, USA. FCC Notice to Users and Operators This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by using one of the following measures: „Reorient or relocate the receiving antenna. „Increase separation between the equipment and receiver. „Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. „Consult the dealer or an experienced radio/TV technician. This Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Tropos Networks could void the user's authority to operate this device. Warning You can be killed installing this device! You can be killed if the 5110 antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments, and high voltage. Use caution when installing the outdoor system. Outdoor Hardware Installation Guideiii Contents 1 Installing the Tropos 5110 Wi-Fi Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Installation Hardware and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Location Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Site Surveys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Metal Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Wood Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Tower Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Streetlight Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Mounting for Downward Facing Antennas . . . . . . . . . . . . . . . . . . . . . . . . 12 Connecting Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Waterproofing Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Replacing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Grounding the Tropos 5110 Wi-Fi Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Grounding the Data Protection Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Categories of Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connecting DC Power (Power over Ethernet). . . . . . . . . . . . . . . . . . . . . . 21 Connecting to AC Power (Category C) . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting to Streetlight Power (Category C) . . . . . . . . . . . . . . . . . . . . . 25 Connecting a Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Connecting Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 A Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Safety Information for the Tropos 5110 Wi-Fi Cells . . . . . . . . . . . . . . . . . . . 30 Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Outdoor Hardware Installation Guideiv B Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 C AC Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Outdoor Hardware Installation Gui…

Text truncated - open the document above for the full version.

Cover Letter(s)

TCB Q and A.txt From:Claire Hoque Sent:August282003Thursday 1:39 PM To:Mike Kuo Subject:FW: Tropos Networks, Inc., FCC ID:P9J-51102100, AN03T3176 -----Original Message----- From: Helen Zhao Sent:Tuesday, August 26, 2003 9:39 AM To:Mike Kuo Cc:Thu Chan; Steve Cheng; Claire Hoque Subject:FW: Tropos Networks, Inc., FCC ID:P9J-51102100, AN03T3176 Hi Mike, Question #1 Two of model names are mentioned in the test report. Tropos 51102100 which is equipped with N type connector to be used with external antenna, and Tropos 51103000 with 7.4dBi antenna. In the applications, two antenna patterns are provided, one is described as "14" white radome and the other one is described as "Comet antenna ". Please indicate which one is used during the final compliance tests and what is antenna gain. A: Both are accurate and refer to a single antenna. The Comet SF245-white is the qualified antenna; it has a 14" white radome. Question #2: Please provide antenna list including manufacturer name, model name, antenna type and antenna gain information for be used with Tropos model no:51102100. A: Comet SF245 7.4dBi omni (comes in either white or black but same elements) antenna will be used for both model names. attached is the datasheet for the antenna, elevation pattern. Question #3: Please lable each internal photos to describe the function of board. Please group your internal photos to show component and solder side of amplifier and transmitter board. A: Attached please find the revised internal photos. A solder side photo of the RF board was added in. Question #4: Please provide MPE estimate to address RF exposure compliance requirements. A: Attached please find the revised test report. MPE information was added. Thank you! Helen Page 1

ID Label/Location Info

PROPOSED FCC ID LABEL AND LOCATION TROPOS NETWORKS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: P9J-51102100 FCC ID LABEL LOCATION

Test Report

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WI-FI CELLULAR BASESTATION MODEL NUMBER: TROPOS 51102100, TROPOS 51103000 BRAND NAME: TROPOS 5110 FCC ID: P9J-51102100 REPORT NUMBER: 03U2102-1 ISSUE DATE: JULY 30, 2003 Prepared for TROPOS NETWORKS 1710 S. AMPHLETT BLVD. SAN MATEO, CA 94402, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 2 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................5 4. FACILITIES AND ACCREDITATION...................................................................................5 4.1. FACILITIES AND EQUIPMENT.........................................................................................5 4.2. TABLE OF ACCREDITATIONS AND LISTINGS..................................................................6 5. CALIBRATION AND UNCERTAINTY..................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION......................................................................7 5.2. MEASUREMENT UNCERTAINTY.......................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT.........................................................................8 6. SETUP OF EQUIPMENT UNDER TEST................................................................................9 7. APPLICABLE LIMITS AND TEST RESULTS.....................................................................12 7.1. 6 dB BANDWIDTH...........................................................................................................12 7.2. 99% BANDWIDTH...........................................................................................................16 7.3. PEAK OUTPUT POWER..................................................................................................20 7.4. MAXIMUM PERMISSIBLE EXPOSURE............................................................................25 7.5. AVERAGE POWER..........................................................................................................27 7.6. PEAK POWER SPECTRAL DENSITY................................................................................28 7.7. CONDUCTED SPURIOUS EMISSIONS............................................................................32 7.8. RADIATED EMISSIONS...................................................................................................39 7.9. POWERLINE CONDUCTED EMISSIONS.........................................................................56 8. SETUP PHOTOS...................................................................................................................60 REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 3 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: TROPOS NETWORKS 1710 S. AMPHLETT BLVD. SAN MATEO, CA. 94402 USA EUT DESCRIPTION: WI-FI CELLULAR BASESTATION MODEL: TROPOS 511002100, TROPOS 51103000 MODEL DIFFERENCE: TROPOS 511003000 (stand alone Wi-Fi Cellular Base Station with unit Attached 7.4dBi omni antennas). TROPOS 51102100 (stand alone Wi-Fi Cellular Base Station without Antennas; professional installation only). The difference is only for marketing purpose. DATE TESTED: JULY 21 – 25, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: THU CHAN VIEN TRAN EMC SUPERVISOR EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 4 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT i…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 58 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 59 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP (AC/DC ADAPTER) RADIATED FRONT PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 60 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 61 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP (AC POWER CORD) RADIATED FRONT PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 62 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 63 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP (AC POWER CORD) LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 64 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LINE CONDUCTED BACK PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 65 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP (AC/DC ADAPTER) LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2102-1 DATE: JULY 31 2003 EUT: Wi-Fi Cellular Basestation FCC ID: P9J-51102100 Page 66 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO

Contact Information

Applicant

Tore Gillbrand(VP, Product Management)
[email protected]6504213832Fax: 0000000000

Test Firm

Compliance Certification Services IncSteve Cheng
[email protected]408-463-0885Fax: 408-463-0888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz713.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. When the external antenna is used, professional installation is required and only Omni-directional antenna with max. 7.4dBi antenna gain is authorized. Users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
