P9J-GSB802.11b/g GSB Module

Part No. 200148-00 Rev A0 May 2005 Tropos Networks MetroMesh Router Installation Guide Model 4210 Tropos Networks, Inc. 555 Del Rey Ave. Sunnyvale, CA 94085 USA www.troposnetworks.com 408-331-6800 Tropos 4210 MetroMesh Router Installation Guideii Copyright Notice ©2005 Tropos Networks, Inc. All rights reserved. Tropos Networks is a registered trademark of Tropos Networks, Inc. in the United States and certain other jurisdictions. Specifications are subject to change without notice. Tropos 4210 MetroMesh Router Installation Guide1 Contents Installing the Tropos 4210 MetroMesh Router . . . . . . . . . . . . . . . . . . . . . 1 Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installation Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Selecting Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 RF Planning Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Cable Connections and Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Installing the Tropos 4210 MetroMesh Router . . . . . . . . . . . . . . . . . . . . . 6 Remote Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Resetting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Clock Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 FCC Notice to Users and Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Antenna Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Tropos 4210 MetroMesh Router Installation Guide1 1Installing the Tropos 4210 MetroMesh Router This guide explains how to install the Tropos 4210 MetroMesh Router. This chapter covers the following topics: „“Preparing for Installation” on page 2 „“Installing the Tropos 4210 MetroMesh Router” on page 6 „“Remote Indicator” on page 9 „“Service Instructions” on page 10 Preparing for Installation Tropos 4210 MetroMesh Router Installation Guide2 Preparing for Installation The next figure shows the router unit and dimensions. Figure 1 Tropos 4210 MetroMesh Router Package Contents The Tropos 4210 router shipping package contains the following items: „Tropos 4210 MetroMesh Router „Tropos 4210 MetroMesh Router Installation Guide (this document) „2-pin power plug attached to router „Fuse attached to router „Screws, lock washers, nuts Installation Accessories You must supply the following accessories: „1/4-20 panhead machine screws with split lock washers „Ethernet cable to connect the router to the laptop computer you plan to use for network access (crossover cable if no switch or hub is used) „#18 AWG wiring to connect the router to vehicle power „Antennas and antenna cables The following items are optional: „USB GPS receiver supporting standard NMEA 0183 sentences with cable (USB connector) „Right angle antenna adapters trp_137 Width 13.1 inches 33.3 cm Height 3.85 inches 9.8 cm Height 3.54 inches 9.0 cm Depth 7.91 inches 20.1 cm Preparing for Installation Tropos 4210 MetroMesh Router Installation Guide3 Selecting Locations Tropos 4210 routers are radio devices, and as such, they are susceptible to common causes of interference that can reduce throughput and range. To ensure the best possible performance, follow these basic guidelines: „Install antennas on the highest area of the vehicle (roof). „If the vehicle has a light bar, install antennas at least three feet away from the bar. „It is desirable to have the antenna cables as short as possible. „Install the router away from other possible sources of 2.4 GHz WLAN interference, such as cordless phones, spy cameras, frequency hopping (FHSS) and DSSS LAN transceivers (non-802.11g), electronic news gathering video links, radars, amateur radios, land mobile radio services, local government sites (such as law enforcement), fixed microwave services, local TV transmission and private fixed point transmitters). „The router is not weather-proofed, so install only in protected interior locations. Choose a splash-resistant mounting surface that is at least 13 inches by 8 inches to provide sufficient space to screw the router into the surface. See FIGURE. It is not necessary to level the unit. The Tropos 4210 router contains integral ESD protection and vehicle power conditioning, so external protection is not required. Antenna Options You can purchase any of the Tropos-approved, cable-attached antennas that are listed in “Ordering Information” on page 17. Omni-directional antennas are best for systems requiring a signal distribution in more than one direction. To comply with regulatory RF exposure limits, locate antennas a minimum distance of 7.9 inches (20cm) from people. It is possible to use a single antenna; however, two antennas are strongly recommended. Note Only use antennas that are approved by Tropos. Operating the unit with non-qualified antennas is a violation of U.S. FCC Rules Part 15.203(c), Code of Federal Regulations, Title 47. Preparing for Installation T…

Text truncated - open the document above for the full version.

Federal Communications Commission 09 May 2005 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: P9J-GSB To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until September 15, 2005. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Lisa Moratti Compliance Manager Tropos Networks, Inc.

1 Helen Zhao From:Danielle Zhan Sent:Wednesday, June 01, 2005 4:36 PM To:Helen Zhao Subject:RE: Tropos Networks, Inc., FCC ID: P9J-GSB, Assessment NO.: AN05T4824, Notice#1 Dear Helen, Please find answers below. Question #1: Please resubmit 7.4 dBi antenna specification. The antenna shown on the spec (black) does not agree with that in the setup photos(white). Please see attached antenna spec. Question #2: Please add the following RF exposure statement in the installation manual: "The device and the antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. " [Danielle] Added. Please see attached below. User Manual (4210 Install Guid... Question #3: Please update section 6 of the test report, test setup descripton and setup diagram. The EUT is the module, instead of a system; it was tested inside an enclosure, not tested stand-alone. [Danielle] Revised. Please see attached below. 05U3483-1 FCC DTS Report.revis... Question #4: Section 2.1 of the test report indicates that "The radio utilizes four antennas for diversity", which is not case. Please update the test report. [Danielle] Revised in wording. See the revised report attached above. Question #5: This device is seeking limited modular approval. Please address FCC ID requirement of "if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following:"Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Please revise FCC ID label format. [Danielle] Please see revised FCC ID Label Format for system and for module, also FCC ID Location. FCC ID Label format.revised.pd... Best Regards, Danielle

Tropos Networks, Inc. FCC ID: P9J-GSB Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to internal and external photos. 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is soldered to a PCB. Refer to internal photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside the product for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is included in the filing. The label is to be placed on the outside of system and on the radio card. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). SAR test was not applicable to this product as it is installed minimum 20 cm from humans.

Customer:Indiv. CutWindow Appl.Peel Tab Job Number:Date: SheetedPerforatedType Tab Ink Color(s): Consecutive Number Start:End: Lamination: Number per Roll:Core Diameter: P.O. Number: LasercutTypewriter FeedAdhesive Drawing Number: DiecutFan Fold Face Stock: RadiusLaminated Size:Quantity: Slit LinerPin FeedUnwind Mobile MetroMesh Router; Variable Power, N connectors 110956-00 Rev A0 10 - 32VDC, 3.5 - 1.2A 4210 42102100 CONTAINS FCC ID: P9J-GSB Tropos Networks 136283 2.000" x 4.500" 05 . 31 . 05 Art Only (1) 110956–00 Rev. A0 50510–30 White Vinyl Scotchcal.25" 9705 UV Black • 9720 UV Overcoat E M F 4Th PR OOF Dashed lines represent cut and will not print. Text & graphics print 9705 UV BLACK. Background remains WHITE (Color of FaceStock). 9720 UV Overcoat prints over entire Label. Actual Size CSR: Rachel Pineda

FCC ID location 1) For system The product label will be located on the bottom of the unit. 2) For Module The module label will be on the radio card, directly below the white etched squid and above the manufacturing serial number label.

SF-245W 2.4GHz Omnidirectional Antenna Specifications: • 2400-2500MHz • Gain: 7.4dBi • Length: 17.5 inches • Weight: 4.7 oz • -3dB Beam-width: 20 degrees • Cross Polar Rejection: 15dB + • Max Power: 50 watts • Max wind survival: 150MPH + • Wind Load: 7.1 sq in • Connector: Integral N-male • Radome: White UV stabilized fiberglass • Mast mounting hardware optional • Mobile lip mount optional • Mobile permanent mount optional 1275 N. Grove St. Anaheim, CA 92806-2114 Phone: 800.962.2611 Fax: 714.630.7024 Email: [email protected] NCG Company Vertical radiation pattern FEATURES: • 802.11b and 802.11g compatible • Designed for use as either a me- dium gain base antenna or a high gain mobile antenna. • Male N-connector for easy installa- tion • Compact gain antenna for point- to-multipoint applications • Heavy duty fiberglass for durability • Weather proof for indoor or out- door installation MOUNTING OPTIONS: • MB-100: 1”-2.5” mast mount • GR-5N: Mobile lip mount • 5D4N : 5/8 inch hole mount GR-5N mobile trunk lip mount 5D4N hole mount MB-100 mast mount Manufactured by: COMET Company Ltd.

GP-24 2.4GHz Omnidirectional Base Antenna Specifications • 2400-2500Mhz • 802.11b and 802.11g standards • VSWR: Less than 1.5:1 • Gain: 12dBi • Length: 5 ft 10 inches • Weight: 2 lbs 9 oz • -3dB Beam-width: 5 degrees • Cross polar rejection: 14dB+ • Max Power: 100 watts • Max Wind Survival: 135MPH • Wind Load: 35.3 sq in (.245 sq ft) • Mast Required: 1.25-2.5 inches • Connector: Integral N- female • Radome: One piece white UV stabilized fiberglass. • Extruded aluminum/stainless steel mounting hardware included Vertical radiation pattern FEATURES • Extremely high gain omnidirectional pattern for long range point-to- multipoint applications. • Heavy duty fiberglass radome, 134+ MPH wind survival. • Extruded aluminum mounting brack- ets, stainless steel U-bolts/hardware. • Mounting pipe acts as a shroud to pro- tect the coax to antenna connection from the weather. • Ideal for the license free 2.4GHz ISM band 802.11b and 802.11g standards. NCG Company 1275 N. Grove St. Anaheim, CA 92806-2114 Phone: 800.962-2611 Fax: 714.630-4541 email: [email protected]

48 Perimeter Road, Manchester, NH 03103 • Phone: 603-627-7877 • Fax: 603-627-1764 • E-mail: [email protected] Web Site: www.cushcraft.com COMMUNICATIONS ANTENNAS ModelFreq.GainVSWRPolarization-3dB bmwidthWeightRF ConnectorDimensionsPowerMount MHzdBiE-Plane H-Planelb (kg)(f)in. (cm)(Watts)Style S2401290P12NF2400-2500122.0:1Linear10º 90º1.0 (.45)N3 x 26 x 1 (7.6 x 66 x 2.5)50Wall/Mast S1851290P12NF1850-1990122.0:1Linear10º 90º1.6 (.73) N34 x 3 x 1.2 (86.4 x 7.6 x 3.0)50Wall/Mast S1711290P12NF1710-1880122.0:1Linear10º 90º1.6 (.73)N34 x 3 x 1.2 (86.4 x 7.6 x 3.0)50Wall/Mast H-Plane E-Plane 2.4-2.5 GHz. 12 dBi, 90 Degree Sectored and Wide Angle Coverage Directional Antenna Cushcraft’s 12 dBi gain, 90 degree “Wide H-plane” sectored antenna offers the systems integrator both an antenna for use with sectorized base stations and a wide area coverage directional antenna for use where a wide directional pattern characteristic would be preferable to an omnidirectional pattern characteristic. Enclosed in an attractive UV-stable weatherproof radome, it is both attractive enough to satisfy indoor aesthetic requirements and rugged enough to withstand outdoor exposures. Anywhere from one to four of the 90 degree sectored antennas can be deployed at a base station site depending on the area coverage that is called for and single antennas can be mounted to a wall or mast to provide wide area directional coverage. The TM905BRK mechanical down-tilt mount can be used to mount the antenna to a mast and can also be used to customize the antenna pattern tilt whether mounting to a mast or a wall surface. The design is both electrically and mechanically robust ensuring a lifetime of stable, trouble-free service and predictable, reliable, consistent performance. The standard antenna comes with a 12-inch low-loss coaxial pigtail and N female connector. Alternative coax cable lengths and connector types are also available. SPECIFICATION CHART • Wide 90 degree H-plane coverage • Indoor/outdoor antenna • Tilt and articulating mounts available • Low visibility housing HIGH GAIN PATCH PRODUCT DATA SHEET S2401290P S2401290P 330 ° 0 ° 270 ° 60 ° 30 ° 300 ° 90 ° 240 ° 210 ° 180 ° 150 ° 120 ° 30 20 10 20 30 10 30 20 10 20 30 10

GP-24S 2.4GHz Omnidirectional Base Antenna GP-24S Specifications • 2400-2500Mhz • VSWR: less than 1.5:1 • Gain: 9.9dBi • Length: 3 ft 9 inches • Weight: 1 lbs 14 oz (inc brackets) • -3dB Beam-width: 9 degrees • Cross polar rejection: 20dB+ • Max Power: 100 watts • Max Wind Survival: 150MPH • Wind Load: 26.9 sq in (0.187 sq ft) • Mast Required: 1.25-2.5 inches • Connector: Weather protected integral N- female • Radome: Heavy wall one piece white UV stabilized fiberglass. • Mounting hardware included Vertical radiation pattern FEATURES • High gain omnidirectional pattern for me- dium to long range point-to-multipoint applications plus excellent fill-in beneath the antenna. • The mounting pipe protects the coax to antenna connection from rain/ice/ moisture. • Heavy duty fiberglass radome, 150+ MPH wind survival • Extruded aluminum mounting brackets, stainless steel u-bolts/hardware. • Ideal for the license free 2.4GHz ISM band using the 802.11b and 802.11g standards. NCG COMPANY 1275 N. Grove St. Anaheim, CA 92806-2114 Phone: 800.962-2611 Fax: 714.630-7024 email: [email protected]

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 b/g GSB MODULE MODEL NUMBER: GSB FCC ID: P9J-GSB REPORT NUMBER: 05U3483-1 ISSUE DATE: MAY 25, 2005 Prepared for TROPOS NETWORKS 555 DEL REY AVENUE SUNNYVALE, CA 94085 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 *Details of specific model(s) tested and model differences shall be identified in body of report REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 2 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Revision History Rev. Issue Date Revisions Revised By A 5/25/05 As Issued Yan Zheng REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 3 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 4 2. EUT INFORMATION........................................................................................................................ 5 2.1. EUT DESCRIPTION..................................................................................................................... 5 2.2. MODEL DIFFERENCE................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................. 6 4. FACILITIES AND ACCREDITATION .......................................................................................... 6 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 7 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 7 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 9 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 11 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 11 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 11 7.1.2. 99% BANDWIDTH............................................................................................................ 18 7.1.3. PEAK OUTPUT POWER .................................................................................................. 25 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 39 7.1.5. AVERAGE POWER........................................................................................................... 42 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 44 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 51 7.2. RADIATED EMISSIONS.............................................................................................................64 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 64 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH 7.4dBi OMNI ANTENNA ............................................................................................................................. 67 7.2.3. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH 12dBi OMNI ANTENNA ............................................................................................................................. 85 7.2.4. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH 12dBi SECTOR ANTENNA ....................................................................................................................... 103 7.2.5. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 7.4dBi OMNI ANTENNA ....................................................................................................................................... 121 7.2.6. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 12dBi OMNI ANTENNA ....................................................................................................................................... 125 7.2.7. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 12dBi SECTOR ANTENNA ....................................................................................................................................... 129 7.3. POWERLINE CONDUCTED EMISSIONS .............................................................................. 133 8. SETUP PHOTOS ............................................................................................................................ 137 REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 4 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL…

Text truncated - open the document above for the full version.

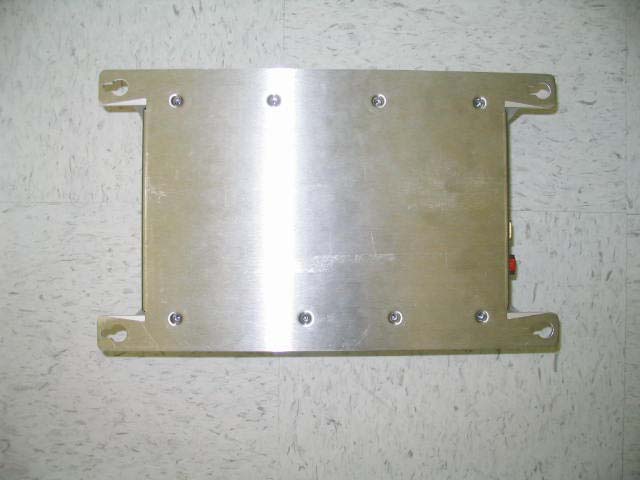

REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 137 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 138 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP 7.4dBi OMNI ANTENNA RADIATED FRONT PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 139 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 140 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP 12dBi OMNI ANTENNA RADIATED FRONT PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 141 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 142 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP 12dBi SECTOR ANTENNA RADIATED FRONT PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 143 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 144 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3483-1 DATE: MAY 25, 2005 EUT: 802.11 b/g GSB MODULE FCC ID:P9J-GSB Page 145 of 145 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
