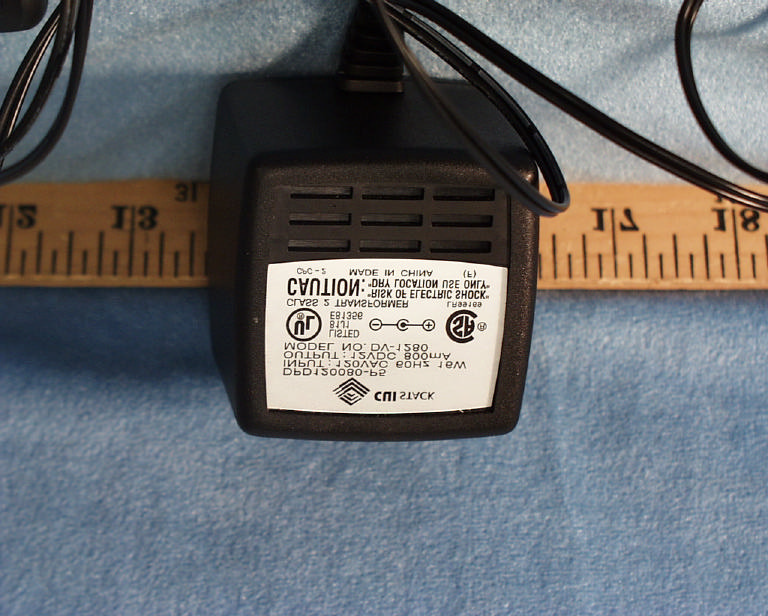

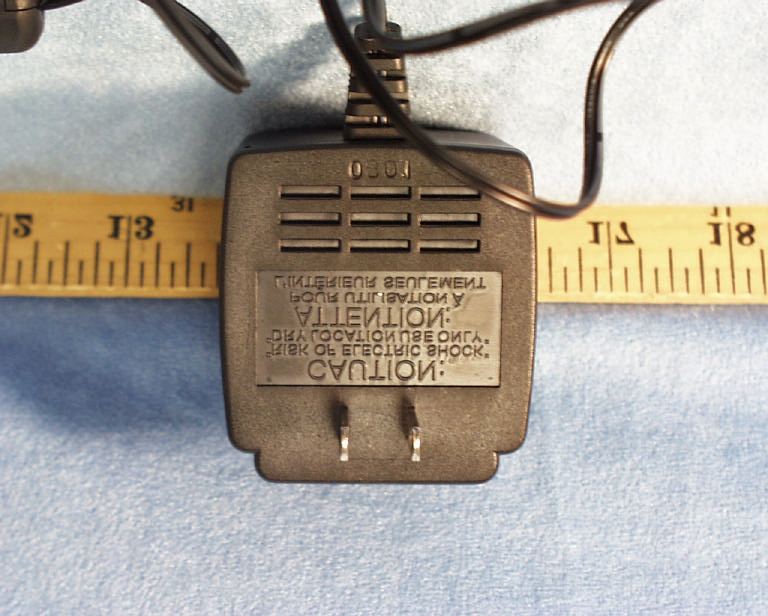

P9JWMR530-01-00BC802.11b Wireless Access Point

FHP SmartPoint TM Professional Installer Guide FHP Wireless 1710 South Amphlett Boulevard, Suite 304 San Mateo, CA 94402 FHP SmartPoint Professional Installer GuideDraft Version 1.6: May 10, 2002 © 2002, FHP Wireless, Inc.2 Table of Contents NOTICE TO USERS AND OPERATORS:3 Introduction 4 FHP SmartPoint vs. Typical Access Point 4 Gateways and Nodes 5 Security Considerations on 802.11b Networks 6 Selecting Locations for the Gateway & Nodes 6 Installation Guidelines6 Basic Guide lines7 Antenna Options7 Site Surveys7 SmartPoint RF Planning Guidelines:8 Wall Mounting Instructions9 Physically Connecting the Gateways & Nodes 11 Initial Software Configuration – Setting up a Gateway 12 SmartPoint IP Addressing: 12 Connecting to the SmartPoint: 12 Configuring your PC to access the SmartPoint’s management address: 12 Accessing the web-based configuration utility: 15 Configuring Your Wireless Settings 17 Initial Software Configuration – Setting up a Node 19 Initial Software Configuration – Client Device Settings 19 How IP Addressing Works on a Client Device 19 Safety Information for the FHP SmartPoint20 FHP SmartPoint Professional Installer GuideDraft Version 1.6: May 10, 2002 © 2002, FHP Wireless, Inc.3 NOTICE TO USERS AND OPERATORS: This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician. Caution The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by FHP Wireless could void the user's authority to operate this device. FHP SmartPoint Professional Installer GuideDraft Version 1.6: May 10, 2002 © 2002, FHP Wireless, Inc.4 Introduction This guide is intended for a trained technical professional. The guide provides the installation instructions and procedures for the SmartPoint product. Operation and network configurations for the SmartPoint product are detailed in the SmartPoint Operators Manual. These installation instructions apply to the following SmartPoint model numbers: WMR530-01-00B-C-N-02 1.5dBi omni pattern antenna configuration WMR530-01-00B-C-N-08 7.4dBi omni pattern antenna configuration FHP SmartPoint vs. Typical Access Point Typical 802.11b access points must be “hardwired” to your internal network. To install an access point, you would connect the access point’s Ethernet port to a hub or switch port on your internal network. Each access point would act as an extension to your wired network by serving as a repeater or bridge, connecting clients to your internal network. The following diagram is an example of a standard access point network. FHP’s SmartPoints function very differently than traditional, “wired” access points. For a small or large FHP network installation, only a small number of SmartPoints need to be “hardwired” to your internal network. In fact, only one SmartPoint needs to be connected to your internal network to provide connectivity for wireless users. For many wireless networks, one wired SmartPoint (gateway) is all that is needed. For added redundancy and additional bandwidth for larger wireless networks, additional gateways can be added as necessary. NOTE: The FHP SmartPoint must be installed by a trained professional, Value Added Reseller or Systems Integrator familiar with RF cell planning issues and the regulatory limits defined by the FCC RF Exposure, specifically those outlined in sections 1.1307. FHP SmartPoint Professional Installer GuideDraft Version 1.6: May 10, 2002 © 2002, FHP Wireless, Inc.5 Non-wired SmartPoints (nodes) function independently to form large, routed wireless networks. All you need is power for the SmartPoints, and you can expand your wireless network by adding nodes to the network. In this way, you can truly build large, routed wireless networks covering areas traditionally hard to reach due to the hardwire limitation of the Ethernet connections, the typical access point wire-side interface 1 . SmartPoints auto-configure themselves to form clusters around each wired gateway. No user intervention is required and no knowledge of routing protocols is necessary to configure your network. Each device needs some basic configuration information (ESSID, WEP Key, etc), but other than that, your wireless network will configure itself and perform all routing functions in t he background, without need for user intervention. Even the IP addressing on the wireless network is auto-configured and pre-set at the factory. This enables true “plug-and-play” configuration of your FHP SmartPoint wireless router. The below diagram shows an FHP SmartPoint network and how it differs from a traditional installation. Gateways and Nodes Every SmartPoint can either be configured as a gateway or a node via the FHP Configurator’s web interface. Every FHP wireless n…

Text truncated - open the document above for the full version.

1.5dBi Antenna Back 1.5dBi Antenna Front 7.4dBi Antenna Back 7.4dBi Antenna Front

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL FHP WIRELESS INC. This device complies with Part 15 of FCC rules. FCC ID: P9JWMR530-01-00BC

APPLICANT: FHP FCC ID: P9JWMR530-01-00BC MPE CALCULATION for 7.4 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 1.00 from 1.1310 Table 1 P (dBm) = 19.02 EUT output power G (dBi) = 7.40 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 5.91 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE CALCULATION for 1.5 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 1.00 from 1.1310 Table 1 P (dBm) = 19.02 EUT output power G (dBi) = 1.50 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.99 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

REPORT NO: 02U1263-1 DATE: MAY 14, 2002 EUT: 802.11b WIRELESS ACCESS POINT FCC ID: P9JWMR530-01-00BC Page 53 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.9. SETUP PHOTOS Radiated Emission below 1 GHz measurement X axis position REPORT NO: 02U1263-1 DATE: MAY 14, 2002 EUT: 802.11b WIRELESS ACCESS POINT FCC ID: P9JWMR530-01-00BC Page 54 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Y axis position Z axis position REPORT NO: 02U1263-1 DATE: MAY 14, 2002 EUT: 802.11b WIRELESS ACCESS POINT FCC ID: P9JWMR530-01-00BC Page 55 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Conducted Emission Measurement REPORT NO: 02U1263-1 DATE: MAY 14, 2002 EUT: 802.11b WIRELESS ACCESS POINT FCC ID: P9JWMR530-01-00BC Page 56 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement REPORT NO: 02U1263-1 DATE: MAY 14, 2002 EUT: 802.11b WIRELESS ACCESS POINT FCC ID: P9JWMR530-01-00BC Page 57 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Antenna Port Terminal Measurement END OF REPORT
