P9P0020205Bluetooth PC Adaptor

ATO Technology Limited

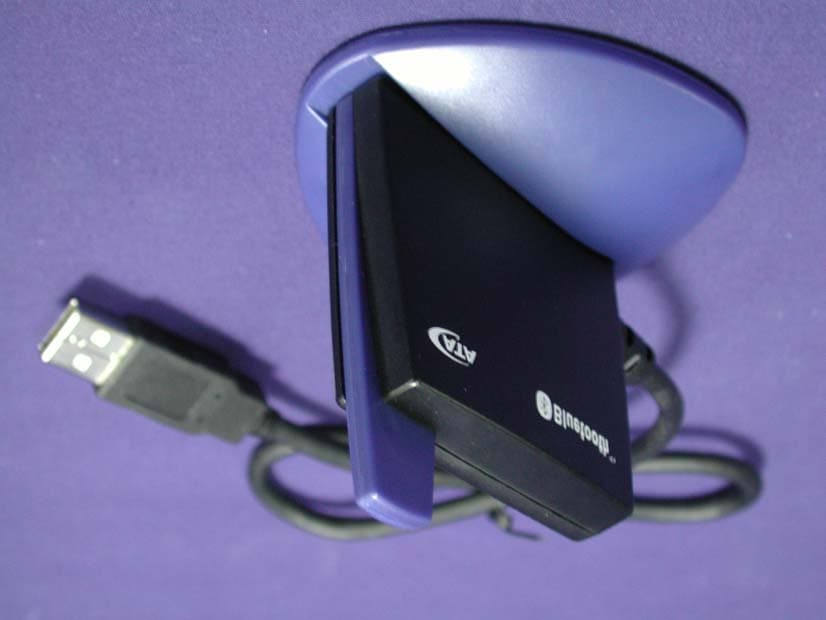

Bluetooth PC Adaptor - FCC ID P9P0020205 - ATO Technology Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Sep 09, 2002
Application Purpose
Original Equipment
Date of Application
Sep 09, 2002
Equipment Note
Bluetooth PC Adaptor
Frequency Range
2402.00000000 - 2480.00000000
Company
ATO Technology Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless Internet and Data Communication 9645 Scranton Road, Suite 205 San Diego, CA 92121 Phone: 858.453.8400 Fax: 858.453.5735 Email Technical Support: [email protected] Information: [email protected] BTW Configuration & User’s Guide November 27, 2001 Document Number: (011107-1006-BTW_btw1.2_docs_BTWDocs.doc) Version: 1.2 Confidential and Proprietary Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. BTW Configuration & User’s Guide November 27, 2001 WIDCOMM Inc. Confidential and Proprietary i LICENSED SOFTWARE © Copyright 2000 – 2001, WIDCOMM, Inc. (“WIDCOMM”). All rights reserved. Warning: This software and accompanying documentation are protected by copyright law and international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. Use of this software is governed by the terms of the end user license agreement that accompanies or is included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of the documentation accompanying this software, whether provided in printed or electronic form may be reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any means, or used to make any derivative work (such as translation, transformation, or adaptation) without the express, prior written consent of WIDCOMM. Trademark(s) ™ and Registered Trademark(s) ® WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to WIDCOMM, Inc. Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. Winroute Lite is Copyright Tiny Software, Inc. BTW Configuration & User’s Guide November 27, 2001 WIDCOMM Inc. Confidential and Proprietary ii Table of Contents 1 Introduction............................................................................................................ 1 1.1 INTRODUCTION TO BLUETOOTH........................................................................................... 1 1.2 INTRODUCTION TO BTW ..................................................................................................... 2 1.3 BLUETOOTH DEVICE IDENTITY............................................................................................. 3 1.4 ICONS USED FOR BLUETOOTH DEVICES AND SERVICES....................................................... 4 1.5 WHAT'S NEW..................................................................................................................... 5 2 Basic Operations ................................................................................................... 6 2.1 FIND BLUETOOTH DEVICES................................................................................................. 6 2.2 FIND A SERVICE................................................................................................................. 7 2.3 DETERMINE A CONNECTION’S STATUS................................................................................ 8 2.4 USING THE CONNECTION WIZARD....................................................................................... 9 2.4.1 Setup a new connection ......................................................................................... 9 2.5 BLUETOOTH TRAY............................................................................................................ 10 3 Client Applications .............................................................................................. 11 3.1 NETWORK ACCESS........................................................................................................... 11 3.1.1 Network Access Server-side Setup for Windows 2000........................................ 11 3.1.2 Network Access Server-side Setup for Windows 98SE & Windows Me.............. 12 3.1.2.1 Configure the server: ............................................................................12 3.1.2.2 Configure the routing software: ............................................................12 3.2 BLUETOOTH SERIAL PORT................................................................................................ 13 3.3 DIAL-UP NETWORKING....................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

ATO Technology Ltd. FCC ID: P9P0020205 6 Feng-Shu Tsuen, Gueishan, Taoyuan 333, Taiwan, R.O.C. Tel: 886-3-329-4141 Fax: 886-3-350-8768 Federal Communications Commission Aug. 30, 2002 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ATO Technology Ltd.

External Photos

Report No.: 026L023FI Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

ATO Technology Ltd. Rm. 1314-16, Block B1, Yan Tong Ind. City, 17 Ko Fai Road, Yan Tong, Kowloon, Hong Kong TEL: (852) 2772 3101 FCC ID.: P9P0020205 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. ATO Technology Ltd. ATO Model No.: BT50 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Bluetooth PC Adaptor Model No.: BT50 F F C C C C I I D D : : P P 9 9 P P 0 0 0 0 2 2 0 0 2 2 0 0 5 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ID Label/Location Info

ATO Technology Ltd. Rm. 1314-16, Block B1, Yan Tong Ind. City, 17 Ko Fai Road, Yan Tong, Kowloon, Hong Kong TEL: (852) 2772 3101 FCC ID.: P9P0020205 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. ATO Technology Ltd. ATO Model No.: BT50 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Bluetooth PC Adaptor Model No.: BT50 F F C C C C I I D D : : P P 9 9 P P 0 0 0 0 2 2 0 0 2 2 0 0 5 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Internal Photos

Report No.: 026L023FI Page : 1 of 8 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 026L023FI Page : 2 of 8 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 026L023FI Page : 3 of 8 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 026L023FI Page : 4 of 8 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 026L023FI Page : 5 of 8 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 026L023FI Page : 6 of 8 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 026L023FI Page : 7 of 8 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 026L023FI Page : 8 of 8 Version:1.0 (15) EUT Photo

Operational Description

Report No. 026L023FI Page : 6 of 38 Version:1.0 The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and distribute its transmissions is 79 channels and over the minimum number of hopping channels (75 channels). The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hopsets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. Note: 1. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.247 for spread spectrum devices. 2. Regards to the frequency band operation, the lowest middle and highest frequency of channel were selected to perform the test then shown on this report. 3. This device is a composite device in accordance with Part 15 paragraph 15.5. The function for the receiver was measured and made a test report that the report number is 026L023F under Declaration of Confermity.. 4. QuieTek had verified among construction and function in typical operation, then shown in this test report. 1.2. Operational Description EUT is an USB interface Bluetooth PC Adaptor with 79 channels. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wirless connections between desktop/laptop computers. Bluetooth-enabled peripherals (printers, faxes, ....), portable handheld devices, and connectivity to the Internet.

Test Report

Report No. 026L023FI Page : 1 of 38 Version:1.0 Test Report Product Name : Bluetooth PC Adaptor Model No. : BT50 FCC ID. : P9P0020205 Applicant : ATO Technology Ltd. Address : Unit 1310-11, 13/F, Grand Century Place Tower 2, 193 Prince Edward Road West, Kowloon, Hong Kong Date of Receipt : Jul. 01, 2002 Date of Test : Jul. 08, 2002 Report No. : 026L023FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 026L023FI Page : 3 of 38 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Details....................................................................................................................7 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment List.....................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................13 3.1. Test Equipment............................................................................................................................13 3.2. Test Setup ....................................................................................................................................13 3.3. Test Condition .............................................................................................................................13 3.4. Minimum Standard......................................................................................................................13 3.5. Test Result of Peak Power Output...............................................................................................14 4. RF Exposure Evaluation ...........................................................................................................15 4.1. Friis Formula ...............................................................................................................................15 4.2. EUT Operation condition ............................................................................................................15 4.3. Test Result of RF Exposure Evaluation.......................................................................................16 5. Radiated Emission .....................................................................................................................17 5.1. Test Equipment............................................................................................................................17 5.2. Test Setup ....................................................................................................................................17 5.3. Test Condition .............................................................................................................................18 5.4. Limits ..........................................................................................................................................18 5.5. Test Procedure .............................................................................................................................18 5.6. Test Result of Radiated Emission................................................................................................19 6. Band Edge ..................................................................................................................................23 6.1. Test Equipment............................................................................................................................23 6.2. Test Setup ....................................................................................................................................23 6.3. Test Condition .............................................................................................................................24 6.4. Standard Reqirement ...................................................................................................................24 6.5. Test Result of Band Edge ............................................................................................................25 7. Occupied Bandwidth ......................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 026L023FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 026L023FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 026L023FI Page : 3 of 3 Version:1.0 Front View of High Frequency Radiated Test

Contact Information

Applicant

Jonathan Lee(Chief Technology Officer)
[email protected](852) 2772 3101Fax: (852) 2775 5718

Test Firm

DEKRA Testing and Certification Co., Ltd.Sky Hsu
[email protected]886-2-86013788Fax: 886-2-86013789

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz8.00 mW
Confidentiality
Long Term
Grant Notes
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
