PAOBM101Baby Monitor

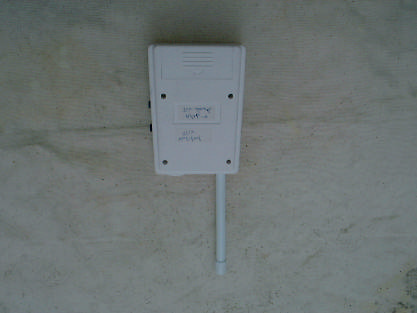

FCC ID: PAOBM101 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

MODEL : BM101 (BABY UNIT) FCC ID: PAOBM101 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: PAOBM101 LABEL LOCATION MODEL : BM101 (BABY UNIT) FCC ID: PAOBM101 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Marianne Bosley From:Marianne Bosley Sent:Tuesday, August 21, 2001 9:20 PM To:'[email protected]'; Marianne Bosley Subject:FW: Calford Technology Ltd. FCC ID: PAOBM101 location.PDF Hello again Alice, The label location came through fine. I wonder what the problems were before. This pdf file came through perfect. I will forward this to our engineer for technical review. Have a nice day. Marianne -----Original Message----- From: Alice Wong To: [email protected] Cc: EED - Choy, Kitty Sent: 8/21/2001 9:06 PM Subject: Calford Technology Ltd. FCC ID: PAOBM101 Hi Morning Marianne, Please see attached file for FCC label location. Thanks. Best Regards Alice <<location.PDF>>

FCC ID: PAOBM101 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: PAOBM101 Circuit Description The 16.63MHz(Channel 1 x 3 to 49.89), 16.61MHz(Channel 2 x 3 to 49.83) crystal oscillator drives the base of Q4 the final/buffer amplifier. The modulation provided by Mic. The output of Q4 has the matching network consisting of L1 and C21 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 10.5cm long metal wire. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery or adapter.

Date: 2001-07-31 TEST REPORT Page 1 of26 No.: HM104922 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM104922 Equipment Under Test [EUT]:Baby Monitor (Baby Unit) Model Number:BM-101 Applicant:Calford Technology Ltd. FCC ID :PAOBM101 Date: 2001-07-31 TEST REPORT Page 2 of 26 No.: HM104922 CONTENT: Cover Page 1 of 26 Content Page 2-3 of 26 Conclusion Page 4 of 26 1.0General Details 1.1Test Laboratory Page 5 of 26 1.2Applicant Details Page 5 of 26 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 26 Description of EUT operation 1.4Date of Order Page 6 of 26 1.5Submitted Sample Page 6 of 26 1.6Test Duration Page 6 of 26 1.7Country of Origin Page 6 of 26 1.8 Additional Information of EUT Page 7 of 26 2.0Technical Details 2.1Investigations Requested Page 8 of 26 2.2Test Standards and Results Summary Page 8 of 26 3.0Test Results 3.1Emission Page 9-22 of 26 3.2Bandwidth Measurement Page 21-23 of 26 Date: 2001-07-31 TEST REPORT Page 3 of 26 No.: HM104922 Appendix A List of Measurement Equipment Page 24 of 26 Appendix B Photographs Page 25-26 of 26 Date: 2001-07-31 TEST REPORT Page 4 of 26 No.: HM104922 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Law Man KitPatrick Wong Verify byPatrick Wong for Managing Director Date: 2001-07-31 TEST REPORT Page 5 of 26 No.: HM104922 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant CALFORD TECHNOLOGY LTD. Unit 409, 4/F., Kinetic Industrial Centre, 7 Wang Kwong Road, Kowloon Bay, Hong Kong. Telephone:852 2330 7330 Fax:852 2330 7713 HKSTC Code Number for ApplicantCAT002 Manufacturer CALFORD TECHNOLOGY LTD. Unit 409, 4/F., Kinetic Industrial Centre, 7 Wang Kwong Road, Kowloon Bay, Hong Kong. Telephone:852 2330 7330 Fax:852 2330 7713 Date: 2001-07-31 TEST REPORT Page 6 of 26 No.: HM104922 1.3Equipment Under Test [EUT] Description of Sample Product:Baby Monitor (Baby Unit) Manufacturer:Calford Technology Ltd. Brand Name:N/A Model Number:BM-101 Input Voltage:9Vd.c (“6F22” size battery x 1) with jack The AC/DC Adapter used for the tests was provided by the applicant with the following details: Model Number: 28-D09-100, Input: 120Va.c. 60Hz 2W, Output: 9Vd.c. 100mA 1.3.1Description of EUT Operation The Equipment Under Test(EUT) is an Calford Technology Ltd., 49.8MHz two channel Baby Monitor. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and tape is frequency modulation. 1.4Date of Order 2001-05-30 1.5Submitted Sample(s): 6 Samples per model 1.6Test Duration 2001-07-28 1.7Country of Origin China Date: 2001-07-31 TEST REPORT Page 7 of 26 No.: HM104922 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Rating Label Block diagram FCC ID Label Date: 2001-07-31 TEST REPORT Page 8 of 26 No.: HM104922 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:1992 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235ANSI C63.4:1992N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:1992Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:1992Class B Note: N/A - Not Applicable Date: 2001-07-31 TEST REPORT Page 9 of 26 No.: HM104922 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.235 Test Method:ANSI C63.4:1992 Test Date:2001-07-28 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2001-07-31 TEST REPORT Page 10 of 26 No.: HM104922 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.235]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz][μV/m][μV/m] 49.82-49.90100,00010,000 Results: Channel 1 Field Strength of Fundamental Emissions Peak Value FrequencyLevel @3mCorrection Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHzdBμVdB/mdBμV/mμV/mμV/m 49.89553.415.068.42630.3100,000Vertical According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: *:Linear interpolations Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty=30MHz to 300MHz±…

Text truncated - open the document above for the full version.

FCC ID: PAOBM101 Limits for 26 dB Bandwidth of Fundamental Emission: Frequency Range26dB BandwidthFCC Limits * [MHz][KHz][KHz] 49.89510.6within 49.82-49.90 Channel 1 26dB Bandwidth of Fundamental Emission Limits for 26 dB Bandwidth of Fundamental Emission: Frequency Range26dB BandwidthFCC Limits * [MHz][KHz][KHz] 49.8329.8within 49.82-49.90 Channel 2 26dB Bandwidth of Fundamental Emission

FCC ID: PAOBM101 200KHz The modulation is obtained through an AFC diode which limits the modulation not to exceed the 200kHz limit.

FCC ID: PAOBM101 TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
