PAQUP-322MP3 player

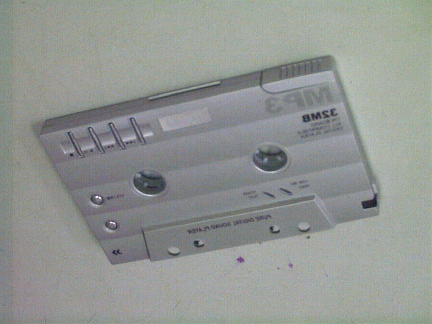

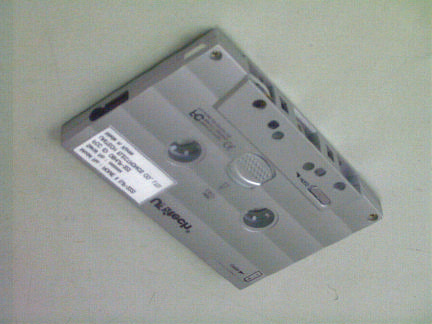

Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 22 of 30 A1-1 External Photo of EUT(Top) A1-2 External Photo of EUT(Bottom) Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 27 of 30 A1-3 USB CABLE

Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 23 of 30 A1-3 Internal Photo of EUT Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 24 of 30 A1-4 Internal Photo of EUT(PCB)

Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 1 of 30 JungAng EMC Co., Ltd. 109-2, Yepyung-ri, Kumsa-myun, Youju-kun, Kyungki-do, KOREA TEL: 82 2 571 8217 FAX:82 31 764 0126 FCC EMI TEST REPORT Date of Test : September 4 - 5, 2000 Test Report No : 00JAC011.FCC Test Site : JungAng EMC Co., Ltd., Korea(31040/SIT 1300F2) Trade Name : N/A Manufacturer : UNITECH ELECTRONICS CO., LTD. Address : 12F, Chung-Jin Bldg, 53-5, Won Hyo Ro 3Ga, Yong San-Gu, Seoul, Korea Contact Person : Byung-Cheol Yoo / Manager Tel No. : 82-2-3271-7800 Fax No. : 82-2-3271-7824 Product : MP3 Player Model : ROME II (UP-322) Fcc Rule Part(s) : FCC Part 15 Subpart B Classification : Class B The device bearing the trade name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C.63.4-1992. I attest to the accuracy of data and all measurement reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. TaeHyun Nam President-JungAng EMC Co., Ltd. http://www.jaemc.co.kr Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 2 of 30 TABLE OF CONTENTS PAGE 1. Description of device 3 1.1 General 3 1.2 EUT Description 3 2. Test facility 4 3. Summary of results 4 3.1 Electromagnetic Emission 4 3.2 Modifications to the EUT 4 4. Tested system details 5 4.1 Peripherals and Others 5 4.2 Type of Cables Used 5 4.3 System layout on EUT and peripherals 6 5. Test result 7 5.1 RFI Voltage Measurement 7 5.2 RFI Field Strength Measurement 13 5.3 Minimum Margin 15 5.4 Sample Calculations 15 6. Test Equipments 16 7. Measurement Photos 17 7.1 Setup with RFI Voltage Emission Level 17 7.2 Setup with RFI Field Strength Emission Level 18 Appendix 1 Photos of EUT 21 Appendix 2 ID Label and Location 25 Appendix 3 System Block Diagram 28 Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 3 of 30 Appendix 4 User’s Manual 30 1. DESCRIPTION OF DEVICE 1.1 General Responsible Party UNITECH ELECTRONICS CO., LTD. Contact Person Byung-Cheol Yoo Tel No. : 82-2-3271-7800 Fax No. : 82-2-3271-7824 Manufacturer UNITECH ELECTRONICS CO., LTD. 12F, Chung-Jin Bldg, 53-5, Won Hyo Ro 3Ga, Yong San-Gu, Seoul, Korea • Trade name N/A • Model name ROME II (UP-322) • EUT Type MP3 Player • Classification FCC Part 15 Subpart B Class B • Clock Speed Main Clock : 14.725 MHz, 16 MHz, 48 MHz • Rule Part(s) FCC Part 15 & Part 2 • Test Procedure(s) ANSI C63.4(1992) • Date of Tests September 4 - 5, 2000 • Place of Tests JungAng EMC Co., Ltd. 1.2 EUT Description The EUT is the device which is playing Audio Sound Track with formatted to MP3 standard mode. MP3 file means MPEG 1 layer 3, a standard compression method providing an excellent quality audio. MP3 makes users possible to enjoy the high quality sound of the downloaded MP3 music files from the Internet or the other audio content with the 1/12 size of commercial CD audio files. RR Note. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the laboratory. The results in this report is only applied to the sample(s) tested. Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 4 of 30 RR Note. Please refer to the duties and responsibilities of the Responsible Party attached. Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 5 of 30 2. TEST FACILITY The open field test site and conducted measurement facility used for this measurement, is located following address. This site was fully described in a report dated Nov. 24, 1998, that was submitted to the FCC. Our site and facility had been accepted in a letter dated Nov. 24, 1998(31040/SIT) : JungAng EMC Co., Ltd. Address : 109-2, Yepyung-ri, Kumsa-myun, Youju-kun, Kyungki-do, Korea The detailed description of the measurement facility was found to be in compliance with the requirements of 2.948 according to ANSI C63.4 on October 19, 1992. 3. SUMMARY OF RESULTS 3.1 Electromagnetic Emission RFI Voltage Measurement............................... PASS RFI Field Strength Measurement........................ PASS Although the measured emissions indicate that the EUT complies with the required limits, some measurements are close to these limits. When the uncertainty of measurement is considered, there is some possibility that the EUT may not be compliant. 3.2 Modifications to the EUT : None Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC 2000 JungAng EMC Co., Ltd. FCC ID : PAQUP-322 Page 6 of 30 4. TESTED SYSTEM DETAILS 4.1 Peripherals and Others : Description Model Name Serial No. Manufacturer FCC ID Computer DESKPRO 7836BVD20016 Compaq DoC Printer C2106A 3217S91901 HP B94C2106X Monitor VX700 M902080938 Gateway BGBTFV8705 K Keyboard RT235BTW B13BC90L39GU Compaq AQ6-22K15 Mouse #1 M-S34 F13490N5BGF Compaq DZL211029 Mouse #2 OK-520 00DAC0231 A4 TECH DoC Mouse #3 898W 5883A001 Han Long HLA311001 Mouse #4 Pro Mouse II 96002117 NEOTEC FSUGMZC7 4.2 Type of Cables Used: Device from Device to Type of Cable Length Type of shield Computer Monitor Signal cable 1.0 shielded Computer Printer Signal cable 1.8 shielded Computer Keyboard Signal cable 2.0 shielded Computer Mouse #1,#2 Signal cable 1.5 shielded Computer Mouse #3,#4 Signal cable 1.5 shielded Computer MP3 Player Signal cable 1.5 shielded MP3 Player Ear-phone Signal cable 2.0 Non-shielded Computer Main Power Power cable 1.5 Non-shielded Monitor Main Power Power cable 1.5 Non-shielded Printer Main Power Power cable 1.5 Non-shielded Model : ROME II (UP-322) Tes…

Text truncated - open the document above for the full version.

Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 17 of 30 7. MEASUREMENT PHOTOS 7.1a Setup with the Maximized RFI Voltage Emission Level (Play) Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 18 of 30 7.2a Setup with the Maximized RFI Field Strength Emission Level (Play) Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 19 of 30 7.1b Setup with the Maximized RFI Voltage Emission Level (Downloading) Model : ROME II (UP-322) Test Report No. : 00JAC011.FCC  2000 JungAng EMC Co., Ltd. FCC ID : O8HUP-322 Page 20 of 30 7.2b Setup with the Maximized RFI Field Strength Emission Level (Downloading)
