PAV1201BWIRELESS SOUND SYSTEM(Base station)

Contents WelcomeIn the BoxSet UpConnecting Evolve to your Home Media CenterEvolve to GoSpecificationsTroubleshootingSafety InformationWarranty InformationWarranty Registration 1-23-89-2425-3233-3435-4041-4647-5253-5960-61 It’s time to cut the cord... your home stereo has evolved. Welcome to the no-wires freedom of the Evolve ™ wireless sound system. Evolve uses wireless digital transmission to play your music wherever you want it. Rechargeable wireless speakers move from porch to kitchen, media room to patio effortlessly. Your iPod is ready. Your music is waiting. It’s time to Evolve. Welcome 1 2 Het is de hoogste tijd omde kabel door te knippen...uw thuisstereo isgeëvolueerd.Welkom bij de kabellozevrijheid van het draadlozegeluidssysteem van Evolve ™ . Evolve maakt gebruik vandraadloze digitale transmissieom uw muziek af te spelenwaar u dat ook wilt. De oplaadbare draadlozeluidsprekers gaan probleem-loos mee van de verandanaar de keuken en van demediaruimte naar het terras. Uw iPod is er klaar voor. Uw muziek wacht op uw teken. Het is tijd voor Evolve. È ora di eliminare i fili...il vostro impianto stereosi è evoluto.Benvenuti nella libertàsenza fili dell'impiantostereo Evolve ™ . Grazie a un sistema ditrasmissione digitalesenza fili, Evolve vi consentedi riprodurre ovunque lavostra musica. Gli altoparlanti ricaricabilisenza fili possono esserespostati dalla veranda allacucina, dal soggiornomultimediale al patio,senza alcuno sforzo. Il vostro iPod è pronto,la musica attende. È il momento di Evolve. Ab sofort sind Kabelüberflüssig... Ihre Stereoanlagehat sich weiterentwickelt.Genießen Sie diekabellose Freiheit desEvolve ™ Soundsystems. Mithilfe der digitalenFunkübertragung vonEvolve können Sie überallMusik hören, wo Sie wollen. Die wiederaufladbarenFunklautsprecher sindtragbar und können problemlosim Wohnzimmer, in der Küche,im Arbeitszimmer oder aufder Terrasse genutzt werden. Ihr iPod ist einsatzbereit. Ihre Musik wartet auf Sie. Zeit für Evolve! Il est temps de couper lecordon... votre chaînestéréo a évolué.Bienvenue dans le mondede liberté du systèmeaudio sans fil Evolve ™ . Evolve utilise la transmissionnumérique sans fil pourvous permettre d’écoutervotre musique là où vousle souhaitez. Ses haut-parleurs sansfil rechargeables setransportent sans effortd’une pièce à l’autre dela maison. Votre iPod est prêt. Votremusique est en attente. Il est temps d’évoluer. Es hora de cortarel cable... el equipoestéreo para el hogarha evolucionado.Bienvenido a la libertad sincables del sistema de sonido inalámbrico Evolve ™ . Evolve emplea unatransmisión digitalinalámbrica para reproducirla música donde desee.Los altavoces inalámbricosrecargables puedentrasladarse fácilmente delsalón a la cocina o delestudio a la terraza. Su iPod está preparado. Su música está esperando. Es hora de evolucionar. 3 2 Wireless Speakers 4-inch driver High-efficiency lithium-ion battery Digital receiver Lit LED indicates Left or Right channel In the Box 1 Wireless Remote150’ rangeCommands Play/Pause Volume Up Volume Down Next Track/Fast Forward Previous Track/Fast Rewind Shuffle Songs, Albums, Off (iPod Only) Repeat One Song, All Songs, Off (iPod Only) EQ – Press to cycle through iPod equalizer settings System Power – Press once to power on, again to power off FRONT 1 BACK 4 2 draadloze luidsprekers 4" aandrijving Zeer efficiënte lithium- ionbatterij Digitale ontvanger Opgelichte LED geeft het linker- of rechterkanaal aan 1 DraadlozeafstandsbedieningBereik van 45,7 mBedieningselementenAfspelen / PauzerenVolume hogerVolume lagerVolgend nummer / Snel vooruitspoelenVorig nummer /Snel terugspoelenSchakelen tussen Nummers,Albums en Uit (alleen iPod)Eén nummer herhalen, Allenummers herhalen, Uit(alleen iPod)EQ - Indrukken om door deequalizerinstellingen te navigerenSysteemvoeding - Druk eenmaalom in te schakelen en opnieuwom uit te schakelen 2 haut-parleurs sans fil Moteur de 10,16 cm Batterie de longue durée au lithium-ion Récepteur numérique Voyant lumineux indiquant le canal gauche ou droit 1 Télécommande sans filPortée de 45,7 mCommandesLecture/PauseAugmentation du volumeDiminution du volumePiste suivante/Avance rapidePiste précédente/Retour rapideLecture aléatoire desmorceaux, des albums, arrêt(iPod uniquement)Répétition d’un morceau,de tous les morceaux, arrêt(iPod uniquement)Égalisation (EQ) – Appuyez surle bouton pour faire défiler lesréglages d’égalisation prédéfinisde votre iPodSystème d’alimentation – Appuyez une fois pour allumerl’appareil et appuyez à nouveaupour l’éteindre 2 Funklautsprecher 4 Zoll-Treiber Hochleistungsfähige Lithium-Ionen-Batterie Digitalreceiver LED-Anzeige für linken oder rechten Kanal 1 Kabellose Fernbedienung45,7 m ReichweiteBefehleAbspielen / AnhaltenLautstärke +Lautstärke -Nächster Titel /Schneller VorlaufLetzter Titel /Schneller RücklaufZufällige Wiedergabe: Musiktitel /Alben / Aus (nur iPod)Erneut abspielen: ein Lied /alle Lieder / Aus (nur iPod)EQ: Mit dieser Taste könnenSie die Equalizereinstellungenfür den iPod vornehmenEin/Ausschaltknopf: Durcheinmaliges Betätigen schaltenSie das Gerät ein, durch nochmaligesBetätigen schalten Sie es aus 2 altoparlanti senza fili Cono da 10 cm Batteria agli ioni di litio ad alto rendimento Ricevitore digitale LED luminoso che indica il canale destro o sinistro 1 Telecomando senza filiRaggio di azione di 45,7 mComandiRiproduzione/PausaAumento volumeRiduzione volumeTraccia successiva/Avanzamento rapidoTraccia precedente/Riavvolgimento rapidoBrani Shuffle, album,disattivazione (solo per iPod)Ripetizione di un brano, di tuttii brani, disattivazione(solo per iPod)EQ: per visualizzare in sequenzale impostazioni di equalizzazionedell'iPodAccensione del sistema:premete una volta per accendere,una seconda volta per spegnere 2 altavoces inalámbricos Cono de 4 pulgadas Batería de iones de litio de alta eficacia Receptor digital Indicador luminoso de canal izquierdo o derecho 1 Mando a distanciainalámbricoAlcance de 45,7 metrosComandosReproducción / PausaSubir v…

Text truncated - open the document above for the full version.

Griffin Technology Corp. 1930 Air Lane Drive Nashville TN 37210 Date: Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: _____________________ Jeff Altheide / QA Manager Griffin Technology Corp. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Griffin Technology Corp. 1930 Air Lane Drive Nashville TN 37210 Confidentiality Request FCC ID : PAV1201B Product : Wireless speaker system Model : 1201-CUBES2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ______________________ Jeff Altheide / QA Manager Griffin Technology Corp.

1 Lucy Tsai From: debby.dai [[email protected]] Sent: Thursday, December 13, 2007 7:44 PM To: Lucy Tsai Cc: daphne.liang; leah.peng Subject: Reply to JOW TONG TECHNOLOGY CO., LTD. , FCC ID: QPR1201B, Assessment NO.: AN07T7337, Notice#1 Attachments: 1201-CUBES2(Base)_User Manual(revised 20071214).pdf; 1201-CUBES2(Base)_ Test Report(revised 20071214).pdf; 1201-CUBES2(Base)_Circuit Diagram(revised 20071214).pdf; 1201-CUBES2(Base)_Label Location(revised 20071214).pdf Dear Lucy, Please see reply below in blue. Best Regards, Debby Dai 戴妤如 Compliance Certification Services, Inc / Tainan Lab. 程智科技股份有限公司 台南實驗室 TEL: 06-5980808 # 607 FAX: 06-5987878 e-mail: [email protected] 6F., No.605, Jhongshan RD., Sinhua Township, Tainan County 71243, Taiwan 台南縣新化鎮中山路605號6樓 - ----- 轉呈者 daphne.liang/ccsemc 於 2007/11/02 01:47 PM ----- "Lucy Tsai" <[email protected]> 2007/11/02 10:25 AM 收件人： "application" <[email protected]> 副本抄送： 主旨： FW: JOW TONG TECHNOLOGY CO., LTD. , FCC ID: QPR1201B, Assessment NO.: AN07T7337, Notice#1 Hi Debby, Please address following issues. Q#1: Please remove the remote control transmitter's circuit from the schematics. Please see attached revised Circuit Drawing . Q#2: The grantee code for Jow Tong shall be QPR but not PAV, however, all submitted documents as test report, label format, confidential request letter and so on indicted the grantee code is PAV. Please clarify who is the applicant and make the proper correction. Also, the format of FCC ID shall be FCC ID:123XXX per Part 2.925 but not 2 FCC ID#:123XXX. Please revise the FCC ID format as indicated on the label. Please revise the applicant to Griffin company.The grantee code for Griffin is PAV.Please see attched revised label for the FCC ID correction. Q#3: Page 17 of user manual indicates that the 900MHz RF module is contained in the speaker but not the base station doesn't agree with the application, please clarify. Please see attached revised Manual P.36. Q#4: Label format indicates a FCC DOC logo that according 15. 105, user manual should include the proper information to user. Please address. Also, per Part 2.1091, please add the RF exposure statement to the user manual. Please see attached revised Manual P.60. Q#4: Please confirm the version of ANSI C63.4 is followed. Please see revised test report, shown in Page 1 and page 3. Q#5: Theory of operation indicates the operating Frequency is from 911.4 MHz to 918.6 MHz and 13 channels available. It's different from the page 4 of test report that only a channel of 911MHz is used. Please clarify. The operating Frequency is from 911.4 MHz to 918.6 MHz and 13 channels available. We re-test and modified the test data in the test report. Please see revised test report. Q#6: Per test report indicates that this device is applied for 15.247 and two modulations are applied, but there is no information on which modulation was selected for the final testing and the worse case investigation. Please address. We laready modified the test report, please see attached revised test report,page 7.THE WORSE CASE: 2GFSK Best Regards, Lucy

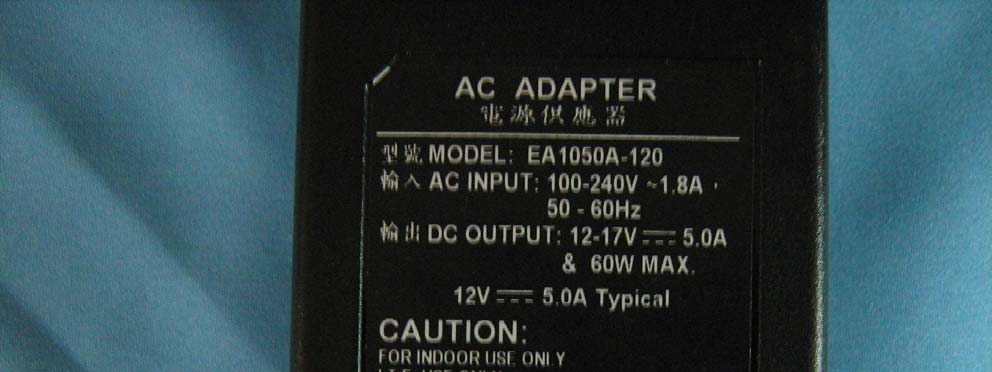

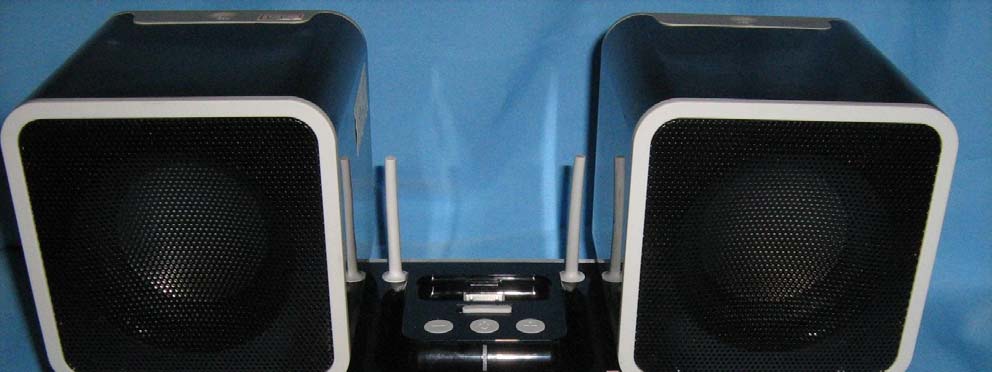

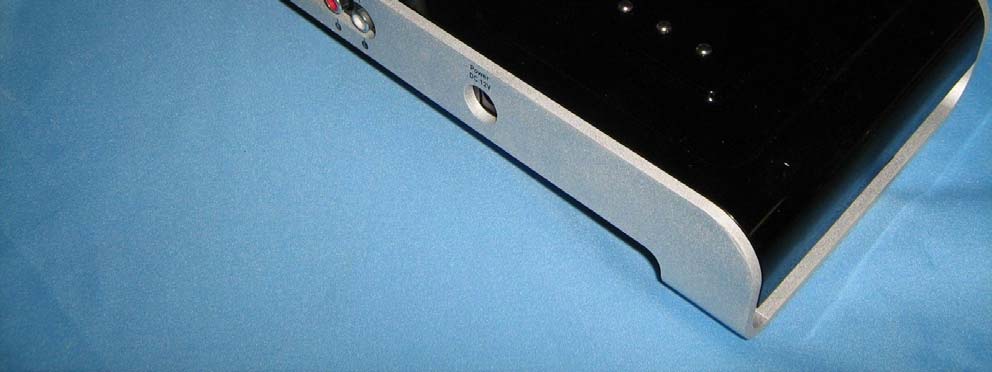

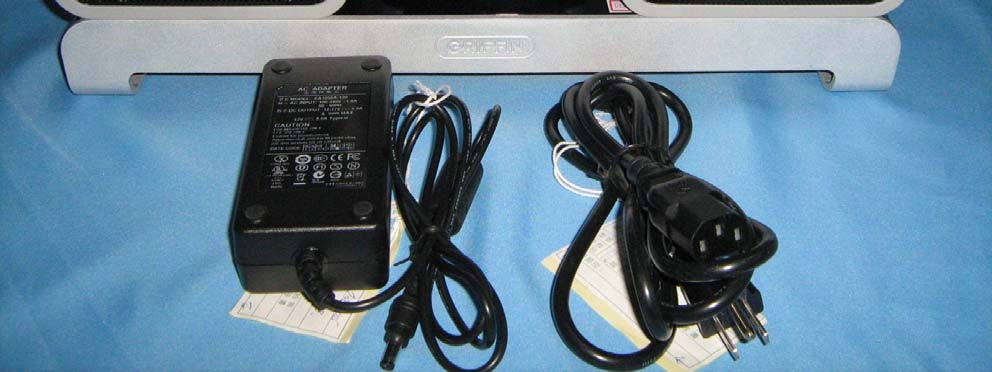

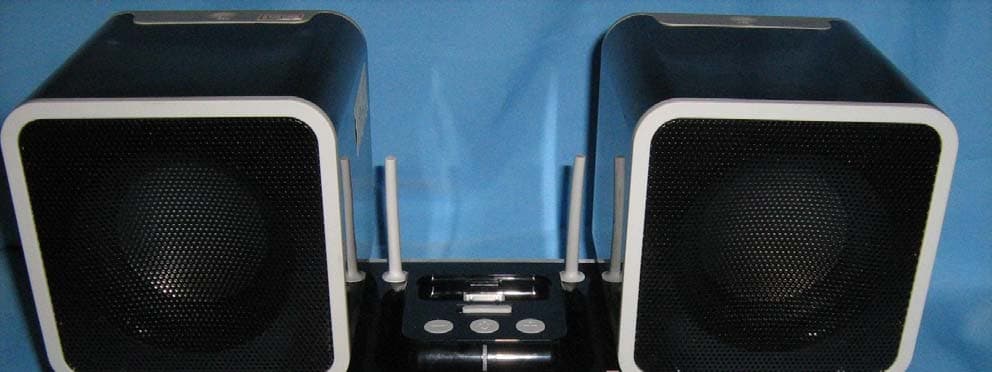

Compliance Certification Services Inc. Report No.：70807405-01-RP1 External Photo ( Model :1201-CUBES2 ) Compliance Certification Services Inc. Report No.：70807405-01-RP1 For Base Audio Transmitter (TX) Compliance Certification Services Inc. Report No.：70807405-01-RP1 For Speaker Audio Receiver (RX)

Compliance Certification Services Inc. Report No.：70807405-01-RP1 Internal Photo For Base Audio Transmitter (TX) Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Internal Photo For Speaker Audio Receiver (RX) Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1 Compliance Certification Services Inc. Report No.：70807405-01-RP1

Jow Tong Technology CO.,LTD 1-1. GENERAL DESCRIPTION OF EUT & SPEC For Base Audio Transmitter MANUFACTURER: Jow Tong Technology CO.,LTD MODEL NO.: BBB-Z01-029G FREQUENCY RANGE: 915MHz ANTENNA GIAN: 0 dBi ANTENNA TYPE: I type, Monopole, 1mm*81mm For Speaker Audio Receiver MANUFACTURER: Jow Tong Technology CO.,LTD MODEL NO.: 1. BBB-Z01-029G 2. BBB-Z01-031G FREQUENCY RANGE: 915MHz ANTENNA GIAN: 0 dBi ANTENNA TYPE: 1. I type, Monopole, 1mm*81mm 2. L type, Monopole, 1.0mm*13mm*78mm

Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: November 27, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Total : 49 Page 1 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For WIRELESS SOUND SYSTEM Model Number: 1201-CUBES2 Brand Name: EVOLVE Issued to Griffin Technology 1930 Air Lane Drive Nashville TN 37210 Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: November 27, 2007 Page 2 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION....................................................................................................3 2 EUT DESCRIPTION ...........................................................................................................................4 3 TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION.......................................................................................................................5 3.2 EUT EXERCISE..................................................................................................................................5 3.3 GENERAL TEST PROCEDURES............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4 INSTRUMENT CALIBRATION........................................................................................................7 5 FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES.........................................................................................................................................8 5.2 EQUIPMENT.......................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS......................................................................................9 6 SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7 FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH ........................................................................................................................11 7.2 PEAK POWER...................................................................................................................................14 7.3 BAND EDGES MEASUREMENT ................................................................................................17 7.4 PEAK POWER SPECTRAL DENSITY...................................................................................................21 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................24 7.6 SPURIOUS EMISSIONS ...............................................................................................................27 7.7 POWER LINE CONDUCTED EMISSIONS.............................................................................................41 8 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................44 Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: November 27, 2007 Page 3 1 TEST RESULT CERTIFICATION Applicant: Griffin Technology 1930 Air Lane Drive Nashville TN 37210 Equipment Under Test: WIRELESS SOUND SYSTEM Model Number: 1201-CUBES2 Brand Name: EVOLVE Date of Test: September 12, 2007 ~ November 26, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4: 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Jeter Wu Eric Yang Section Manager Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: November 27, 2007 Page 4 2 EUT DESCRIPTION Product WIRELESS SOUND SYSTEM Model Number 1201-CUBES2 Brand Name EVOLVE Model Discrepancy N/A Frequency Band 902~928MHz Frequency Range 911.4 MHz ~918.6MHz Transmit Power 12.17 dBm (16.48mW) Modulation Technique 2GFSK/3GFSK Number of Channels 13 Channels Antenna Type Receiver : (For Speaker Audio Receiver…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007 8 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007 RADIATED RF MEASUREMENT SETUP (TX) Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007 Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007 RADIATED RF MEASUREMENT SETUP (RX) Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007 Compliance Certification Services Inc. Report No: 70807405-RP1 FCC ID: PAV1201B Date of Issue: October 25, 2007
