PAV40269500-TRIPDA

FM Transmitter BLOCK DIAGRAM 9500-TRIPDA Power Supply of iPod FM Modulator Audio Signal Channel select Crystal (7.6MHz)


FBRP6005 Appendix B PHOTOS OF EUT

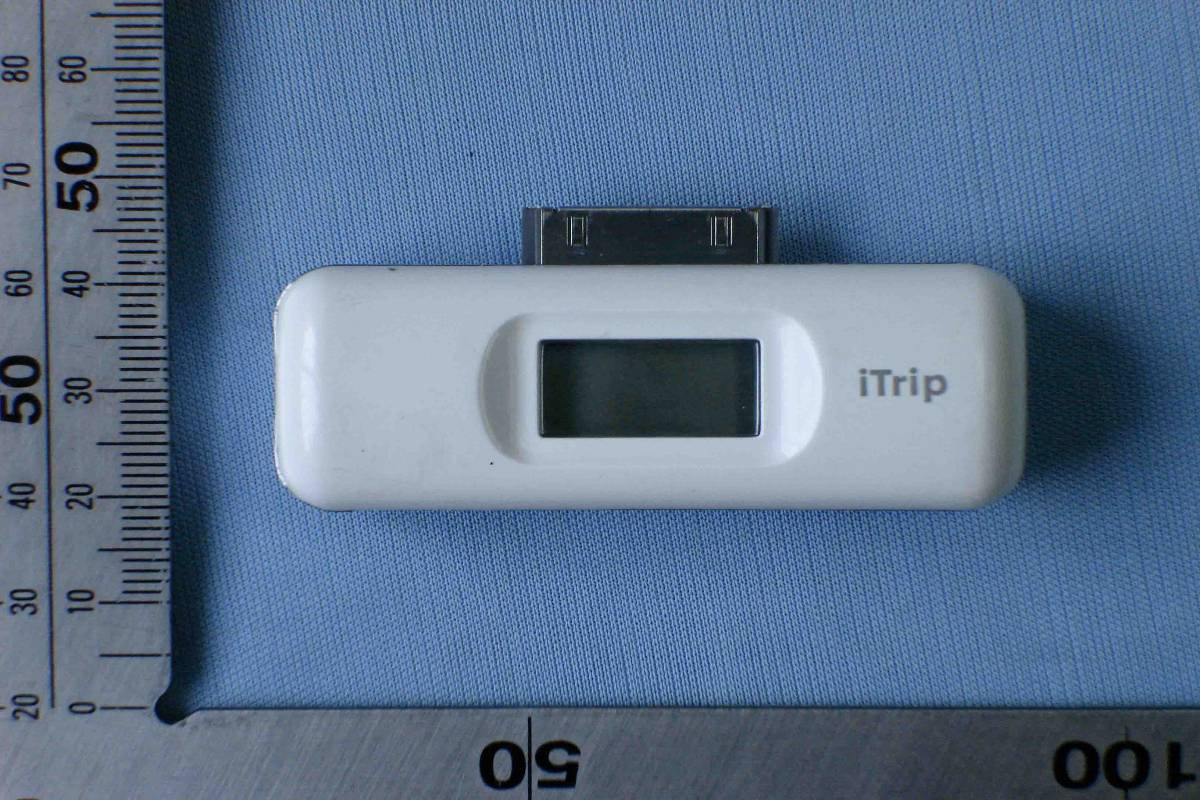

FBRP6005 Appendix B: 1 of 3 PHOTO OF EUT Model : 9500-TRIPDA Front View of EUT Rear View of EUT

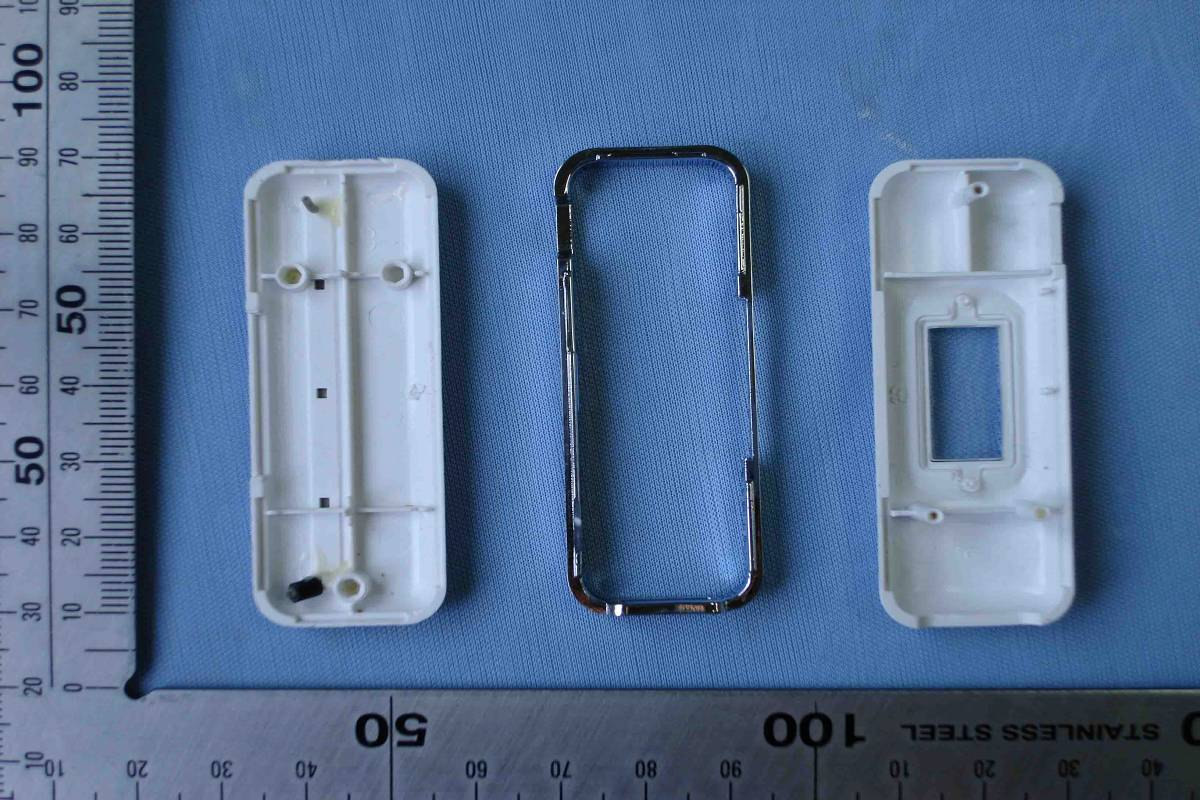

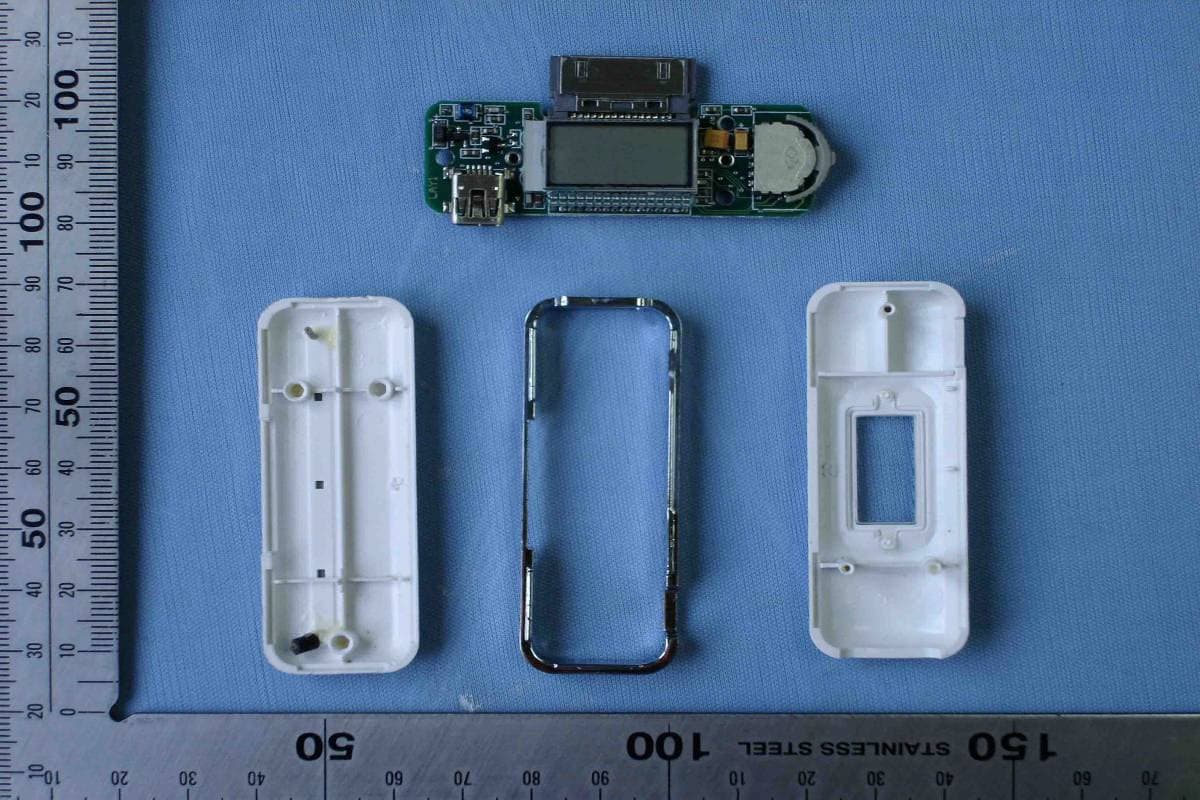

FBRP6005 Appendix B: 2 of 3 PHOTO OF EUT Model : 9500-TRIPDA Inside View of EUT Full View of Case

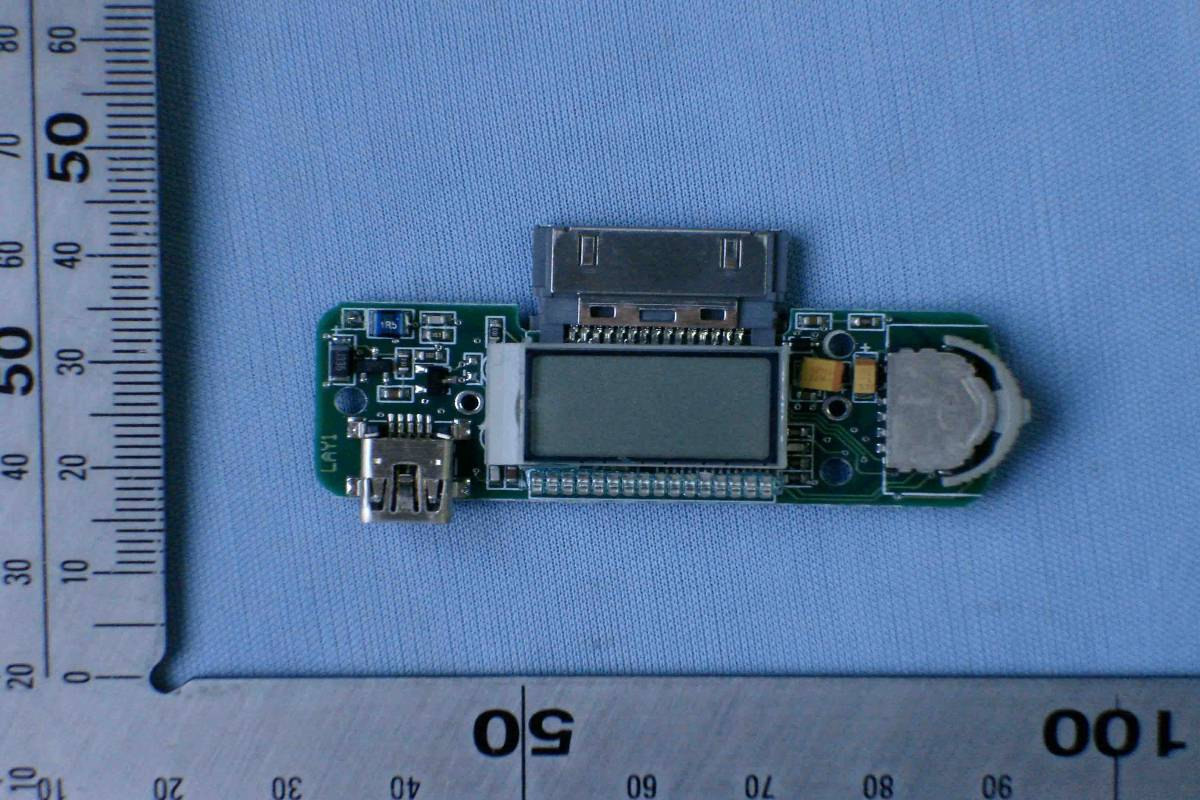

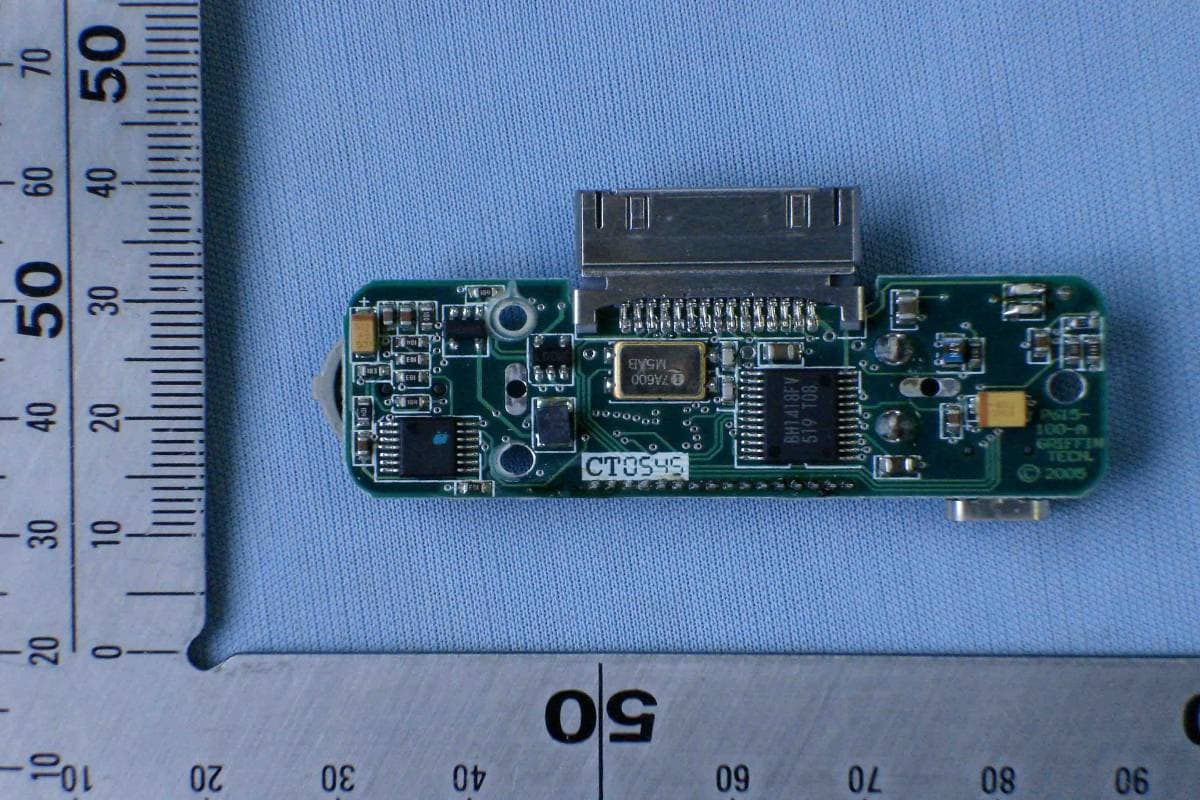

FBRP6005 Appendix B: 3 of 3 PHOTO OF EUT Model : 9500-TRIPDA Full View of Component Side Full View of Solder Side 7.6MHz


FBRP6005 Appendix A: 1 of 2 Label Photo Full View Label of EUT Label FCC ID :PAV4026 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) this device must accept any interference that may cause undesired operation.


FBRP6005 Appendix B PHOTOS OF EUT

FBRP6005 Appendix B: 1 of 3 PHOTO OF EUT Model : 9500-TRIPDA Front View of EUT Rear View of EUT

FBRP6005 Appendix B: 2 of 3 PHOTO OF EUT Model : 9500-TRIPDA Inside View of EUT Full View of Case

FBRP6005 Appendix B: 3 of 3 PHOTO OF EUT Model : 9500-TRIPDA Full View of Component Side Full View of Solder Side 7.6MHz

Operational description of 9500-TRIPDA This Unit is a Wide-Band-FM modulator, with four selectable output frequencies (88.1MHz and 107.9MHz) which is selected by four-position dip switch and install in car for listening the music (such as iPod) or others via car’s radio. Operating process: 1. Connect audio signal (may be com from iPod) to the audio input port of 9500-TRIPDA. 2. Select the desired frequency channel via dip switch. Power on the 9500-TRIPDA. 3. 9500-TRIPDA will radiate the RF signal (WFM modulated signal) to the air in selected frequency channel. 4. Tune the frequency of the car radio to the desired frequency. Car radio will receive the audio signal as the signal send to 9500-TRIPDA if car’s radio select the same frequency channel. Power Requirement: This unit is operated with DC 3V (2AAA UM-4 size battery). This 3V voltage is step up to 5V DC for the operation of main IC chip (ROHM BH1418FV). Main Chip 1:. This unit uses a ROHM BH1418FV (U6) with 7.6MHz crystal frequency simple configuration. The BH1418FV is a FM stereo transmitter IC that transmits stereo composite signals and a FM transmitter for broadcasting a FM signal on the air. The FM output frequency is controlled by 2 wire (pin 19 data and pin 18 clock) control by micro controller (P89LPC915FDH). The FM output pin is pin 12. FM signal pass through a Filter to reduce the harmonic noise, then a class A amplifier to drive a internal antenna which is printed on P.C.B. The stereo modulator generates a composite signal which consists of the MAIN, SUB, and pilot signal from a internal 38KHz oscillator. The FM transmitter radiates FM wave on the air by modulating the carrier signal with a composite signal. The transmission frequency is stable because it has a PLL system FM transmitter circuit. Frequency is set for North America.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title Size Date File NumberRevision Sheetof Drawn By P615-iTrip LCD MINI 30 PIN P615-100 P615-100-03-TEST.SCHDOC P615-100 1/19/2006 C03 11 RR/LNH +VCC GND GND TX RX + C14 100uF 4V R30 10R C9 2.2uF + C13 100uF 4V +VCC GND +3.3Vd DIGITAL POWER TX RX GND +3.3Vd GND Enable GND R23 100K R27 100K R22 10K R29 10K R28 10K R35 100K +3.3Vd SCL SDA C1 .01uF C19 .1uF LEFT RIGHT PWR EN PWR EN +VCC GND PWR EN LED R31 100K R32 100K R26 1M0 C11 680pF SCL SDA GND GND GND GND +3.3Va GND SDA SCL Enable GND +3.3Va +3.3Va GND GND GND GND Left Right C28 1uF C29 1uF C301uF C4310uF C37 150pF C6 .01uF C35 100pF L3 47nH C39 150pF C48 NC R21 10K R10 6K8 R16 4K7 C33 10uF R15 10K C34 330pF R24 3K3 R20 10K R19 1K0 C47 .047pF R17 20K + C8 33uF 6.3V R18 100R Q1 2SD2142K D4BB200 C38 150pF C44.1uF R1 6K8 13 XTAL1 7.600MHz C51 27pF C52 27pF C7.01uF C5010uF L4 1.5uH ANT1 ANTENNA(PCB) R-ch Input 1 Pre-Emphasis TC 2 LPF TC 3 Filter 4 Composite Sig. Out 5 GND 6 Vcc 8 PLL Phase Det. Out 7 RF Osc. 10 RF GND 11 RF Output 12 PLL Vcc 13 XTAL Osc. 14 CLOCK 18 XTAL Osc. 15 Chip Enable 17 DATA 19 Audio Muting 20 Pre-Emphasis TC 23 Pilot Sig. Adj. 21 LPF TC 22 L-ch Input 24 N.C. 9 N.C. 16 U6 BH1418FV CIN2B/KBI1/AD10/P0.1 1 KBI0/CMP2/P0.0 2 RST/P1.5 3 Vss 4 INT1/P1.4 5 SDA/INT0/P1.3 6 SCL/T0/P1.2 7 P1.1/RXD 8 P1.0/TXD 9 Vdd 10 P0.5/CMPREF/KBI5/CLKIN 11 P0.4/CIN1A/KBI4/AD13/DAC1 12 P0.3/CIN1B/KBI3/AD12 13 P0.2/CIN2A/KBI2/AD11 14 U4 P89LPC915FDH LED 1 2 T 3 4 C S1 IL-1512AT S1 2 S2 1 S3 28 S4 27 S5 26 S6 25 S7 24 S8 23 S9 22 S10 21 S17 20 S18 19 S19 18 S20 17 S21 16 S22 15 S23 14 S24 13 S25 12 S26 11 S27 10 SDA 9 SCL 8 Vdd 5 A0/OSC 6 A2/BP2 4 Vss 7 BP1 3 U5 OM8577 US/H 1 INTL/1F 4 1E/1G 3 1D/1C 2 1A/1B 5 LX/3F 12 2E/2G 7 2D/2C 6 2A/2B 9 DP/3F 8 3E/3G 11 3D/3C 10 3A/3B 13 DX/-- 14 COM1/-- 15 --/COM2 16 LED- 17 LED+ 18 D3 GZ0401B8 LCD AND DRIVER STEREO TRANSMITTER MICROCONTROLLER LEFT RIGHT SCL SDA LED ENABLE 1 1 2 2 3 3 4 4 5 5 CASE A CASE B J1 USB MINI/5/RA GND F/W GND 1 F/W GND 2 TPA+ 3 USB D+ 4 TPA- 5 USB D- 6 TPB+ 7 USB PWR 8 TPB- 9 ACC ID 10 F/W PWR+ 11 F/W PWR+ 12 ACC PWR 13 RESVD 14 USB GND 15 DGND 16 RESVD 17 DOCK TX 18 DOCK RX 19 ACC DETECT 20 RESVD 21 RESVD 22 RESVD 23 RESVD 24 LINE IN L 25 LINE IN R 26 LINE OUT L 27 LINE OUT R 28 AUDIO RET 29 DGND 30 P1 PD-13630 R5 10K +VCC GND R3549K GND CE 1 OUT 2 NC 3 GND 4 LX 5 U1 NCP1400A GND GND +3.8V GND +VCC+3.3Va R36 100K R37 100K GND C16 .1uF L1 22uH 1210 D2 ZLLS400TA Vin 1 GND 2 On/Off 3 N.C. 4 Vout 5 U2 LP2980IM5-3.3 C10 2.2uF POWER SUPPLY PWR EN R2 47R R4 10K GND R11 10K R12 10K R13 120R R14 120R C49 NC C20 NC C42 3300pF C403300pFC413300pF C2 10pF + C23 100uF 6.3V + C15 100uF 6.3V P0ANT101 P0C101 P0C102 P0C201 P0C202 P0C601 P0C602 P0C701 P0C702 P0C801 P0C802 P0C901 P0C902 P0C1001 P0C1002 P0C1101 P0C1102 P0C1301 P0C1302 P0C1401 P0C1402 P0C1501 P0C1502 P0C1601 P0C1602 P0C1901 P0C1902 P0C2001 P0C2002 P0C2301 P0C2302 P0C2801 P0C2802 P0C2901 P0C2902 P0C3001 P0C3002 P0C3301 P0C3302 P0C3401 P0C3402 P0C3501 P0C3502 P0C3701 P0C3702 P0C3801 P0C3802 P0C3901 P0C3902 P0C4001 P0C4002 P0C4101 P0C4102 P0C4201 P0C4202 P0C4301 P0C4302 P0C4401 P0C4402 P0C4701 P0C4702 P0C4801 P0C4802 P0C4901 P0C4902 P0C5001 P0C5002 P0C5101 P0C5102 P0C5201 P0C5202 P0D201 P0D202 P0D301 P0D302 P0D303 P0D304 P0D305 P0D306 P0D307 P0D308 P0D309 P0D3010 P0D3011 P0D3012 P0D3013 P0D3014 P0D3015 P0D3016 P0D3017 P0D3018 P0D401 P0D402 P0D403 P0J101 P0J102 P0J103 P0J104 P0J105 P0J10CASE A P0J10CASE B P0L101 P0L102 P0L301 P0L302 P0L401 P0L402 P0P101 P0P102 P0P103 P0P104 P0P105 P0P106 P0P107 P0P108 P0P109 P0P1010 P0P1011 P0P1012 P0P1013 P0P1014 P0P1015 P0P1016 P0P1017 P0P1018 P0P1019 P0P1020 P0P1021 P0P1022 P0P1023 P0P1024 P0P1025 P0P1026 P0P1027 P0P1028 P0P1029 P0P1030 P0Q101 P0Q102 P0Q103 P0R101 P0R102 P0R201 P0R202 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0R1001 P0R1002 P0R1101 P0R1102 P0R1201 P0R1202 P0R1301 P0R1302 P0R1401 P0R1402 P0R1501 P0R1502 P0R1601 P0R1602 P0R1701 P0R1702 P0R1801 P0R1802 P0R1901 P0R1902 P0R2001 P0R2002 P0R2101 P0R2102 P0R2201 P0R2202 P0R2301 P0R2302 P0R2401 P0R2402 P0R2601 P0R2602 P0R2701 P0R2702 P0R2801 P0R2802 P0R2901 P0R2902 P0R3001 P0R3002 P0R3101 P0R3102 P0R3201 P0R3202 P0R3501 P0R3502 P0R3601 P0R3602 P0R3701 P0R3702 P0S101 P0S102 P0S103 P0S104 P0S105 P0S106 P0U101 P0U102 P0U103 P0U104 P0U105 P0U201 P0U202 P0U203 P0U204 P0U205 P0U401 P0U402 P0U403 P0U404 P0U405 P0U406 P0U407 P0U408 P0U409 P0U4010 P0U4011 P0U4012 P0U4013 P0U4014 P0U501 P0U502 P0U503 P0U504 P0U505 P0U506 P0U507 P0U508 P0U509 P0U5010 P0U5011 P0U5012 P0U5013 P0U5014 P0U5015 P0U5016 P0U5017 P0U5018 P0U5019 P0U5020 P0U5021 P0U5022 P0U5023 P0U5024 P0U5025 P0U5026 P0U5027 P0U5028 P0U601 P0U602 P0U603 P0U604 P0U605 P0U606 P0U607 P0U608 P0U609 P0U6010 P0U6011 P0U6012 P0U6013 P0U6014 P0U6015 P0U6016 P0U6017 P0U6018 P0U6019 P0U6020 P0U6021 P0U6022 P0U6023 P0U6024 P0XTAL101 P0XTAL103 P0C602 P0C702 P0C1002 P0C2301 P0C5001 P0R1902 P0U205 P0U608 P0U6013 P0C102 P0C902 P0C1301 P0C1901 P0R3002 P0R3502 P0U4010 P0C1501 P0C1602 P0D202 P0U102 P0U201 N0+308V P0C1401 P0L101 P0P1013 P0R201 P0R501 P0R3001 P0R2802 P0U4013 P0U6017 N0ENABLE N0ENABLE N0ENABLE P0C101 P0C601 P0C701 P0C901 P0C1001 P0C1302 P0C1402 P0C1502 P0C1601 P0C1902 P0C2001 P0C2302 P0C3701 P0C3802 P0C4001 P0C4102 P0C4201 P0C4301 P0C4801 P0C5002 P0C5101 P0C5201 P0D401 P0J105 P0L301 P0P1015 P0P1016 P0P1020 P0P1029 P0P1030 P0Q102 P0R102 P0R302 P0R401 P0R1002 P0R1302 P0R1402 P0R2602 P0R3601 P0S102 P0S105 P0S106 P0U104 P0U202 P0U404 P0U507 P0U606 P0U6011 P0U6020 P0D3017 P0R402 P0U402 N0LED N0LED N0LED P0P1027 P0R1101 N0LEFT N0LEFT N0LEFT P0ANT101 P0L402 P0C201 P0C2002 P0C4902 P0C202 P0L401 P0C801 P0C4702 P0Q103 P0R1901 P0R2001 P0C802 P0R1802 P0C1102 P0R2601 P0U506 P0C2801 P0U601 P0C2802 P0R1202 P0R1401 P0C2901 P0U6024 P0C2902 P0R1102 P0R1301 P0C3001 P0U605 P0C3002 P0R1601 P0C3301 P0C3402 P0R1502 P0C3302 P0R1001 P0R1602 P0C3401 P0R1501 P0R2101 P0R2402 P0C3501 P0C3902 P0C4802 P0L302 P0C3502 P0U6010 P0C3702 P0U603 P0C3801 P0U6022 P0C3901 P0D403 P0R2102 P0C4002 P0U602…

Text truncated - open the document above for the full version.

HomeTek Technology (Chang-An) Inc.













































 APPLICANT : GRIFFIN TECHNOLOGY CO. ADDRESS : 1619 Elm. Hill Pike, Nashville, TN. 37210 USA EUT : iTrip Direct MODEL NO. : 9500-TRIPDA FCC ID : PAV4026 Under Part 15, SUBPART B AND SUBPART C. CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2003 PREPARED BY : HomeTek Technology (Chang-An) Inc. South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong, China Report # : FBRP6005
ADDRESS: South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong, China PHONE : 86-769-85303005 FAX : 86-769-85303006
E - mail :
[email protected] HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 1 of 19 TABLE OF CONTENTS.................................................................................................................................. 1 GENERAL INFORMATION ................................................................................................................................... 2 MODIFICATION LIST............................................................................................................................................ 4 CONDUCTED POWER LINE TEST...................................................................................................................... 5 1 TEST PROCEDURE ..................................................................................................................................... 5 2 RESULT OF CONDUCTED EMISSION TEST ............................................................................................. 5 RADIATED EMISSION TEST................................................................................................................................6 1 TEST INSTRUMENTS & FACILITIES ........................................................................................................ 6 2 EUT OPERATING CONDITION.................................................................................................................. 7 3 TEST SETUP ................................................................................................................................................ 8 4 CONFIGURATION OF THE EUT................................................................................................................. 9 5 TEST PROCEDURE ....................................................................................................................................11 6 LIMIT OF RADIATED EMISSION CLASS B ..............................................................................................12 7 RESULT OF RADIATED EMISSION TEST ................................................................................................12 8 RADIATED EMISSION TEST DATA (PAGE 1) .........................................................................................13 9 RADIATED EMISSION TEST DATA (PAGE 2) .........................................................................................14 10 RADIATED EMISSION TEST DATA (PAGE 3) .........................................................................................15 11 RADIATED EMISSION TEST DATA (PAGE 4) .........................................................................................16 12 RADIATED EMISSION TEST DATA (PAGE 5) .........................................................................................15 13 RADIATED EMISSION TEST DATA (PAGE 6) .........................................................................................16 PHOTO OF FCC ID LABEL ..................................................................................................................................19 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT APPENDIX C PLOT OF OCCUPIED BANDWIDTH HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 2 of 19 GENERAL INFORMATION 1 APPLICANT : GRIFFIN TECHNOLOGY CO. 2 ADDRESS : 1619 Elm. Hill Pike, Nashville, TN. 37210 USA 3 MANUFACTURER : GRIFFIN TECHNOLOGY CO. 4 ADDRESS : 1619 Elm. Hill Pike, Nashville, TN. 37210 USA 5 DESCRIPTION OF EUT : EUT : iTrip Direct FCC ID : PAV4026 Model Number : 9500-TRIPDA Serial # : N/A HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 3 of 19 6 FEATURES OF EUT : Dimension : 2.45”×1.43”×0.9”(62.5mm×36.5mm×22mm) Weight : 0.6 oz Built-in antenna Power : Provided by iPod (no batteries required) Modulator : FM Stereo Frequencies : 88.1MHz,107.9MHz High stability crystal oscillator, phase-lock loop control Frequency response : 50Hz to15KHz Operating range : 10-30 ft 7 TEST MODE : The EUT were investigated with three operation modes shown as below : (1) FM 88.1MHz mode; (2) FM107.9MHz mode; (3) Charge mode; The test mode of (3) Charge mode is worst case. And the final test data were shown in this test report. HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 4 of 19 MODIFICATION LIST THE FOLLOWING ACCESSORIES WERE ADDED TO THE EUT DURING TESTING : NO MODIFICATION BY HOMETEK TECHNOLOGY(Chang-An) INC. HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 5 of 19 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2003. 2 RESULT OF CONDUCTED EMISSION TEST N/A (Conducted Power Line Test is not applicable to this EUT (Model :9500-TRIPDA). HomeTek Technology(Chang-An) Inc. FCC ID : PAV4026 FBRP6005 Page : 6 of 19 RADIATED EMISSION TEST 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE ! OATS 1 SEP/2005 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ 845636/007 SEP/2005 3 PRE- AMPLIFIER 9KHz ~ 1300MHz HEWLETT PACKARD 8447D 1937A02095 SEP/2005 4 BICONICAL/LOG BROADBAND ANTENNA 25MHz ~ 2GHz ANTENNA RESEACH LPB2520/A 1095 OCT/2005 5 Attenuation 50Ω/6dB JYE BAO FAT-N (M-F) 001 SE…

Text truncated - open the document above for the full version.


FBRP6005 Appendix C PLOT OF OCCUPIED BANDWIDTH

FBRP6005 88.1 MHz 107.9 MHz


FBRP6005 Appendix A: 2 of 2 PHOTOS OF RADIATED EMISSION TEST Model: 9500-TRIPDA Front View Rear View
