PAXPMV1001PMV-1001

October 5, 2000 TOYOTA MOTOR CORPORATION 1, TOYOTA-CHO, TOYOTA, AICHI, 471-8572 JAPAN Re: Compliance Statement in Car Manual Dear Sir: Our product PMV-1001 is a tire pressure monitoring system transmitter for cars. Since it will be already installed in cars (as original equipment) when it will be placed into the U.S. market, we must hereby request that the following statement per CFR 47, Part 15, Paragraph 15.19(a)(3) be placed in your car manual. This is a requirement from the Federal Communications Commission in Washington, D.C.: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Additionally, per CFR 47, Part 15, Paragraph 15.21, the following caution must be added to the car manufacturer’s manual: “CAUTION TO USER: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” Yours Sincerely, Kazunori Sawafuji Assistant Manager Research & Development Center

TÜV MANAGEMENT SERVICEPhone: (651 638 0297 TÜV PRODUCT SERVICE INCFax: (651) 638 0285 19333 Wild Mountain Roademail [email protected] Taylors Falls MN 55084http://www.tuvglobal.com Divisions of TÜV America Inc., a subsidiary of TÜV Sùddeutschland and TÜV Nord Group TÜV PRODUCT SERVICE INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Pacific Industrial Co., LTD. Transmitter for monitoring air pressure and temperature in a vehicle’s tires Model No: PMV-1001 I am an Electromagnetic Compatibility Engineer for TÜV PRODUCT SERVICE INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV PRODUCT SERVICE INC has been authorized by Kazunori Sawafuji, Assistant Manager, Research & Development Center, of Pacific Industrial Co., LTD, to make Certification measurements on the Model PMV-1001Transmitter for the monitoring air pressure and temperature in a vehicle’s tires. These tests were made by me or under my supervision at our Wild River Laboratory which is on file with FCC under Paragraph 2.948 of the FCC Rules. Test data required by the FCC is included in this report. It is submitted that the above equipment meets the FCC Part 15 requirements and Certification is hereby requested. Joel T Schneider Minnesota Wild River Lab TÜV Product Service jschneider @ tuvps.com Dated: 30 June 2000

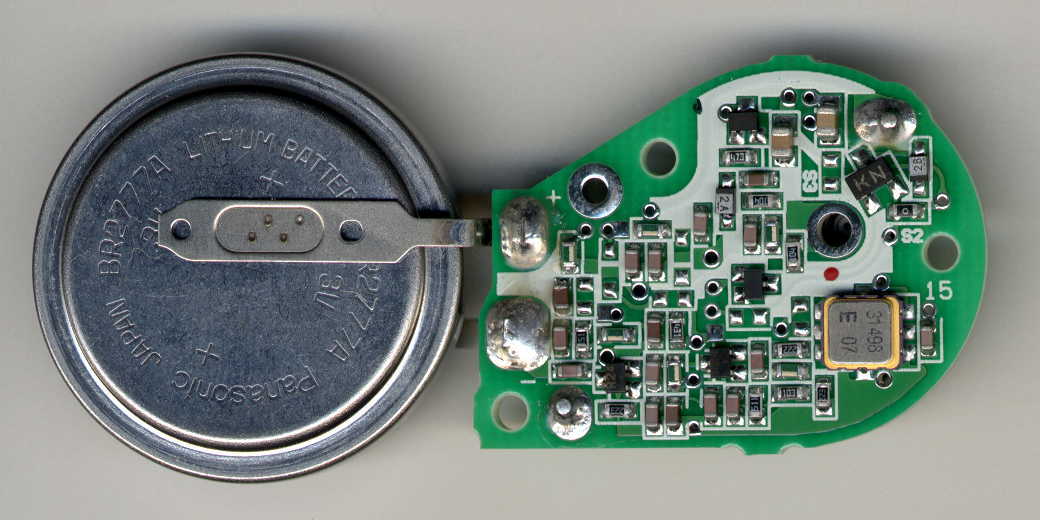

6. Block diagram Fig 6, Block diagram of transmitter SAW:oscillator: 318.98 MHz Valve stem DC/DC converter Voltage sampling Pressure sensor Temperature sensor ID(OTPROM) Digital process Custom IC RF(SAW Trigger interface battery (3V) internal ANT. Vdd REG

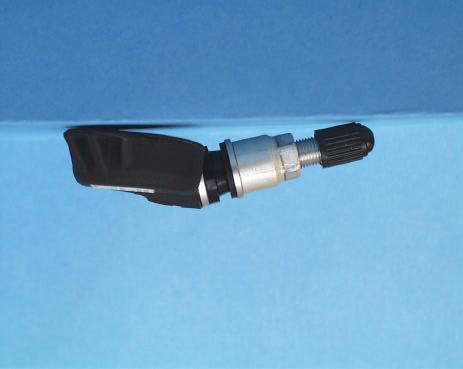

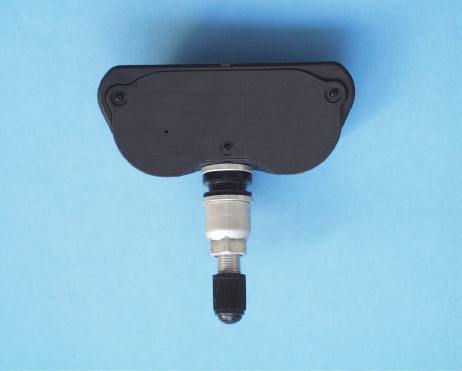

Top view of Transmitter 1/3 Bottom view of Transmitter Front view of Transmitter 2/3 Rear view of Transmitter Right side view of Transmitter 3/3 Left side view of Transmitter

4/10 2. Technical description of the system 2.1 Type number PMV-1001 2.2 Specifications -Nominal Frequency :314.98MHz obtained by SAW resonator -Type of Modulation :F2D -Modulation Frequency : 40kHz -Radio Frequency output :67.6dBuV/m or less -Power Supply -Nominal Supply Voltage 3V DC -Type of Battery One lithium battery (built-in battery) -Antenna Built-in type 5/10 3. Outline of the system 3.1 Description of the system operation This system is used for monitoring and indicating about information of air pressure and temperature in vehicle's tires. This transmitter sends to receiver the data that are information of air pressure and temperature in vehicle's tires. The data also include battery voltage and identity code of transmitter. The receiver judges if the data of air pressure and temperature from transmitter are not normal conditions. And then the receiver sends communication signals to a warning lamp through gateway ECU which is an intermediate ECU to divide signals . The warning lamp warns drivers. 3.2 Installation in vehicle. The transmitter is installed on tire wheel rim.(see Fig 3.2 Transmitter of installation) Fig 3.2 Transmitter of installation Tire Wheel rim TPMS Transmitter 6/10 4. Explanation of transmitting Basically this transmitter sends the signals as the following table. table 4. Explanation of transmitting Typical transmission interval Minimum number of transmission Normal617s  Pressure alert14.7s  Slow puncture alert14.7s  High temperature alert14.7s16 Note; The time of 1 transmitting frame is about 300ms.

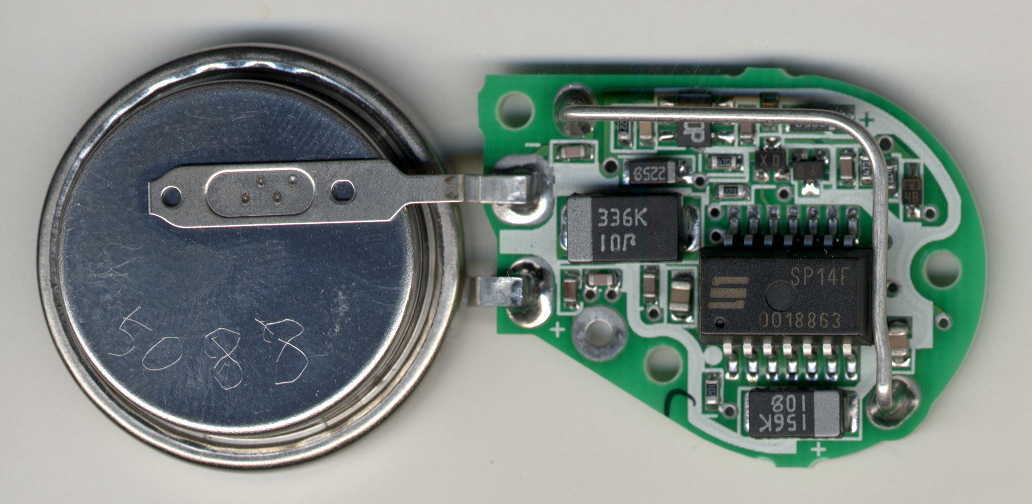

8/10 7. Circuit diagrams PMV-1001 TXD 12 SLEEP 11 NC 10 VDD 9 G 14 TXON 13 VSS 8 VSS 7 CONV 6 C1- 5 C1+ 4 Vbat 3 GND 2 Trigger 1 IC01 SP14F R02 C04 C02 C03 C05 C08 R03SW4 R11 SW2 SW3 R18 R17 R16 GND C01 C06 C07 C10 D01 D05 D02 GND Q01 GND GNDGND R01 GND GND POWER + POWER- GNDGND GND OUT 4 IN 6 NC 5 NB 3 GND 2 CNT 1 IC02 C32 C09 C13 C33 C15 C17 C16 C18 C11 GND GND R04 R05 R08 R07 R06 R09 R10 GNDGND X01 SAW GNDGNDGND L01 GND GND Q05 GND L02 L06 L05 GND Q07 C31 C30 C27 C29 C28 GNDGNDGNDGNDGNDGND L04 GND C26 C34 C19 C20 C23 GND GND GND GND GND L03 C22 GND Valve.antenna TP6 TP8 GND GND Q06 GND TP9 Q03 Q04 R12 Q02 Antenna R14R13 C21 GND C24

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 SUBPART C Section 15.231(e) MANUFACTURER'S NAMEPacific Industrial Co LTD NAME OF EQUIPMENTTransmitter for monitoring air pressure and temperature in a vehicle’s tires MODEL NUMBER PMV-1001 MANUFACTURER'S ADDRESSGodo-cho, Anpachi Gifu, 503-2397 Japan TEST REPORT NUMBERW0312 TEST DATE05 June 2000 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15. Date:30 June 2000 Location:Taylors Falls MNG. S. JakubowskiJ. T. Schneider USATest EngineerLead Engineer Not Transferable File No. WC1H031201, Page 1 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: WC1H031201 Date of issue:30 June 2000 Model / Serial No.: PMV-1001 / Product Type: Transmitter for monitoring air pressure and temperature in a vehicle’s tires Applicant: Pacific Industrial Co LTD Manufacturer: Pacific Industrial Co LTD License holder: Pacific Industrial Co LTD Address: Godo-cho, Anpachi : Gifu, 503-2397 Japan Test Result: nn Positiveoo Negative Test Project Number: Reference(s) W0312 Total pages including Appendices22 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC1H031201, Page 2 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 – 10 Directory2 Test Regulations3 Deviation from standard / Summary10 Test-setups (Photos)11 – 12 Test-setup (drawing)Appendix A B)Test data Conducted emissions10/150 kHz - 30 MHz5, 9 Radiated emissions10 kHz - 30 MHz5, 9 Radiated emissions30 MHz - 1000 MHz6, 9 Interference power30 MHz - 300 MHz6, 9 Equivalent Radiated emissions1 GHz - 18 GHz7, 9 C)Appendix A Test Data Sheets and Test Setup Drawing(s) A2 – A5 D)Appendix B Constructional Data Form B2 Product Information Form(s) B3 E)Appendix C Measurement ProtocolC1 - C2 File No. WC1H031201, Page 3 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1994o - Class Ao - Class B o - BS o - VCCIo - Class Ao - Class B n - FCC Part 15 Subpart C Section 15.231 o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B File No. WC1H031201, Page 4 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 23 °C Relative Humidity: 39 % Atmospheric pressure: 99 kPa Power supply system: 3 VDC Sign Explanations: o - not applicable n - applicable File No. WC1H031201, Page 5 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) o - Wild River Lab Screen Room o - New Brighton Lab Shielded Room Emissions Test Conditions: RADIATED EMISSIONS (Magnetic Field) The RADIATED EMISSIONS (MAGNETIC FIELD) measurements were performed at the following test location: o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Sit…

Text truncated - open the document above for the full version.

File No. WC1H031201, Page 12 of 12 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Test-setup photo(s): Radiated emission 30 MHz - 3.15 GHz

File No. W101574001, Page A2 of A9 EMM0094 REV 09.95 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA
