PAXPMV1017Tire pressure monitoring system transmitter

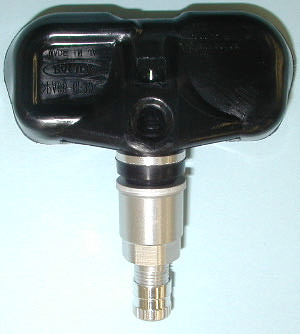

Top view of Transmitter Bottom view of Transmitter FCC ID: PAXPMV1017 IC: 3729A-PMV1017 PACIFIC Front view of Transmitter Rear view of Transmitter Right side view of Transmitter Left side view of Transmitter

Marking location and layout Fig 5. Marking location and dimension Notes: Compliance statement of marking will not be changed. But marking layout and size may be changed. FCC ID: PAXPMV1017 IC: 3729A-PMV1017 PACIFIC

A-017-02-C Page 1 of 18 FCC ID: PAX PMV1017 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Designated by Ministry of international Trade and industry KANSAI ELECTRONIC INDUSTRY DEVELOPMENT CENTER HEAD OFFICE IKOMA TESTING LABORATORY 6-8-7 NISHITENMA 12128 TAKAYAMA-CHO KITA-KU OSAKA 530-0047 JAPAN IKOMA-CITY NARA 630-0101 JAPAN Corporate Juridical Person TEST REPORT Report No.A-017-02-C Date: 10 October 2002 This test report is to certify that the tested device properly complies with the requirements of: FCC Rules and Regulations Part 15 Subpart C Intentional Radiators. All the tests necessary to show compliance to the requirements were performed and these results met the specifications of requirement. The results of this report should not be construed to imply compliance of equipment other than that, which was tested. Unless the laboratory permission, this report should not be copied in part. 1. Applicant Company Name : Pacific Industrial Co., LTD. Mailing Address : Godo-cho, Anpachi, Gifu, 503-2397 Japan 2. Identification of Tested Device Type of Device : Transmitter Kind of Equipment Authorization : : DoC : Certification : Verification FCC ID : PAX PMV1017 Device Name : Ｔire pressure monitoring system transmitter Trade Name : PACIFIC Model Number : PMV-1017 Serial Number : 0209003 : Prototype : Pre-production : Production Date of Manufacture : September 2002 3. Test Items and Procedure : AC Power Line Conducted Emission Measurement : Radiated Emission Measurement : Emission Bandwidth Measurement Above all tests were performed under: ANSI C63.4 – 1992 : without deviation, : with deviation(details are found inside of this report) 4. Date of Test Receipt of Test Sample : 1 October 2002 Test Completed on : 1 October 2002 Seiichi Izumi General Manager/ Ikoma Testing Laboratory A-017-02-C Page 2 of 18 FCC ID: PAX PMV1017 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Table of Contents 0. LABORATORY ACCREDITATION AND MEASUREMENT UNCERTAINTY .................... 3 0.1. Laboratory Accreditation ..................................................................................................3 0.2. Measurement Uncertainty................................................................................................3 1. CERTIFICATION OF THE COMPLIANCE ......................................................................... 3 2. GENERAL INFORMATION .................................................................................................. 4 2.1. Product Description...........................................................................................................4 2.2. Description for Equipment Authorization ........................................................................4 2.3. Test Facility .......................................................................................................................5 3. TESTED SYSTEM ................................................................................................................. 6 3.1. Test Mode ...........................................................................................................................6 3.2. Characteristics of transmitting train ...............................................................................6 3.3. Characterization and condition of EUT System ..............................................................8 4. RADIATED EMISSION MEASUREMENT .......................................................................... 9 4.1. Test Procedure ...................................................................................................................9 4.2. Test Results .....................................................................................................................10 5. EMISSION BANDWIDTH MEASUREMENT .................................................................... 16 5.1. Test Configuration ...........................................................................................................16 5.2. Test Results .....................................................................................................................16 6. USED TEST EQUIPMENTS AND CALIBRATION STATUS ............................................ 18 A-017-02-C Page 3 of 18 FCC ID: PAX PMV1017 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 0. LABORATORY ACCREDITATION AND MEASUREMENT UNCERTAINTY 0.1. Laboratory Accreditation KEC is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP) for the specific scope of accreditation under Lab Code: 200207-0. When the test report concerns with the NVLAP accreditation test, the first page of the test report is signed by NVLAP Approved Signatory accompanied by the NVLAP logo. The report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. 0.2. Measurement Uncertainty The result of a measurement is only an approximation or estimate of the value of a specific quantity. And thus the measured is complete only when a statement of uncertainty is given. KEC quotes Measurement Uncertainty (U) of +/- 4.9 dB for Radiated Emissions of +/- 2.2 dB for Conducted Emissions 1. CERTIFICATION OF THE COMPLIANCE This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart C Intentional Radiators. KEC evaluation criteria for compliance: The Product complies, if the measured results are below the specification limit by a margin more than or equal to 1/2 U (2.5 dB) for Radiated Emissions U (2.2 dB) for Conducted Emissions A-017-02-C Page 4 of 18 FCC ID: PAX PMV1017 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 2. GENERAL INFORMATION 2.1. Product Description The PACIFIC Model No. : PMV-1017 (referred to as the EUT in this report) is a tire pressure monitoring system transmitter …

Text truncated - open the document above for the full version.

A-017-02-C Page 1 of 2 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan APPENDIX Photographs of EUT System Configuration Tested Item ・Radiated Emission measurement A-017-02-C Page 2 of 2 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan - Continued –

A-017-02-C Page 1 of 1 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Test Setup for Emission Bandwidth Measurement Setups Diagram Spectrum Analyzer GP- IB EUT Recording Device(PC) Receiving Antenna
