PAXPMV107JTire Pressure Monitor System Transmitter
Pacific Industrial Company, LTD.
Click to zoom
Application Details
- Equipment Class
- DSR - Part 15 Remote Control/Security Device Transceiver
- Date of Grant
- Jul 12, 2005
- Application Purpose
- Original Equipment
- Date of Application
- Jul 12, 2005
- Equipment Note
- Tire Pressure Monitor System Transmitter
- Frequency Range
- 314.98000000 - 314.98000000
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
ＰＭＶ-107J Block diagram 315MHz career signal ・It makes a carrer(315MHz) by digital modulation in Custom IC. Temperature sensor Voltage sampling ID Di i l Battery Custom IC Pressure sensor SAW resonator Oscillation Matching circuit 314.73MHz digital modulation Base band IQ
Cover Letter(s)
TÜV America Inc. Phone: (651) 638-0297 Product Service Fax: (651) 638-0298 19333 Wild Mt Rd E-mail: [email protected] Taylors Falls, MN 55084 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland. TÜV AMERICA INC - PRODUCT SERVICE 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Pacific Industrial Co Ltd Tire Pressure Monitoring System Transmitter Model No: PMV-107J FCC ID: PAXPMV107J FRN: 0007866908 I am an Electromagnetic Compatibility Engineer for TÜV AMERICA INC - PRODUCT SERVICE, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV AMERICA INC - PRODUCT SERVICE has been authorized by Kazunori Yamaguchi, Engineer in the TPMS Dept of Pacific Industrial Co Ltd, to act as the authorized representative in the preparation of applications for registration of the above mentioned equipment. Testing was performed by Kansai Electronic Industry Development Center in Japan, which is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB for Certification is included in this report. It is submitted that the above equipment meets the FCC Part 15C requirements and Certification is hereby requested. Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV America Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 28 June 2005
External Photos

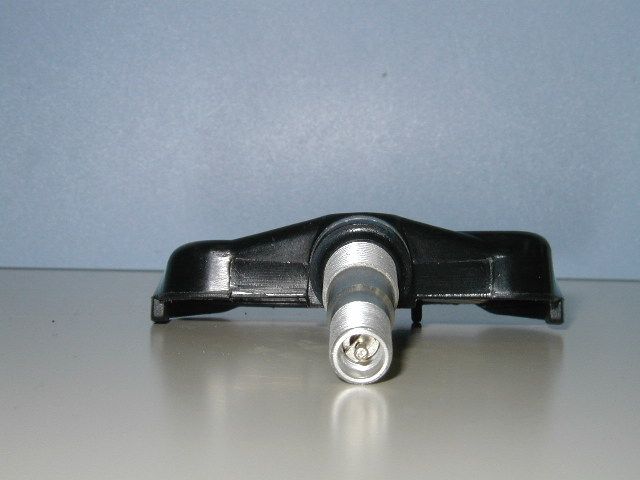

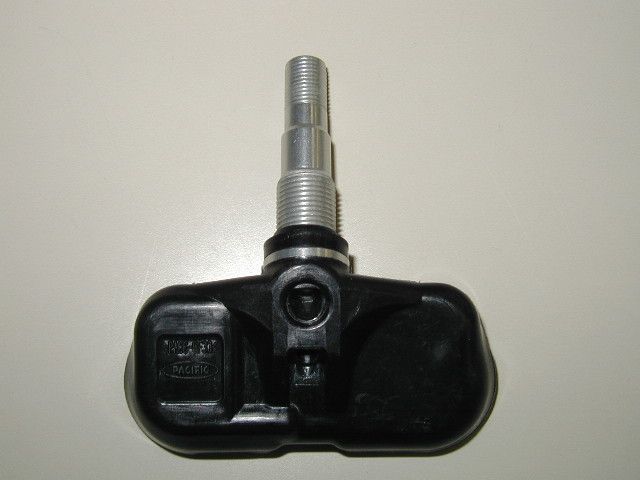

PMV-107J - Top View PMV-107J - Bottom View PMV-107J - Front View PMV-107J - Right Side View PMV-107J - Rear View PMV-107J - Left Side View
ID Label/Location Info
PART NAME:SEAL SCALE:2/1 TOLERANCE:±0.2
Internal Photos
PMV-107J - Board Top View PMV-107J - Board Bottom View PMV-107J - Assembly Side View PMV-107J - Assembly End View PMV-107J - Rear View PMV-107J - Left Side View
Test Setup Photos
IC: 3729A-PMV107J A-061-05-B (IC Report) (FCC Report)
Contact Information
Applicant
Takashi Takeyama(TPMS Engineering Dept.)
Technical Contact
Pacific Industrial Company Ltd.Lazimpro Yamaguchi
[email protected]+81-584-28-0111
Godo-Dho, Anpachi · Gufi · Japan
Test Firm
TUV SUD America - Product ServiceJoel Schneider
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231(e) | 314.98 MHz - 314.98 MHz | - |
