PAXPMVC871TPMS Transmitter

Pacific Industrial Company, LTD.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Aug 07, 2013
Application Purpose: Original Equipment
Date of Application: Aug 07, 2013
Equipment Note: TPMS Transmitter
Frequency Range: 314.97500000 - 314.97500000
Company: Pacific Industrial Company, LTD.
Country: Japan

Documents & Files

Select a file to view

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

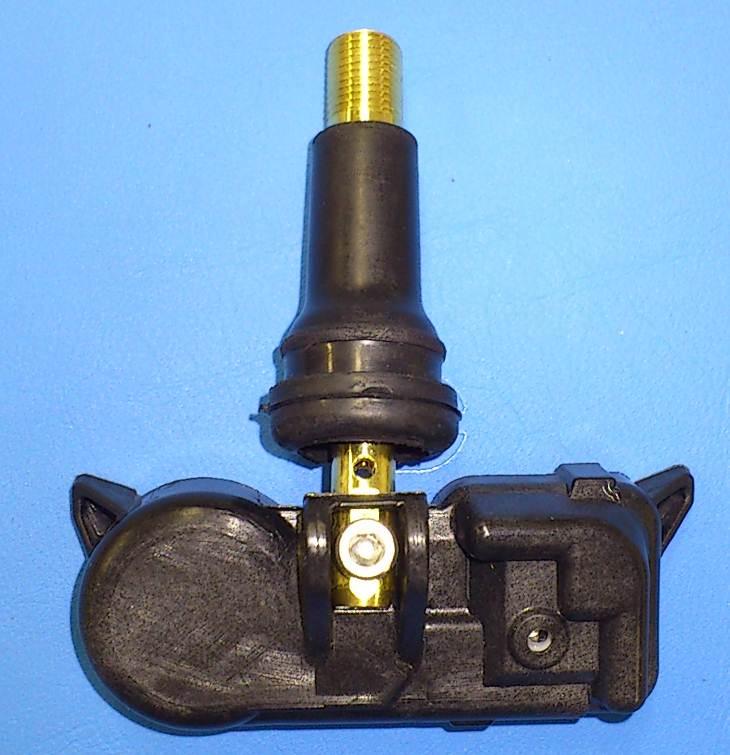

9/11 7. Top view of Transmitter Bottom view of Transmitter 10/11 Front view of Transmitter Rear view of Transmitter Right side view of Transmitter Left side view of Transmitter

Internal Photos

11/11 8. Internal photos Antenna

Test Setup Photos

Project #: CET10_170_13001_C871 FCC ID: PAXPMVC871 Date of Report : 2013-06-03 IC ID: 3729A-PMVC871 Page 1 of 3 Test Setup Photographs Model Name: PMV-C871 Product Description: Tire Pressure Monitoring System Transmitter Manufacturer: Pacific Industrial Co., Ltd FCC ID: PAXPMVC871 IC ID: 3729A-PMVC871 Test Site Information: CETECOM Inc. Milpitas, CA USA Project #: CET10_170_13001_C871 FCC ID: PAXPMVC871 Date of Report : 2013-06-03 IC ID: 3729A-PMVC871 Page 2 of 3 Radiated Emissions: <30 MHz Radiated Emissions: 30MHz – 1GHz Project #: CET10_170_13001_C871 FCC ID: PAXPMVC871 Date of Report : 2013-06-03 IC ID: 3729A-PMVC871 Page 3 of 3 Radiated Emissions: >1 GHz Transmitter Measurement

Contact Information

Applicant

Takashi Takeyama(TPMS Engineering Dept.)

[email protected]+81584280113Fax: +81584280130

Test Firm

CETECOM Inc.Meinolf Glunz

[email protected]408-586-6301

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15.231(e)	314.975 MHz - 314.975 MHz	-

Confidentiality

Long Term
