PAXPMVCA14TPMS Transmitter

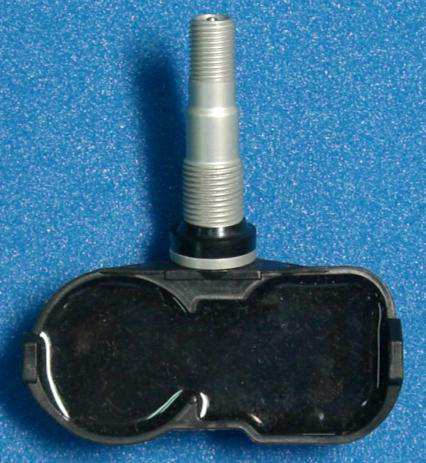

1/4 Tire Pressure Monitoring System Photograph of transmitter Type: PMV-CA14 Sept. 16. 2014 Approved Checked Author Signature 2/4 Top view of Transmitter Bottom view of Transmitter Combined use of the black urethane and the white urethane 3/4 Front view of Transmitter Rear view of Transmitter Right side view of Transmitter Left side view of Transmitter

7/10 5. Marking location and layout Fig 5. Marking location and dimension Note: ・Compliance statement of marking will not be changed. ・Marking layout and size may be changed. FCC ID:PAXPMVCA14 IC:3729A-PMVCA14

4/4 Internal View Antenna

FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 V3.0 2010-10-30 © Copyright by CETECOM FCC/IC Test Report FOR: Pacific Industrial CO., LTD PMV-CA14 FCC ID: PAXPMVCA14 IC ID: 3729A-PMVCA14 47 CFR Part 15.231 IC RSS-210 Issue 8 TEST REPORT #: EMC_CET10_203_14001_FCC15.231 DATE: 2014-09-18 Test Report #: EMC_CET10_203_14001_FCC15.231 FCC ID: PAXPMCA14 Date: 2014-09-18 IC ID: 3729A-PMVCA14 Page 2 of 27 TABLE OF CONTENTS 1 Assessment ......................................................................................................................................... 4 2 Administrative Data .......................................................................................................................... 5 2.1 Identification of the Testing Laboratory Issuing the Test Report ............................................................. 5 2.2 Identification of the Client ........................................................................................................................ 5 2.3 Identification of the Manufacturer ............................................................................................................ 5 3 Equipment under Test (EUT) .......................................................................................................... 6 3.1 Specification of the Equipment under Test ............................................................................................... 6 3.2 Identification of the Equipment Under Test (EUT) .................................................................................. 6 3.3 Identification of Accessory Test Equipment ............................................................................................. 6 4 Subject of Investigation .................................................................................................................... 7 4.1 Modes of Operation .................................................................................................................................. 7 4.2 Testing Notes ............................................................................................................................................ 7 4.3 Timing Diagrams of different transmission modes: .................................................................................. 8 5 Summary of Measurement Results ................................................................................................. 9 6 Measurements.................................................................................................................................. 10 6.1 Radiated Measurement Procedure ........................................................................................................... 10 6.2 Conducted Measurement Procedure ....................................................................................................... 12 6.3 Sample Calculations for Radiated Measurements ................................................................................... 13 6.3.1 Field Strength Measurements: ............................................................................................................ 13 6.3.2 Power Measurements using Substitution Procedure: ......................................................................... 13 6.4 Transmitter Duty Cycle ........................................................................................................................... 14 6.4.1 Reference: ........................................................................................................................................... 14 6.4.2 Test Conditions: .................................................................................................................................. 14 6.4.3 Test Data: ........................................................................................................................................... 15 6.4.4 Measurement Result ............................................................................................................................ 15 6.5 Transmitter Duration ............................................................................................................................... 16 6.5.1 Limits .................................................................................................................................................. 16 6.5.2 Results ................................................................................................................................................. 16 6.6 Transmitter Fundamental Field Strength ................................................................................................ 17 6.6.1 Limits: ................................................................................................................................................. 17 6.6.2 Test Conditions: .................................................................................................................................. 18 6.6.3 Test Data: ........................................................................................................................................... 18 6.6.4 Measurement Result ............................................................................................................................ 18 6.7 Transmitter 20dB Bandwidth .................................................................................................................. 19 6.7.1 Limits: ................................................................................................................................................. 19 Test Report #: EMC_CET10_203_14001_FCC15.231 FCC ID: PAXPMCA14 Date: 2014-09-18 IC ID: 3729…

Text truncated - open the document above for the full version.

Test Report #: EMC_CET10_203_14001_FCC15.231 FCC ID: PAXPMVCA14 Date: 2014-09-18 IC ID: 3729A-PMVCA14 Radiated Emissions <30 MHz: Test Report #: EMC_CET10_203_14001_FCC15.231 FCC ID: PAXPMVCA14 Date: 2014-09-18 IC ID: 3729A-PMVCA14 Radiated Emissions >30 MHz (up to 1000 MHz): Radiated Emissions >1 GHz: Test Report #: EMC_CET10_203_14001_FCC15.231 FCC ID: PAXPMVCA14 Date: 2014-09-18 IC ID: 3729A-PMVCA14 Duty Cycle and Occupied Bandwidth
