1 Flex-Sens Installation Manual WARNING Before using the Flex-Sens, read and review all instructions and warnings related to the installation and the use of it. Installation is to be done by professionals only. The Flex-Sens (“TPMS”) Tire Pressure Monitor System product is to be used for the replacement of factory installed TPMS or replace non-working TPMS. The TPMS assemblies are meant for the promotion of safety in line with the US Federal Motor Vehicle Safety Standards (FMVSS) TPMS Ruling No. 138 requirements and regulation of the TPMS. Failure to follow the listed installations methods and warnings below may result in the failure of the Flex-Sens to operate properly. CAUTION Each TPMS Flex-Sens is a multi-selectable Sensor that has multiple vehicle applications programmed inside them, manufactured to operate in a specific motor vehicle make, model and year using the proper frequencies (315 MHz or 434 MHz) to communicate with the motor vehicle TPM System. Only install TPMS Flex-Sens multi- selectable sensor designated for your specific motor vehicle make, model and year. Improper TPMS installation or the use of unauthorized TPMS Sensors will cause the motor vehicle TPM System to fail to operate properly. Do not install TPMS Flex-Sens multi-selectable sensor(s) in damaged wheels, upon completion of installation, test the motor vehicle TPM System using procedures described in the original manufacturer's service guide to confirm proper installation. If the TPM System fails to operate properly, check all installation procedures to ensure proper installation and retest. If the TPM System continues to fail to operate, immediately consult with an authorized motor vehicle dealership or Pacific Manufacturing’s technical support team. These TPMS Flex-Sens multi-selectable sensor assemblies are designed and manufactured to operate in Original Equipment (OE) wheels and tires only. If Original Equipment wheels and/or tires are not used, the TPM System and the low tire inflation warning threshold of your vehicle's TPM System may not function or may function incorrectly. If the Original Equipment wheels and/or tires are not used, it is the responsibility of the vehicle owner to ensure that the TPMS is working correctly. Refer to the original Equipment manufacturer’s vehicle service guide for instruction’s including the warning thresh hold reset procedure and seek the assistance of an authorized vehicle dealer to ensure that the TPM system, including system compatibility with the non-Original Equipment Wheels and/ or tires, is working properly. The vehicle owner expressly assumes sole and complete responsibility for the TPMS and vehicle function if the Original Equipment wheels and tire are not used. Failure to ensure that the TPMS is working correctly can result in sever injury or death. 2 Installation and handling methods, procedures Clamp-In Installation Warning! 1) Interference with rim (prior confirmation) ・The rim shape should conform to "Dimensions regarding TPMS rim mounting" (our technical data TPMS-0639). ・Check that the rim A, A'parts and nuts, washers, and nut tightening tools do not interfere. ・Check that the rim B part and the TPMS transmitter do not interfere. (2) Suitable for mounting ・Please attach the TPMS transmitter in the direction shown below. Please do not turn it upside down and attach it. (3) Forget washers ・Be sure to attach a washer when mounting the TPMS transmitter to the rim 3 Order of Installation for the Clamp-In Cap (a) Nut & washer (b) Valve Stem (c) Transmitter (d) Screw (e) Installation Instructions *All Flex-sens sensors must be programmed before use. 1⃣ When installing be sure to install within the grey zone indicated on the fig.1 2⃣ Hold the bottom of the transmitter(d) when installing, make sure that the sensor is not sideways or upside down when installing. 3⃣ When tightening, use the Torque wrench to tighten the Nut(b) to 4Nm/35in-lbs. 4⃣ Apply wax or Soapy water to both sides of the tire (Be sure not to leave residue within the tire.) 5⃣ When installing the tire be sure the bottom bead does not come into contact with the transmitter(d). 6⃣ When rotating the tire be sure to have the sensor in front of the yellow dot and ahead of the traction point where bead and rim come to meet. 7⃣ When rotating the tire, have the tire drop within the rim where the TPMS located. 8⃣ After the bottom bead is within the rim use the roller to drop the upper bead within the rim. 9⃣ After step 8 your Tire should look like the tire in Fig.9 1 ２ ３ 4 5 6 ７ ８ 9 Fig(s).1~9 4 Snap-In Installation Warning! The transmitter should be installed to a valve hole as the direction indicated in Fig. 1, it is necessary that a sensor body and a rubber valve do not interfere with the wheel. Please check part A and part B. If the sensor body or the rubber valve interferes with the wheel, it may cause air leakage. ・Shapes of a valve hole on wheels should be a minimum of 16 millimeters as follows in Fig. 2. ・No Edges and Burris, and Round or Chamfer inside the valve holes need to avoid damages to the valves. ・Around the valve holes, provide a flat area. If the flat area is small, it will be caused not only deterioration of airtightness but also abnormal deformation and damage of the rubber valves. 5 Order of Installation for the Snap-In Cap (f) Rubber valve stem (g) Screw (i) Transmitter (h) Installation Instructions *All Flex-sens sensors must be programmed before use. 1⃣ Apply soapy water or wax around the base of the rubber stem(g) *be sure not to dip the sensor in the substance nor apply it directly to (h) 2⃣ Please operate on the sensor from the indicated position labeled on the diagram in Fig.2. 3⃣ When pulling the rubber valve stem(g) through the rim, be sure to have the pulley tool at a 90°angle when doing so. 4⃣ Apply wax or Soapy water to both sides of the tire (Be sure not to leave residue within the tire.) 5⃣ When lowering the beads be sure not to have the bottom bead of the tire hit the t…

Text truncated - open the document above for the full version.

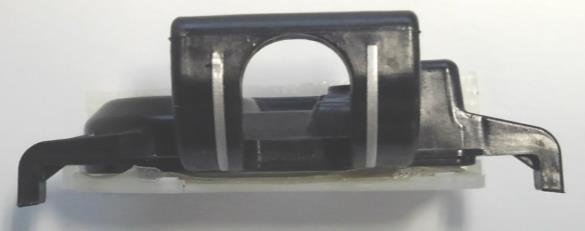

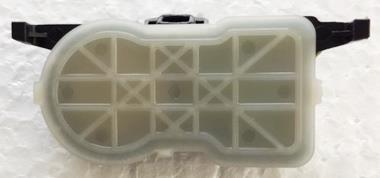

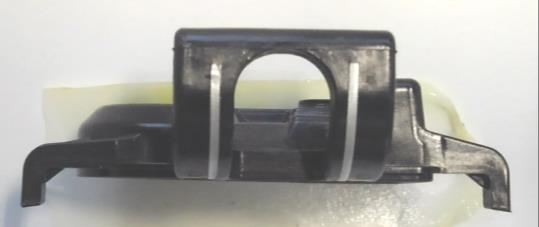

11/15 8. Outline View Transmitter shape 1 Transmitter shape 2 Sheet 4-1 CONFIDENTIAL & PIC PROPRIETARY Top View Bottom View Front View Rear View Right side Veiw Left side Veiw Top View Bottom View Front View Rear View Right side Veiw Left side Veiw 12/15 Transmitter shape 3 Sheet 4-2 CONFIDENTIAL & PIC PROPRIETARY Top View Bottom View Front View Rear View Right side Veiw Left side Veiw 13/15 Transmitter shape 4 Sheet 4-3 CONFIDENTIAL & PIC PROPRIETARY Top View Bottom View Front View Rear View Right side Veiw Left side Veiw

15/15 10. Marking location and layout Sheet 6 CONFIDENTIAL & PIC PROPRIETARY 25 58 18 36 58 20

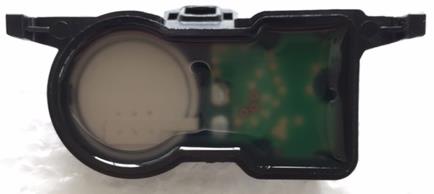

14/15 9. Internal View Sheet 5 Antenna CONFIDENTIAL & PIC PROPRIETARY

Page 1 of 30 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 1: Measurement diagrams to T E S T R E P O R T No.: 19-1-0192101T01a-C1 Flex-Sens TPMS transmitter (Universal Sensor) PMV-E002 FCC-ID: PAXPMVE002 ISED: 3729A-PMVE002 According to: Title 47 FCC Regulations Subpart 15C §15.231(e) ISED-Regulations RSS-Gen, Issue 5 RSS-210, Issue 10 PACIFIC Industrial Co., Ltd. for Laboratory Accreditation and Listings Accredited EMC-Test Laboratory accredited according to DIN EN ISO/IEC 17025:2018 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-0 • Fax: + 49 (0) 20 54 / 95 19-150 E-mail: [email protected] • Internet: www.cetecom.com Annex 1 to Test Report 19-1-0192101T01a-C1, Page 2 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 Table of contents 1. MEASUREMENT DIAGRAMS ...................................................................................................................... 3 1.1. Fundamental field strength (15.231(e)) ........................................................................................................ 3 1.2. Radiated magnetic field strength measurements (f < 30 MHz) .................................................................... 4 1.3. Radiated emissions in the frequency range 30 to 1000 MHz ........................................................................ 6 1.4. Radiated emissions in the frequency range above 1000 MHz ...................................................................... 7 1.5. 20 dB bandwidth ........................................................................................................................................... 8 1.6. 99% Occupied bandwidth ........................................................................................................................... 13 1.7. Duty-Cycle correction ................................................................................................................................ 18 1.8. Transmission characteristics ....................................................................................................................... 19 Annex 1 to Test Report 19-1-0192101T01a-C1, Page 3 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 1. Measurement diagrams 1.1. Fundamental field strength (15.231(e)) Diagram 3.01: EUT standing position, continuous wave. PK-Value: 66.28 - 9.82 dB (Averaged timing over 100 ms) = 56.46 dBμV/m@ 3 m Limit in range 260-470 MHz: Field strength=20*log10((16.67 x f| MHz )-2833.33)=20*log10(2417.78 μV/m)=67.66 dBμV/m Margin to limit = 11.19 dB -> pass Diagram 3.02, EUT laying position, continuous wave PK-Value: 66.29 - 9.82 dB (Averaged Timing over 100ms) = 56.47 dBμV/m@ 3 m Limit: 67.66 dBμV/m Margin to limit = 11.18 dB -> Pass 10 15 20 25 30 35 40 45 50 55 60 65 70 310 311 312 313 314 315 316 317 318 319 320 Level in dBμV/m Frequ en cy in M Hz 315,004000 MHz 66,278 dBμV/m 10 15 20 25 30 35 40 45 50 55 60 65 70 310 311 312 313 314 315 316 317 318 319 320 Level in dBμV/m Frequ en cy in M Hz 315,004000 MHz 66,287 dBμV/m Annex 1 to Test Report 19-1-0192101T01a-C1, Page 4 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 1.2. Radiated magnetic field strength measurements (f < 30 MHz) 2.01_RSE_TX_standing Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-No. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Test software: EMC32 V10.50.0 Used Filter: bypass Test Standard: FCC 15.205 §15.209; RSS-Gen: Issue 5 Operator: GHu Operating Mode: 315 MHz TX CW Power during tests: 3 V battery Comment 1: S11 Environmental Conditions:: Humidity : 34% rH; Temperature: 21 °C EUT Setup: standing Verdict: Passed Comment: - Level in dBμV/m Annex 1 to Test Report 19-1-0192101T01a-C1, Page 5 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 2.02_RSE_TX_laying Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-No. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Test-software: EMC32 V10.50.0 Used Filter: bypass Test Standard: FCC 15.205 §15.209; RSS-Gen: Issue 5 Operator: GHu Operating Mode: 315 MHz TX CW Power during tests: 3 V battery Comment 1: S11 Environmental Conditions:: Humidity : 40% rH; Temperature: 21 °C EUT Setup: laying Verdict: Passed Comment: - Level in dBμV/m Annex 1 to Test Report 19-1-0192101T01a-C1, Page 6 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 1.3. Radiated emissions in the frequency range 30 to 1000 MHz 3.11_RSE_TX_standing 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 30 100 200 300 400 500 600 700 800 900 1000 Level in dBμV/m Frequ en cy in M Hz FCC15.209 315,004000 MHz 66,278 dBμV/m 945,018000 MHz 37,270 dBμV/m 31,350000 MHz 24,289 dBμV/m 630,000000 MHz 31,616 dBμV/m 132,630000 MHz 13,283 dBμV/m FCC15.231(e) Remark: wanted TX emission at 315 MHz visible on diagram, not relevant for test decision 3.12_RSE_TX_laying 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 30 100 200 300 400 500 600 700 800 900 1000 Level in dBμV/m Frequ en cy in M Hz FCC15.209 315,004000 MHz 66,287 dBμV/m 945,000000 MHz 35,092 dBμV/m 630,030000 MHz 31,097 dBμV/m 30,360000 MH z 24,141 dBμV/m 131,100000 MHz 11,495 dBμV/m FCC15.231(e) Remark: wanted TX emission at 315 MHz visible on diagram, not relevant for test decision Annex 1 to Test Report 19-1-0192101T01a-C1, Page 7 of 30 CETECOM_TR19_1_0192101T01a-C1_A1 1.4. Radiated emissions in the frequency range above 1000 MHz 4.01_RSE_TX 20 25 30 35 40 45 50 55 60 65 70 75 80 1G2G3G4G 5G Level in dBμV/m Frequ en cy in H z 2,204800000 GH z 49,793 dBμV/m 4,725200000 GH z 54,209 dBμV/m FCC15_231(e)_AV FCC15_231(e)_PK 1,890000000 GH z 48,081 dBμV/m 2,835200000 GH…

Text truncated - open the document above for the full version.

Page 1 of 29 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM T E S T R E P O R T No.: 19-1-0192101T01a-C1 Flex-Sens TPMS transmitter (Universal Sensor) PMV-E002 FCC-ID: PAXPMVE002 ISED: 3729A-PMVE002 According to: Title 47 FCC Regulations Subpart 15C §15.231(e) ISED-Regulations RSS-Gen, Issue 5 RSS-210, Issue 10 PACIFIC Industrial Co., Ltd. for Laboratory Accreditation and Listings Accredited EMC-Test Laboratory accredited according to DIN EN ISO/IEC 17025:2018 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-0 • Fax: + 49 (0) 20 54 / 95 19-150 E-mail: [email protected] • Internet: www.cetecom.com Test Report 19-1-0192101T01a-C1, Page 2 of 29 CETECOM_TR19_1_0192101T01a-C1 Table of contents 1. SUMMARY OF TEST RESULTS................................................................................................................... 3 1.1. TEST OVERVIEW FCC 15.231 AND ISED RSS-210, ISSUE 10, CHAPTER A.1 .................................. 3 1.2. Attestation: .................................................................................................................................................. 4 2. ADMINISTRATIVE DATA ............................................................................................................................ 5 2.1. Identification of the testing laboratory .......................................................................................................... 5 2.2. Test location ................................................................................................................................................. 5 2.3. Organizational items ..................................................................................................................................... 5 2.4. Applicant’s details ........................................................................................................................................ 5 2.5. Manufacturer’s details .................................................................................................................................. 5 3. EQUIPMENT UNDER TEST (EUT) .............................................................................................................. 6 3.1. Technical data of main EUT declared by applicant ...................................................................................... 6 3.2. EUT: Type, S/N etc. and short descriptions used in this test report ............................................................. 6 3.3. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions ............................................................... 7 3.4. EUT set-ups .................................................................................................................................................. 7 3.5. EUT operating modes ................................................................................................................................... 8 3.6. Configuration of cables used for testing ....................................................................................................... 8 4. DESCRIPTION OF TEST SYSTEM SET-UP’S ........................................................................................... 9 4.1. Test system set-up for radiated magnetic field measurements below 30 MHz ............................................. 9 4.2. Test system set-up for radiated electric field measurement 30 MHz to 1 GHz .......................................... 10 4.3. Test system set-up for radiated electric field measurement above 1 GHz .................................................. 11 5. MEASUREMENTS ........................................................................................................................................ 12 5.1. General Limit - Radiated field strength emissions below 30 MHz ............................................................. 12 5.2. Radiated electric field strength emissions (30 MHz to 1 GHz) .................................................................. 15 5.3. General Limit – Radiated field strength emissions, above 1 GHz .............................................................. 18 5.4. RF-Parameter - 20dB and 99% Bandwidth ................................................................................................ 20 5.5. Timing requirements ................................................................................................................................... 22 5.6. Measurement uncertainties ......................................................................................................................... 23 6. ABBREVIATIONS USED IN THIS REPORT ............................................................................................ 24 7. ACCREDITATION DETAILS OF CETECOM’S LABORATORIES AND TEST SITES .................... 24 8. INSTRUMENTS AND ANCILLARY ........................................................................................................... 25 8.1. Used equipment .......................................................................................................................................... 25 9. VERSIONS OF TEST REPORTS (CHANGE HISTORY) ........................................................................ 29 Table of annex Total pages Annex 1: separate document measurement diagrams 30 Annex 2: separate document external photographs 9 Annex 3: separate document internal photos (SUPPLIED BY APPLICANT) Annex 4: separate document test set-up photos 6 The listed attachments are an integral part of this report. Test Report 19-1-0192101T01a-C1, Page 3 of 29 CETECOM_TR19_1_0192101T01a-C1 1. …

Text truncated - open the document above for the full version.

Page 1 of 6 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 4: Test setup photographs to T E S T R E P O R T No.: 19-1-0192101T01a-C1 Flex-Sens TPMS transmitter (Universal Sensor) PMV-E002 FCC-ID: PAXPMVE002 ISED: 3729A-PMVE002 According to: Title 47 FCC Regulations Subpart 15C §15.231(e) ISED-Regulations RSS-Gen, Issue 5 RSS-210, Issue 10 PACIFIC Industrial Co., Ltd. for Laboratory Accreditation and Listings Accredited EMC-Test Laboratory accredited according to DIN EN ISO/IEC 17025:2018 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-0 • Fax: + 49 (0) 20 54 / 95 19-150 E-mail: [email protected] • Internet: www.cetecom.com Annex 4 to Test Report 19-1-0192101T01a-C1, Page 2 of 6 CETECOM_TR19_1_0192101T01a-C1_A4 Table of contents 1. PHOTOGRAPHS OF MEASUREMENT SET-UP ....................................................................................... 3 1.1. Measurements of magnetic fields in range 9 kHz to 30 MHz ....................................................................... 3 1.2. Measurements of electric fields in range 30 MHz to 1 GHz ......................................................................... 4 1.3. Measurements of electric fields in range 1 GHz to 5 GHz ........................................................................... 5 1.4. Timing requirements ..................................................................................................................................... 6 Annex 4 to Test Report 19-1-0192101T01a-C1, Page 3 of 6 CETECOM_TR19_1_0192101T01a-C1_A4 1. Photographs of measurement set-up 1.1. Measurements of magnetic fields in range 9 kHz to 30 MHz Photograph 1: overall view Photograph 2: close up view (EUT at standing position) Annex 4 to Test Report 19-1-0192101T01a-C1, Page 4 of 6 CETECOM_TR19_1_0192101T01a-C1_A4 1.2. Measurements of electric fields in range 30 MHz to 1 GHz Photograph 3: overall view Photograph 4: close up view (EUT at laying position) Annex 4 to Test Report 19-1-0192101T01a-C1, Page 5 of 6 CETECOM_TR19_1_0192101T01a-C1_A4 1.3. Measurements of electric fields in range 1 GHz to 5 GHz Photograph 5: Overall view Photograph 6: Close up view Annex 4 to Test Report 19-1-0192101T01a-C1, Page 6 of 6 CETECOM_TR19_1_0192101T01a-C1_A4 1.4. Timing requirements Photograph 7: set-up for timing measurements with the near field probe END OF ANNEX 4
