PAXPMVG100TPMS (Tire Pressure Monitoring System Transmitter)

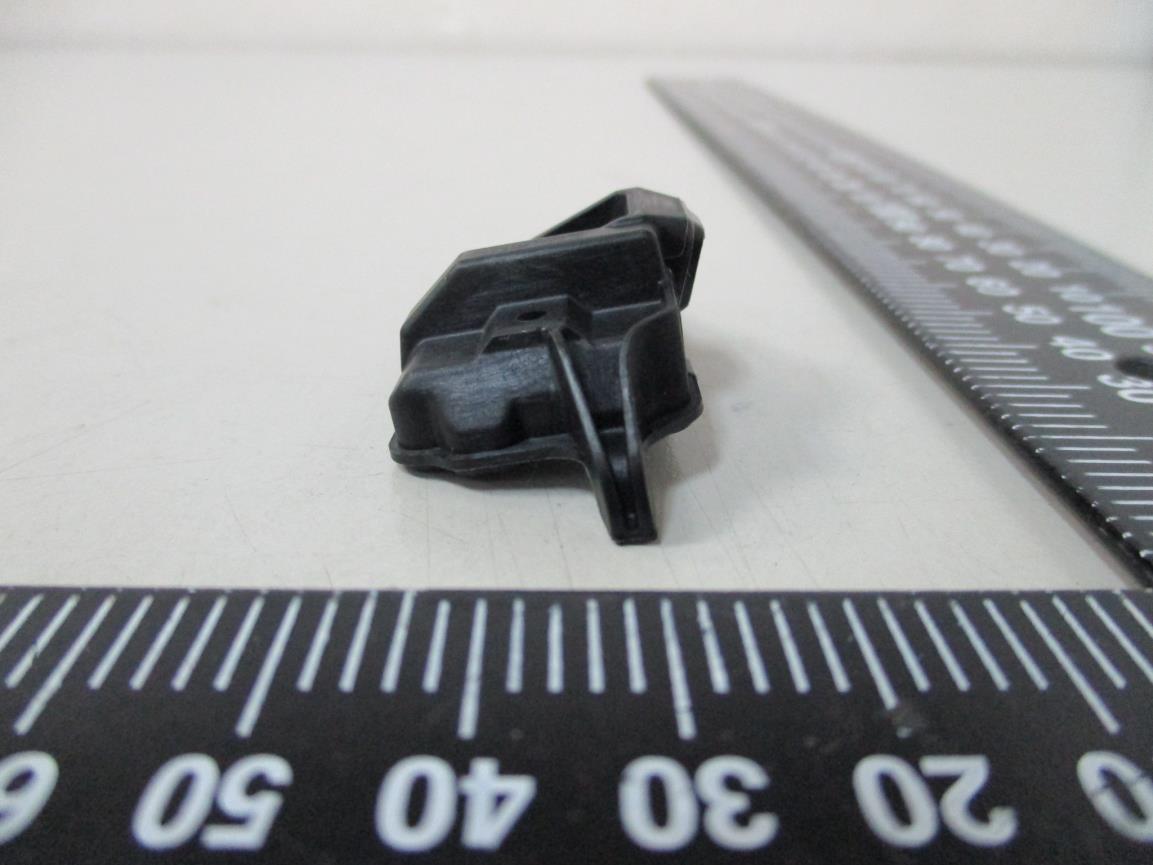

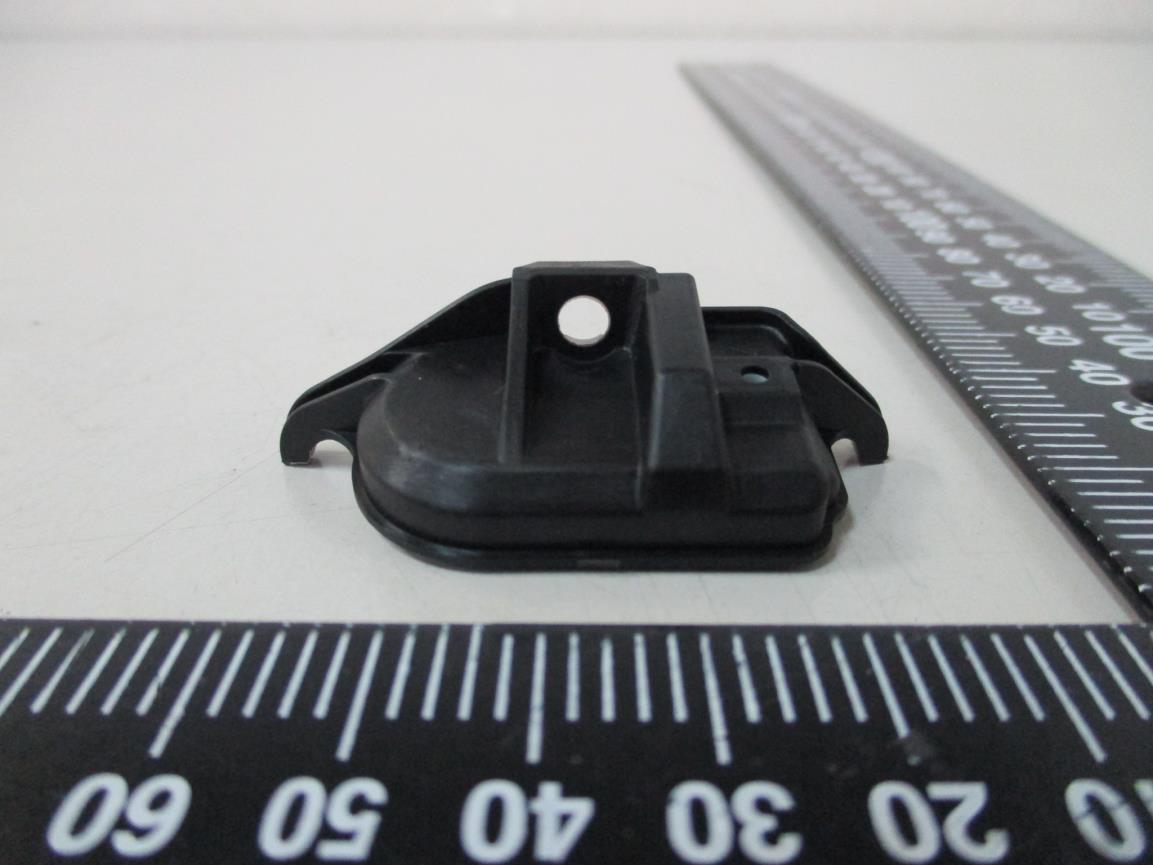

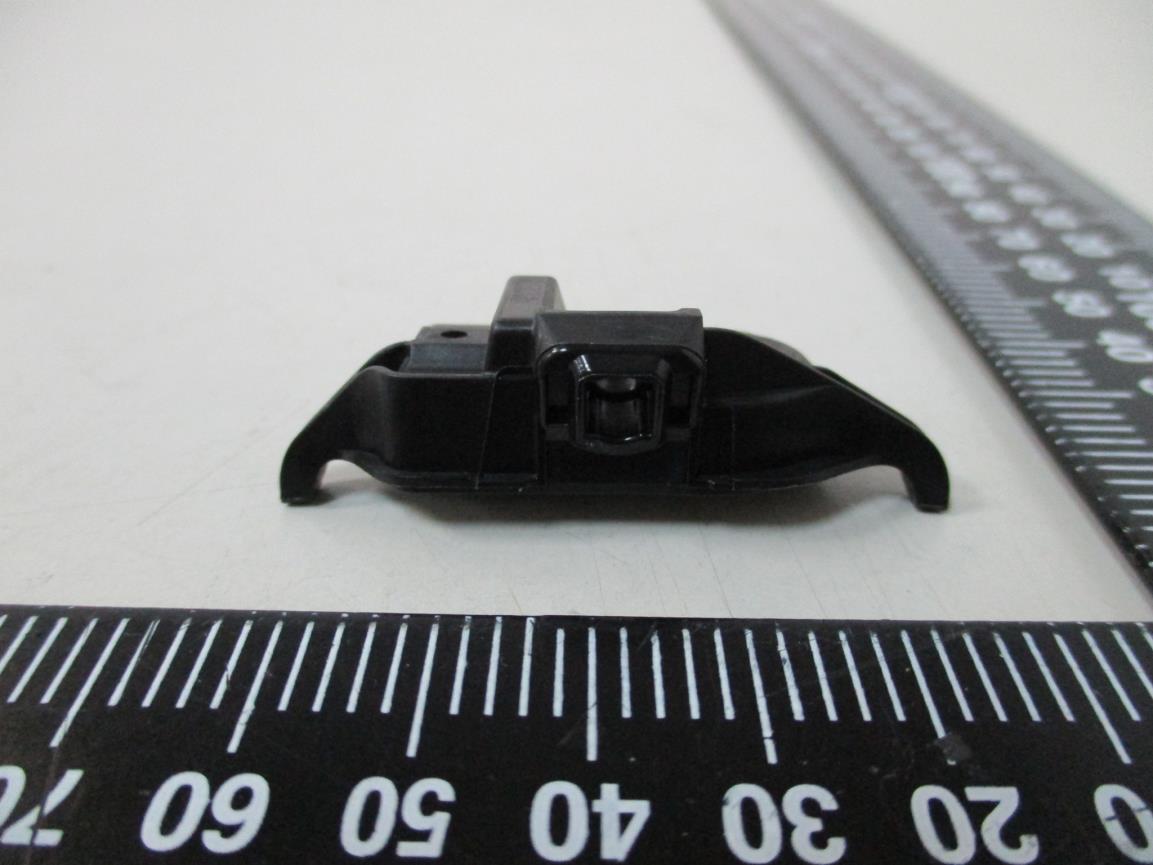

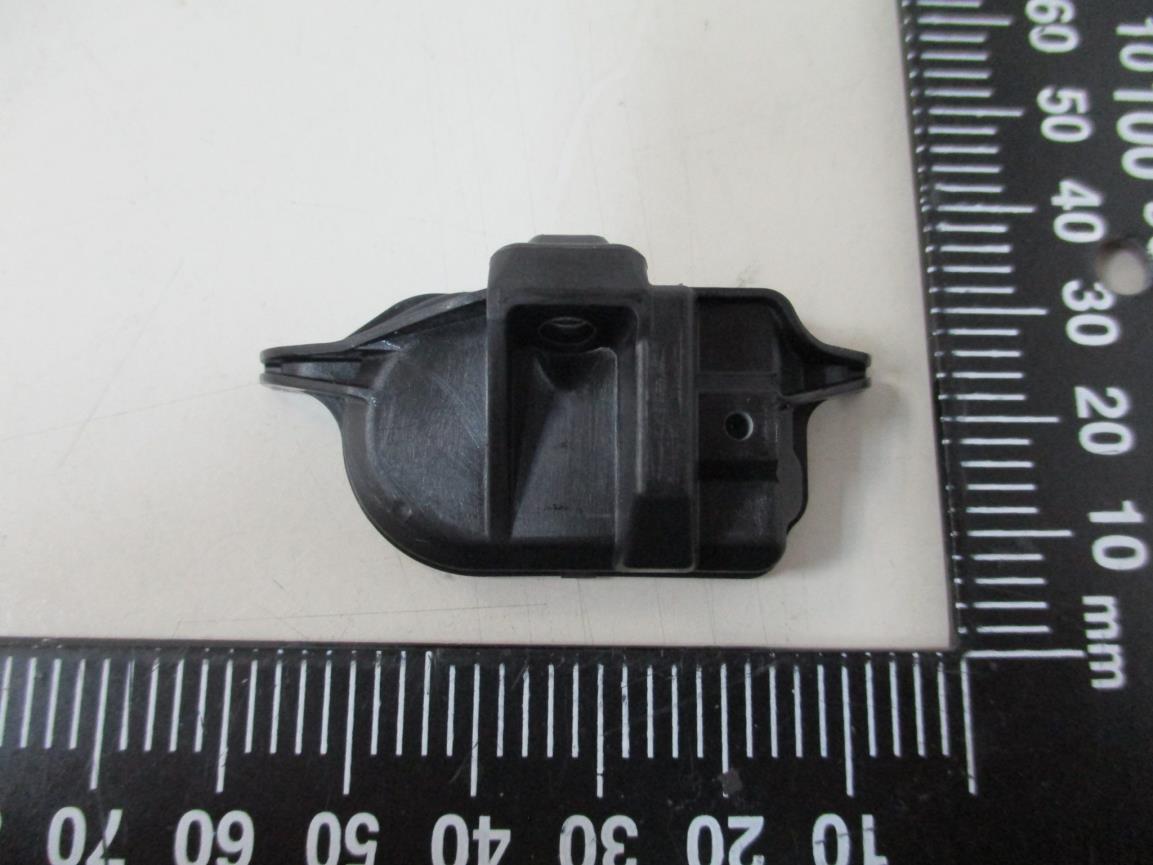

External photo of EUT External photo of EUT External photo of EUT

18/18 12. Marking location and layout Marking Location Fig. 19 CONFIDENTIAL & PIC PROPRIETARY 24.2 54 16.8 MADE IN XXXX(Japan, USA, China) Discrimination area

Internal photo of EUT Internal photo of EUT

Pacific Industrial Company, LTD. TEST REPORT SCOPE OF WORK: 47 CFR FCC Part 15.231 – Radio Spectrum report Model: PMV-G100 REPORT NUMBER 210500001THC-001 ISSUE DATE Aug. 24, 2021 PAGES 28 DOCUMENT CONTROL NUMBER GFT-OP-10h (28-Nov-2018) © 2020 Intertek Report No.: 210500001THC-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. GFT-OP-10h (28-Nov-2018) Page 1 of 28 Test Report 0597 Radio Spectrum TEST REPORT Applicant: Pacific Industrial Company, LTD. 1300-1, Yokoi, Godo-cho, Anpachi-gun, Gifu 503-2397, Japan Product: TPMS (Tire Pressure Monitoring System Transmitter) Model No.: PMV-G100 FCC ID: PAXPMVG100 Test Method/ Standard: 47 CFR FCC Part 15.231 Test By: Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan Zero Chen Engineer Durant Wei Reviewer Report No.: 210500001THC-001 GFT-OP-10h (28-Nov-2018) Page 2 of 28 TEST REPORT Revision History Report No. Issue Date Revision Summary 210500001THC-001 Aug. 24, 2021 Original report Report No.: 210500001THC-001 GFT-OP-10h (28-Nov-2018) Page 3 of 28 TEST REPORT Table of Contents 1. General Information ............................................................................................................... 5 1.1 Identification of the EUT .................................................................................................. 5 1.2 Antenna description ......................................................................................................... 5 2. Test specifications ................................................................................................................... 6 2.1 Test standard .................................................................................................................... 6 2.2 Operation mode ............................................................................................................... 6 2.3 Peripherals equipment ..................................................................................................... 6 3. Radiated emission test FCC 15.231 (b) ................................................................................... 7 3.1 Test setup & procedure .................................................................................................... 7 3.1.1 Radiated emission from 9kHz to 30MHz uses Loop Antenna: ...................................... 7 3.1.2 Radiated emission below 1GHz using Bilog Antenna .................................................... 8 3.1.3 Radiated emission above 1GHz using Horn Antenna .................................................... 8 3.2 Radiated emission limit .................................................................................................... 9 3.2.1 Fundamental and harmonics emission limits................................................................ 9 3.2.2 General radiated emission limit .................................................................................... 9 3.3 Radiated emission test data FCC 15.231 ........................................................................ 10 3.3.1 Measurement results: Fundamental emission ............................................................ 10 3.3.2 Measurement results: frequencies equal to or less than 1 GHz ................................. 11 3.3.3 Measurement results: frequency above 1GHz ............................................................ 21 4. Measured bandwidth FCC 15.231(C) .................................................................................... 22 5. Timing requirement of activation operated transmitter...................................................... 24 6. Conducted emission FCC 15.207 .......................................................................................... 26 Appendix A: Test equipment list ............................................................................................... 27 Appendix B: Measurement Uncertainty ................................................................................... 28 Report No.: 210500001THC-001 GFT-OP-10h (28-Nov-2018) Page 4 of 28 TEST REPORT Summary of Test Data Test Requirement Applicable Rule Result Radiated Emission test 15.231(e), 15.209 Pass Measured bandwidth 15.231(c) Pass Timing requirement of operated transmitter 15.231(e) Pass Conducted Emission test 15.207 N/A Antenna Requirement 15.203 Pass Note: Please note that the test results with statement of conformity, the decision rules which are based on: Safety Testing: the specification, standard or IEC Guide 115. Other Testing: the specification, standard and not taking into account the measurement uncertainty. Report No.: 210500001THC-001 GFT-OP-10h (28-Nov-2018) Page 5 of 28 TEST REPORT 1. General Information 1.1 Identification of the EUT Product: TPMS (Tire Pressure Monitoring System Transmitter) Model No.: PMV-G100 Operating Frequency: 433.92 MHz Rated Power: DC 3V Power Cord: N/A Sample receiving date: 2021/05/04 Sample condition: Workable Test Date(s): 2021/05/18 ~ 2021/08/24 1.2 Antenna description Antenna Type : Metal Antenna…

Text truncated - open the document above for the full version.

Radiated Emission Test set-up photo 9kHz~30MHz Radiated Emission Test set-up photo 30MHz~1GHz Radiated Emission Test set-up photo Above 1GHz
