PBN-EK5Wireless microphone

EK5 Manual Product Overview 1.Overview •Wireless Microphone with KT0646M 2. Specifications •Transmission •RF Power: 0.01W/MHz •Power: AA Battery 2EA (Alkaline Battery recommended) 3. Operating temperature conditions •0 ~60°C NOCertificationFrequency band(MHz) A GROUPB GROUP 12345678 USAFCC904~924905906908910918920922924 3. Microphone controller buttons guide Group and Frequency channel Selection 1.Connecting a wireless microphone (pairing) -If the wireless microphone can not be connected, connect the wireless microphone to the unit via group and channel settings. When connected, the microphone volume icon is displayed in the upper right corner of the screen. 2. Group & channel setting 1) How to set group and channel Turn on the wireless microphone power and press the corresponding number button while holding down the power button, Change the channel. ※ When using one wireless microphone, it can be used regardless of group A or group B. However, When two units are used, one unit must be set to A group and the other one to B group. 2) Group and channel setting button i. A group (LED: blue) Button 1: 1 channel Button 2: 2 channels Button 3: 3 channels Button 4: 4 channels ii. B group (LED: green) Button 5: 5 channels Button 6: 6 channels Button 7: 7 channels Button 8: 8 channels FCCWarning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Confidentiality Request Letter July 09, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : PBN-EK5 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, ENTERMEDIA CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ENTERMEDIA CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, (Sign) Name/Title : Kyung Ho Lee / CEO / CEO Company Name : ENTERMEDIA CO., LTD.

FCC Agent Authorization letter July 09, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by FCC Agent Authorization letter the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, (Sign) Name/Title : Kyung Ho Lee / CEO Company Name : ENTERMEDIA CO., LTD.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name ENTERMEDIA CO., LTD. Address 157-1, Seongo-ro, Bucheon-si, Gyeonggi-do, Republic of Korea Grantee Code PBN FCC ID PBN-EK5 Authorized Contact Name KYUNG-HO LEE Contact Email [email protected] Contact Phone +82 10 8849 0884 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: August 25, 2020 Print Name: Kyung Ho, Lee Title: CEO *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

ENTERMEDIA CO., LTD. 157-1, Seongo-ro, Ojeong-gu, Bucheon-si, Gyeonggi-do, South Korea 14429 Letter of Declaration Product Equality September 7, 2020 We, as a manufacturer, hereby declare that our product has variant model names as listed below. Variant models are totally same as basic model, but they have different buyers. Each model differences are described in the below table. Sincerely yours, Kyung ho, Lee / Manager ENTERMEDIA CO., LTD. Tel: +82 2 680 9139 E-mail: [email protected]

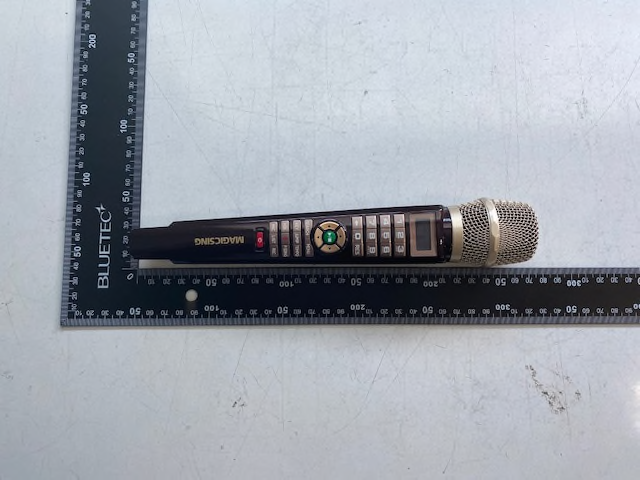

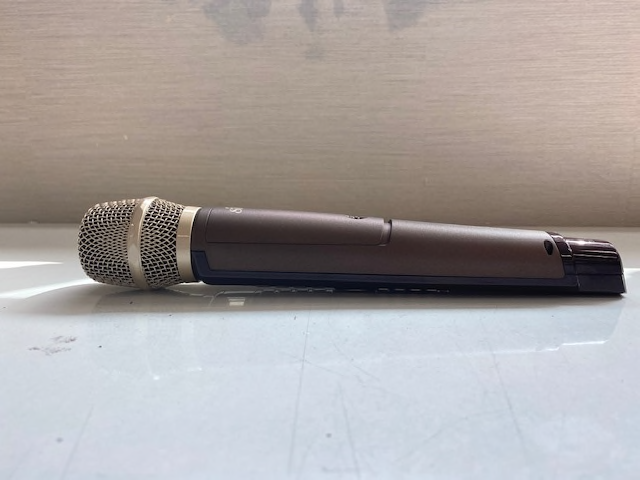

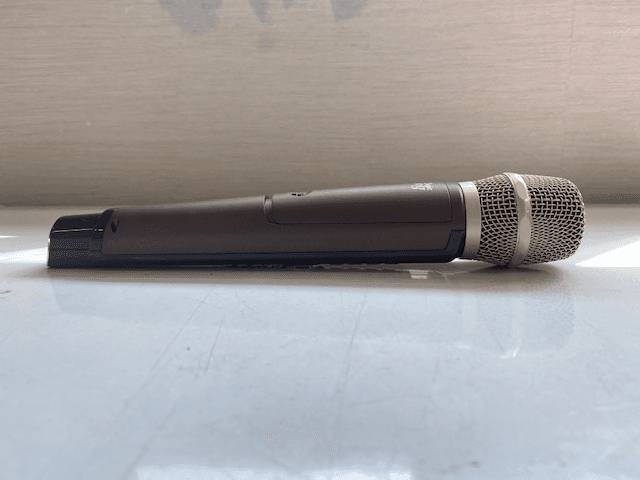

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC ID Label WIRELESS MICRIPHONE FCC ID : PBN-EK5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label location

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna Pattern Antenna

FCC ID: PBN-EK5 According to KDB 447498 D01 General RF Exposure Guidance v06. At 100㎒to 6㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following. [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance,㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 923㎒(min. separation distances = 0㎜) Calculation value: 0.052 (㎽) / 5 (㎜) x √ 0.923 = 0.010 So, Calculation value ≤ 3.0 Remark; - Max. Radiated field strength 82.38 (㏈㎶ /m): Max. E.I.R.P. of EUT -12.85㏈m(0.052 ㎽) - When the minimum test separation distance is < 5㎜, a distance of 5㎜is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:2of21 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ----------------------------------------------------------------------------------3 2. Fundamental and Radiated Spurious Emission-----------------------------------------------7 3. 20㏈Bandwidth ------------------------------------------------------------------------------------18 4. Antenna Requirement ------------------------------------------------------------------------------21 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:3of21 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:ENTERMEDIA CO., LTD. Address:157-1, Seongo-ro, Ojeong-gu, Bucheon-si, Gyeonggi-do, Republic of Korea, 14429 Contact Person:Lee, Kyung-ho Phone No.:+82 32 680 9139 1.3. Details of Manufacturer Applicant:Same as applicant Address:Same as applicant 1.4. Description of EUT Kind of Product Wireless microphone Model Name EK5 Variant Models ETX50, ATX50 Power Supply DC 3 V Frequency Range 905㎒~ 923㎒ Modulation Technique FM Number of Channels 8 channels Antenna Type Pattern antenna Antenna Gain 1.90㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:4of21 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorAgilentE8257DMY51501169Nov. 21, 2019AnnualNov. 21, 2020 Signal GeneratorAgilent8648D3847M00534Mar. 03, 2020AnnualMar. 03, 2021 Spectrum AnalyzerR&SFSV30103453Nov. 06, 2019AnnualNov. 06, 2020 Spectrum AnalyzerAgilentN9020A MY53421758 Sep. 11, 2019AnnualSep. 11, 2020 DC Power SupplyAgilentU8002AMY50060028Mar. 03, 2020AnnualMar. 03, 2021 High Pass Filter Wainwright Instrument GmbH WHKX1.5/15G-6SS4Jun. 11, 2020AnnualJun. 11, 2021 Low Pass FilterMini-CircuitsNLP-1200+V 9500401023-3Jun. 01, 2020AnnualJun. 01, 2021 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 10, 2020AnnualJun. 10, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableRFONEPL520-NMNM-4M (4 m)20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Coaxial CableRFONE PL520-NMNM-10M (10 m) 20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 01/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:5of21 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: Applied Standard: FCC Part15 Subpart C SectionTest Item(s)Result 15.205 15.209(a) 15.249(a) 15.249(c) 15.249(d) Fundamental and Radiated Spurious emission Complied 15.215(c) 20㏈Bandwidth Complied 15.207AC Power Line Conducted EmissionN/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013) was used in the measurement of the DUT. 1.8.Sample Calculation Where relevant, the following sample calculation is provided 1.8.1. Radiation Test Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) - Amplifier gain (㏈) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:6of21 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.9. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: ParameterUncertainty Occupied Bandwidth ±9.66㎑ Radiated Emission, 9㎑to 30㎒ ± 3.59㏈ Radiated Emission, below 1㎓ ±5.88㏈ Radiated Emission, above 1㎓ ±5.94㏈ Uncertainty figures are valid to a confidence level of 95 %. 1.10. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0008582020.06.29Initial 1.11. Information of Variant Models Model NameDescription EK5- Basic model ETX50 - Same as basic model, but different management models according to buyers. ATX50 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000858 Page:7of21 RTT5041-…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
