PBN-ET23KMMAGICSING KARAOKE (MAIN STATION)

D Y N A M I C S O U N D & V I S U A L E X P E R I E N C E MAGICSING USER’S M A N U A L E T23KM / EX23DT AL L -IN - O N E KA RA O KE Thank you for your pu r c h a s e Please read this carefully before using your M A G I C S I N G Thank you for purchasing Enter T e c h ' s M a g i c S i ng . With this wireless karaoke system, you can enjoy s i ng i ng . Sing together and have fun with your family and f r i e nd s . Show off your talent anytime, a n y w h e r e ! VER.100 User’s Manual | ET 23KM VER.100 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency en ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inte rference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the eq uipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Op eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centim eters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. C O N T E N T S Chapter 01. Introduction S S p p e e c c i i f f i i c c a a t t i i o o n n s s 0 0 0 1 1 1 - - - 0 0 0 1 1 1 B B a a s s i i c c I I t t e e m m s s 0 0 0 1 1 1 - - - 0 0 0 2 2 2 Optional Items 0 0 0 1 1 1 - - - 0 0 0 3 3 3 Chapter 02. How to Set up Your MAGICSING H H o o w w t t o o C C o o n n n n e e c c t t t t o o a a T T V V 0 0 0 2 2 2 - - - 0 0 0 1 1 1 H H o o w w t t o o C C o o n n n n e e c c t t t t o o a a T T V V & & S S t t e e r r e e o o ( ( S S o o u u n n d d S S y y s s t t e e m m ) ) 0 0 2 2 - - 0 0 1 1 How to Change the background video using other video sources 0 0 0 2 2 2 - - - 0 0 0 2 2 2 How to Convert [PAL] or [NTSC] mode of TV 0 0 0 2 2 2 - - - 0 0 0 2 2 2 Chapter 03. Product Guide ET 23KM Main Station & Wired Mic 0 0 3 3 - - 0 0 1 1 ET 23KM Wireless Karaoke Key Buttons 0 0 3 3 - - 0 0 2 2 ET 23KM Remote Control 0 0 0 3 3 3 - - - 0 0 0 7 7 7 Chapter 04. Functions and Settings KARAOKE - Song Search 0 0 0 4 4 4 - - - 0 0 0 1 1 1 - Recording 0 0 0 4 4 4 - - - 0 0 0 3 3 3 - MY-MIC 0 0 4 4 - - 0 0 5 5 - User's Contents 0 4 4 -06 - Theme 0 0 4 4 - - 0 0 7 7 - Jump 0 0 0 4 4 4 - - - 0 0 0 7 7 7 - Vocal Assist (Multiplex) 0 0 4 4 - - 0 0 8 8 - Musical Notation 0 0 0 4 4 4 - - - 0 0 0 8 8 8 - User Background (SD card) 0 0 0 4 4 4 - - - 0 0 0 9 9 9 HOW TO SING 0 0 0 4 4 4 - - - 1 1 1 0 0 0 MOVIE 0 0 0 4 4 4 - - - 1 1 1 1 1 1 GAME 0 0 0 4 4 4 - - - 1 1 1 2 2 2 CONFIGURATION MENU 0 0 0 4 4 4 - - - 1 1 1 4 4 4 SOFTWARE INSTALLATION 0 0 0 4 4 4 - - - 1 1 1 6 6 6 ET MANAGER 0 0 4 4 - - 2 2 3 3 Chapter 05. Optional Items Recording Pack 0 0 0 5 5 5 - - - 0 0 0 1 1 1 Additional Song Pack 0 0 0 5 5 5 - - - 0 0 0 2 2 2 Chapter 06. Additional Information Precaution 0 0 0 6 6 6 - - - 0 0 0 1 1 1 Troubleshooting 0 0 0 6 6 6 - - - 0 0 0 2 2 2 User Manual | ET 23KM VER.10 0 Chapter.01 - Introduction SP E C I F I C A T I O N S ET23KM M AIN STAT I O N · Model N o . · Sound E ng i n e · Wireless Mic. B a nd w i d t h · Dimension / W e i gh t · Power C o nsu m p ti o n · Audio O u t pu t · Video O u t pu t · External Video I npu t · R e s o l u ti o n · U S B (S l a v e o n l y ) · Operating T e m p e r a t u r e · Power S upp l y ET 23KM CT-500(SEIP-II) 2403 ~ 2477 MHz 137(W) x 203(H) x 60( L )mm / 322g During the Stand-By : 17mA / 153mW During the Playing - JPEG MODE : 300mA / 2.7W - MOVING MODE : 540mA / 4.86W Stereo Line Out(Full scale Output) - TV Mode : 2Vrms - AMP Mode : 3.5Vrms Format : NTSC or PAL 1Vp-p @ 75 Ohm Load Composite1Vp-p @ 75 Ohm Load NTSC : 720 x 480(interlace) / PAL : 720 x 576(interlace) USB2.0(HI Speed), USB1.1Support -10 °C ~ 60°C AC Adaptor(DC 9V/1A) WIRELESS K ARA O K E · Model N o . · RF F r e qu e n c y · B a tt e r y · D i m e ns i o ns · W e i gh t · W a tt a g e · Operating T e m p e r a t u r e · Effective D i s t a n c e EX 23DT 2403 ~ 2477 MHz 1.5V (AA) x 2 EA 43.5(W) x 43.5(L) x 259(H) mm 170g ( without the batteries ) 70mA / 210mW -1 0°C ~ 60°C Up to 10m unobstructed distance CHAPTER. 01 | 01 VER.100 Introduction - Chapter.01 Chapter.01 - Introduction BASIC I T E M S OPTIONAL I T E M S Wireless Karaoke Remote Control ET 23KM Main Station Additional S ong Pack Main Station You can add Additional Song Packs. (Refer to Chapter 05-02) Karaoke Handbook (Song list & User’s Manual) AV Cable (Phone to RCA) Video Cable AC Adaptor (DC 9V) Recording Pack You can record your own singing. (Refer to Chapter 04-03, 05-01 ) BASIC I T E M S . ET 23KM Mai n S t a t i o n . Wireless Karaoke x 2 ea / Battery AA x 4 ea . USB Installation C D . Video C a b l e . USB …

Text truncated - open the document above for the full version.

156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA TEL No : +82-32-680-9072 FAX No : +82-32-678-0818 September 14, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: PBN-ET23KM including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ENTER TECH CO.,LTD. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyu-Hyun Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, __________________________ KYUNG-HO LEE Manager

156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA TEL No : +82-32-680-9072 FAX No : +82-32-678-0818 September 14, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ENTER TECH CO.,LTD. FCC ID: PBN-ET23KM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, ENTER TECH CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ENTER TECH CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX PBN-ET23KM SCH DIA.pdf Parts list CONF APPENDIX PBN-ET23KM PL.pdf Block diagram CONF APPENDIX PBN-ET23KM BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX PBN-ET23KM OpDes.pdf External Photos SHORT-TERM CONF PBN-ET23KM EXT Photo.pdf Internal Photos SHORT-TERM CONF PBN-ET23KM INT Photo.pdf Test-Setup Photos SHORT-TERM CONF PBN-ET23KM Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF PBN-ET23KM Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ KYUNG-HO LEE Manager

156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA TEL No : +82-32-680-9072 FAX No : +82-32-678-0818 September 14, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : ENTER TECH CO.,LTD. FCC Application for FCC ID: PBN-ET23KM To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, __________________________ KYUNG-HO LEE Manager

156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA TEL No : +82-32-680-9072 FAX No : +82-32-678-0818 ATTESTATION STATEMENT In re : ENTER TECH CO.,LTD. FCC ID: PBN-ET23KM Date : September 14, 2012 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiv er input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequ encies by multiple transmitters. Sincerely, __________________________ KYUNG-HO LEE Manager

FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 3 FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 3 FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 3

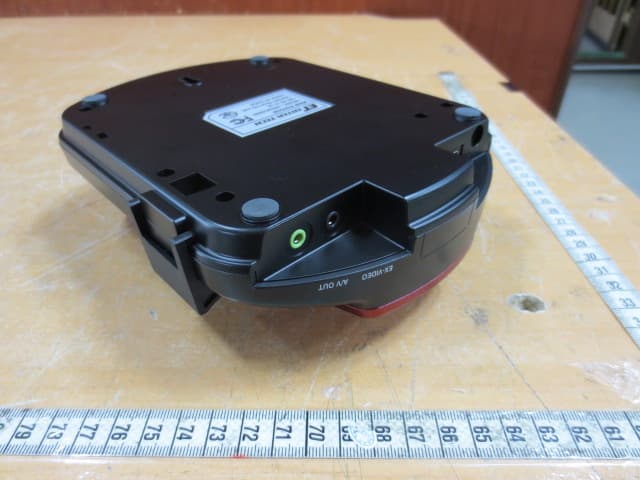

Copyright Ⓒ 2012, LTA Co., Ltd. Page 1 of 1 SAMPLE LABEL & LOCATION ET ENTER TECH CO.,LTD. MAGICSING Karaoke (Main Station) Model name: ET23KM FCC ID: PBN-ET23KM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, Including interference that may cause undersired operation. RATED: DC 9.0V Made in Korea

156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA TEL No : +82-32-680-9072 FAX No : +82-32-678-0818 TUNE-UP PROCEDURE Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator can not program transmit frequencies using the equipment's external operation. The RF chip (CC2400) in this tranceiver operates with a frequency range of 2400-2483MHz and 1MHz channel steps are possible, but the product at the factory is set to be operating at 2403-2477 MHz and 5.2MHz channel steps (16 channel). And user can not change arbitrarily set has been designed.

FCC ID: PBN-ET23KM ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 9.35 dBm + 2.89 dBi EIRP = 12.24 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (8.61 *1.95) / (4 * 20 2 * π) S = 0.0033 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(8.61*1.95 / 4π) R = 1.15 Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (2.89 / 10) G = 1.95

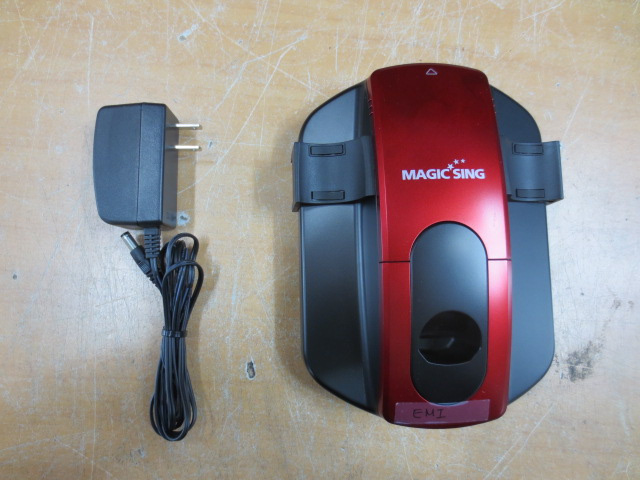

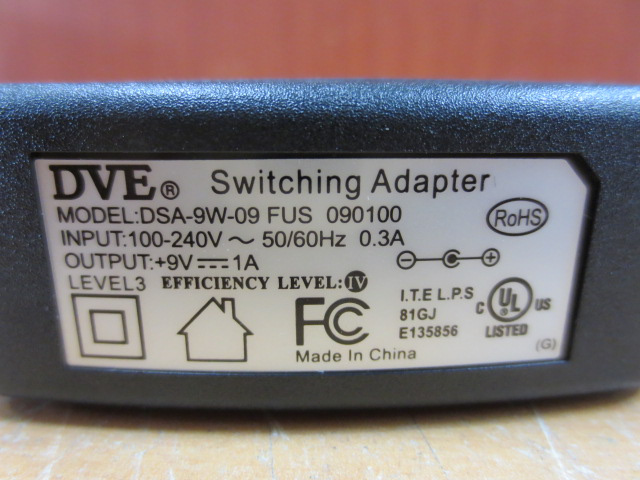

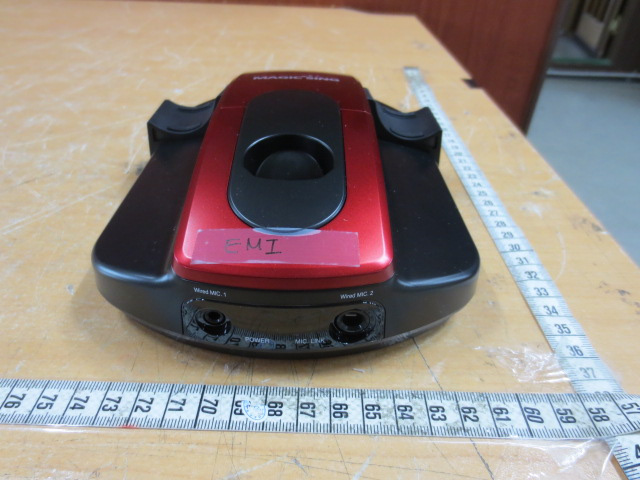

Ref. No.: LR500111209D Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 37 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Sep 03~ 14, 2012 Test Report S/N: LR500111209D Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : MAGICSING Karaoke (Main Station) Manufacturer : ENTER TECH CO.,LTD. Model name : ET23KM Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2403 ~ 2477MHz RF power : Max 9.35 dBm – Conducted Data of issue : September 14, 2012 This test report is issued under the authority of: The test was supervised by: Kyu-Hyun Lee, Manager Jung-Moo Her, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 PBN-ET23KM ENTER TECH CO.,LTD. Ref. No.: LR500111209D Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 INFORMATION ABOUT THE FHSS CHARACTERISTICS ------------------------------------- 3.3 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.3.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.3.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.3.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.3.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.3.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.3.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.3.7 FIELD STRENGTH OF HARMONICS ---------------------------------------------------------- 3.3.8 AC CONDUCTED EMISSIONS ---------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 7 9 11 14 16 20 26 31 32 36 Ref. No.: LR500111209D Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 37 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2013-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing Ref. No.: LR500111209D Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 37 2. Information’s about test item 2-1 Client & Manufacturer Company name : ENTER TECH CO.,LTD. Address : 156-7, Ojeong-dong, Ojeong-gu, Bucheon-city, Kyunggi-do, KOREA Telephone / Facsimile : +82-32-680-9072 / +82-32-678-0818 2-2 Equipment Under Test (EUT) Trade name : MAGICSING Model name : ET23KM Serial number : Identical prototype Date of receipt : September 3, 2012 EUT condition : Pre-production, not damaged Antenna type : Internal Monopole antenna, Max Gain 2.89 dBi Frequency Range : 2403 ~ 2477MHz RF output power : Max. 9.35 dBm - Conducted Number of channels : 16 Channel spacing : 5MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Power Source : 9 Vdc by AC/DC Adaptor Firmware Version : 2.1.16 2-4 Tested frequency Bluetooth LOW MID HIGH Frequency (MHz) 2403 2443 2477 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500111209D Copyright ○ c 2012, LTA Co., Ltd. Page 5 of 37 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247(a) Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 1: Antenna Requirement  The ENTER TECH CO.,LTD. FCC ID:PBN-ET23KM unit complies with the requirement of §15.203. The antenna type is Internal Monopole antenna. Note 2: The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Note 3: TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.10-…

Text truncated - open the document above for the full version.

FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 4 Radiated Emission (Below 30MHz) FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 4 Radiated Emission (30MHz ~ 1GHz) FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 4 Radiated Emission (Above 1GHz) FCC ID: PBN-ET23KM Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 4 Conducted Emission
