PCB-XP20Traffic radar

Expanse XP20 USER GUIDE Expanse XP20 USER GUIDE Provo, Utah 801.734.7200 www.wavetronix.com WX-500-0348 02/20 © 2020 Wavetronix LLC. All Rights Reserved. Wavetronix, SmartSensor, Click, Command, and all associated product names and logos are trademarks of Wavetronix LLC. All other products or brand names as they appear are trademarks or registered trademarks of their respective holders. Protected in the US by patents viewable at www.wavetronix.com/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. The Company shall not be liable for any errors contained herein or for any damages arising out of or related to this docu- ment or the information contained therein, even if the Company has been advised of the possibility of such damages. This document is intended for informational and instructional purposes only. The Company reserves the right to make changes in the specifications and other information contained in this document without prior notification. FCC and ISED Compliance Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Devel- opment Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesiredoperation of the device. Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes à l'innovation, RSS(s) exemptés de licence de Sciences et Développement économique Canada. Le fonctionnement est soumis à la suivant deux conditions: (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC and ISED RF Exposure Statements This equipment complies with FCC RF exposure safety guidelines for mobile devices and Canada RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & the user’s body when operating the device. L’appareillage répond aux limites de la norme RSS-102 sur l’exposition aux radiations établies pour un environnement non-contrôlé. Il devrait être installé et fonctionner à une distance minimale de 20 cm entre l’antenne et votre corps. Disclaimer The advertised detection accuracy of the Wavetronix SmartSensor sensors is based on both external and internal testing, as outlined in each product’s specification document. Although our sensors are very accurate by industry standards, like all other sensor manufacturers we cannot guarantee perfection or assure that no errors will ever occur in any particular applications of our technology. Therefore, beyond the express Limited Warranty that accompanies each sensor sold by the company, we offer no additional representations, warranties, guarantees or remedies to our customers. It is recom- mended that purchasers and integrators evaluate the accuracy of each sensor to determine the acceptable margin of error for each application within their particular system(s). 1 CHOOSING A MOUNTING LOCATION 5 Mounting location, height, and offset 5 Choosing where to mount 7 Choosing a mounting height and offset 8 Occlusion and multipathing 10 Fixing occlusion problems 10 Fixing multipath problems 2 INSTALLING THE XP20 11 Mounting the sensor 12 Aligning the sensor to the roadway 13 Assembling the cable 15 Applying silicon dielectric compound 16 Connecting the cable CONTENTS Chapter 1: Choosing a mounting location • 5 1 Choosing a mounting location Mounting location, height, and offset Choosing where to mount Figure 1. The XP20 radar footprint ˿ For best performance, make sure the lanes being detected are all parallel to each other; avoid on- and off-ramps/turn lanes that angle away from the road. 6 • Expanse XP20 User Guide ˿ Make sure all monitored lanes are within 6 to 250 ft. (1.8 to 76.2 m) of the sensor. Up to 22 lanes can be detected. ˿ If you’re putting a sensor on a road with stoplights or stop signs, position the sensor toward middle of the block, to reduce the likelihood of having stopped vehicles in the XP20 radar footprint. Figure 2. Midblock installation ˿ Keep cable lengths in mind when you pick mounting locations; when you use a Wavetronix or Wavetronix-recommended cable, the cable run between the XP20 and the cabinet can be as long as 2000 ft. (609.6 m). ˿ Consider timing: after a vehicle passes in front of the sensor, there’s a slight delay before the data for that vehicle is sent from the sensor. ˿ In a time-sensitive application, like supplying a variable mes- sage sign with per vehicle warning messages, make sure the sensor is far enough upstream from the sign that the system has time to collect the data, process it, and send it to the sign by the time the vehicles reach the problem area. ˿ See if you can take advantage of any existing infrastructure in the area. The sensor can be mounted on existing poles (with the exceptio…

Text truncated - open the document above for the full version.

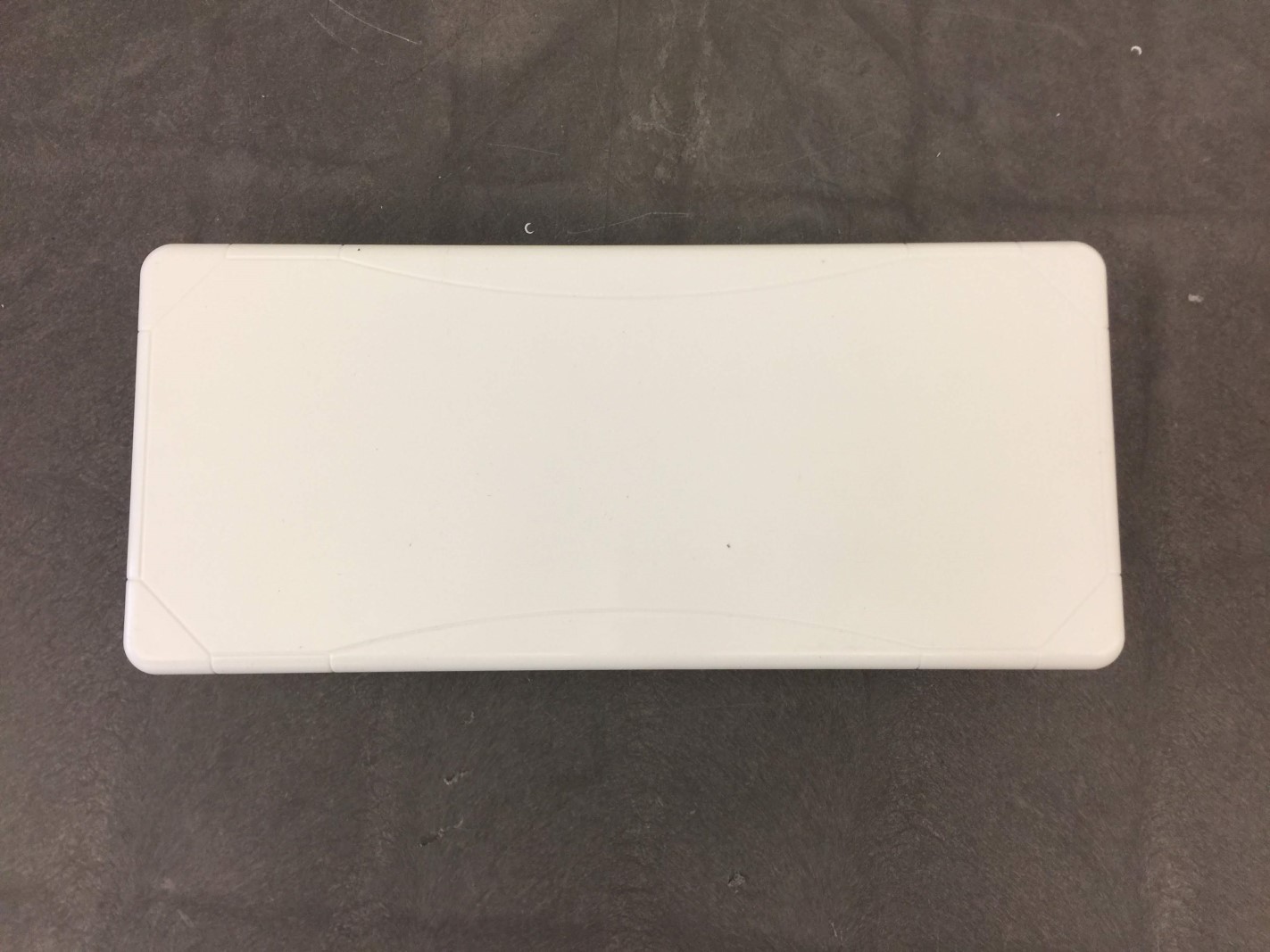

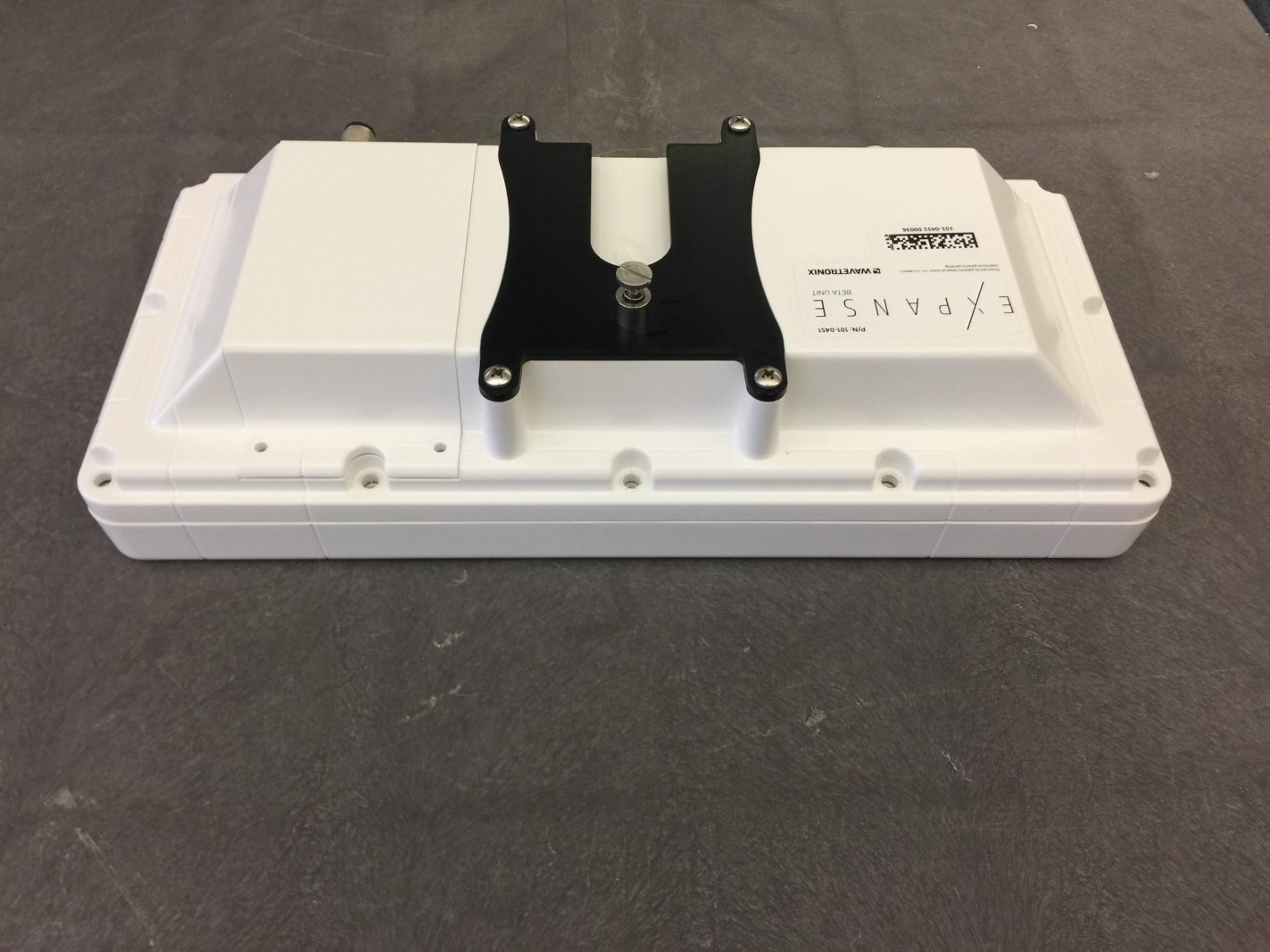

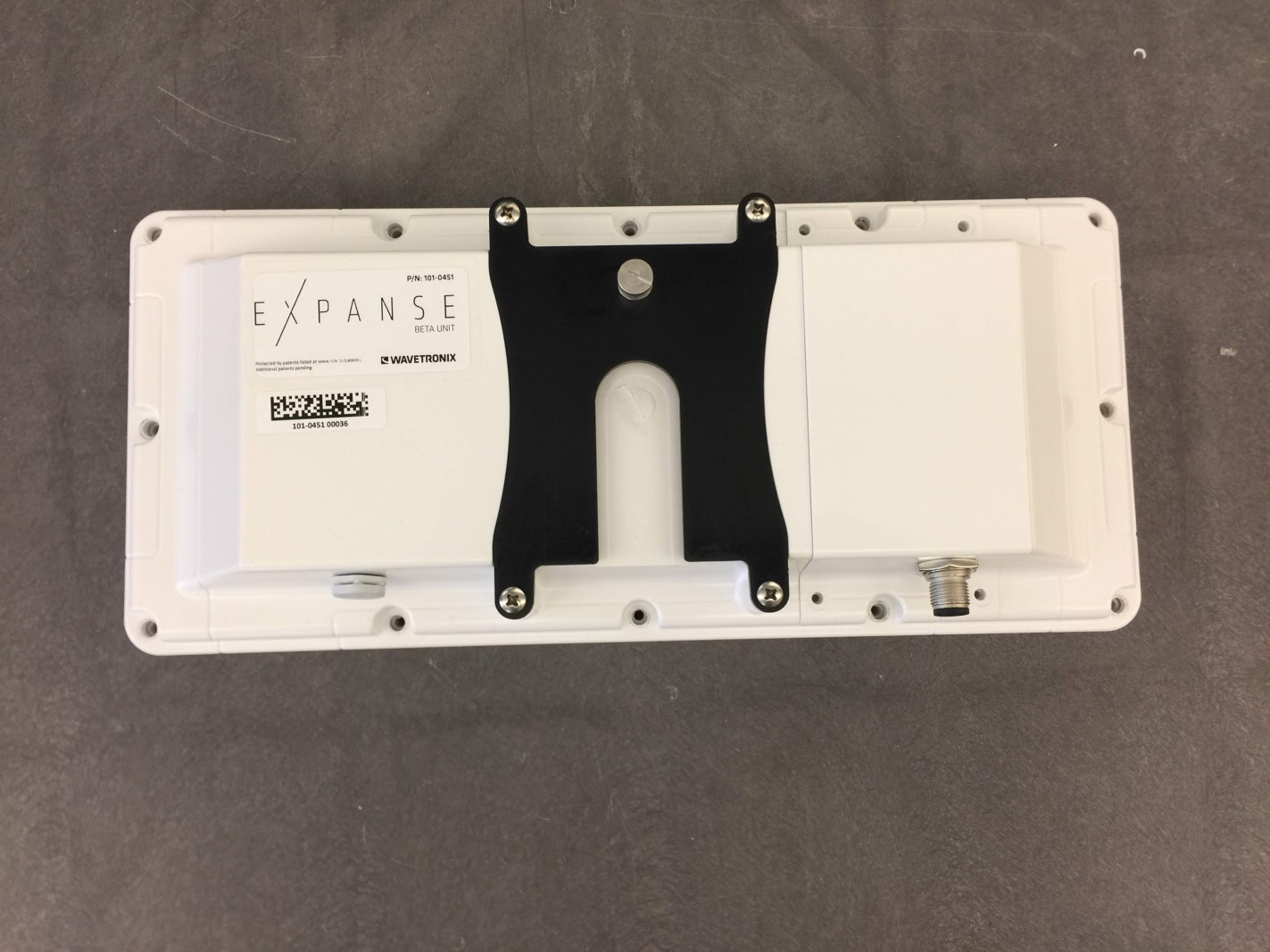

Section 1: Internal photos Report reference ID: -2RADWL Page 1 of 7 Section 1. External photos 1.1 Front general view Section 1: Internal photos Report reference ID: -2RADWL Page 2 of 7 1.2 Back General View Section 1: Internal photos Report reference ID: -2RADWL Page 3 of 7 1.3 Top General View Section 1: Internal photos Report reference ID: -2RADWL Page 4 of 7 1.4 Bottom General View Section 1: Internal photos Report reference ID: -2RADWL Page 5 of 7 1.5 Connector Area Close-up View Section 1: Internal photos Report reference ID: -2RADWL Page 6 of 7 1.6 Left Side General View Section 1: Internal photos Report reference ID: -2RADWL Page 7 of 7 1.7 Right Side General View

Label size: 2.63” x 1.25” (66.8mm x 31.8mm) Label wording Label Location

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Internal photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Internal photos Section 1: Internal photos Report reference ID: -2RADWL Page 2 of 11 Section 1. Internal photos 1.1 Surge Compartment Removed Section 1: Internal photos Report reference ID: -2RADWL Page 3 of 11 1.2 Surge Card Bottom View Section 1: Internal photos Report reference ID: -2RADWL Page 4 of 11 1.3 Surge Card Top view Section 1: Internal photos Report reference ID: -2RADWL Page 5 of 11 1.4 Front Cover Removed View Section 1: Internal photos Report reference ID: -2RADWL Page 6 of 11 1.5 Circuit boards assembled view Section 1: Internal photos Report reference ID: -2RADWL Page 7 of 11 1.6 DSP board Top View Section 1: Internal photos Report reference ID: -2RADWL Page 8 of 11 1.7 DSP Board with module removed view Section 1: Internal photos Report reference ID: -2RADWL Page 9 of 11 1.8 DSP Board Bottom view Section 1: Internal photos Report reference ID: -2RADWL Page 10 of 11 1.9 RF board top view Section 1: Internal photos Report reference ID: -2RADWL Page 11 of 11 1.10 RF board bottom view

FCC MPE results for the XP20 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna IC: 5123A-BGTBT121Expanse XP20 BT Module 1 Radar 2 Maximum peak output power at device output terminal:11.8815.11dBm Cable and Jumper loss:00dB Maximum peak output power at antenna input terminal:11.8815.11dBm 15.4170045332.43396173mW Single Antenna gain (typical):10dBi Number of Antennae:11 Total Antenna gain (typical):10dBi 1.2589254121(numeric) Prediction distance:2020cm Prediction frequency:248024125MHz MPE limit for uncontrolled exposure at prediction frequency:11 mW/cm 2 Power density at prediction frequency:0.003861270.006452532 mW/cm 2 0.0386126980.064525317 W/m 2 Tx On time:11ms Tx period time:11ms Average Factor:100100% Average Power density at prediction frequency:0.0386126980.064525317 W/m 2 NOTE 1: The BT module can operated as DSSS and FHSS worst case (DSSS) is reported here NOTE 2: The XP20 was measured in the 3m chamber as a radiated emisssion - Antenna is integral 0.004+0.006+=0.010314<1 2 4R PG S  = ONE WORLDOURAPPROVAL

Nemko USA Inc., a testing laboratory, is accredited by NVLAP. The tests included in this report are within the scope of this accreditation. www.nemko.com Report reference ID: 387434-1TRWL ONE WORLDOURAPPROVAL Test report 356782-1TRFWL Date of issue: February 11, 2020 Applicant: Wavetronix, LLC Product: Radar Vehicle Sensing Device Model: Expanse XP20 Specifications:  FCC 47 CFR Part 15 Subpart C §15.249 Operation within the bands 902-928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz and 24.0 – 24.25 GHz  ISED RSS-210 Issue 10 December 2019 Licence – Exempt Radio Apparatus: Category I Equipment Report reference ID: 387434-1TRWL Page 2 of 36 Lab and test locations Company name Nemko USA Inc. Address 2210 Faraday Ave, Suite 150 City Carlsbad State California Postal code 92008 Country USA Telephone +1 760 444 3500 Website www.nemko.com FCC Site Number Test Firm Registration Number: 392943 Designation Number: US5058 ISED Test Site 2040B-3 Tested by Martha Espinoza, Wireless Engineer Reviewed by Chip Fleury, Wireless and Certification Supervisor Review date March 2, 2020 Reviewer signature Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko USA’s ISO/IEC 17025 accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Copyright notification Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko USA Inc. Report reference ID: 387434-1TRWL Page 3 of 36 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Section 1 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications ................................................................................................................................................................................................................. 4 1.2 Test methods ......................................................................................................................................................................................................................... 4 1.3 Exclusions ............................................................................................................................................................................................................................... 4 1.4 Statement of compliance...................................................................................................................................................................................................... 4 1.5 Test report revision history .................................................................................................................................................................................................. 4 Section 2 Summary of test results ...................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C §15.249............................................................................................................................................................................................. 5 Section 3 Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Applicant ................................................................................................................................................................................................................................ 6 3.2 Manufacturer......................................................................................................................................................................................................................... 6 3.3 Sample information............................................................................................................................................................................................................... 6 3.4 EUT information .................................................................................................................................................................................................................... 6 3.5 EUT exercise and monitoring details ................................................................................................................................................................................... 6 3.6 EUT setup details ................................................................................................................................................................................................................... 7 Section 4 Engineering considerations ...............................................................................................................................…

Text truncated - open the document above for the full version.
