PCKCDRTL841FL0001CDRTL841FL0001 (Repeater)

COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 95 of 108 18 OPERATOR’S MANUAL Please see the following pages. Odyssey 2000-8R Repeater Instruction Manual 575-00001-0001 DC/MA is a registered trademark of ComSpace Corporation. Instruction Manual 2 Table of Contents TABLE OF CONTENTS.........................................................................................................................................2 INTRODUCTION...................................................................................................................................................3 WARNING...........................................................................................................................................................4 FCC Warning.................................................................................................................................................4 Information to Digital Device Users Required by the FCC.......................................................................4 NOTICES TO THE USER.......................................................................................................................................4 SAFETY:..............................................................................................................................................................5 Warning..........................................................................................................................................................5 PRECAUTIONS.....................................................................................................................................................6 REPEATER SPECIFICATIONS...............................................................................................................................7 General...........................................................................................................................................................7 Receiver..........................................................................................................................................................8 Transmitter.....................................................................................................................................................8 REPEATER CONTROLLER COMMAND SET.........................................................................................................9 UNPACKING AND CHECKING EQUIPMENT.......................................................................................................11 ASSEMBLY........................................................................................................................................................12 BASIC OPERATION............................................................................................................................................13 Instruction Manual 3 Introduction This manual covers the Odyssey 2000 8R Repeater Radio for Digital Channel/Multicarrier Architecture, DCMA, with LTR trunking. This unit is a full duplex radio transceiver featuring digital technology developed by ComSpace Corporation, that greatly increases the traffic carrying capabilities of the radio network while at the same time improving the quality of communications. The principal features are: 1. Digital Modulation with DC/MA technology. 2. Digital trunking (Direct Frequency Assignment) compatible with EF Johnson LTR network protocol. 3. Enhanced voice quality via AMBE+ vocoder. Thank You We believe that this “Technology Development for the Wireless Future” will be an easy to use transceiver that will provide dependable communications to allow peak operating efficiency. We are grateful you chose ComSpace Corporation for your professional repeater radio applications and believe that you will be pleased with the quality and features of our product. Instruction Manual 4 Warning One or more of the following statements may be applicable. FCC Warning This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the Operator’s Manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. Information to Digital Device Users Required by the FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit breaker different from that to which the receiver is connected. • Consult the dealer for technical assistance. Notices to the User • GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. • ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. • REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. Instruction Manual 5 Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. Warning • INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your tr…

Text truncated - open the document above for the full version.

Odyssey 2000-8R Repeater Instruction Manual 575-00001-0001 DC/MA is a registered trademark of ComSpace Corporation. Instruction Manual 2 Table of Contents TABLE OF CONTENTS.........................................................................................................................................2 INTRODUCTION...................................................................................................................................................3 WARNING...........................................................................................................................................................4 FCC Warning.................................................................................................................................................4 Information to Digital Device Users Required by the FCC.......................................................................4 NOTICES TO THE USER.......................................................................................................................................4 SAFETY:..............................................................................................................................................................5 PRECAUTIONS.....................................................................................................................................................6 REPEATER SPECIFICATIONS...............................................................................................................................7 General...........................................................................................................................................................7 Receiver..........................................................................................................................................................8 Transmitter.....................................................................................................................................................8 REPEATER CONTROLLER COMMAND SET.........................................................................................................9 UNPACKING AND CHECKING EQUIPMENT.......................................................................................................11 ASSEMBLY........................................................................................................................................................12 BASIC OPERATION............................................................................................................................................13 Instruction Manual 3 Introduction This manual covers the Odyssey 2000 8R Repeater Radio for Digital Channel/Multicarrier Architecture, DCMA, with LTR trunking. This unit is a full duplex radio transceiver featuring digital technology developed by ComSpace Corporation, that greatly increases the traffic carrying capabilities of the radio network while at the same time improving the quality of communications. The principal features are: 1. Digital Modulation with DC/MA technology. 2. Digital trunking (Direct Frequency Assignment) compatible with EF Johnson LTR network protocol. 3. Enhanced voice quality via AMBE+ vocoder. Thank You We believe that this “Technology Development for the Wireless Future” will be an easy to use transceiver that will provide dependable communications to allow peak operating efficiency. We are grateful you chose ComSpace Corporation for your professional repeater radio applications and believe that you will be pleased with the quality and features of our product. Instruction Manual 4 Warning One or more of the following statements may be applicable. FCC Warning This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the Operator’s Manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. Information to Digital Device Users Required by the FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit breaker different from that to which the receiver is connected. • Consult the dealer for technical assistance. Notices to the User • GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. • ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. • REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. Instruction Manual 5 Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. WARNING: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be: (1) fixed-mounted on outdoor permanent structures with a separation distance of at least 19.7 feet (6 meters) from all persons during normal operation and (2) professionally installed. The peak conducted output power at each antenna terminal must not exceed 85W and the peak radiat…

Text truncated - open the document above for the full version.

COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 94 of 108 17 BLOCK DIAGRAM Please see the product Description in section 15 of this report.

d'H// ~ Cam SD8ce J , ~orpor.tlono/ I.,p- ,,- ~ ".. ~ 0"" -////...", 955FREEPORTPARKWAY SUITE 100 COPPELL, TX 75019.4415 PHONE (972)304-3237 FAX (972)745-3158 CORP WIM/comspacecorpcom Letter of Agency 29 November 2000 Authorization and Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that ComSpace Corporation authorizes Rhine Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b ), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Randall J . Vice President of Engineering ComSpace Corporation ~ .:::~,.;.:~ "Technology development for the wireless future"

#"'//--~ Cam SDclce J , {Corporation/ I,.,1"- ,'0 ~ ,.0 ,0" 0'///,",,/' 955FREEPORTPARKWAY SUITE 100 COPPELL, TX 75019-4415 PHONE (972)304-3237 FAX (972)745-3158 CORP WWNcomspacecorpcom Request for Confidentiality 29 November 2000 Authorization and Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 RE: Fccm: Certification Application PCKCDVSL4llSA VOOl Please be advised that the following information is to be held confidential on behalf of ComSpace Corporation: . . All Circuit Technical Descriptions All Schematics The application contains technical infonnation that ComSpace Corporation deems to be trade secrets and proprietary. If made public, the infonnation might be used to the disadvantage of the applicant in the market place. Thank you for your attention to these matters. / si7' t-c Randall J. West Vice President of Engineering ComSpace Corporation DC/MA~ '..'Al~l ~ Tn-" AOO4TECTU~ "Technology development forthe wireless future"

FCC Application Processing Branch Re: FCC ID PCKCDRTL841FL0001 Applicant: ComSpace Corporation Correspondence Reference Number: 18129 731 Confirmation Number: EA99429 1) The Test Report says that the device is 4 watts on the cover page. There appears to be two frequency bands listed on the covert page. Is one of them for the receiver. Please correct and submit a new cover page. This mistake is a typo; left over from the mobile report that was used as a template. Our apologies. A new body report has been sent to replace the body report that you have. 2) Verify that the substitution method was used for the radiated measurements. The data in section 4 of the new updated body of the report was measured using the substitution method of EIA/TIA-603-1992 3) The table for emissions masks in Section 90.210 indicates in footnote 3 that the frequencies between 851 and 866 MHz fall under the emissions mask of 90.691. Submit an occupied BW plot for this band with the Section 90.691 emissions mask. Please see the plot that has been uploaded for your reivew. 4) Section 2.2 of the test report list channels tested and then shows a Table with the measured RF power. These frequencies do not agree. Please explain the discrepancy. This mistake is a typo; left over from the mobile report that was used as a template. Our apologies

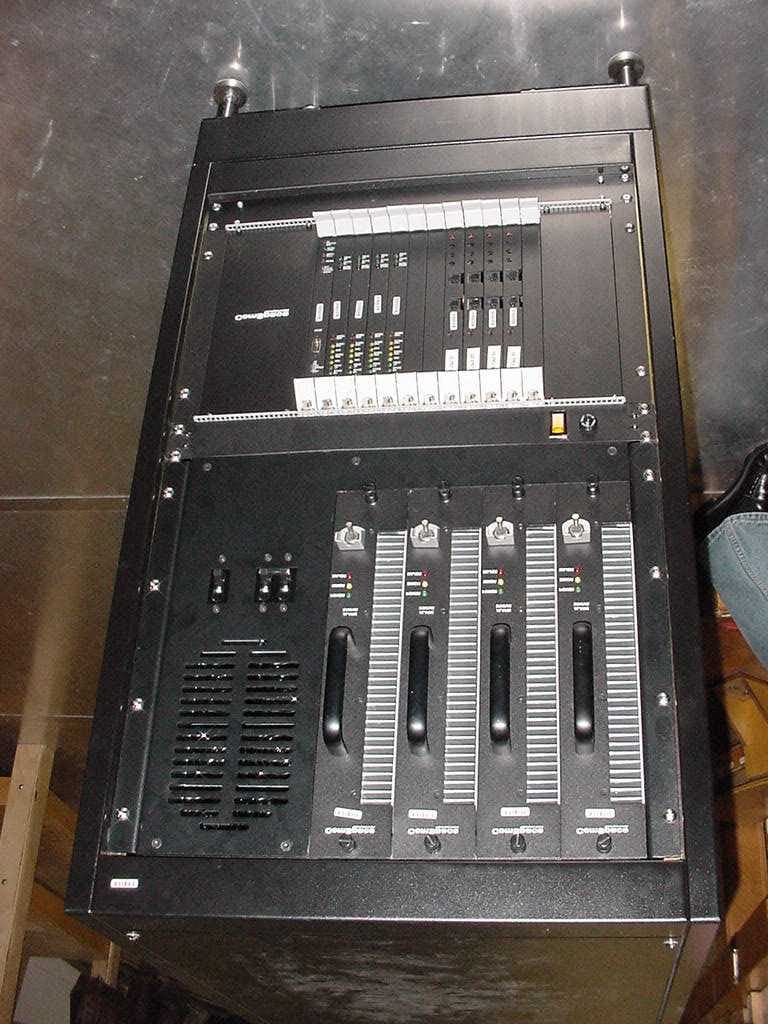

COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 67 of 108 13 EXTERNAL EUT PICTURES BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 68 of 108 BASE FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 69 of 108 COND FRONT BASE COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 70 of 108 FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 71 of 108 LEFT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 72 of 108 RIGHT

COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 74 of 108 14 LABEL INFORMATION COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 75 of 108 14.1 Label COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 76 of 108 14.2 Location of Label on EUT

COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 20 of 108 12 INTERNAL EUT PICTURES 12740 A. COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 21 of 108 12740 B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 22 of 108 12741 A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 23 of 108 12741 B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 24 of 108 12742 A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 25 of 108 12742 B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 26 of 108 12743 A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 27 of 108 12743 B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 28 of 108 12744 A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 29 of 108 12744 B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 30 of 108 12745 COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 31 of 108 12745A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 32 of 108 12745B COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 33 of 108 12752 BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 34 of 108 12752 FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 35 of 108 12752 SIDE COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 36 of 108 12756 BOARD INSTALLED COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 37 of 108 BACK COVER SHOWING FANS COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 38 of 108 BACK POWER SUPPLIES COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 39 of 108 BACK UPPER LEFT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 40 of 108 BACK UPPER LEFT A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 41 of 108 BASE DIGITAL SECTION CABLES CONNECTED COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 42 of 108 BASE DIGITAL SECTION CABLES CONNECTED A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 43 of 108 BASE DIGITAL SECTION CABLES INSTALLED C COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 44 of 108 BASE RF SECTION INSTALLED COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 45 of 108 BASE RF SECTION INSTALLED A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 46 of 108 DIGITAL BACK PLANE COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 47 of 108 DIGITAL BACK PLANE A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 48 of 108 DIGITAL BACKPLANE C COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 49 of 108 LOW LEVEL RF BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 50 of 108 LOW LEVEL RF FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 51 of 108 LOW LEVEL RF SIDE COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 52 of 108 LOW LEVEL RF SIDE A COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 53 of 108 LOW LEVEL RF TOP COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 54 of 108 LOWER FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 55 of 108 PA EXCITER BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 56 of 108 PA EXCITER FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 57 of 108 PA EXCITER WITHOUT SHIELD COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 58 of 108 RECEIVER BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 59 of 108 RECEIVER FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 60 of 108 SYNTHESIZER BACK COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 61 of 108 SYNTHESIZER FRONT COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 62 of 108 SYNTHESIZER FRONT A COMPANY NAME: C…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 16 of 63 2000460 / 2000488 / QRTL00-369 ComSpace Corporation CDRTL841FL000 11 RF EXPOSURE The applicant will place one of two statements in the manual sold with this device. (A) Subject to Environmental Assessment (EA) (for Building-mounted antennas: Total power of all channels > 1000 W ERP (1640 W EIRP)) OR (B) Categorically excluded from EA (A): --------------------------- IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements Installers and users are required to perform an MPE evaluation and an Environmental Assessment (EA) of the location at the time of licensing per CFR 47 Part 1.1307. Fixed mounted antennae that are co-located with other antennae must satisfy the co-location requirements of Part 1.1307. -------------------------------------------------------- (B): ----------------------------- IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements The antenna(s) used for this transmitter must be (1) fixed-mounted on outdoor permanent structures with a separation distance of at least 6 meters (19.7 feet) from all persons during normal operation and (2) professionally installed. The peak conducted output power at each antenna terminal must not exceed 90W and the peak radiated output power must not exceed 1640W EIRP. Antenna(s) used with this transmitter must not exceed an antenna gain of 12 dBd gain. The installer of the antenna to be used with this transmitter may be required to perform an MPE evaluation and an Environmental Assessment (EA) of the location at the time of licensing per CFR 47 Part 1.1307. Additionally, fixed mounted antennae that are co-located with other antennae must satisfy the co-location requirements of Part 1.1307, for satisfying RF exposure compliance.

1 FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURES The manufacturer does not specify or sale any antenna with the radio identified in this report. The manufacturer applies for the General Population/Uncontrolled Exposure environment. The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G , and separation distance in meters: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure applicable to Bystanders (at 806 MHz) = f(MHz)/1500 2 /cmmW. 2 MPE Calculation Antennae: Typical SMR antenna available on the market and commonly chosen by end-users for vehicle application. Frequency A 806 MHz Limit for General Population/Uncontrolled Environment (Bystanders): 0.537 2 /cmmW SEPARATION DISTANCE: (dBd) Antenna Gain C Power B 12 (Watt) (in) (cm) 85 225 571 42.5 (50%of 85) D 159 404 Notes: A = Distances are calculated for the largest (worst-case) separation distance B = Conducted Output Power delivered to the antenna C = Gains are compared to an ideal 1/2-wave dipole (0 dBd = 2.15 dBi) D = Duty Cycle Factor for typical P-T-T configuration. Instructions will be placed in the user manual instructing installers and users to maintain the MPE distances during operation of the EUT.

1 FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURES The manufacturer does not specify or sale any antenna with the radio identified in this report. The manufacturer applies for the General Population/Uncontrolled Exposure environment. The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G , and separation distance in meters: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure applicable to Bystanders (at 806 MHz) = f(MHz)/1500 2 /cmmW. 2 MPE Calculation Antennae: Typical SMR antenna available on the market and commonly chosen by end-users for vehicle application. Frequency A 806 MHz Limit for General Population/Uncontrolled Environment (Bystanders): 0.537 2 /cmmW SEPARATION DISTANCE: (dBd) Antenna Gain C Power B 12 (Watt) (in) (cm) 85 225 571 42.5 (50%of 85) D 159 404 Notes: A = Distances are calculated for the largest (worst-case) separation distance B = Conducted Output Power delivered to the antenna C = Gains are compared to an ideal 1/2-wave dipole (0 dBd = 2.15 dBi) D = Duty Cycle Factor for typical P-T-T configuration. Instructions will be placed in the user manual instructing installers and users to maintain the MPE distances during operation of the EUT.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Comspace Corporation 955 Freeport Parkway Suite 100 Coppell, TX 75019 (972) 745-1367 MODEL: CDRTL841FL000 FCC ID: PCKCDRTL841FL0001 November 20, 2000 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 90: 1998 PRIVATE LAND MOBILE RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 2, 15, 90 851 – 869 MHz 4 2.5 2, 15, 90 806 – 824 MHz 4 2.5 REPORT PREPARED BY: Test Engineer: Daniel Baltzell Technical Writer: Daniel Baltzell Rhein Tech Laboratories, Inc. Document Number: 2000459 / QRTL00-369 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. COMPANY NAME: COMSPACE CORPORATION EUT: CDRTL841FL000 WORK ORDER NUMBER: 2000460 FCC ID: PCKCDRTL841FL0001 Page 2 of 108 TABLE OF CONTENTS 1 GENERAL INFORMATION..............................................................................................4 1.1 TEST FACILITY......................................................................................................................................................4 1.2 RELATED SUBMITTAL(S)/GRANT(S)....................................................................................................................4 1.3 CONFORMANCE STATEMENT...............................................................................................................................5 1.4 FIELD STRENGTH CALCULATION.........................................................................................................................6 1.5 CONDUCTED MEASUREMENT...............................................................................................................................7 1.6 RADIATED MEASUREMENT..................................................................................................................................7 2 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED..…
