PCKCDRTL841FL0011Base Station Repeater

Instruction Manual 1 Odyssey 2000-8RPT Repeater Instruction Manual 575-00001-0002 DC/MA is a registered trademark of ComSpace Corporation. Instruction Manual 2 Revision History Document Summary File Type Microsoft Word 97 SR-1 for Windows NTÆ Revision Date Implemented by Change Description 0000 3/13/01 Joel N. Holyoak Created from previous repeater model document for new configuration Document Approvals Name Signature Date Joel N. Holyoak Joseph P. Bartelme Randall West Instruction Manual 3 Table of Contents T ABLE OF CONTENTS................................................................................................................................... 3 I NTRODUCTION............................................................................................................................................ 4 W ARNING.................................................................................................................................................... 5 FCC Warning.......................................................................................................................................... 5 Information to Digital Device Users Required by the FCC .................................................................... 5 N OTICES TO THE USER................................................................................................................................. 5 S AFETY:....................................................................................................................................................... 6 P RECAUTIONS.............................................................................................................................................. 7 R EPEATER SPECIFICATIONS......................................................................................................................... 8 General................................................................................................................................................... 8 Receiver.................................................................................................................................................. 9 Transmitter............................................................................................................................................. 9 R EPEATER CONTROLLER COMMAND SET.................................................................................................. 10 U NPACKING AND CHECKING EQUIPMENT.................................................................................................. 12 A SSEMBLY................................................................................................................................................. 14 B ASIC OPERATION..................................................................................................................................... 18 S ETTING THE RECEIVER NOISE FLOOR...................................................................................................... 19 Instruction Manual 4 Introduction This manual covers the Odyssey 2000 8RPT Repeater Radio for Digital Channel/Multicarrier Architecture, DCMA, with LTR trunking. This unit is a full duplex radio transceiver featuring digital technology developed by ComSpace Corporation, that greatly increases the traffic carrying capabilities of the radio network while at the same time improving the quality of communications. The principal features are: 1. Digital Modulation with DC/MA technology. 2. Digital trunking (Direct Frequency Assignment) compatible with EF Johnson LTR network protocol. 3. Enhanced voice quality via AMBE+ vocoder. Thank You We believe that this “Technology Development for the Wireless Future” will be an easy to use transceiver that will provide dependable communications to allow peak operating efficiency. We are grateful you chose ComSpace Corporation for your professional repeater radio applications and believe that you will be pleased with the quality and features of our product. Instruction Manual 5 Warning One or more of the following statements may be applicable. FCC Warning This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the Operatorís Manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. Information to Digital Device Users Required by the FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit breaker different from that to which the receiver is connected. • Consult the dealer for technical assistance. Notices to the User • GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. • ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. • REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. Instruction Manual 6 Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any tr…

Text truncated - open the document above for the full version.

FCC And Canadian Certification Report Page 25 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 15 BLOCK DIAGRAM Please see the product Description in section 12 of this report.

FCC And Canadian Certification Report Page 25 2001064 rev2 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 15 BLOCK DIAGRAM

d'H// ~ Cam SD8ce J , ~orpor.tlono/ I.,p- ,,- ~ ".. ~ 0"" -////...", 955FREEPORTPARKWAY SUITE 100 COPPELL, TX 75019.4415 PHONE (972)304-3237 FAX (972)745-3158 CORP WIM/comspacecorpcom Letter of Agency 29 November 2000 Authorization and Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that ComSpace Corporation authorizes Rhine Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b ), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Randall J . Vice President of Engineering ComSpace Corporation ~ .:::~,.;.:~ "Technology development for the wireless future"

.",//~/,g" " ~ ' ~ Cam se~~t~D/ /.""- ,'0 ~ ,0 ~////""//,o" 955 FREEPORTPARKWAY SUITE 100 COPPELL. TX 75019-4415 PHONE (972)304-3237 FAX (972)745-3158 CORP " ~~~"~0~~, Request for Confidentiality 29 November 2000 Authorization and Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC ID: Certification Application PCKCDR TL841 FLOOO I Please be advised that the following infonnation is to be held confidential on behalf of ComSpace Corporation: All Circuit Technical Descriptions All Schematics . . The application contains technical infonnation that ComSpace Corporation deems to be trade secrets and proprietary .If made public, the infonnation might be used to the disadvantage of the applicant in the market place. Thank you for your attention to these matters. Ic}U Sincerely, I?'~ Randall J. West Vice President of Engineering ComSpace Corporation «::: DC/MA ~ OGTAlDiAOHl WJl ~R ...'.'.cru~ "Technology development forthewireless future"

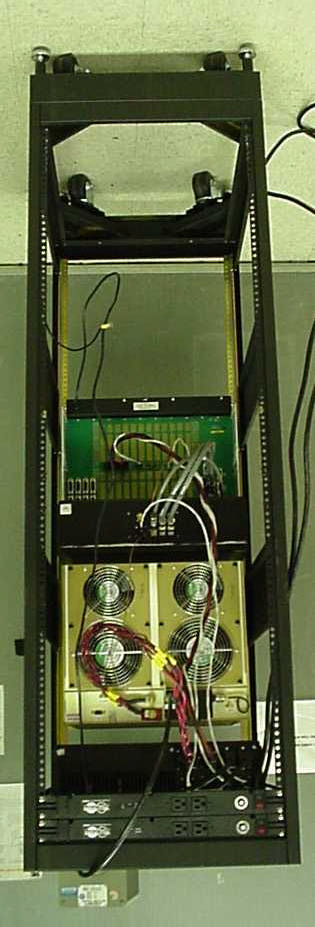

FCC And Canadian Certification Report Page 42 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 19 EXTERNAL EUT PICTURES FCC And Canadian Certification Report Page 43 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011

FCC And Canadian Certification Report Page 21 2001064 rev2 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 13 LABEL INFORMATION FCC And Canadian Certification Report Page 22 2001064 rev2 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 13.1 LABEL COMSPACE CORPORATION MODEL: CDRTL841FL001 FCC ID: PCK CDRTL841FL0011 CANADA: XXX-XXXXXX THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE SERIAL NO.: XXXXXXXXX Made In Japan FCC And Canadian Certification Report Page 23 2001064 rev2 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 13.2 LOCATION OF LABEL ON EUT

FCC And Canadian Certification Report Page 29 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 18 INTERNAL EUT PICTURES 6 LOW-LEVEL RF – RECEIVER PCB – FRONT VIEW – SHIELDS REMOVED FCC And Canadian Certification Report Page 30 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 5 LOW-LEVEL RF – RECEIVER PCB – REAR VIEW FCC And Canadian Certification Report Page 31 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 2 LOW-LEVEL RF – RECEIVER PCB – FRONT VIEW – SHIELD COVERS INSTALLED FCC And Canadian Certification Report Page 32 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 13 LOW-LEVEL RF – SYNTHESIZER PCB – FRONT VIEW – SHIELD COVERS INSTALLED FCC And Canadian Certification Report Page 33 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 7 LOW-LEVEL RF – SYNTHESIZER PCB – FRONT VIEW – SHIELD COVERS REMOVED FCC And Canadian Certification Report Page 34 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 3 LOW-LEVEL RF – SYNTHESIZER PCB – REAR VIEW FCC And Canadian Certification Report Page 35 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 1 LOW-LEVEL RF – EXCITER PCB – FRONT VIEW – SHIELD COVER INSTALLED FCC And Canadian Certification Report Page 36 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 12 LOW-LEVEL RF – EXCITER PCB – REAR VIEW FCC And Canadian Certification Report Page 37 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 10 LOW-LEVEL RF – EXCITER PCB – FRONT VIEW – SHIELD COVER REMOVED FCC And Canadian Certification Report Page 38 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 11 LOW-LEVEL RF – CLOCK REFERENCE PCB – FRONT VIEW FCC And Canadian Certification Report Page 39 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 8 LOW-LEVEL RF – CLOCK REFERENCE PCB – REAR VIEW FCC And Canadian Certification Report Page 40 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 9 PARADIGM AMPLIFIER MODULE – HEAT SINK SIDE FCC And Canadian Certification Report Page 41 2001064 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 4 PARADIGM AMPLIFIER MODULE – INSIDE VIEW

1 FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: RF E XPOSURES The manufacturer does not specify or sale any antenna with the radio identified in this report. The manufacturer applies for the General Population/Uncontrolled Exposure environment. The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G , and separation distance in meters: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure applicable to Bystanders (at 806 MHz) = f(MHz)/1500 2 /cmmW. 2 MPE Calculation Antennae: Typical SMR antenna available on the market and commonly chosen by end-users for vehicle application. Frequency A 806 MHz Limit for General Population/Uncontrolled Environment (Bystanders): 0.537 2 /cmmW SEPARATION DISTANCE: (dBd) Antenna Gain C Power B 12 (Watt) (in) (cm) 90 231 587 45 163 415 Notes: A = Distances are calculated for the largest (worst-case) separation distance B = Conducted Output Power delivered to the antenna C = Gains are compared to an ideal 1/2-wave dipole (0 dBd = 2.15 dBi) D = Duty Cycle Factor for typical P-T -T configuration. Instructions will be placed in the user manual instructing installers and users to maintain the MPE distances during operation of the EUT.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT ComSpace Corporation 955 Freeport Parkway Suite 100 Coppell, TX 75019 (972) 745-1367 MODEL: CDRTL841FL001 FCC ID: PCKCDRTL841FL0011 March 13, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2; 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15; 1999 §15.109: RADIATED EMISSIONS LIMITS PART 90; 1998 PRIVATE LAND MOBILE RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603; 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1; 1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 RSS-119; 1996 LAND MOBILE AND FIXED RADIO TRANSMITTERS AND RECEIVERS FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 2, 15, 90 851-869 MHz 90 1.0 18K4D7W Industry Canada Frequency Range Output Power (W) Freq. Tolerance Emission Designator RS-119; 1996, RSS-102; 1999 851-869 MHz 90 1.0 18K4D7W REPORT PREPARED BY: Test Engineer: Daniel Baltzell Technical Writer: Daniel Baltzell Rhein Tech Laboratories, Inc. Document Number: 2001064 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 2 2001064 rev2 ComSpace Corporation FCC ID: PCKCDRTL841FL0011 TABLE OF CONTENTS 1 GENERAL INFORMATION.......................................................................................................................................3 1.1 TEST FACILITY..........................................................................................................................................................3 1.2 RELATED SUBMITTAL(S)/GRANT(S)............................................................................................................................3 1.3 CONFORMANCE STATEMENT......................................................................................................................................4 1.4 FIELD STRENGTH CALCULATION................................................................................................................................5 1.5 CONDUCTED MEASUREMENT.....................................................................................................................................6 1.6 RADIATED MEASUREMENT.........................................................................................................................................6 2 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED.........................7 2.1 TEST PROCEDURE......................................................................................................................................................7 2.2 TEST DATA...............................................................................................................................................................7 2.3 TEST EQUIPMENT......................................................................................................................................................7 3 FCC RULES AND REGULATIONS PART 2 §2.1051: SPURIOUS EMISSIONS AT ANTENNA TERMINALS....8 3.1 TEST PROCEDURE......................................................................................................................................................8 3.2 TEST DATA...............................................................................................................................................................8 3.2.1 CFR Part 90 Requirements.............................................................................................................................8 3.3 TEST EQUIPMENT......................................................................................................................................................9 4 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION....10 4.1 TEST PROCEDURE....................................................................................................................................................10 4.2 TEST DATA.............................................................................................................................................................10 4.3 TEST EQUIPMENT....................................................................................................................................................10 5 FCC RULES AND REGULATIONS PART 2 §2.1049 (C) (1): OCCUPIED BANDWIDTH....................................11 5.1 TEST PROCEDURE....................................................................................................................................................11 5.2 TEST DATA.............................................................................................................................................................11 5.2.1 90 W for 25 kHz Channel Bandwidth: Mask B...............................................................................................11 5.2.2 90 W for 25 kHz Channel Bandwidth: Mask Part 90.691(G)..........................................................................12 5.3 TEST EQUIPMENT....................................................................................................................................................12 6 FCC RULES AND REGULATION PART 2 §2.1055: FREQUENCY STABILITY.................................................13 6.1 TEST PROCEDURE....................................................................................................................................................13 6.2 TEST EQUIPMENT.......................................................................................…

Text truncated - open the document above for the full version.
