From: CKC-Hinet [[email protected]] Sent: Monday, February 25, 2002 4:47 AM To: Mike Kuo Subject: Re: CHILIDA INTERNATIONAL CO., LTD., FCC ID:PCY00RT10040, AN02T1793 Hello! Mike, I know what you concerned. We did have many experiences on such devices and also we check this point every time. Anyway, attached please find the data of both of the two applications as your requested. Reragdrs, K. C. Chen ETC/EMC Department II ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "'etcemi'" <[email protected]> Sent: Saturday, February 23, 2002 3:31 AM Subject: RE: CHILIDA INTERNATIONAL CO., LTD., FCC ID:PCY00RT10040, AN02T1793 > Dear K.C.: > > In regards to your answer to Question #2: I agreed with you that for FM > modulation, when applied modulation, the carrier field strength may be lower > than the filed strength without external modulation. However, it may not be > the case for spurious emission. FCC has mentioned external modulation > requirements from time to time. Please provide additional test data with > external modulation. > > Best Regards > > Mike Kuo > > -----Original Message----- > From: etcemi [mailto:[email protected]] > Sent: Thursday, February 21, 2002 9:34 PM > To: Mike Kuo > Subject: Re: CHILIDA INTERNATIONAL CO., LTD., FCC ID:PCY00RT10040, > AN02T1793 > > > Dear Mike, > > Thank you for your help. Please find the our ex[lanation below: > > Question #1: There are two wires coming out from the EUT as shown in the > external photos as well as in the internal photos. Please explain the > function of these two wires. > ANS.: The one with a switch is for LAB testing only, actual marketing > product will not have this wire. The other is connect to the audio output > jack of a cellular phone. > > Question #2: This device is equipped with external audio connector. In > accordance with ANSI C63.4 section 13.1.1.1 applied modulation, if the > device is equipped with input connectors for external modulation, typical > modulating signals shall be applied at the max. rated input level. Please > explain the external modulation used during the tests. > ANS. We know the requirement of ANSI C63.4 and we did verify this. For this > device is employing FM technology, applying a modulating signal will result > the strength of carrier down lower in measurement of radiated emissions. > So, according to ANSI C63.4, to find out the maximum emissions the final > test is determined to apply no modulating signal. > > If you have any further questions, please kindly advise as soon as possible. > > Best regards, > > K. C. Chen > ETC/EMC Department II > > > ----- Original Message ----- > From: "Mike Kuo" <[email protected]> > To: "K. C. (E-mail)" <[email protected]> > Sent: Friday, February 22, 2002 12:17 PM > Subject: FW: CHILIDA INTERNATIONAL CO., LTD., FCC ID:PCY00RT10040, AN02T1793 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Thursday, February 21, 2002 8:16 PM > > To: '[email protected]' > > Subject: CHILIDA INTERNATIONAL CO., LTD., FCC ID:PCY00RT10040, AN02T1793 > > > > > > Notice_content > > ------------- > > Question #1: There are two wires coming out from the EUT as shown in the > > external photos as well as in the internal photos. Please explain the > > function of these two wires. > > > > Question #2: This device is equipped with external audio connector. In > > accordance with ANSI C63.4 section 13.1.1.1 applied modulation, if the > > device is equipped with input connectors for external modulation, typical > > modulating signals shall be applied at the max. rated input level. Please > > explain the external modulation used during the tests. > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender. > >

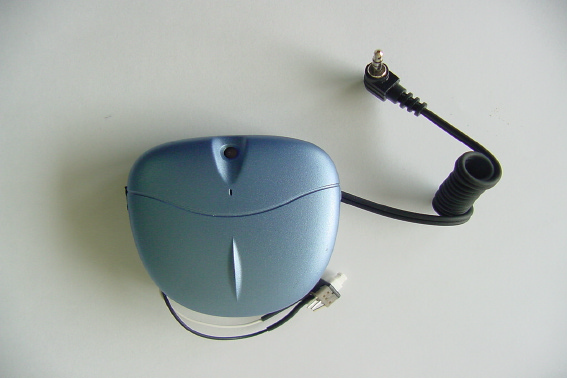

ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rear View of EUT

ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Component View of Main PCB ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Main PCB

Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Wireless Hand Free FCC ID. : PCY00RT10040 MODEL : RT100 Working Frequency : 40.690 MHz for APPLICANT : Chilida International Co., Ltd. ADDRESS : 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-01-077-01 ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Chilida International Co., Ltd. 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Manufacturer : Chilida International Co., Ltd. 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Wireless Hand Free b) Trade Name : ---- c) Model No. : RT100 d) FCC ID : PCY00RT10040 e) Working Frequency : 40.690 MHz f) Power Supply : DC 3.6V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Feb. 06, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION......................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS........................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT..............................................................................................................................5 3.1 APPLICABLE STANDARD.........................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................5 3.3 TEST DATA.................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION..........................................................................................................................................8 3.5 RADIATED TEST EQUIPMENT.................................................................................................................................................8 3.6 MEASURING INSTRUMENT SETUP.........................................................................................................................................8 3.7 RADIATED MEASUREMENT PHOTOS.....................................................................................................................................9 4 CONDUCTED EMISSION MEASUREMENT.......................................................................................................................10 4.1 DESCRIPTION...........................................................................................................................................................................10 5 ANTENNA REQUIREMENT....................................................................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................................11 5.2 ANTENNA CONSTRUCTION...................................................................................................................................................11 6 THE FREQUENCY TOLERANCE OF THE CARRIER SIGNAL MEASUREMENT......................................................12 6.1 STANDARD APPLICABLE................…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-01-077-01Sheet 1 of 1 Sheets FCC ID.: PCY00RT10040 3.3 Test Data Operation Mode: TX with audio signal inputed from a cellular phone Operation Frequency: 40.690 MHz, Test Date : Feb. 25, 2002Temperature: 23 • Humidity: 65 % Frequency (MHz) Meter Reading (dBuV) H V Corrected Factor (dB) Result @3m (dBuV/m) Limit @3m (dBuV/m) Margin (dB) Table Degree (Deg.) Ant. High (m) 40.690 • 58.3 • 57.1 • -12.0 • 46.3 • 60.0 • -13.7 • 180 • 3.5 81.380 • --- • --- • -14.9 • --- • 40.0 • --- • --- • --- 122.070 • --- • --- • -10.9 • --- • 43.5 • --- • --- • --- 162.760 • --- • --- • -9.4 • --- • 43.5 • --- • --- • --- 203.450 • --- • --- • -6.9 • --- • 43.5 • --- • --- • --- 244.140 • --- • --- • -4.3 • ---46.0 • --- • --- • --- 284.830 • --- • --- • -2.4 • ---46.0 • --- • --- • --- 325.520 • --- • --- • -6.8 • ---46.0 • --- • --- • --- 366.210 • --- • --- • -7.5 • ---46.0 • --- • --- • --- 406.900 • --- • --- • -6.2 • ---46.0 • --- • --- • --- Note : 1. Remark “---” means that the emission level is too low to be measured. 2. The expanded uncertainty of the radiated emission tests is 3.53 dB.

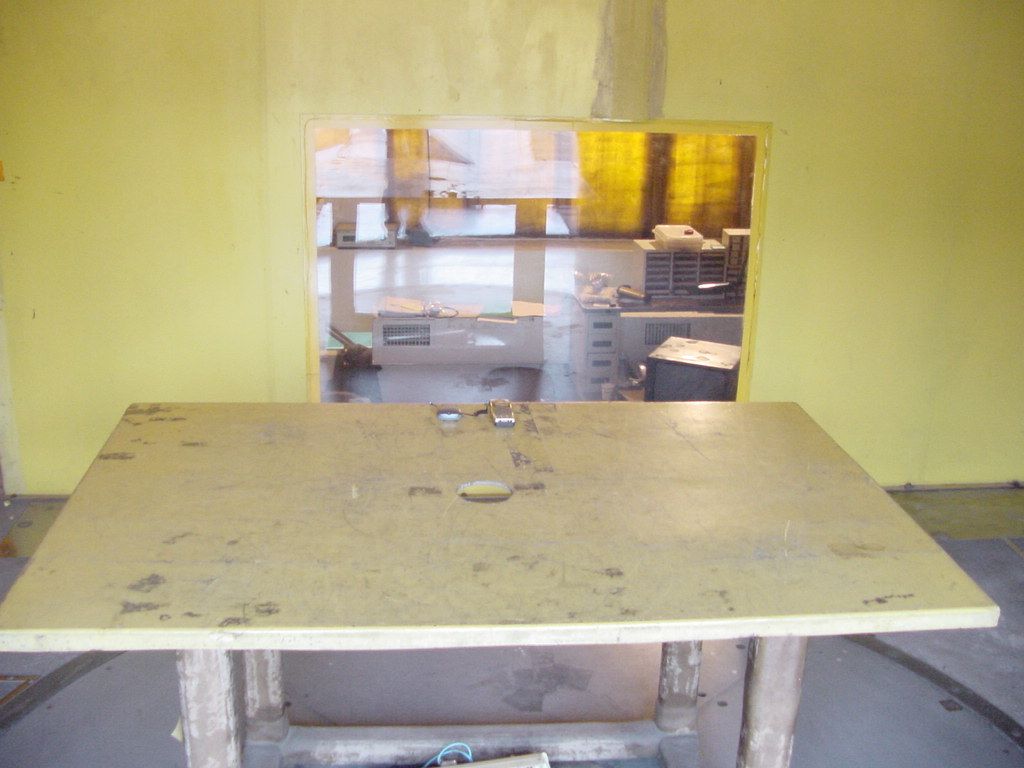

ETC Report No.:ET91R-01-077-01 FCC ID.: PCY00RT10040 Rev. No 1.0 Radiated Measurement Photos
