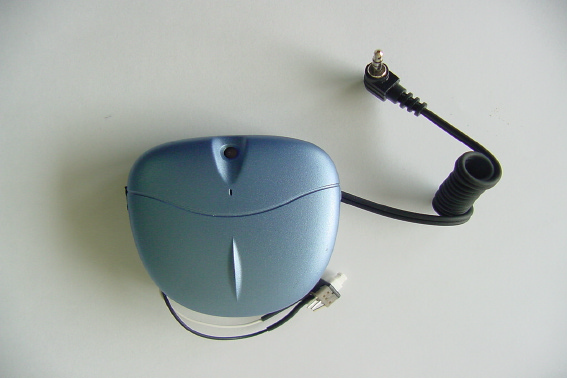

ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rear View of EUT

ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Component View of Main PCB ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Main PCB

Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Wireless Head Free FCC ID. : PCY00RT10049 MODEL : RT100 Working Frequency : 49.840 MHz for APPLICANT : Chilida International Co., Ltd. ADDRESS : 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-01-077-03 ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Chilida International Co., Ltd. 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Manufacturer : Chilida International Co., Ltd. 3F, No. 542-3, Chung-cheng Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Wireless Head Free b) Trade Name : ---- c) Model No. : RT100 d) FCC ID : PCY00RT10049 e) Working Frequency : 49.840 MHz f) Power Supply : DC 3.6V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Feb. 06, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION......................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS........................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................3 2.5 USER INFORMATION.................................................................................................................................................................3 3. RADIATED EMISSION MEASUREMENT..............................................................................................................................4 3.1 APPLICABLE STANDARD.........................................................................................................................................................4 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................4 3.3 TEST DATA.................................................................................................................................................................................5 3.4 FIELD STRENGTH CALCULATION..........................................................................................................................................7 3.5 RADIATED TEST EQUIPMENT.................................................................................................................................................7 3.6 MEASURING INSTRUMENT SETUP.........................................................................................................................................7 3.7 RADIATED MEASUREMENT PHOTOS.....................................................................................................................................8 4 CONDUCTED EMISSION MEASUREMENT.........................................................................................................................9 4.1 DESCRIPTION.............................................................................................................................................................................9 5 ANTENNA REQUIREMENT....................................................................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................................10 5.2 ANTENNA CONSTRUCTION...................................................................................................................................................10 6 EMISSION BAND MEASUREMENT..............................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-01-077-03FCC ID.: PCY00RT10049 3.3 Test Data A. Fundamental Frequency Operation Mode: TX with audio signal inputed from a cellular phone Operation Frequency: 49.840 MHz Test Date : Feb. 25, 2002Temperature: 23 • Humidity: 65 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 49.840 • 40.0 • *** • 42.0 • *** • -14.1 • 37.9 • *** • 100.0 • 80.0 • -42.1 • 185 • 3.7 Note : 1. Item of margin shown in above table refer to average limit. 2. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 3. Remark “---” means that the emissions level is too low to be measured. 4. Item “Margin” referred to Average limit while there is only peak result. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB. ETC Report No.:ET91R-01-077-03FCC ID.: PCY00RT10049 B. Harmonic & Spurious Operation Mode : TX with audio signal inputed from a cellular phone Test Date : Feb. 25, 2002Temperature: 23 • Humidity: 65 % Frequency (MHz) Meter Reading (dBuV) H V Corrected Factor (dB) Result @3m (dBuV/m) Limit @3m (dBuV/m) Margin (dB) Table Degree (Deg.) Ant. High (m) 99.680 • --- • --- • -13.9 • --- • 43.5 • --- • --- • --- 149.520 • --- • --- • -10.0 • --- • 43.5 • --- • --- • --- 199.360 • --- • --- • -7.2 • --- • 43.5 • --- • --- • --- 249.200 • --- • --- • -3.9 • --- • 46.0 • --- • --- • --- 299.040 • --- • --- • -0.9 • ---46.0 • --- • --- • --- 348.880 • --- • --- • -10.3 • ---46.0 • --- • --- • --- 398.720 • --- • --- • -6.4 • ---46.0 • --- • --- • --- 448.560 • --- • --- • -5.6 • ---46.0 • --- • --- • --- 498.400 • --- • --- • -4.4 • ---46.0 • --- • --- • --- Note : 1. Remark “---” means that the emissions level is too low to be measured. 2. Item “Margin” referred to Average limit while there is only peak result. 3. Remark “*” means that the emission frequency is produced from local oscillator. 4. The expanded uncertainty of the radiated emission tests is 3.53 dB.

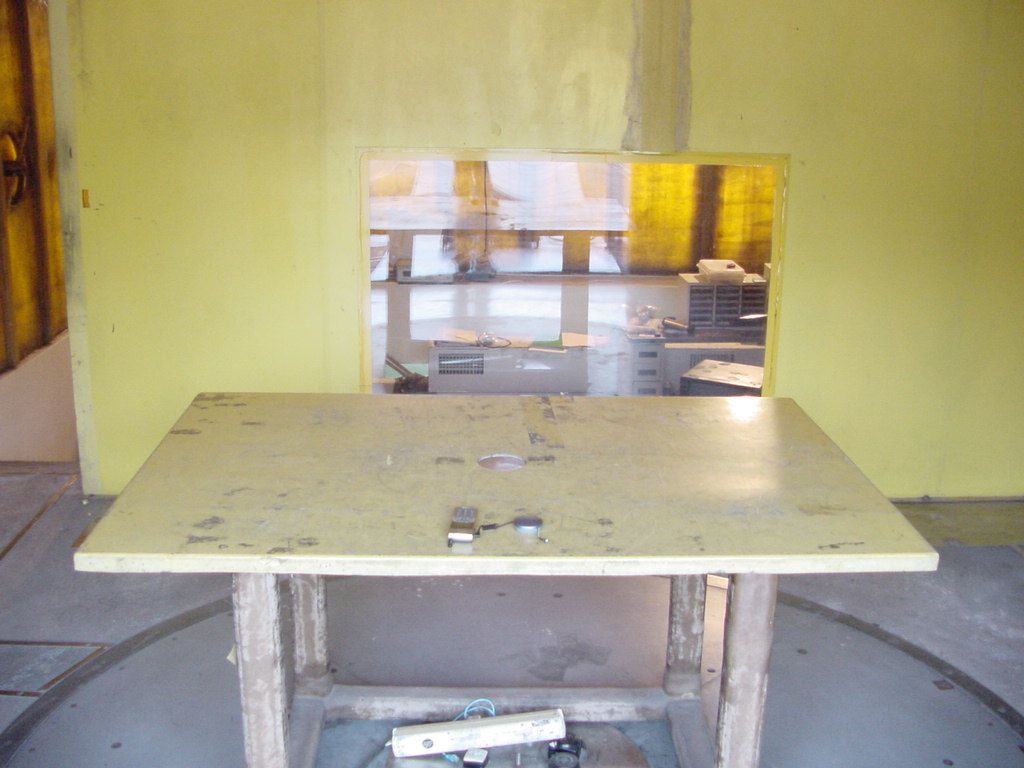

ETC Report No.:ET91R-01-077-03 FCC ID.: PCY00RT10049 Rev. No 1.0 Radiated Measurement Photos
