PD5-HB97802.11 bgn RF Module

HB97 Product Specification 802.11n/g 2.4GHz (2x2) WLAN PCI Express MiniCard Adapter Note: This document contains proprietary technical information in which is the property of the Delta Networks Inc. and shall not be disclosed to others in whole or in part, reproduced, copied, or used as the basis for design, manufacturing, or sale of apparatus without written permission of Delta Networks Inc. Delta Networks Inc. ii Tab l e O f Con t en ts 1. REVISION HISTORY...................................................................................................................................................... 1 1.1. DOCUMENT REVISION HISTORY................................................................................................................................... 1 2. GENERAL DESCRIPTION ............................................................................................................................................ 2 2.1. FEATURES.................................................................................................................................................................... 2 2.2. MECHANICAL DESIGN.................................................................................................................................................. 3 2.3. IC SOLUTION............................................................................................................................................................... 4 2.4. VID, DID, SVID AND SPID ASSIGNMENT................................................................................................................... 5 3. TECHNICAL SPECIFICATIONS .................................................................................................................................. 6 Delta Networks Inc. 1 1. Revision History Revision Date Remark 1.00 2011/1/4 ƒ Product proposal 1.1. Document Revision History Revision Date Remark 1.00 2011/1/4 ƒ Preliminary product proposal 1.01 2011/9/27 ƒ Change Tx measured output power in peak value Delta Networks Inc. 2 2. General Description HB97 is compliant with miniPCI Express v1.1 standard Adapter. The Atheros 802.11g/n technique delivers up to 54Mbps (802.11g) and IEEE802.11n data rate support the channel bandwidth support 20MHz for 150Mbps and 40MHz channel bandwidth for 300Mbps ( 2Tx2R) and support legacy WLAN standard IEEE802.11b, IEEE802.11g data rate, it use 2 sets of 2.4Ghz Tx / Rx antenna’s combinations and applied Transmit Beamforming and Receive combining to focus energy and CDD, MRC to improve 802.11n performance. The IEEE802.11g is OFDM modulation and CCK modulation compliant with IEEE802.11b standard. It supports the Quality of Service for 802.11e. (WMM) and also 802.11e burst mode feature to enable robust wireless streaming of audio and video content while remaining compatible with any 802.11b/g device and with high throughput link 2.1. Features ƒ Form Factor – a compatible with PCI Express v1.1 MiniCard Adapter ƒ Support for IEEE 802.11g standard, IEEE802.11b and IEEE802.11n compliant ƒ Support 802.11e (WMM), 802.11h, 802.11j and ƒ Security support for WEP, TKIP and AES and IEEE802.11i ƒ Data rate 802.11b/g: 1,2,5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54-Mbps 802.11n rate at 300Mbps for 40MHz and 150Mbps for 20MHz ƒ Drivers - Microsoft ®Windows® XP, Vista and Win7 Delta Networks Inc. 3 2.2. Mechanical Design The Dimension : L x W (mm): 30mm x27mm Delta Networks Inc. 4 2.3. IC Solution The IC solution for HB97: P/N Functionality Description AR9287 A powerful IEEE11g/n MAC/BBP for PCI-e card interface AR9287 is single chip solution for 2.4GHz 802.11n-ready ; it integrates a multiple protocol MAC, Baseband Processor and ADC/DAC converters with 2x2 MIMO radio transceiver including LNA, PA, and RF Switch and PCIe v1.1 interface; AR9287 imlements half duplex OFDM, CCK and DSSS baseband processing supporting up to 130Mbps for 20MHz and 300Mbps for 40MHz channel operations respectively and IEEE802.11b/g data rates.it also provide QoS and CDD, MRC coexistence with Bluetooth. The package is LPCC (76-pin 9x9 mm) Delta Networks Inc. 5 2.4. VID, DID, SVID and SPID assignment The SVID and SPID may provide from customer. 1. V endor ID (VID): use Chip’s vendor ID = 0x168C 2. D evice ID (DID): use Chip’s device ID = 0x4013 3. S ub-Vendor ID (SVID): use manufacture’s ID = 0x?? 4. S ub-Product ID (SPID): use manufacture’s product ID = 0x?? Delta Networks Inc. 6 3. Technical Specifications HB97 Specification Specification Wireless LAN PC Card WLAN Standard IEEE802.11b, IEEE 802.11g; IEEE802.11e, IEEE802.11h; IEEE802.11i; IEEE802.11n standard Data Rate IEEE802.11b/g: 1/2/5.5/6/9/11/12/18/24/36/48 and 54Mbps And 802.11n data rate up to 300Mbps ( 40MHz); 130Mbps ( 20MHz) Wireless Medium Complementary code keying (CCK) and Orthogonal Frequency Division Multiplexing (OFDM); MIMO-OFDM Frequency Band 2.4GHzband:ISM band 2.412 –2.472, 2.484GHz Modulation Technique OFDM: BPSK@6/9 Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps 64-QAM@48/54Mbps DSSS: DBPSK @1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM and 64QAM Wired Equivalent Privacy 64-bit, 128-bit data encryption Number of non-overlapping Channels 802.11g: US and EU and Japan 3 channels 802.11b: US and EU and Japan 3 channels 802.11n at 40MHz for 2.4GHz are 2422MHz, 2452MHz channels Antenna 2X Tx and 2X Rx Delta Networks Inc. 7 HB97 specification (continued) Specification Wireless LAN PC Card Receive Sensitivity 11b@CH6 -86dBm@11Mbps 11g@CH6: -74dBm@54Mbps; CH13: -74dBm@54Mbps 11n-20MHz BW: 2437MHz for MCS7: -70dBm 2437MHz for MCS15: -68dBm 11n-40MHz BW: 2422MHz for MCS7: -68dBm 2422MHz for MCS15: -65dBm Max output power 11b 19.9dBm@1Mbps 11g 24dBm@6Mbps 11n-20MHz BW : MCS0: 23.8dBm 11n-40MHz BW : MCS0: 22.7dBm Power consumption Measured for 2xTx / 2x Rx: For TX: @ HT40: MCS0 1947mW@653mA Drivers Windows 2000 and XP Security AES Certification Prescan the module for FCC Part 15 (North America) Compliant Form Factor PCI E…

Text truncated - open the document above for the full version.

FCC ID: PD5-HB97 Report No.: RF110916C19 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch September 29, 2011 Dear Application Examiner, Delta Networks, Inc., It’s an 802.11 bgn RF Module Module. FCC ID: PD5-HB97 would like to have your authorization as a modular approval. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9287. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is DCDC-PWM-ADJ. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PD5-HB97 Report No.: RF110916C19 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

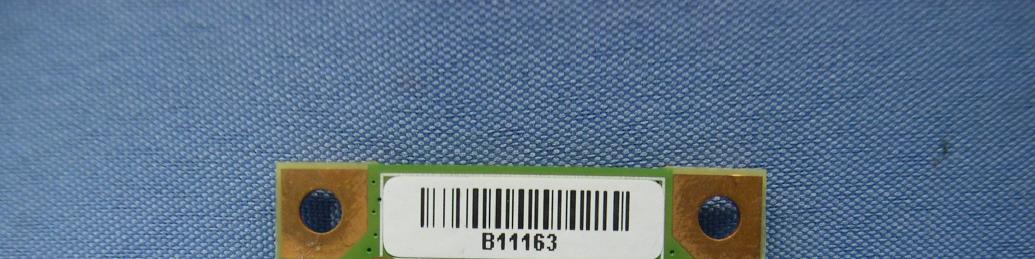

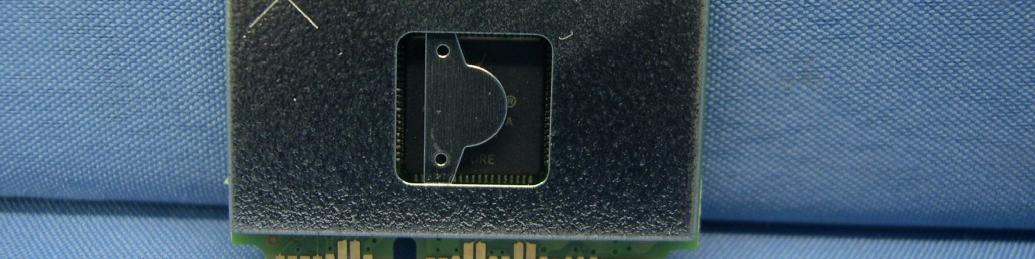

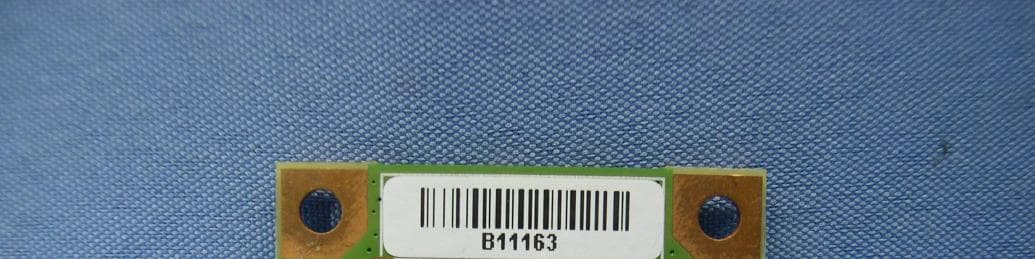

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Label here

Page 5

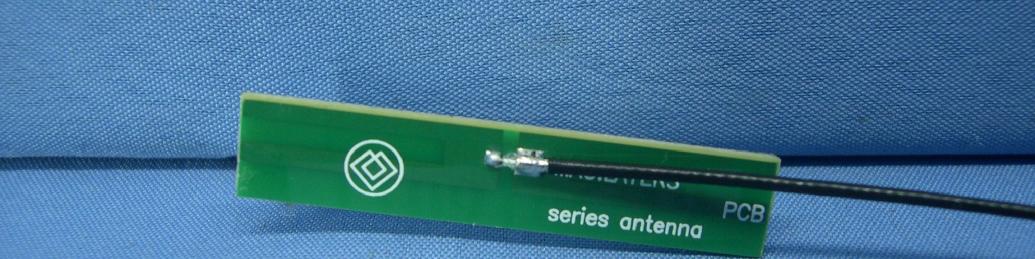

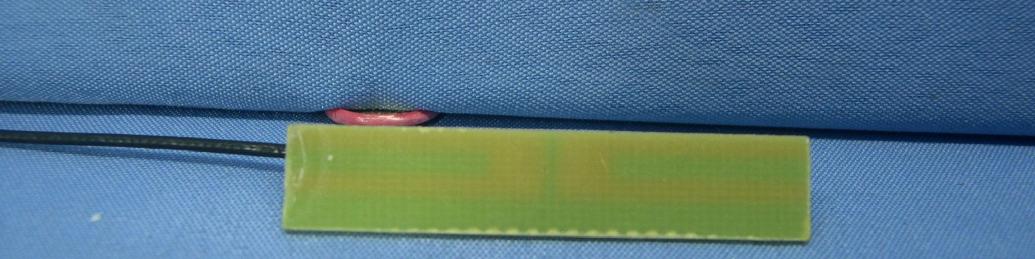

FCC ID: PD5-HB97 Report No.: RF110916C19 Operational Description This device is an 802.11 bgn RF Module, which operates in the 2.4GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 3.3Vdc from host equipment. The antenna is Printed antenna with UFL antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA110916C19 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110916C19 MODEL NO.: HB97 FCC ID: PD5-HB97 RECEIVED: Sep. 16, 2011 TESTED: Sep. 21, 2011 ISSUED: Sep. 27, 2011 APPLICANT: Delta Networks, Inc. ADDRESS: 252,Shang Ying Road,Kuei San Taoyuan Shien 333,Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 7 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA110916C19 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION..............................................................................................4 2. RF EXPOSURE LIMIT.....................................................................................5 3. MPE CALCULATION FORMULA.....................................................................5 4. CLASSIFICATION............................................................................................5 5. ANTENNA GAIN..............................................................................................6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...................7 Report No.: SA110916C19 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110916C19 Original release Sep. 27, 2011 Report No.: SA110916C19 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 802.11 bgn RF Module MODEL: HB97 BRAND: DNI APPLICANT: Delta Networks, Inc. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Sep. 21, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: HB97) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Sep. 27, 2011 (Elsie Hsu, Specialist) APPROVED BY : , DATE: Sep. 27, 2011 (May Chen, Deputy Manager ) Report No.: SA110916C19 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110916C19 Report Format Version 4.0.0 6 5. ANTENNA GAIN There are two antennas provided to this EUT, please refer to the following table: Transmitter Circuit Peak Gain (dBi) (Include cable loss) Antenna Type Connecter Type Chain (0) 2.84 printed UFL Chain (1) 2.84 printed UFL Report No.: SA110916C19 Report Format Version 4.0.0 7 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 98.1 5.8 20 0.074 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.8 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 250.9 5.8 20 0.190 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.8 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 240.5 2.84 20 0.092 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 185.1 2.84 20 0.071 1.00 --- END ---
