PD5LMWA800RAWireless 11g PCI Card

User Manual F5D7000 Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL United Ki ngdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands Tel: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Tel: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 P74216 © 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. belkin.com 54g Wireless DesktopNetwork Card Share your broadband Internet connection and files TABLE OF CONTENTS 1 INTRODUCTION Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Knowing your Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Software and Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Installing the Card on your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Finishing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Connecting to your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . .14Uninstalling the Software and Drivers . . . . . . . . . . . . . . . . . . . . . . . .14 Using the Belkin Wireless LAN Configuration Utility . . . . . . . . . . . . . . . . . .15 The Wireless Networks Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21The Link Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22The Site Survey Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Thank you for purchasing the Belkin 54g Wireless Desktop Network Card (theCard). Now you can take advantage of this great new technology and gain thefreedom you need around the home or office without using cables. The WirelessDesktop Network Card works like a conventional network card, but without thewires. The easy installation and setup will have you networking wirelessly inminutes. Please be sure to read through this manual completely to be sure thatyou are getting the most out of your Wireless Desktop Network Card. OVERVIEW Applications and Advantages • Wireless connection around the home or office Offers the freedom of networking without cables. • Connection rates of up to 54Mbps Provides immediate, higher-speed wireless connectivity at home, work, and hotspot locations without compromising the use of existing 802.11b products. • Compatibility with 802.11b products 54g wireless LAN solutions are backward-compatible with existing Wi-Fi (IEEE802.11b) products and with other products that display the 54g mark. • Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areaswhere wiring is difficult to install. • Frequently changing environments Adapts easily in offices or environments that frequently rearrange or change locations. • Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, andconstructions sites, which need networks on a short-term basis; alsocompanies who need additional workstations for a peak activity period. • SOHO (Small Office/Home Office) networking needs Provides the easy and quick, small network installation SOHO users need. OVERVIEW 2 FeaturesThe Card complies with the IEEE 802.11b standard in order to communicate withother 802.11b-compliant wireless devices at 11Mbps as well as other 54gproducts at 54Mbps that have the 54g™ badge on the package.54g products run at speeds of up to 54Mbps and operate on the same 2.4GHzfrequency band as 802.11b Wi-Fi products.• 2.4GHz ISM (Industrial, Science, and Medical) band operation• Integrated easy-to-use Wireless Configuration Utility• Wireless interface compliance with the IEEE 802.11b standard and 54g products • PCI interface, for operation in virtually any desktop computer• 64 or 128-bit Wireless (WEP) Encryption• Wireless access to networked resources• Support for both Infrastructure and Ad-Hoc (peer-to-peer) networking modes• Data rate of up to 54Mbps o Supports 11, 5.5, 2 or 1Mbps rates (802.11b)o Supports 54, 48, 36, 24, 18, 12, 9, or 6Mbps rates (54g) • Easy installation and use• External antenna• LED power and network link indicators 3 KNOWING YOUR CARD (a) Power LED When the Card receives power, this light will be on. (b) Link LED When the Card has a link to a wireless network, the light will be solid.When not linked to a wireless network, the light will slowly flash. (c) Card Connector This is the side of the Card that fits into the PCMCIA slot of your laptop (d) Antenna…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless 11Q PCI Card MODEL NO. F5D70QO TRADE NAME: BELKIN . IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGf'IETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPE:RATION IS SUBJECT TO THE FOllOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE Af\ID, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVEC, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOllOWING lOCAL MANUFACTURER/IMPORTER IS RESPOI-JSIBlE FOR THIS DECLARATION: Belkin Corporation " (COMPANY NAME) 501 West Walnut Street Compton. CA 90220 . (COMPANY ADDRESS) TEL310 604-2478FAX310631-3629 Michael Maher Enaineerina Service Manaaer (NAME) (TITLE) ~\-<~% <.~ ~()'-~J.J\, y- "3-0~ . (SIGNATURE) (DATE)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 24, 2004 RE: Delta Networks, Inc FCC ID: PD5LMWA800RA I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The Block Diagram does not meet the requirements of 2.1033(b)(5). In fact, when I compare it to the Schematics, I cannot correlate the two documents. Kindly review. 2.) The RF Pout shown on page 41 of the Test Report does not appear to be measured values. These values shown are very good – too good. I do not believe that all channels showed exactly the same Pout across all three channels in both CCK and OFDM modes. FCC regulations require the use of measured power values and not rated power. This measured power should be shown in the Test Report and on Form 731. Please provide revised Test Report and Form 731. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

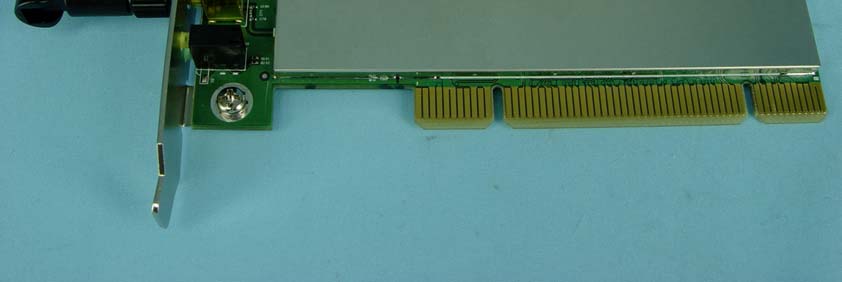

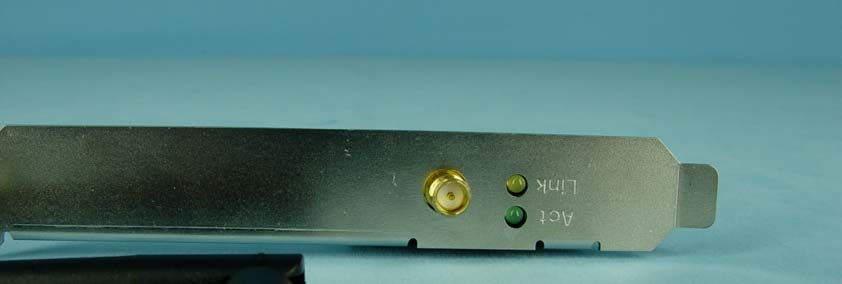

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

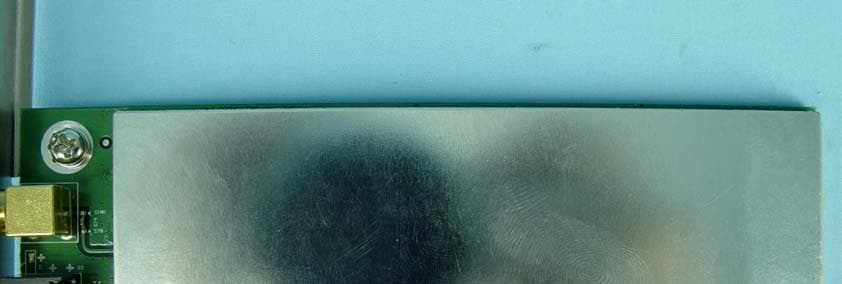

Page 3 Page 4 Page 5 Page 6

FCC ID: PD5LMWA800RA Report No.RF930802L11 Operational Description This device is a Wireless 11g PCI Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. Antenna is Dipole antenna with Reverse-SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: PD5LMWA800RA Report No: SA930802L11 1 RF EXPOSURE REPORT REPORT NO.: SA930802L11 MODEL NO.: F5D7000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Delta Networks INC. ADDRESS: 252,Shang Ying Road,Kuei San Taoyuan Shien 333,Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PD5LMWA800RA Report No: SA930802L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PD5LMWA800RA Report No: SA930802L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PD5LMWA800RA Report No: SA930802L11 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.8dBi or 1.514 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.3130.0201.0 6243763.0960.0191.0 11246264.2690.0191.0 For 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.1370.0101.0 6243730.9030.0091.0 11 2462 32.509 0.010 1.0

FCC ID: PD5LMWA800RA Report No.: RF930802L111Issued: Aug. 12, 2004 FCC TEST REPORT REPORT NO.: RF930802L11 MODEL NO.: F5D7000 RECEIVED: Aug. 02, 2004 TESTED: Aug. 02 ~ 09, 2004 APPLICANT: Delta Networks INC. ADDRESS: 252,Shang Ying Road,Kuei San Taoyuan Shien 333,Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: PD5LMWA800RA Report No.: RF930802L112Issued: Aug. 12, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 4TEST TYPES AND RESULTS ...................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................9 4.1.2TEST INSTRUMENTS...............................................................................................9 4.1.3TEST PROCEDURES .............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ...................................................................10 4.1.5TEST SETUP........................................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ............................................................................ 11 4.1.7TEST RESULTS ......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...............................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................18 4.2.2TEST INSTRUMENTS.............................................................................................19 4.2.3TEST PROCEDURES .............................................................................................20 4.2.4DEVIATION FROM TEST STANDARD ...................................................................20 4.2.5TEST SETUP...........................................................................................................21 4.2.6EUT OPERATING CONDITIONS ............................................................................21 4.2.7TEST RESULTS ......................................................................................................22 4.36dB BANDWIDTH MEASUREMENT.......................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................29 4.3.2TEST INSTRUMENTS.............................................................................................29 4.3.3TEST PROCEDURE................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD ...................................................................30 4.3.5TEST SETUP...........................................................................................................30 4.3.6EUT OPERATING CONDITIONS ............................................................................30 4.3.7TEST RESULTS ......................................................................................................31 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................39 FCC ID: PD5LMWA800RA Report No.: RF930802L113Issued: Aug. 12, 2004 4.4.2TEST INSTRUMENTS.............................................................................................39 4.4.3TEST PROCEDURES .............................................................................................40 4.4.4DEVIATION FROM TEST STANDARD ...................................................................40 4.4.5TEST SETUP...........................................................................................................40 4.4.6EUT OPERATING CONDITIONS ............................................................................40 4.4.7TEST RESULTS ......................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...............................42 4.5.2TEST INSTRUMENTS.............................................................................................42 4.5.3TEST PROCEDURE................................................................................................43 4.5.4DEVIATION FROM TEST STANDARD .....................…

Text truncated - open the document above for the full version.

FCC ID: PD5LMWA800RA Report No.: RF930802L1163Issued: Aug. 12, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PD5LMWA800RA Report No.: RF930802L1164Issued: Aug. 12, 2004
