PD5LMWB200R802.11b Wireless LAN PC Card

802.11b Wireless LAN PC Card Reference Guide Federal Communication Commissio n Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of th e FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television receptio n, which can be determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outle t on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of th e FCC Rules. Operation is subject to the following two conditions: (1) This device ma y not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must fo llow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 802.11b Wireless LAN PC Card iii TABLE OF CONTENT Introduction ......................................................................................... 1 Connect the 802.11b Wireless LAN PC Card to Your Notebook PC... 2 Installation Steps.............................................................................. 2 1. Driver and Utility Installa tion ................... ................... ............ 2 2. Hardware installation ...... ........................... .................. ............ 8 Configure the Configuration Utility................................................... 12 STATUS ......................................................................................... 12 CONFIGURATION ....................................................................... 13 SECURITY.................................................................................... 15 SITE SURVEY .............................................................................. 16 PROFILE ....................................................................................... 17 STATISTICS.................................................................................. 18 ABOUT ......................................................................................... 19 802.11b Wireless LAN PC Card 1 Introduction The 802.11b Wireless LAN PC Card helps you create a wireless network for sharing your broadband cable or DLS Internet access among multiple PCs in and around your home or office. It is designed for notebook computers running Microsoft Windows 98SE, Millennium, 2000 and XP. It is a 32-bit CardBus Card compatible and works in any available CardBus slot. Its auto-sensing capability allows packet transfer in 11Mbps for maximum throughput, or speed reduction to the lower 1Mbps speed for distance or working in a noisy environment. Features ƒ 11 Mbps High-Speed Transfer Rate ƒ Interoperable with IEEE 802.11b(DSSS) 2.4GHz-compliant Equipment ƒ Plug-and-Play Operation Provides Easy Setup ƒ Utilizes Realtek RTL8180 and Philips RF plus PA ƒ Advanced Power Management Features Conserve Valuable Notebook PC Battery Life, on the sleep mode for lowest power consumption ƒ Direct Sequence Spread Spectrum Compatible to Prevent Lost Connections ƒ Rugged Metal Design with Integrated Antenna ƒ Wired Equivalent Privacy (WEP) 64/128-bit data encryption ƒ Driver Supports Windows 98SE, Millennium, 2000 and XP 802.11b Wireless LAN PC Card 2 Connect the 802.11b Wire less LAN PC Card to Your Notebook PC Installation Steps 1. Driver and Utility Installation „ Insert the driver CD into your CD drive and execute the SETUP under Windows 98SE, Millennium, 2000 and XP 1-1 Under Windows 98SE and Millennium „ Click the Next button to continue „ Make sure the Accessories in the existing folder is selected. Click the Next button to continue. 802.11b Wireless LAN PC Card 3 „ Windows is installing the utility and driver now. „ Windows has now completed installing the driver and utility. Click the Finish button to close the InstallShield Wizard. 802.11b Wireless LAN PC Card 4 1-2 Under Windows 2000 „ Click the Next button to continue „ Make sure the Accessories in the existing folder is selected. Click the Next button to continue. 802.11b Wireless LAN PC Card 5 „ The “Digital Signature Not Found” screen is a notification by Windows 2000. However, this does not mean that there is a problem. Click the Ye s button to continue. „ Windows is installing the utility and driver now. 802.11b Wireless LAN PC Card 6 „ Windows has now completed installing the driver and utility. Click the Finish button to close the InstallShield Wizard. 1-3 Under Windows XP „ Click the Next button to continue. 802.11b Wireless LAN PC Card 7 „ Make sure the Accessories in the existing folder is selected. Click the Next button to continue. „ Windows will notify you that it has not passed Windows Logo testing to verify its compatibility with Whistler. Click the Continue Anyway button to continue. 802.11b Wireless LAN PC Card 8 „ Windows is in…

Text truncated - open the document above for the full version.

Delta Network, Inc. 252,Shang Ying Road,Kuei San Taoyuan Shien 333, Taiwan, R.O.C. TEL.:+886+2-8797-2088 FAX:+886+2-2659-1462 FCC ID: PD5LMWB200R Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely ------------------------------------------- Alex Shen / Engineer Delta Networks, Inc. TEL.:+886+2-8797-2088 FAX:+886+2-2659-1462 e-mail: [email protected]

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 802.11b Wireless LAN PC Card (Receiver Part) MODEL NO.: LM-WB200R TRADE NAME: DNI IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920423R01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Delta Network, Inc. To Be Determined. Address: 252,Shang Ying Road, Kuei San Taoyuan Shien 333,Taiwan, R.O.C. Contact Person: Alex Shen Title: Engineer Tel/Fax: TEL.:+886-2-8797-2088 FAX:+886-2-2659-1462

Delta Network, Inc. 252,Shang Ying Road,Kuei San Taoyuan Shien 333, Taiwan, R.O.C. TEL.:+886+2-8797-2088 FAX:+886+2-2659-1462 POWER OF ATTORNEY To whom it may concern: We, the undersigned, Delta Networks, Inc, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------------- Alex Shen / Engineer Delta Networks, Inc. TEL.:+886+2-8797-2088 FAX:+886+2-2659-1462 e-mail: [email protected]

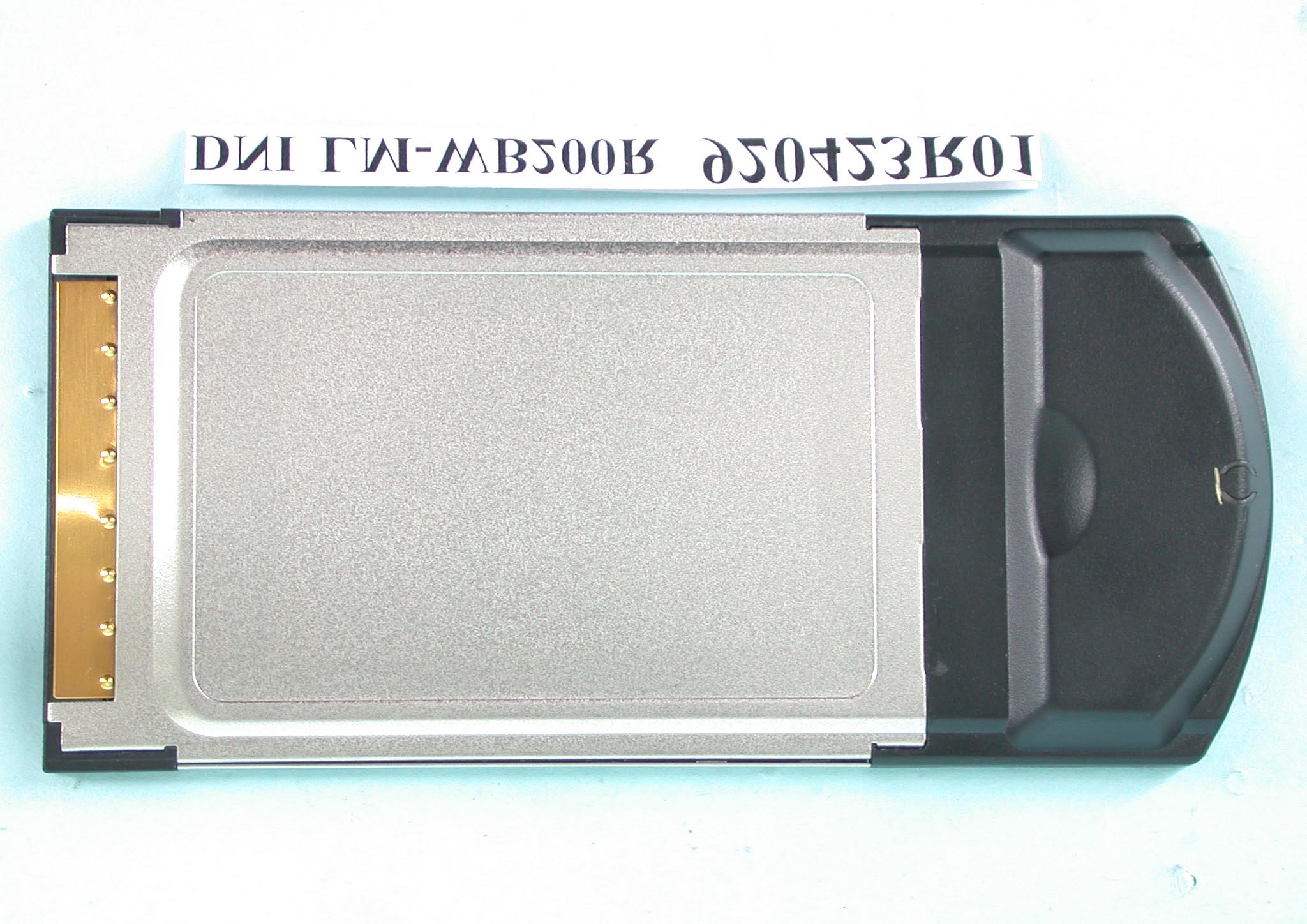

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

802.11b Wireless LAN PC Card This device complies with Part 15 of FCC Rules. Operation is Subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. MAC ADDRESS : SERIAL NO : FCC ID : PD5LMWB200R 63mmx39.5mm

Page 3 Page 4

FCC ID: PD5LMWB200R ADT No.920423R01 Operational Description The transmitter of the EUT (802.11b Wireless LAN PC Card) is powered by host equipment. The antenna type is printed antenna without antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PD5LMWB200R Report No.: SA920423R01 1 Issued: May 25 th 2003 SAR TEST REPORT REPORT NO.: SA920423R01 MODEL NO.:LM-WB200R RECEIVED: May 21 2003 TESTED: May 25 2003 APPLICANT:Delta Networks, Inc. ADDRESS:252,Shang Ying Road,Kuei San Taoyuan Shien 333,Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 1 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: PD5LMWB200R Report No.: SA920423R01 2 Issued: May 25 th 2003 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION AND PROBE SCAN 8 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ............................................... 13 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 14 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 18 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 20 6.SYSTEM VALIDATION ............................................................................................................21 6.1TEST EQUIPMENT ................................................................................................................. 21 6.2TEST PROCEDURE................................................................................................................ 21 6.3VALIDATION RESULT............................................................................................................. 23 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 25 7.1PROBE CALIBRATION UNCERTAINTY ................................................................................. 25 7.2ISOTROPY UNCERTAINTY .................................................................................................... 25 7.3BOUNDARY EFFECT UNCERTAINTY ................................................................................... 26 7.4PROBE LINEARITY UNCERTAINTY ...................................................................................... 26 7.5READOUT ELECTRONICS UNCERTAINTY .......................................................................... 26 7.6RESPONSE TIME UNCERTAINTY......................................................................................... 27 7.7INTEGRATION TIME UNCERTAINTY .................................................................................... 28 7.8PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 28 7.9PROBE POSITIONING............................................................................................................29 7.10 PHANTOM UNCERTAINTY..................................................................................................... 29 7.11 DASY4 UNCERTAINTY BUDGET........................................................................................... 30 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: PD5LMWB200R Report No.: SA920423R01 3 Issued: May 25 th 2003 1. CERTIFICATION PRODUCT :802.11b Wireless LAN PC Card MODEL NO. : LM-WB200R BRAND NAME : DNI APPLICANT : Delta Networks, Inc. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 25 th May 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: PD5LMWB200R Report No.: SA920423R01 4 Issued: May 25 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT802.11b Wireless LAN PC Card MODEL NO.LM-WB200R POWER SUPPLY3.3VDC powered by host equipment CLASSIFICATIONPortable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TEC…

Text truncated - open the document above for the full version.

FCC ID: PD5LMWB200R Report No.: RF920423R01 1 Issued: May 26, 2003 FCC TEST REPORT REPORT NO.: RF920423R01 MODEL NO.: LM-WB200R RECEIVED: Apr. 23, 2003 TESTED: Apr. 26, 2003 ~ May 15, 2003 APPLICANT:Delta Networks, Inc. ADDRESS:252, Shang Ying Road, Kuei San Taoyuan Shien 333, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PD5LMWB200R Report No.: RF920423R01 2 Issued: May 26, 2003 Table of Contents 1CERTIFICATION ..................................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................................ 5 3GENERAL INFORMATION ..................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 6 3.2DESCRIPTION OF TEST MODES ......................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 7 3.4DESCRIPTION OF SUPPORT UNITS ................................................................................... 8 4TEST TYPES AND RESULTS ................................................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT ......................................................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................... 9 4.1.2TEST INSTRUMENTS ............................................................................................................ 9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD................................................................................. 10 4.1.5TEST SETUP .........................................................................................................................11 4.1.6EUT OPERATING CONDITIONS ..........................................................................................11 4.1.7TEST RESULT ...................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT............................................................................. 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 18 4.2.2TEST INSTRUMENTS ..........................................................................................................19 4.2.3TEST PROCEDURES...........................................................................................................20 4.2.4DEVIATION FROM TEST STANDARD................................................................................. 20 4.2.5TEST SETUP ........................................................................................................................ 21 4.2.6EUT OPERATING CONDITIONS ......................................................................................... 21 4.2.7TEST RESULT ...................................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .................................................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................. 26 4.3.2TEST INSTRUMENTS ..........................................................................................................26 4.3.3TEST PROCEDURE .............................................................................................................27 4.3.4DEVIATION FROM TEST STANDARD................................................................................. 27 4.3.5TEST SETUP ........................................................................................................................ 27 4.3.6EUT OPERATING CONDITIONS ......................................................................................... 27 4.3.7TEST RESULT ...................................................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER.................................................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................... 32 4.4.2TEST INSTRUMENTS ..........................................................................................................32 4.4.3TEST PROCEDURES...........................................................................................................33 4.4.4DEVIATION FROM TEST STANDARD................................................................................. 33 4.4.5TEST SETUP ........................................................................................................................ 33 4.4.6EUT OPERATING CONDITIONS ......................................................................................... 33 4.4.7TEST RESULT ...................................................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT ............................................................... 35 4.5.1LIMITS OF POWE…

Text truncated - open the document above for the full version.

FCC ID: PD5LMWB200R Report No.: RF920423R01 46 Issued: May 26, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PD5LMWB200R Report No.: RF920423R01 47 Issued: May 26, 2003 RADIATED EMISSION TEST
